390-011

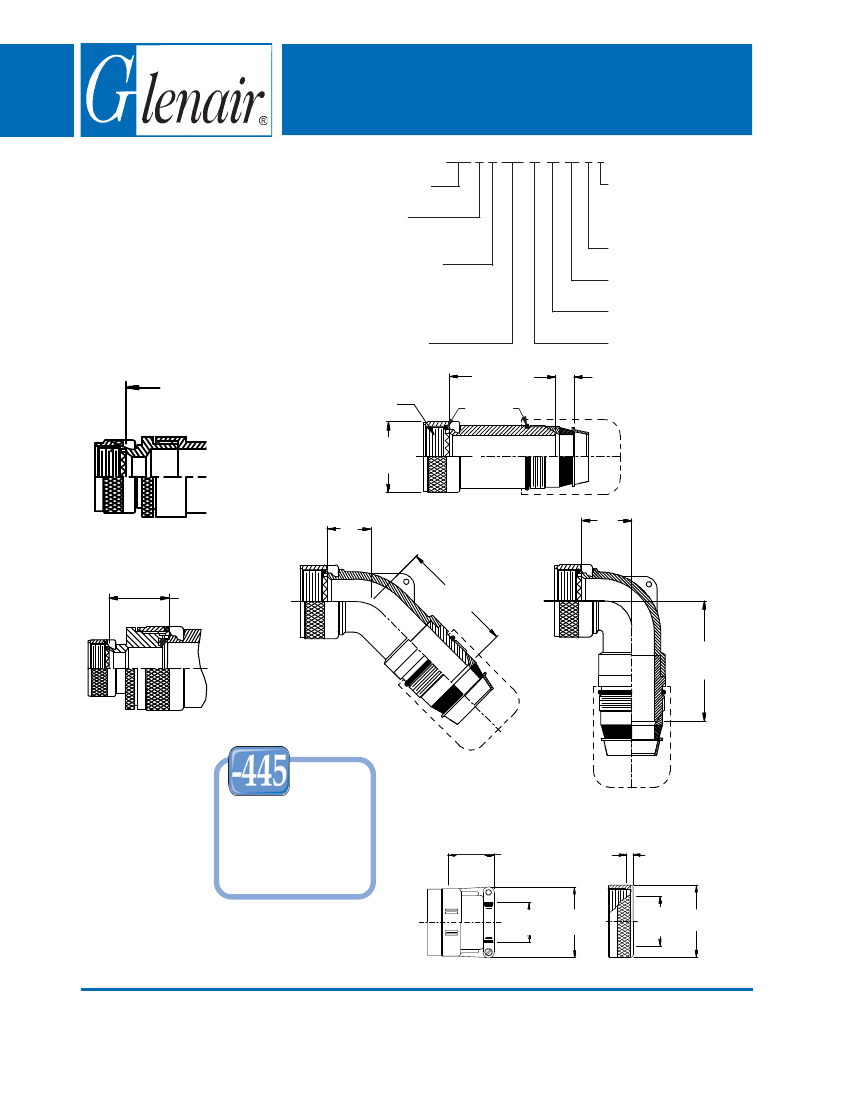

Splash-Proof EMI/RFI Cable Sealing Backshell
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
390 F S 011 M 16 05 L 6
39
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length *
A Thread
(Table I)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (L, G)
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
.312 (7.9)
Max
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
G
(Table III)
O-Rings
C Typ.
(Table I)
E
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
(Table III)
F (Table III)
H
(Table III)
STYLE 2
(45° & 90°
See Note 1)
Now Available
with the “NESTOR”
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE L
Light Duty
(Table IV)
.850 (21.6)
Max
STYLE G
Light Duty
(Table IV)
.072 (1.8)
Max
Cable
Range
K
Cable
Range
L
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 38
Light-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.520
.582
.645
.738
.926
.926
1.020
1.020
1.145
1.207
1.238
(13.2)
(14.8)
(16.4)
(18.7)
(23.5)
(23.5)
(25.9)
(25.9)
(29.1)
(30.7)
(31.4)
F
Max
1.748
1.808
1.898
2.008
2.198
2.198
2.348
2.348
2.398
2.498
2.588
(44.4)
(45.9)
(48.2)
(51.0)
(55.8)
(55.8)
(59.6)
(59.6)
(60.9)
(63.4)
(65.7)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.698 (43.1)
1.818 (46.2)
1.838 (46.7)
1.908 (48.5)
1.998 (50.7)
2.168 (55.1)
2.168 (55.1)
2.278 (57.9)
2.278 (57.9)
2.448 (62.2)
2.698 (68.5)
2.698 (68.5)
Dash
No.
01
02
03
04
05
06
07
08
09
10
K
Max
.781 (19.8)
.968 (24.6)
1.046 (26.6)
1.156 (29.4)
1.218 (30.9)
1.343 (34.1)
1.468 (37.3)
1.593 (40.5)
1.718 (43.6)
1.843 (46.8)
TABLE IV: CABLE ENTRY
Cable
L
Min
Max
.062 (1.6)
.593 (15.1)
.125 (3.2)
.718 (18.2)
.250 (6.4)
.843 (21.4)
.375 (9.5)
.968 (24.6)
.500 (12.7)
1.109 (28.2)
.625 (15.9)
1.218 (30.9)
.750 (19.1)
1.343 (34.1)
.875 (22.2)
1.468 (37.3)
1.593 (40.5) 1.000 (25.4)
1.718 (43.6) 1.125 (28.6)
Range
Max
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
5. Interface O-Ring not supplied with Connector Designator A.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 39
39
390-011
Splash-Proof EMI/RFI Cable Sealing Backshell
