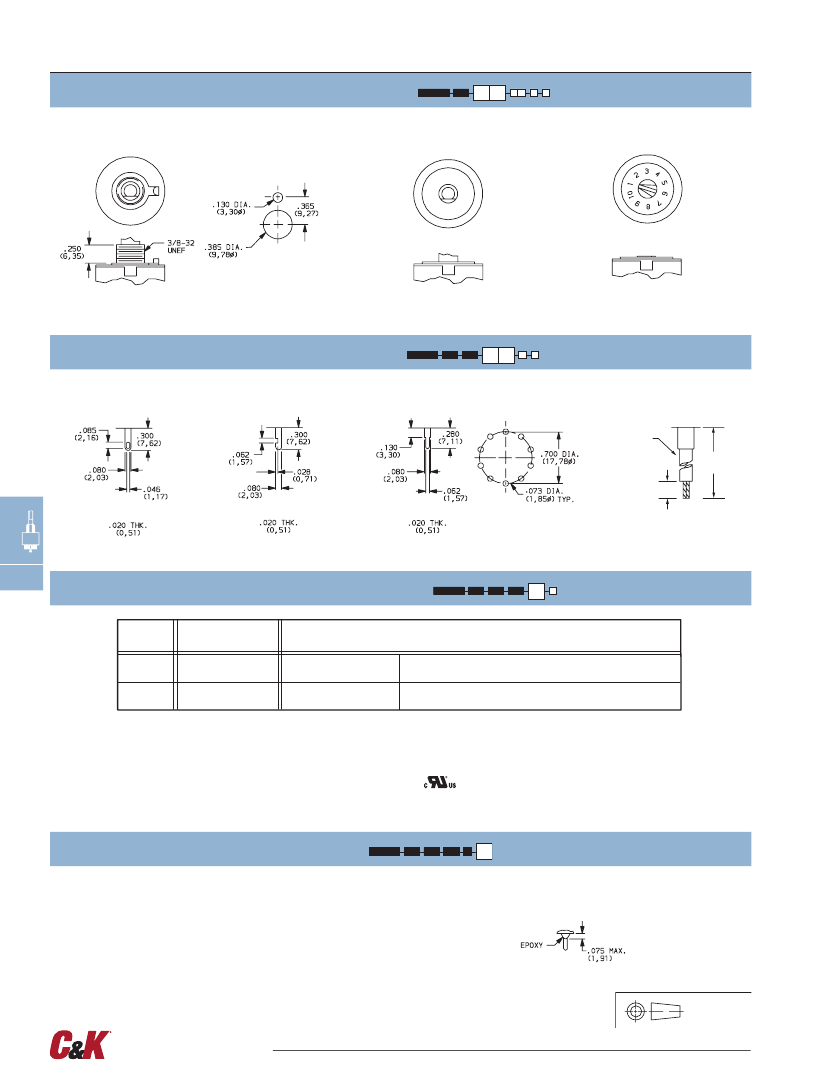

R Series
ROTA-SLIDE
®
Rotary Switches
Features/Benefits
•
Multi-pole and multi-position
•
Positive detent
•
Panel and PCB mounting
•
Enclosed
•
RoHS Compliant
Models Available
Typical Applications
•
Ceiling fans
•
Industrial equipment
•
Portable tools
Specifications
CONTACT RATING: Q contact material: 5 AMPS @ 125 V AC;
2.5 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC; 1/8 HP @ 125
and 250 VAC (UL/CSA).
See page K-20 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m Ω typ. initial @ 2-4 V DC,
100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109 Ω min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 36º-one contact models, 10 position max.; two contact
models, 5 position max.
OPERATING & STORAGE TEMPERATURE: -30ºC to 95ºC
Materials
HOUSING & BUSHING: 6/6 nylon (UL 94V-2).
ACTUATOR: 6/6 nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver plated.
See page K-20 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
MOUNTING NUT: Steel, zinc plated.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Custome Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-19 and K-20. For additional options not shown in catalog, consult Customer Service Center.
K
Rotary
Switch Function
R100
SP, 36° Index, 10 pos. no stops
R103
SP, 36° Index, 3 pos.
R104
SP, 36° Index, 4 pos.
R108
SP, 36° Index, 8 pos.
R203
DP, 36° Index, 3 pos.
R204
DP, 36° Index, 4 pos.
R205
DP, 36° Index, 5 pos.
Actuator
07
.500” high with .156” flat
05
.375” high with .156” flat
15
Screwdriver slot without bushing
Mounting Style
RR
3/8-32 threaded bushing
RN
PC without bushing
RS
PC without bushing
Terminations
03
Solder lug with hole
01
Solder lug with notch
02
PC Thru-hole
WC
Wire Lead
Contact Material
Q
Silver
B
Gold
Seal
NONE No
seal
E
Epoxy seal
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–18
www.ckswitches.com

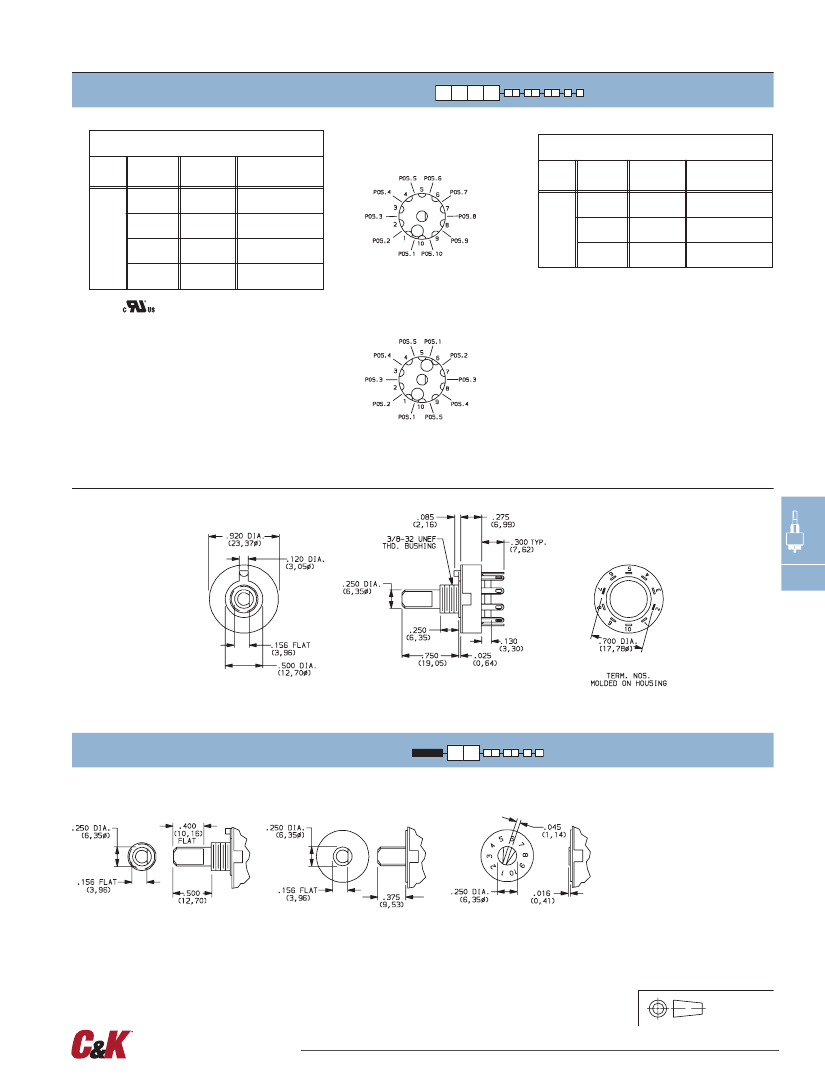

R Series
ROTA-SLIDE Rotary Switches
®
SWITCH FUNCTION
SP MODELS 36º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
10 Position
No Stops
3 Position
4 Position
8 Position
TERMINALS
All Terminals
10-1-2-3
10-1-2-3-4
10-1-2-3-4-5-6-7-8
SP MODELS 36º INDEXING
SCHEMATIC
DP MODELS 36º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
3 Position
4 Position
5 Position
TERMINALS
10-1-2-3,5-6-7-8
All Terminals
All Terminals
R100
R103
SP
R203
DP
R204
R205
R104
R108
All models
with all options when
ordered with ‘Q’ contact material.
DP MODELS 36º INDEXING
SCHEMATIC
NOTE:
Break-before-make contacts. Actuators and contacts are shown in position 1.
No common terminal is present. Switching function is provided by movable contacts
shorting adjacent pairs of stationary contacts.
K
Rotary
Part number show: R10007RR03Q
ACTUATOR
07
.50019” HIGH WITH .156” FLAT
05
.375”19 HIGH WITH .156” FLAT
15
SCREWDRIVER SLOT
Shown with ‘RR’ mounting style.
For mounting styles without bushing,
add .250 (6,35) to actuator length.
Shown with ‘RN’ mounting style.
Arrow on actuator marked red (std.).
Shown with ‘RS’ mounting style.
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–19
www.ckswitches.com
R Series
ROTA-SLIDE
®
Rotary Switches
MOUNTING STYLE
RR
3/8-32 THREADED BUSHING
PANEL MOUNTING
RN
PC WITHOUT BUSHING
RS
PC SCREWDRIVER SLOT WITHOUT BUSHING
Position numbers and characters
are molded on housing.
Mounting nut included (part number 175000100).
TERMINATIONS
03
SOLDER LUG WITH HOLE
01
SOLDER LUG WITH NOTCH
02
PC THRU-HOLE
PC MOUNTING
WC
WIRE LEAD
22 AWG
INSULATED
WIRE
.50
(12,7)
6.00
(152,4)
K
Rotary
OPTION
CODE
CONTACT MATERIAL
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
POWER
LOW LEVEL/DRY CIRCUIT
RATING
5 AMPS @ 125 V AC; 2.5 AMPS @ 250 V AC;
0.5 AMP @ 125 V DC (UL/CSA); 1/8 HP @ 125 and 250 VAC (UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.
1
2
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated. (Standard with all
termination options.)
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
All models
with all options when ordered with ‘Q’ contact material.
SEAL
NONE
NO SEAL
E
EPOXY SEAL
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–20
www.ckswitches.com
