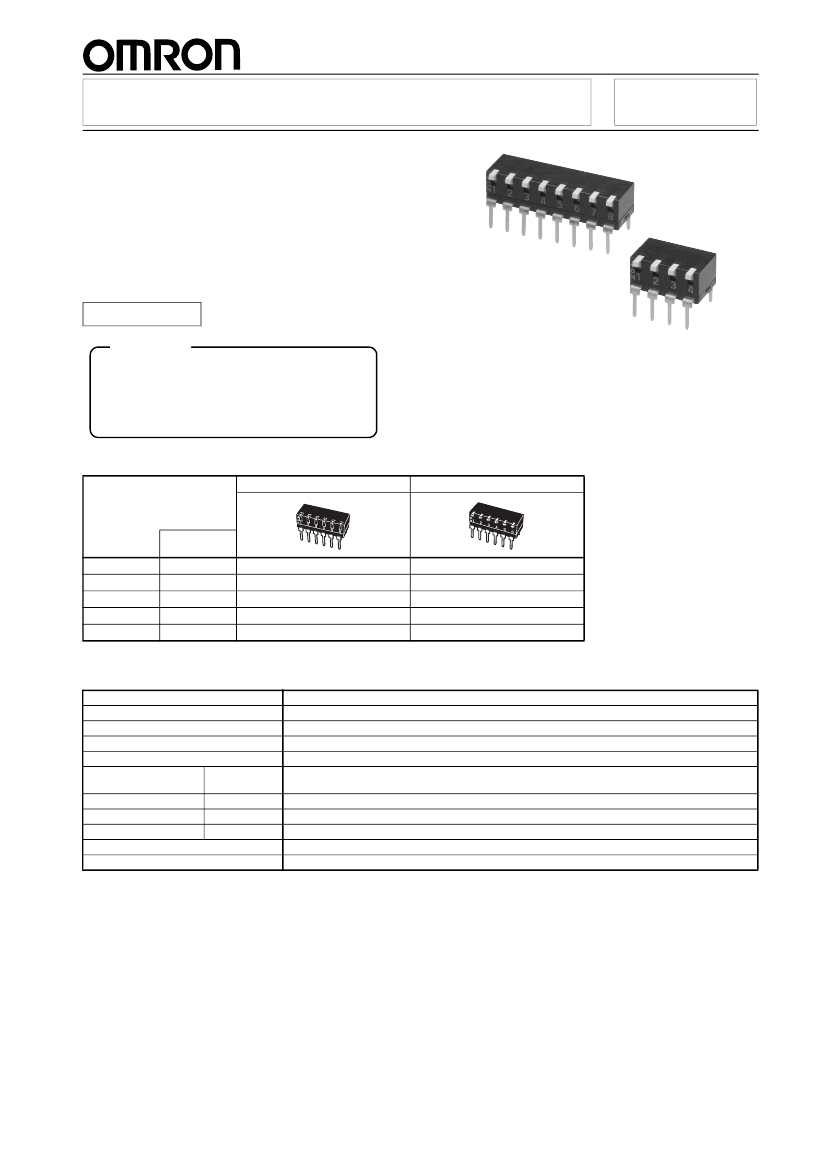

Piano DIP Switch
Low-profile Piano DIP Switches with a
Standard Pitch of 2.54 mm for Continuous
Mounting.
●
Low-profile design with a height of only 5 mm and
a 2.54-mm pitch for continuous mounting.
●
Models available with 2, 4, 6, 8, or 10 poles.
●
Gold-plated twin contacts with slide-type self-
cleaning mechanism for high reliability.
RoHS Compliant
Application
Mode setting of MPU
Modem
Controller of servo motor
Coin changer
Program controller
A6TR
■List
of Models
Type (color of actuator)
Short actuator (white)
Long
actuator
(white)
No. of poles
2
4
6
8
10
Quantity per
tube
95
47
31
23
18
A6TR-2101
A6TR-4101
A6TR-6101
A6TR-8101
A6TR-0101
A6TR-2104
A6TR-4104
A6TR-6104
A6TR-8104
A6TR-0104
Note:
Orders must be made in integral multiples of the quantities given for each tube. Switches are not sold individually.
■Ratings/Characteristics
Ratings
Ambient operating temperature
Ambient operating humidity
Insulation resistance
Contact resistance
Dielectric strength
Vibration resistance
Shock resistance
Durability
Operating force
Weight
Between
terminals
Malfunction
Malfunction
Electrical
25 mA at 24 VDC, 10
μA
(minimum current) at 3.5 VDC
–20 to +70°C at 60% max. (with no icing or condensation)
35% to 95% (at +5 to +35°C)
100 MΩ min. (at 250 VDC)
200 mΩ max. (initial value)
500 VAC for 1 min
10 to 55 Hz, 1.5-mm double amplitude
300 m/s
2
min.
1,000 operations min.
0.29 to 7.8 N {30 to 795 gf}
0.25 g (2 poles), 0.50 g (4 poles), 0.76 g (6 poles), 1.02 g (8 poles), 1.28 g (10 poles)
1
A6TR
■Dimensions
A6TR-@101
A6TR-@104
(Unit: mm)
A6TR
●
Through hole terminal
Short actuator / Long actuator
PCB Dimentions
(Top View)
6
1.0
±
0.05
dia.
A
±
0.2
1.22
0.8
Short
actuator
Long actuator
0.9
7.62
±
0.1
5
3.5
2.54
2.54
×
(P-1)
P : Pole numbers
0.6
7.62
20°
2.54
×
(P-1)
±
0.1
P: Number of poles
7.62
No. of poles
2
4
6
8
10
Model
Short lever
A6TR-2101
A6TR-4101
A6TR-6101
A6TR-8101
A6TR-0101
Long lever
A6TR-2104
A6TR-4104
A6TR-6104
A6TR-8104
A6TR-0104
Dimension A
4.98
10.06
15.14
20.22
25.30
Note:
Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
■Internal
Connections
Contact Form (Top View)
ON
1 2
9 10
■Precautions
Be sure to read the Safety precautions common to all DIP Switches for correct use.
•
Application examples provided in this document
are
for reference only. In
actual applications,
confirm equipment functions
and safety before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions which
are
not described in the manual or
applying
the product to nuclear control
systems,
railroad
systems, aviation systems,
vehicles, combustion
systems,
medical equipment,
amusement
machines,
safety
equipment,
and
other
systems
or equipment that may have
a serious
influence on lives
and
property if
used
improperly. Make
sure
that the ratings
and
performance characteristics of the product provide
a
margin of
safety
for the
system
or
equipment,
and be sure
to provide the
system
or equipment with double
safety
mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
ELECTRONIC AND MECHANICAL COMPONENTS COMPANY
Contact: www.omron.com/ecb
Cat. No. A209-E1-01
0812(0207)(O)
