8365-0-15-00-00-00-10-0: DescriptionCircuit Board Hardware - PCB HEX PRESS FIT PIN RECPT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size631KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8365-0-15-00-00-00-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8365-0-15-00-00-00-10-0	-	-	View	Buy Now

8365-0-15-00-00-00-10-0 Overview

Circuit Board Hardware - PCB HEX PRESS FIT PIN RECPT

8365-0-15-00-00-00-10-0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mill-Max
Product Category	Circuit Board Hardware - PCB
RoHS	Details
Product	Receptacles
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

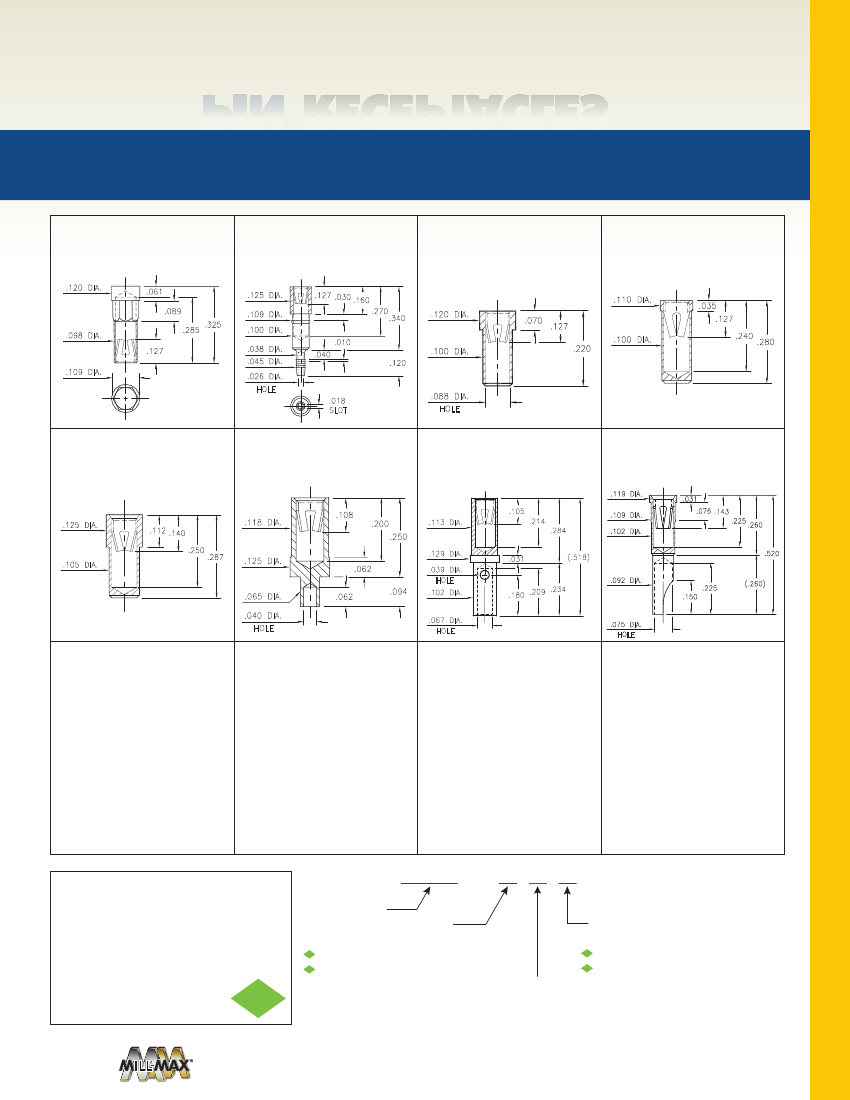

RECEPTACLES

FOR .048” - .064” DIAMETER PINS (#13 CONTACT)

FOR .045” - .065” DIAMETER PINS (#23 CONTACT)

8365

.120 DIA.

8365-0-15-XX-13-XX-10-0

Hex press-fit in .106 plated through-hole

.061

.089

.098 DIA.

.127

.109 DIA.

.285

.325

8996

.125 DIA.

.109 DIA.

.100 DIA.

.038 DIA.

.045 DIA.

.026 DIA.

HOLE

8996-0-31-XX-13-XX-04-0

9064

9064-0-15-XX-13-XX-10-0

9280

.110 DIA.

Compliant press-fit in .040 ± .003 plated

hole. For .060”

g.100”

thick board

.127 .030

.160

.270

.340

Solder mount in .102 min. mounting hole

Also available on 16mm wide carrier tape:

1,300 parts per 13” reel

Order as: 9064-0-57-XX-13-XX-10-0

.120 DIA.

9280-0-15-XX-13-XX-10-0

Solder mount in .102 min. mounting hole

.035

.127

.070

.127

.220

.100 DIA.

.010

.040

.120

.240

.100 DIA.

.280

.018

SLOT

.088 DIA.

HOLE

8347

8347-0-15-XX-13-XX-10-0

Solder mount in .109 min. mounting hole

4900

4900-0-19-XX-23-XX-10-0

Swage mount in .067 hole

0716

0716-0-33-XX-23-XX-10-0

0760

Wire crimp termination. Accepts wire

sizes 16 AWG Max. / 20 AWG Min.

.105

Press-fit in .106 mounting hole

For wire sizes up to 16 AWG

0760-0-18-XX-13-XX-10-0

.125 DIA.

.112 .140

.250

.287

.118 DIA.

.108

.200

.250

.113 DIA.

.214

.284

.105 DIA.

.125 DIA.

.129 DIA.

.031

(.518)

.062

.094

.039 DIA.

HOLE

.102 DIA.

.234

.180 .209

.065 DIA.

.040 DIA.

HOLE

.067 DIA.

HOLE

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#13 or #23

CONTACT (DATA ON PAGE 260)

(For alternate contact choices, see group G on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 191 | PIN RECEPTACLES
