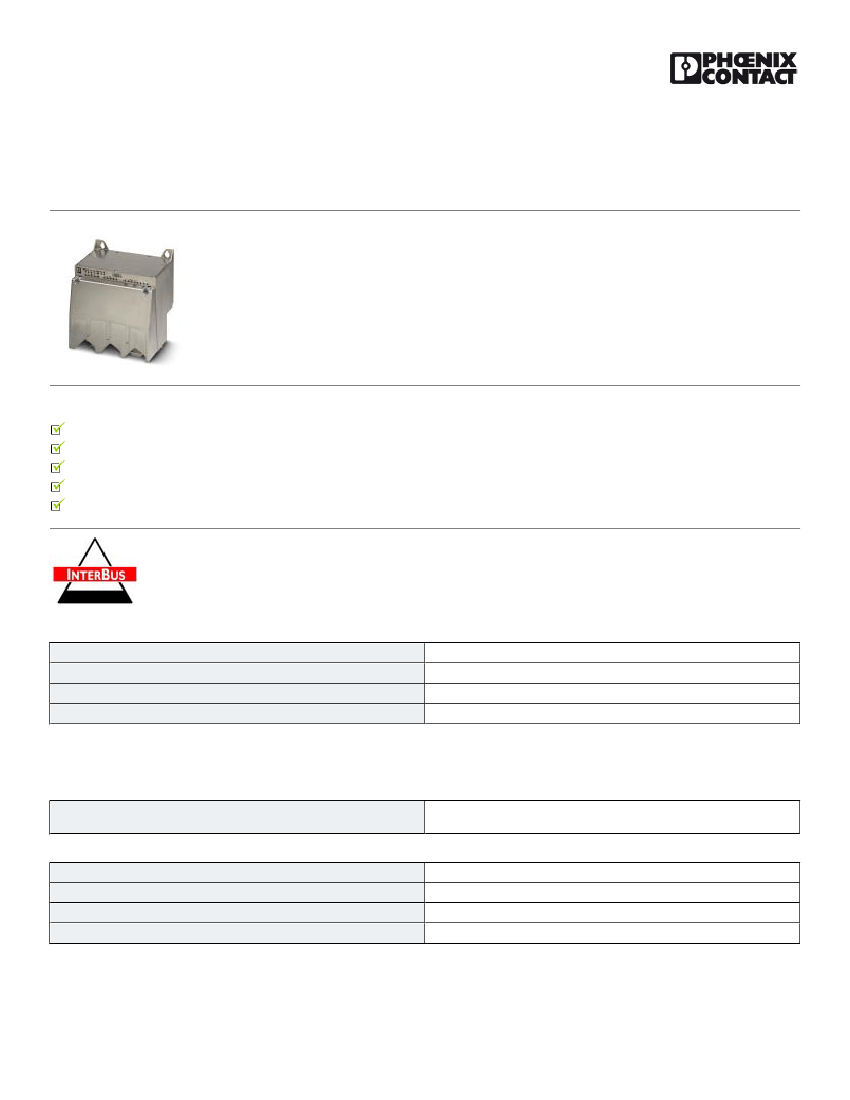

Distributed I/O device - IBS RL 24 DIO 8/5-RS-LK-2MBD - 2734905
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Digital I/O device for INTERBUS; fiber optic technology with 2 Mbaud, eight inputs (24 V DC), five relay outputs
(12 V AC to 440 V AC; 2 A, maximum), sensor connection via 5-pos. M12 female connectors, rugged metal
housing, IP67 protection
Product Features
Rugged metal housing
Comprehensive diagnostic functions
Rugged Line connector for INTERBUS with fiber optic and supply voltage
COMBICON connector for relay outputs
M12 connector for digital inputs
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
4037.0 GRM
85389091
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
Note on dimensions
185 mm
193 mm
138 mm
With bus connectors and mounting plate
Ambient conditions
09/08/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2734905
Distributed I/O device - IBS RL 24 DIO 8/5-RS-LK-2MBD - 2734905
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
0 °C ... 55 °C
-20 °C ... 70 °C
100 %
95 % (non-condensing)
860 hPa ... 1080 hPa (up to 1500 m above mean sea level)
660 hPa ... 1080 hPa (up to 3500 m above mean sea level)
IP65/IP67
General
Weight
Mounting type
Protection class
Note
Test section
3.5 kg
Wall mounting
III, IEC 61140, EN 61140, VDE 0140-1
Seal unused slots/connections to ensure the degree of protection.
Between US1 and US2 500 V AC 50 Hz 1 min
Between US1 and functional earth ground 500 V AC 50 Hz 1 min
Between US2 and functional earth ground 500 V AC 50 Hz 1 min
Between US1 and relay contacts 2.5 kV 50 Hz 1 min
Between US2 and relay contacts 2.5 kV 50 Hz 1 min
Between relay contacts and functional earth ground 2.5 kV 50 Hz 1 min
Interfaces
Fieldbus system
Designation
Connection method
Transmission speed
Transmission physics
INTERBUS
INTERBUS
Optic fiber (polymer fiber 980/1000 µm)
2 MBit/s
FO
Power supply for module electronics
Supply voltage
Supply voltage range
Ripple
Supply current
Communications power U
L
Current consumption
24 V DC
18.5 V DC ... 32 V DC (including ripple)
Max 3.6 V
SS
within the permissible voltage range
typ. 120 mA (plus sensor current)
24 V DC
80 mA (plus sensor current)
Digital inputs
Input name
Description of the input
Connection method
Digital inputs
Voltage input 230 V AC to 400 V AC
2, 3, 4-wire
09/08/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2734905
Distributed I/O device - IBS RL 24 DIO 8/5-RS-LK-2MBD - 2734905
Technical data
Digital inputs
Number of inputs
Protective circuit
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Delay at signal change from 0 to 1
Delay at signal change from 1 to 0
8
Electronic short-circuit/overload protection
24 V
-30 V ... 5 V
15 V ... 32 V
2.2 ms
3.3 ms
Digital outputs
Output name
Number of outputs
Maximum output current per channel
Relay output
5
2A
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250304
27250304
27250304
27242604
27242605
27242605
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001433
EC001601
EC001601
EC001601
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
09/08/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/2734905
Distributed I/O device - IBS RL 24 DIO 8/5-RS-LK-2MBD - 2734905
Approvals
Approvals
Approvals
INTERBUS CLUB
Ex Approvals
Approvals submitted
Approval details
INTERBUS CLUB
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
09/08/2014 Page 4 / 4
