3-1825142-0

Description
(3-1825142-0) AE103SD1CB04
CategoryMechanical and electronic products    switch
File Size645KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-1825142-0 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1825142-0 - - View Buy Now

3-1825142-0 Overview

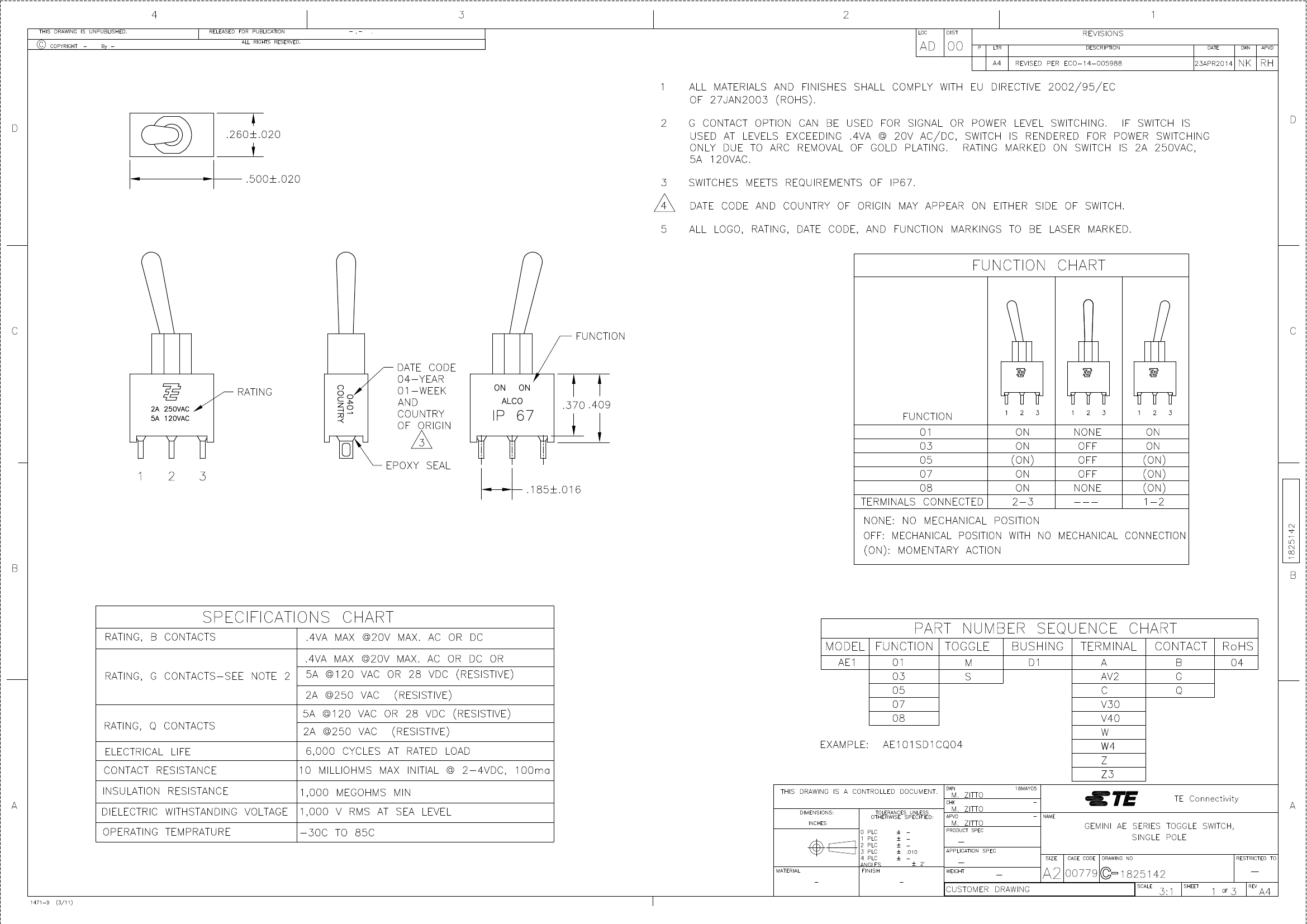

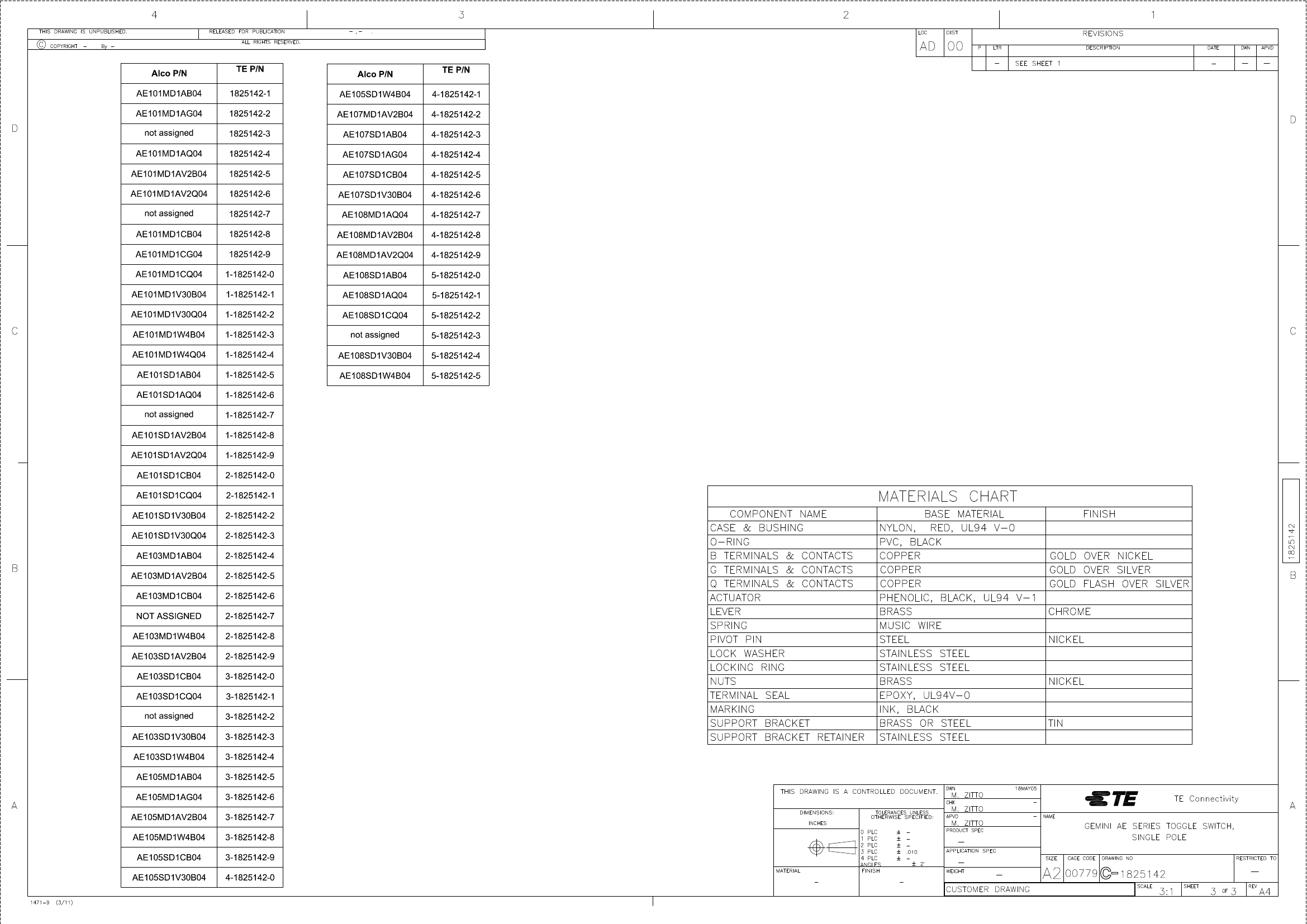

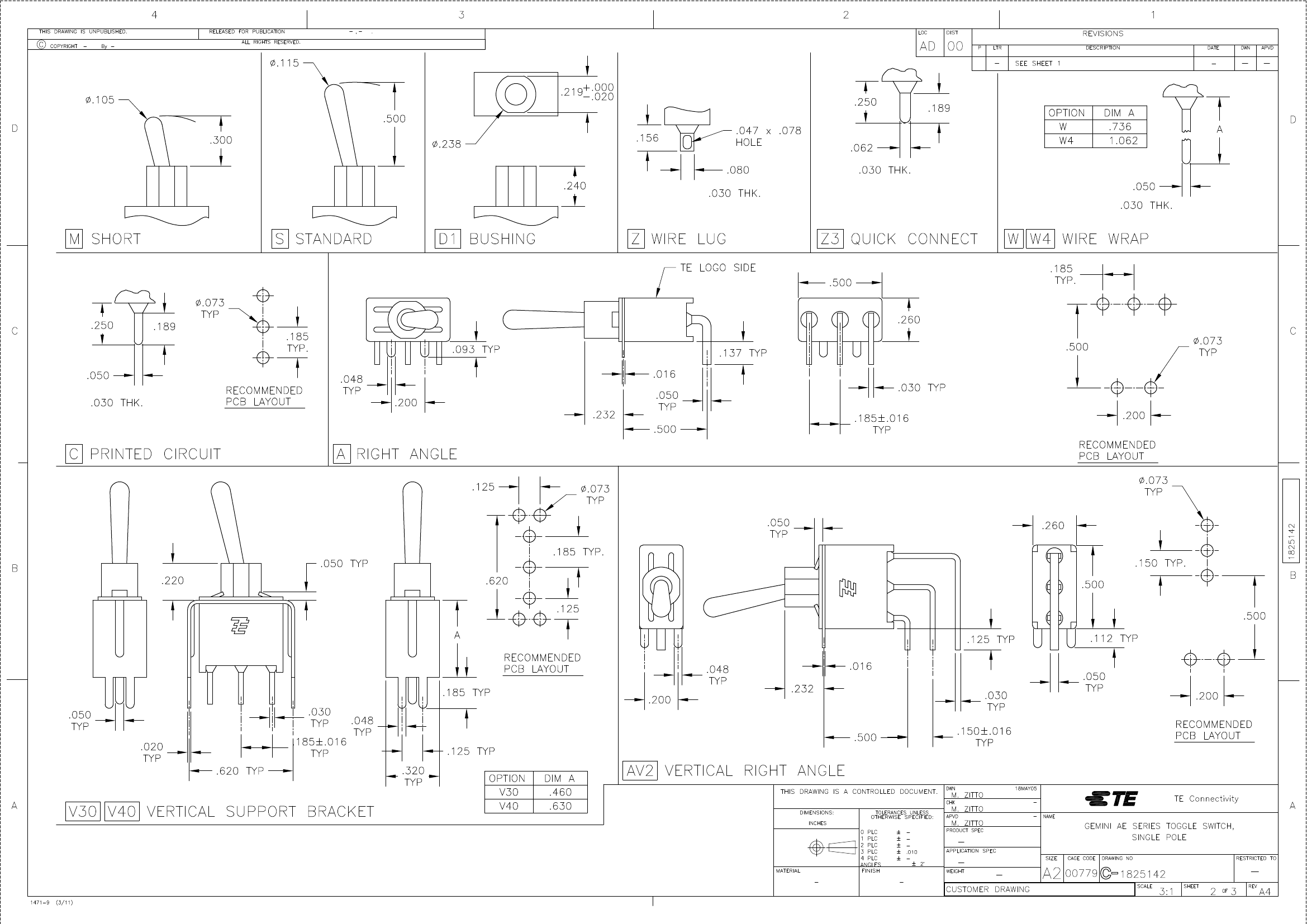

(3-1825142-0) AE103SD1CB04

3-1825142-0 Parametric

Parameter NameAttribute value
Brand NameAlcoswitch
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1362082553
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionTE Connectivity Single Pole Double Throw (SPDT) Toggle Switch, On-Off-On, IP67, PCB
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2021-04-26 05:26:53
YTEOL8.4
Executor completedNICKEL
Actuator typeLEVER
body width6.6 mm
body height10.39 mm
Body length or diameter12.7 mm
Center contact platingGOLD
Contact (AC) maximum rated R load.02A@20VAC
Maximum contact current (AC)0.4 A
Maximum contact current (DC)0.4 A
Contact (DC) maximum rated R load.02A@20VDC
Contact functionON-OFF-ON
Contact resistance0.01 mΩ
Maximum contact voltage (AC)20 V
Maximum contact voltage (DC)20 V
Dielectric withstand voltage1000 V
Electrical life6000 Cycle(s)
End contact materialCOPPER ALLOY
Insulation resistance1000000000 Ω
JESD-609 codee4
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
sealEPOXY TERMINAL SEALED
surface mountNO
Switch actionLATCHED
switch functionSPDT
Switch typeTOGGLE SWITCH
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Termination typeSOLDER
