R583F33121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> R583F33121

R583F33121: DescriptionCoaxial Switches 22GHz NON TERMINATED SP6T COAXIAL SWITCH; CategoryTopical application Mechanical and electrical/engineering/automation; File Size276KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R583F33121 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R583F33121	-	-	View	Buy Now

R583F33121 Overview

Coaxial Switches 22GHz NON TERMINATED SP6T COAXIAL SWITCH

R583F33121 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Radiall
Product Category	Coaxial Switches
RoHS	Details
Illuminated	Non-Illuminated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Technical Data Sheet

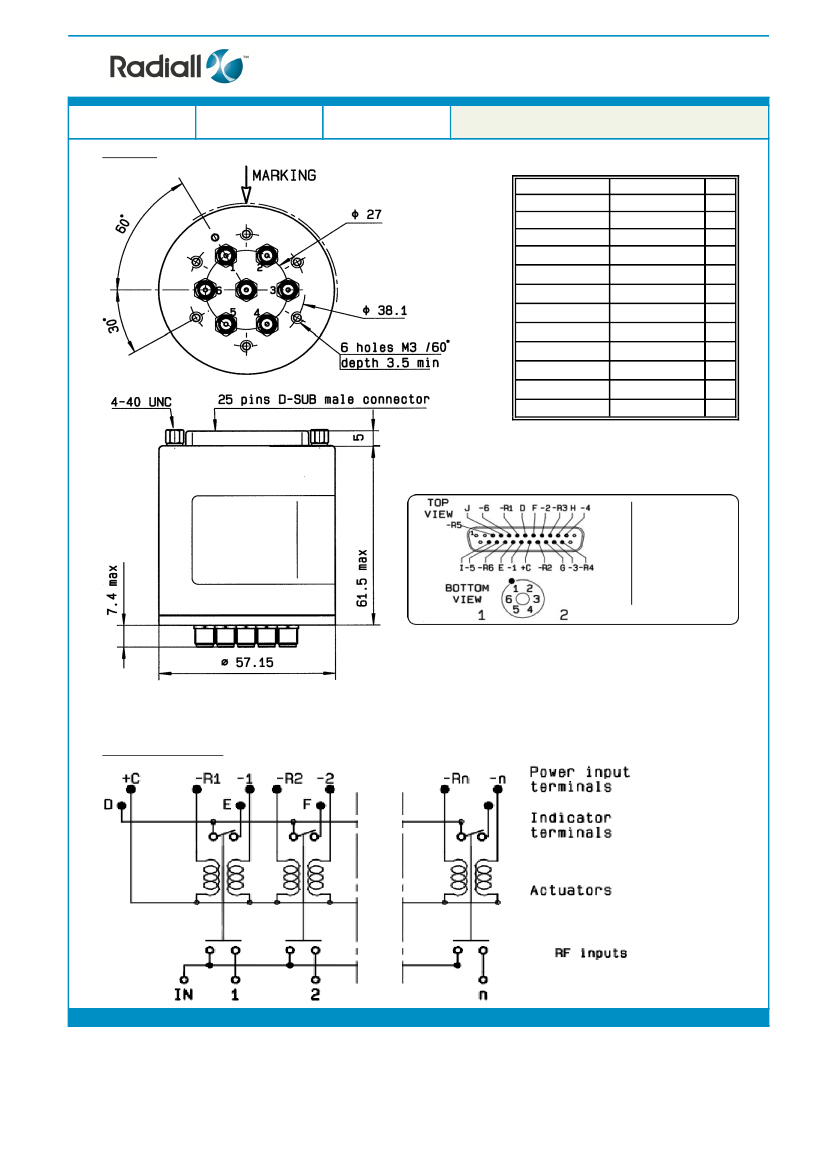

SP6T Thermal Vacuum SMA 22GHz Latching Separated reset Indicators 28Vdc

Positive common D-sub connector

PAGE

1/2

ISSUE

04.08.14

SERIE :

SPnT

PART NUMBER :

R583F33121

RF CHARACTERISTICS

Number of ways

Frequency range

Impedance

0 - 22 GHz

50 Ohms

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

DC - 3

1.20

0.20 dB

80 dB

240 W

3-8

1.30

0.30 dB

70 dB

150 W

8 - 12.4

1.40

0.40 dB

60 dB

120 W

12.4 - 18

1.50

0.50 dB

60 dB

100 W

18 - 22

1.70

0.70 dB

50dB

40 W

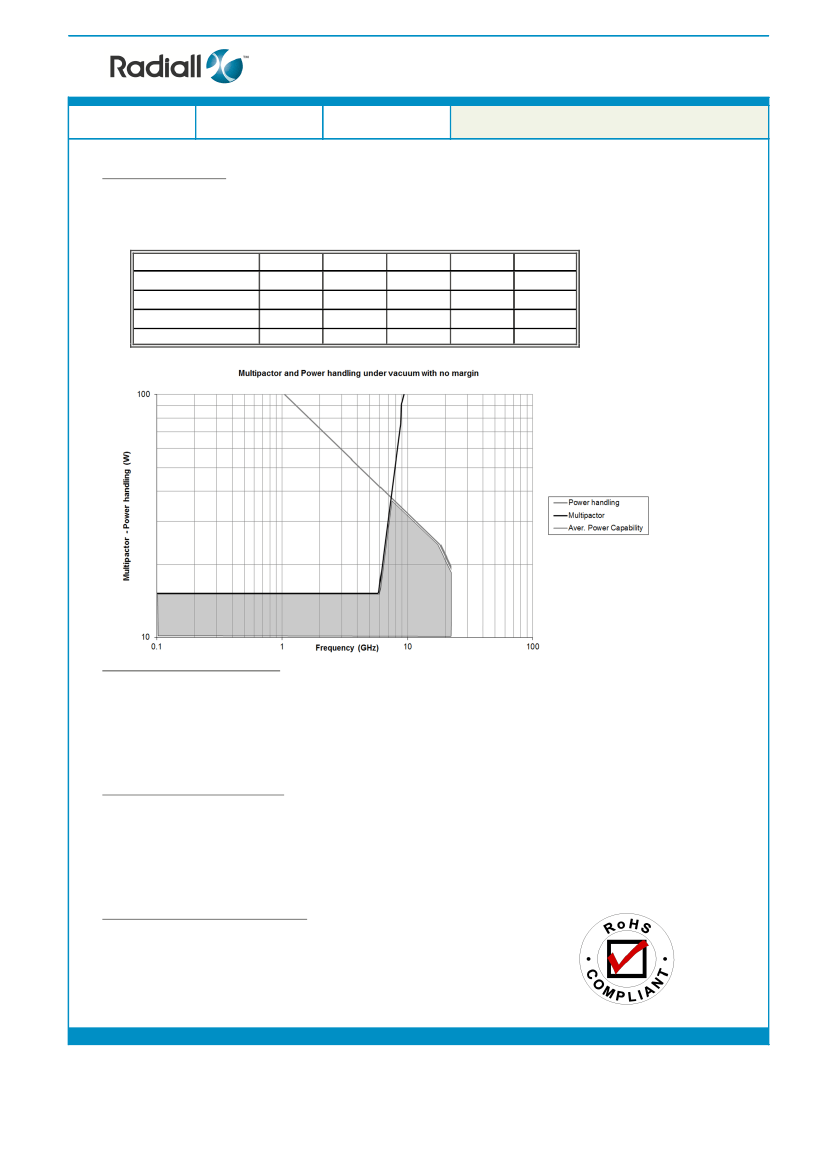

SWITCH REPEATABILITY : 0.03 dB peak change in insertion loss over 100 cycles

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

(**

(***

Average power at 25°C per RF Path (sea level))

At 25° C ±10%)

Nominal voltage ; 25° C)

-40°C to +85°C

-55°C to +85°C

SMA female per MIL-C 39012

5.000.000 cycles per position

< 15 ms

Vacuum compatible

< 220 g

LATCHING

125 mA

28V (24 to 30V) / POSITIVE COMMON

25 pins D-SUB male connector

1 W / 30 V / 100 mA

This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written

agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
