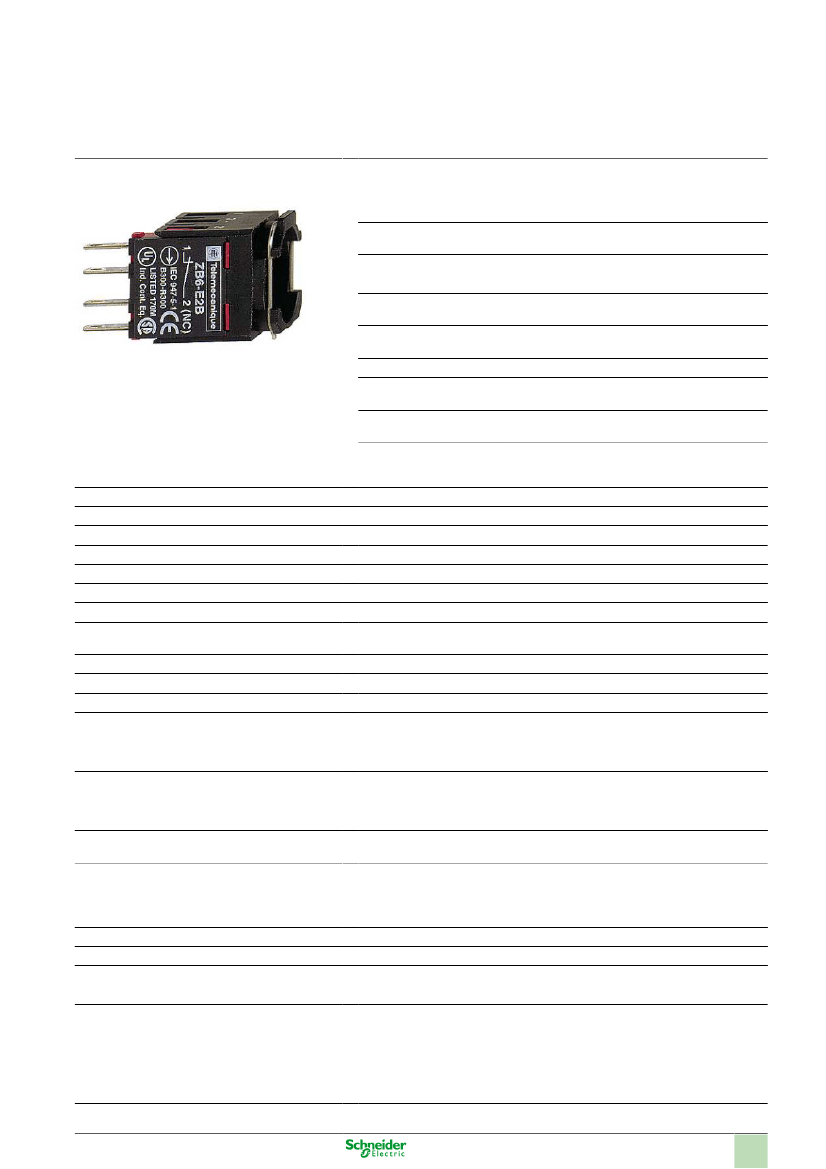

Product data sheet
Characteristics
ZB6Z2B
single contact block with body/fixing collar 1NC
faston connector
Main
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Contacts type and com-
position
Contacts operation
Connections - terminals
[Us] rated supply volt-
age
Harmony XB6
Complete body for pushbuttons or selector switches
ZB6
Plastic
1
1 NC
Slow-break
Faston connector(2.8 x 0.5 mm)
Faston connector
<= 250 V
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Contacts usage
Positive opening
Operating travel
Operating force
Contacts material
Short circuit protection
[Ie] rated operational current
18 mm
18 mm
40 mm
(11-12)NC
0.004 kg
Standard
With positive opening conforming to EN/IEC 60947-5-1 appendix K
4.3 mm (total travel)
1 mm (NC changing electrical state)
2.5 N (NC changing electrical state)
Silver alloy (Ag/Ni)
6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300
0.1 A at 250 V, DC-13, R300
1.5 A at 240 V, AC-15, B300
3 A at 120 V, AC-15, B300
1000000 cycles, DC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
Λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to IEC
60947-5-4
Electrical durability
Electrical reliability IEC 60947-5-4
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
Standards
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP65 conforming to IEC 60529
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
Mar 7, 2014
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
