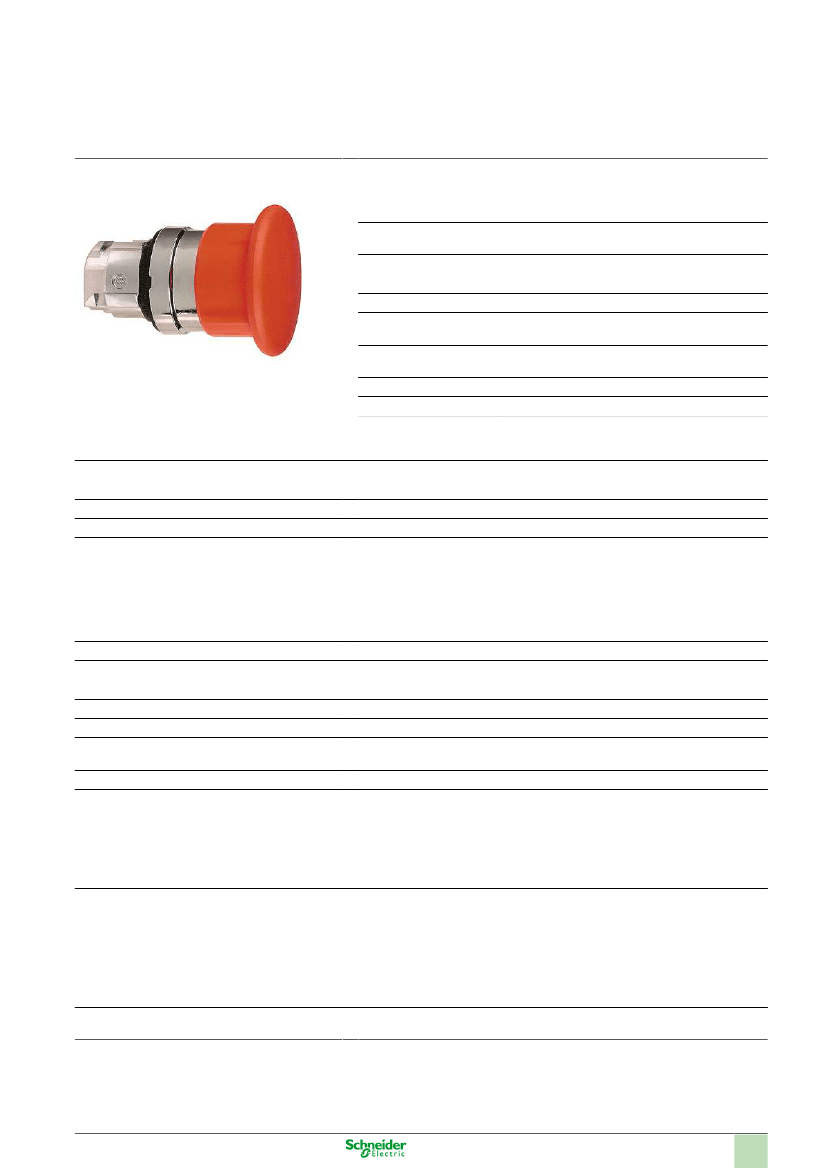

Red mushroom Ø 40 mm unmarked
Complementary
CAD overall width
CAD overall height
CAD overall depth
Mechanical durability
Electrical composition code
40 mm
40 mm
52 mm
5000000 cycles
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
C2 for <= 9 contacts using single and double blocks in front mounting
C1 for <= 9 contacts using single blocks in front mounting
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
IK degree of protection
Standards
TH
-40...70 °C
-25...70 °C
Class I conforming to IEC 60536
IP66 conforming to IEC 60529
NEMA 4X
NEMA 13
IK03 conforming to IEC 50102
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Product certifications
Vibration resistance
Shock resistance
Mar 9, 2013
1
Product data sheet
Dimensions Drawings
ZB4BC4
Dimensions
Ø in mm
ZB4BC•
ZB4BR•
40
60
Ø in in.
1.57
2.36
2
Product data sheet
Mounting and Clearance
ZB4BC4

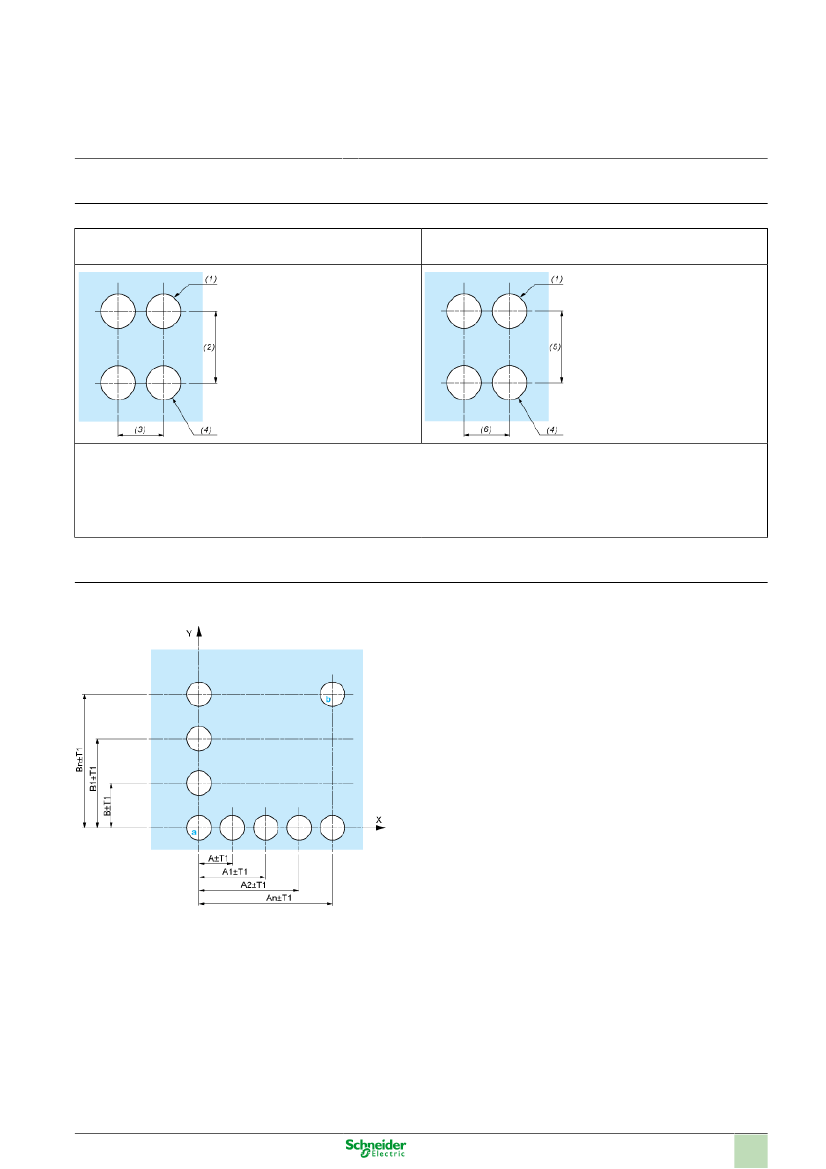

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on
Printed Circuit Board
Connection by Faston Connectors
(1)
(2)
(3)
(4)
(5)
(6)
Diameter on finished panel or support
40 mm min. / 1.57 in. min.
30 mm min. / 1.18 in. min.
+0.4
+0.016
Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm
0
/ 0.88 in.
0
)
45 mm min. / 1.78 in. min.
32 mm min. / 1.26 in. min.
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
Panel Cut-outs (Viewed from Installer’s Side)
A:
B:
30 mm min. / 1.18 in. min.
40 mm min. / 1.57 in. min.
3

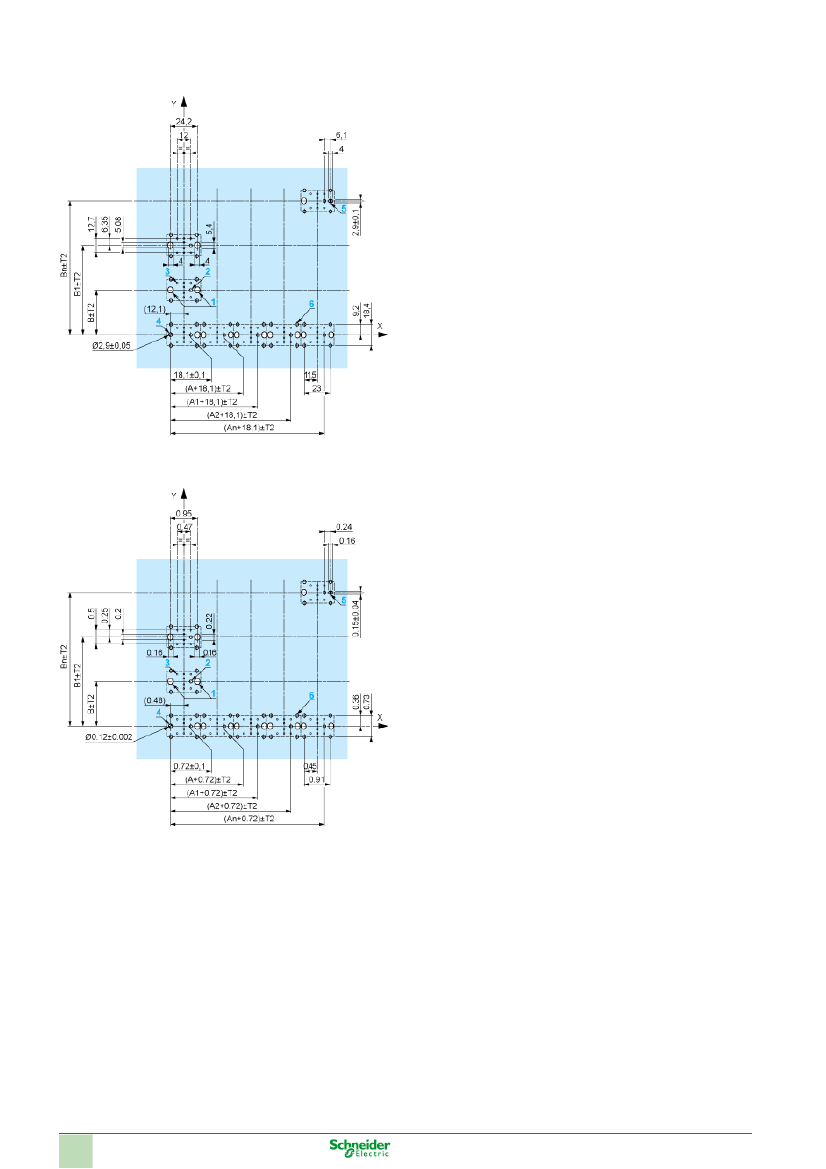

Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
A:
B:
30 mm min.
40 mm min.
Dimensions in in.
A:
B:
1.18 in. min.
1.57 in. min.
General Tolerances of the Panel and Printed Circuit Board
The cumulative tolerance must not exceed 0.3 mm / 0.012 in: T1 + T2 = 0.3 mm max.
Installation Precautions
● Minimum thickness of circuit board: 1.6 mm / 0.06 in.
● Cut-out diameter: 22.4 mm ± 0.1 / 0.88 in. ± 0.004
● Orientation of body/fixing collar ZB4 BZ009: ± 2
