100DP6T7B13M3REH: DescriptionToggle Switches 0.4VA @ 20V (AC/DC) On-On-On Wire Wrap; CategoryTopical application Mechanical and electrical/engineering/automation; File Size122KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

100DP6T7B13M3REH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	100DP6T7B13M3REH	-	-	View	Buy Now

100DP6T7B13M3REH Overview

Toggle Switches 0.4VA @ 20V (AC/DC) On-On-On Wire Wrap

100DP6T7B13M3REH Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-Switch
Product Category	Toggle Switches
Factory Pack Quantity	1

Preview

Download Datasheet

View All

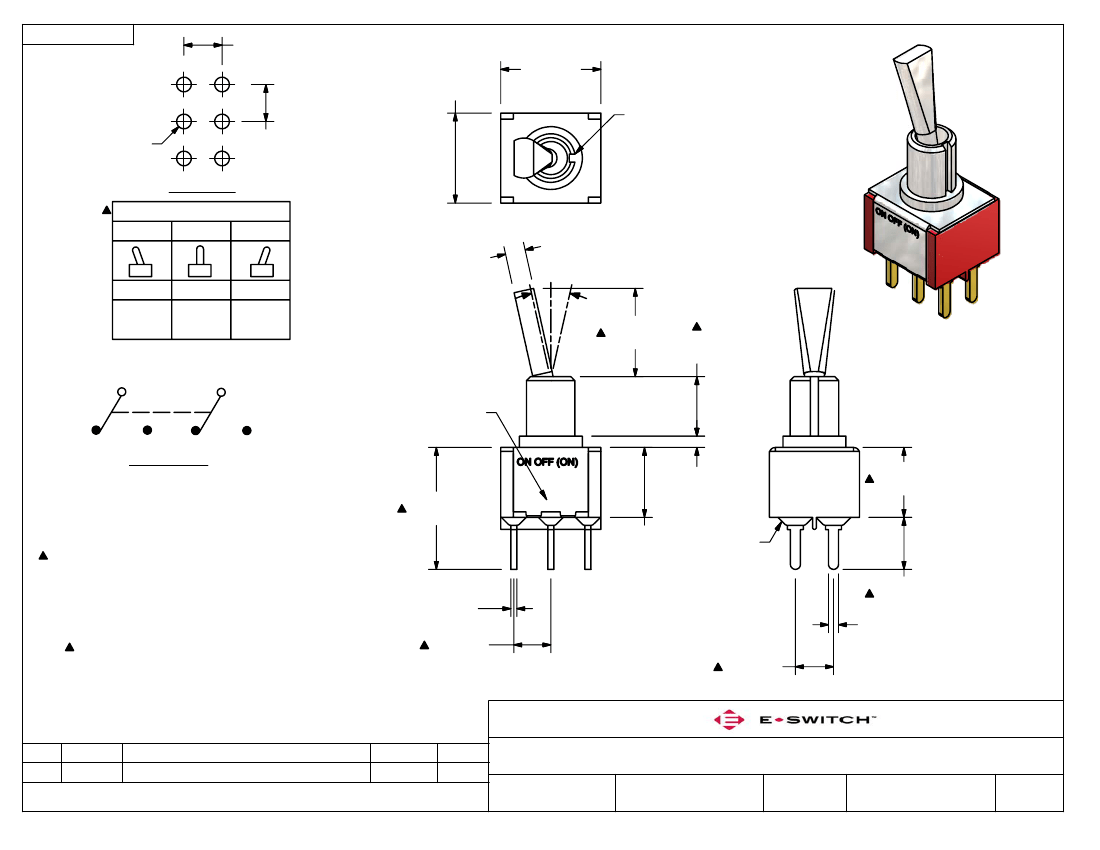

SHEET 1 OF 1

4.83

[.190 in]

11.43

[.450 in]

12.70

[.500 in]

KEYWAY

1.85

[.073 in]

4.70

[.185 in]

P.C. MOUNT

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

2.54 ]

100 i

POS. 2

POS. 1

POS. 3

2-3, 5-6

OFF

OPEN

(ON)

2-1, 5-4

(ON) = MOMENTARY

E-SWITCH

MARKING ON

OPPOSITE SIDE

CIRCUI: DPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4VOLT-AMPS MAX. @20V MAX. AC OR DC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10. DENOTES CRITICAL PARAMETER.

11. PACKAGE: TRAY/108 PIECES PER

12. 2002/95/EC (ROHS) COMPLIANT

12.30

[.484 in]

7.55

[.297 in]

ISOMETRIC

1.44

[.057 in]

15.50

[.610 in]

8.89

[.350 in]

.76

[.030 in]

4.70

[.185 in]

EPOXY SEAL

8.89

[.350 in]

6.60

[.260 in]

1.27

[.050 in]

4.83

[.190 in]

REV

17157

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

4/4/07

DATE

TITLE

SCALE

100DP5T6B12M2RE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

4/4/2007

T125006
