Terminal Boards

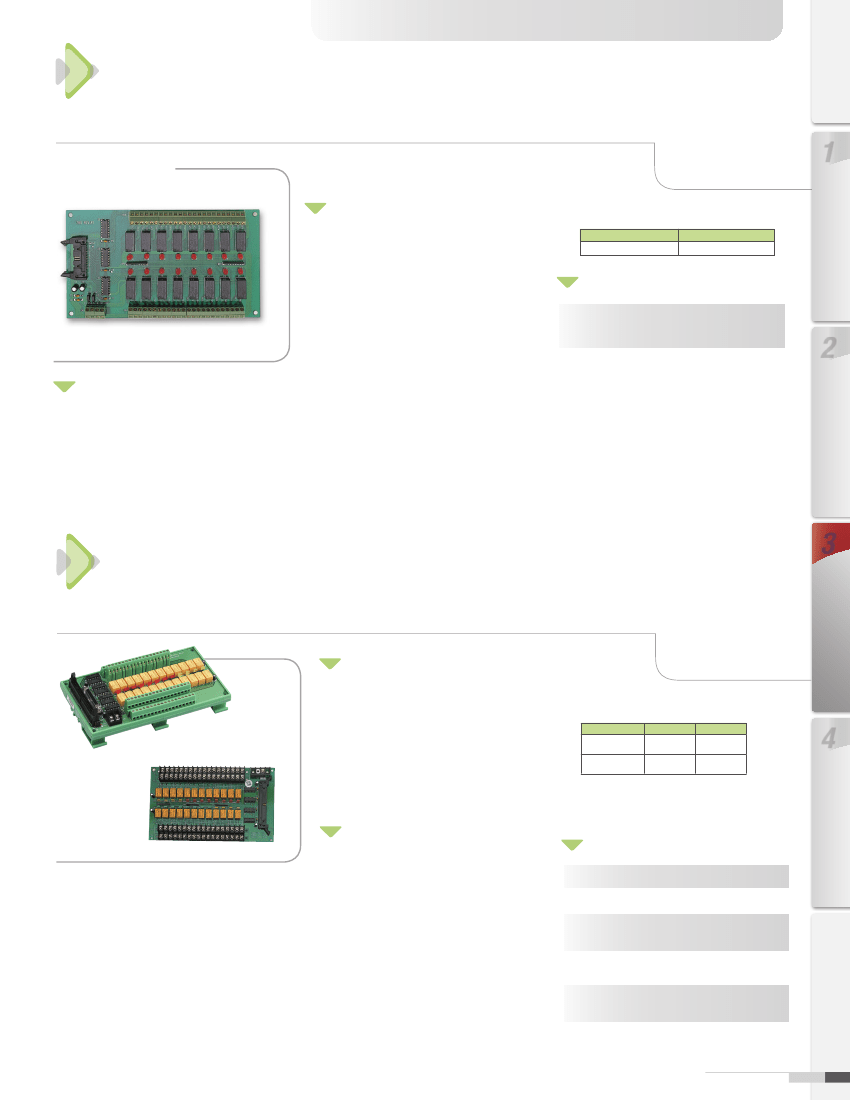

ACLD-9185-01
Terminal Board with 16-CH Relay Outputs
1
PXI/PXIe
Specifications
■
■
■
Relative Humidity: 5% to 95%, non-condensing
Power Consumption:
+5 V
200 mA maximum
+12 V
528 mA maximum
Relay Output
• Number of Channels: 16
• Relay Type: SPDT (Form C)
• Isolation Voltage: 1500 V
RMS
• Contact Rating
♦ AC: 120 V @ 0.5 A
■
Dimensions: 205 mm x 114 mm (7.99” x 4.44”)
Ordering Information
■
ACLD-9185-01
96-CH isolated DO terminal board with
Terminal Board with 16-CH Relay Outputs
■
Accessory
• Cabling
ACL-102100-1: 100-p in SCSI-II cable, 1 M
Contact your sales representative for cable length options.
♦ DC: 24 V @ 1 A
• Breakdown Voltage: 1000 V
RMS
• Contact Resistance: 100 mΩ
• Relay ON/OFF time
2
Modular Instruments
Features
■
■
■
■
■
■
■
♦ Operate Time: 6 ms
♦ Release Time: 3 ms
• LED Indicators for Relay Status: one per channel
• Expected Life:
♦ > 5 x 10
5
operations @ 1 A, 24 V
DC
■
■
■
16-CH single-pole, double-throw (SPDT form C) relay outputs
For use with 20-pin digital input connector of NuDAQ cards
Maximum switching voltage up to 60 V
DC
/120 V
AC
Maximum switching current up to 1 A
DC/AC
Onboard relay driver circuitry
LED indicators for relay status
Screw terminals for easy field wiring
♦ > 2 x 10
5
operations @ 0.5 A, 120 V
AC
I/O Connector: 20-pin ribbon male
Operating Temperature: 0˚C to 60˚C (32˚F to 140˚F)
Storage Temperature: -20˚C to 80˚C (-4˚F
to 176˚F)
DIN-24R-01, TB-24R-01
Terminal Boards with 24-CH Relay Outputs
Features
■
■
■
■
3
DAQ
DIN-24R-01
■
■
■
■
■
24-CH single-pole, double-throw (SPDT form C) relay outputs
50-pin Opto-22 compatible connector
Maximum switching voltage 220 V
DC
/250 V
AC
Maximum switching current up to 2 A
DC/AC
LED indicator for relay status
Onboard relay driver circuitry
Screw terminals for easy filed wiring
DIN socket available on DIN-24R-01
50-pin SCSI-type connector available on DIN-24R-01 to
interface with ND-6058
■
■
■
Storage Temperature: -20˚C to 80˚C (-4˚F to 176˚F)
Relative Humidity: 5% to 95%, non-condensing
Power Consumption:
+12 V
TB-24R/12-01
DIN-24R/12-01
288 mA
maximum
-
+24 V
-
44 mA
maximum
TB-24R/24-01
DIN-24R/24-01
■
4
GPIB & Bus Expansion
Dimensions
• TB-24R-01: 220 mm (W) x 132 mm (L) x 15 mm (H)
(8.58” x 5.14” x 0.58”)
• DIN-24R-01: 203 mm (W) x 120 mm (L) x 55 mm (H)
(7.91” x 4.68” x 2.14”)
TB-24R-01
Specifications
■
Introduction
The DIN-24R-01 and TB-24R-01 relay output boards are
designed for industrial control applications. It contains 24
electro-mechanical SPDT relays that can be driven by the
24-Bit digital output ports of the PCI-7224, PCI-7248, PCI-
7296, ACL-7112, ACL-7124, PET-48DIO, and ND-6058.
Each relay's switching capacity is 60 W, 125 V
AC
The normally
closed, and common contacts for each relay are made available
for maximum flexibility.
■
■
Relay Output
• Number of channels: 24
• Relay Type: SPDT (Form C)
• Contact Rating
♦
AC: 125 V @ 0.6 A
♦
DC: 30 V @ 2 A
• Breakdown Voltage: 1500 V
RMS
• Contact Resistance: 50 mΩ
• Relay ON/OFF Time
♦
Operate time: 3 ms
♦
Release time: 3 ms
• LED Indicators for Relay Status: per channel
• Expected Life: 5 x 105 operations @ 2 A, 30 V
DC
• External Coil Excitation Voltage:
♦
12 V nominal, 19.2 V maximum
(TB-24R/12-01 & DIN-24R/12-01)
♦
24 V nominal, 38.5 V maximum
(TB-24R/24-01 &DIN-24R/24-01)
I/O Connector
• 50-pin ribbon male
• 50-pin SCSI-II female
Operating Temperature: 0˚C to 60˚C (32˚F to 140˚F)
Ordering Information
■
TB-24R/12-01
Terminal board with 24-CH relay outputs @ 12 V coil voltage
■
TB-24R/24-01
Terminal board with 24-CH relay outputs @ 24 V coil voltage
■
DIN-24R/12-01
Terminal board with 24-CH relay outputs @ 12 V coil
voltage and DIN-rail mounting
■
DIN-24R/24-01
Terminal board with 24-CH relay outputs @ 24 V coil
voltage and DIN-rail mounting
■
Accessory
• Cabling
ACL-10150-: 50-pin flat cable
Contact your sales representative for cable length options.
