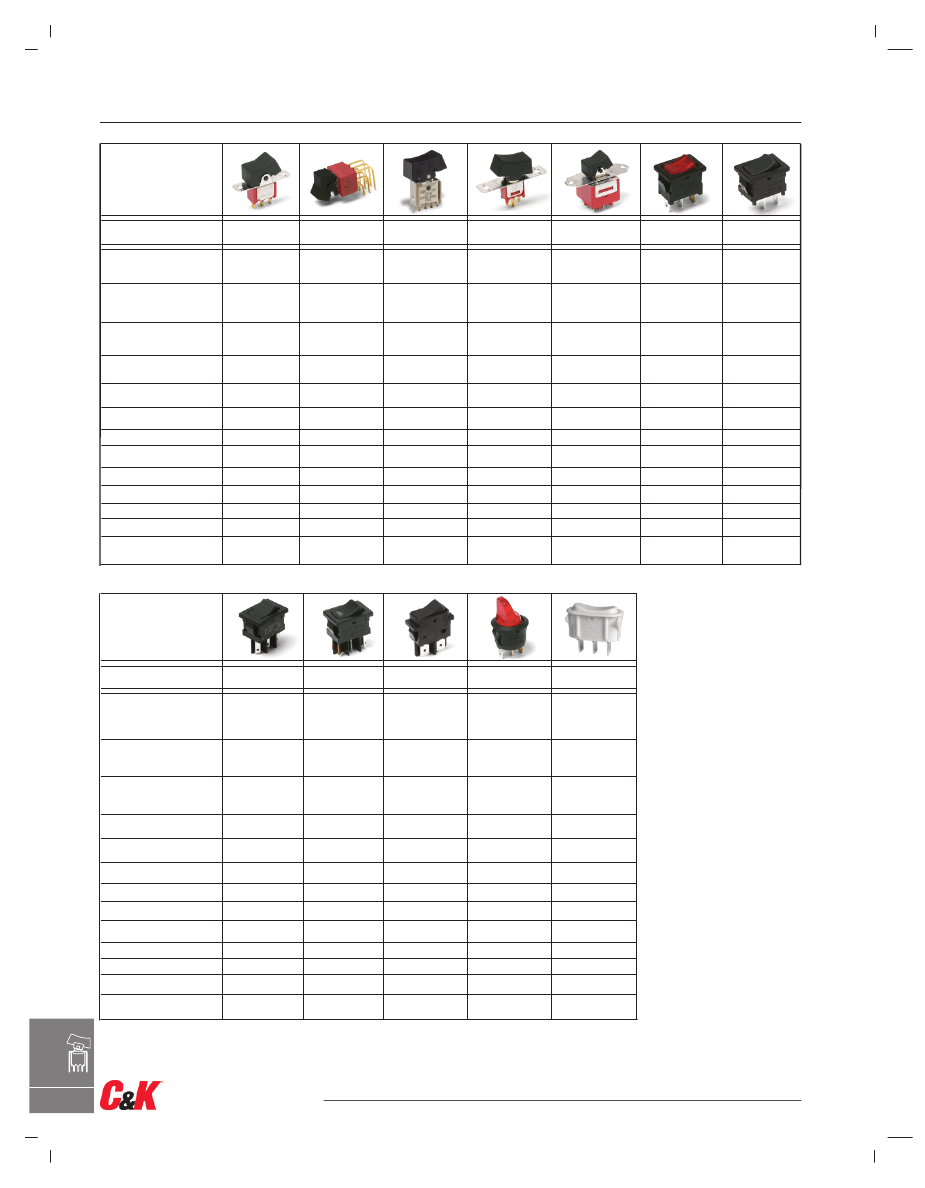

7000 Series
Miniature Rocker & Lever Handle Switches
Features/Benefits
•
Multi-pole and multi-position
•
Wide variety of actuator and
termination options
Typical Applications
•
Telecommunications
•
Instrumentation
•
Medical equipment
•
Epoxy terminal-seal compatible
with bottom wash cleaning
•
RoHS compliant
Specifications
CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or
DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC;
2 AMPS @ 250 V AC. See page G-20 for additional ratings.
ELECTRICAL LIFE: 7X01 and UX1 models: 100,000 make-and-break
cycles at full load. All other models: 40,000 cycles.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @ 2-4
V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
NOTE:
Any models supplied with S, P, R, Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
CASE: Glass filled nylon 6/6, flame retardant, heat stabilized, or
diallyl phthalate (DAP) (UL 94V-0).
ACTUATOR: Nylon, black.
FRAME (FRONT MOUNT): Nylon, black.
FRAME (REAR MOUNT): Spring steel, black.
BUSHING: Brass or zinc, nickel plated.
HOUSING: Stainless steel.
SWITCH SUPPORT: Brass or steel, matte-tin plated.
END CONTACTS: B contact material: Copper alloy, with gold plate over
nickel plate. Q contact material: Coin silver, silver plated. See page
G-20 for additional contact materials.
CENTER CONTACTS & ALL TERMINALS: B contact material: Copper
alloy, with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See page G-20 for additional contact materials.
TERMINAL SEAL: Epoxy. Refer to Soldering and Cleaning in Technical
Data Section
HARDWARE: Mounting nuts & screws: Brass. Lockwasher: Stainless
steel. Standoff: Nylon standard.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G-4 through G-24 . For additional options not shown in catalog, consult Customer Service Center. All models
have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.
Switch Function
7101
SP On-None-On
7103
SP On-Off-On
7105
SP Mom.-Off-Mom.
7107
SP On-Off-Mom.
7108
SP On-None-Mom.
7109
SP None-On-Mom.
7201
DP On-None-On
7203
DP On-Off-On
7205
DP Mom.-Off-Mom.
7207
DP On-Off-Mom.
7208
DP On-None-Mom.
7211
DP On-On-On
7213
DP On-On-Mom.
7215
DP Mom.-On-Mom.
7301
3P On-None-On
7303
3P On-Off-On
7401
4P On-None-On
7405
4P Mom.-Off-Mom.
7411
4P On-On-On
Note:
UL models
available, see pages G-5
and G-6.
Actuator
J1
.531 long rocker
J2
Lever
J3
.906" long rocker
J10
1.318" long rocker
J11
Rocker with frame
J15
Rocker, snap-in
J16
Rocker with frame, snap-in
J19
Rocker with frame
J21
Lever with frame
J25
Lever, snap-in
J26
Lever with frame, snap-in
J37
Rocker with frame
J50
Rocker
J51
Rocker with frame
J52
Rocker with frame for
LED, snap-in
J60
Lever
J61
Lever with frame, snap-in
J62
Lever with frame for
LED, snap-in
J90
Lever
J91
Lever with frame, snap-in
Terminations
A
Right angle, PC thru-hole
AV2
Vertical right angle, PC thru-hole
C
PC Thru-hole
Z
Solder lug
A3
Right angle, snap-in, PC thru-hole
AV3
Vertical right angle,
snap-in, PC thru-hole
AW3
Right angle, extended, PC thru-hole
V2
.555" high, V-bracket
V3
.460" high, V-bracket
V4
.630" high, V-bracket
V5
Vertical right angle, PC thru-hole
V6
.460" high, V-bracket
V7
.630" high, V-bracket
V8
.953" high, V-bracket
V9
1.150" high, V-bracket
V31
.460" high, V-bracket, snap-in
V51
Vertical right angle, snap-in
V61
.460" high, V-bracket, snap-in
W
.750" long, wire wrap
W3
.425" long, wire wrap
W5
1.305" long,wire wrap
Z3
Quick connect
Contact Material
B
Gold
P
Gold, matte tin
Q
Silver
S
Silver, matte-tin
G
Gold over silver
R
Gold over silver, matte-tin
Seal
E
Epoxy
I
Epoxy potted base
Actuator Color
2
Black
1
White
3
Red
Frame Color
2
Black
NONE
No frame color required
1
White
Metal Frame Color
(J11, J19, J21 &
J37 Actuators)
2
Black
1
White
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
27 mar 17
G–3
www.ckswitches.com
7000 Series
Miniature Rocker & Lever Handle Switches
ACTUATOR COLOR
ACTUATOR–PANEL REAR MOUNT
ACTUATOR
J1
ROCKER
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
2
1
3
Finish: Matte. Other colors, custom actuator
markings and legends available, consult
Customer Service Center.
NOTE:
Hardware: two each—mounting screws,
nuts, lockwashers and standoffs for 1/8 inch thick
panel are supplied standard on all switches with
panel mounting brackets. Actuators available
separately, see page G-21 through G-22.
Hardware is available see Technical Data section
of this catalog.
J1, J2, J3 & J10 Actuators available with
C, W-W5, Z or Z3 terminations.
J2
LEVER
PANEL MOUNTING
J1 & J2 Actuators
J3
ROCKER
DIMPLES MFG.
OPTION
J3 Actuator
J10
ROCKER
DIMPLES
MFG. OPTION
J10 Actuator
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
27 mar 17
G–6
www.ckswitches.com
