Power supply AC / DC to DC 24 V (22,5 mm) - KPS0-YS KPS0-YS Part number 85102208
Possibility of 110 VAC and 230 VAC power supply of 24 VDC safety relays
Input : universal voltage range 85 →265 VAC/DC
Output : secondary voltage 24 VDC / 200 mA
High efficiency (80 %)
Protection class II, according to EN 61 558-1
Part numbers
Type
85102208
KPS0-YS
Terminals
Screws
Voltages
85 →265 VAC/DC24 VDC
Supply frequency range (Hz)
50 / 60
Outputs
-
Specifications
Operating characteristics
Functions
Failure detection
Display of output state by LED
Universal Power supply for 24 VDC Safety Relays
Short circuit and overload protection
Power supply : U (secondary voltage)
Supply
Supply voltage
Supply frequency range (Hz)
85 102 208 : 85 →265 VAC / 85 →300 VDC
50 / 60
Output specification
Type
Max. thermal current I for each contact
Protection against short circuits
Secondary voltage 24 VDC± 5 %
200 mA
Electronic fuse
Climatic environment
Operating temperature (
o
C)
Altitude
Climate resistance according to IEC/EN 60068-1
-20 →+50
< 2000 m
20 / 050 / 04
Mechanical environment
Vibration resistance according to IEC/EN 60068-2-6
Amplitude : 0,35 mm
Frequency : 10 →55 Hz
Electromagnetic environment
Immunity to electrostatic discharges acc. IEC/EN 61000-4-
2
Immunity to radiated, radio-frequency, electromagnetic
field acc. IEC/EN 61000-4-3
Immunity to rapid transient bursts acc. to IEC/EN 61000-4-
4
Immunity to shock waves according to IEC/EN 61000-4-5
Immunity to radio frequency in common mode acc. to
IEC/EN 61000-4-6
8 kV (air)
10 V / m
4 kV
Between wires for power supply : 1 kV
10 V
Housing
Material : self-extinguishing (UL94VO)
Protection (IEC/EN 60529) - Casing
Protection (IEC/EN 60529) - Term. block
Mounting
Weight (g)
Thermoplastic with V0 extinction behaviour
IP40
IP20
DIN-rail
125
Safety standards
Approvals
Environmental directive 2002/95/CE
Environmental regulation 1907/2006
Protection class II according to EN 61 558-1
CE
RoHS
Reach
II

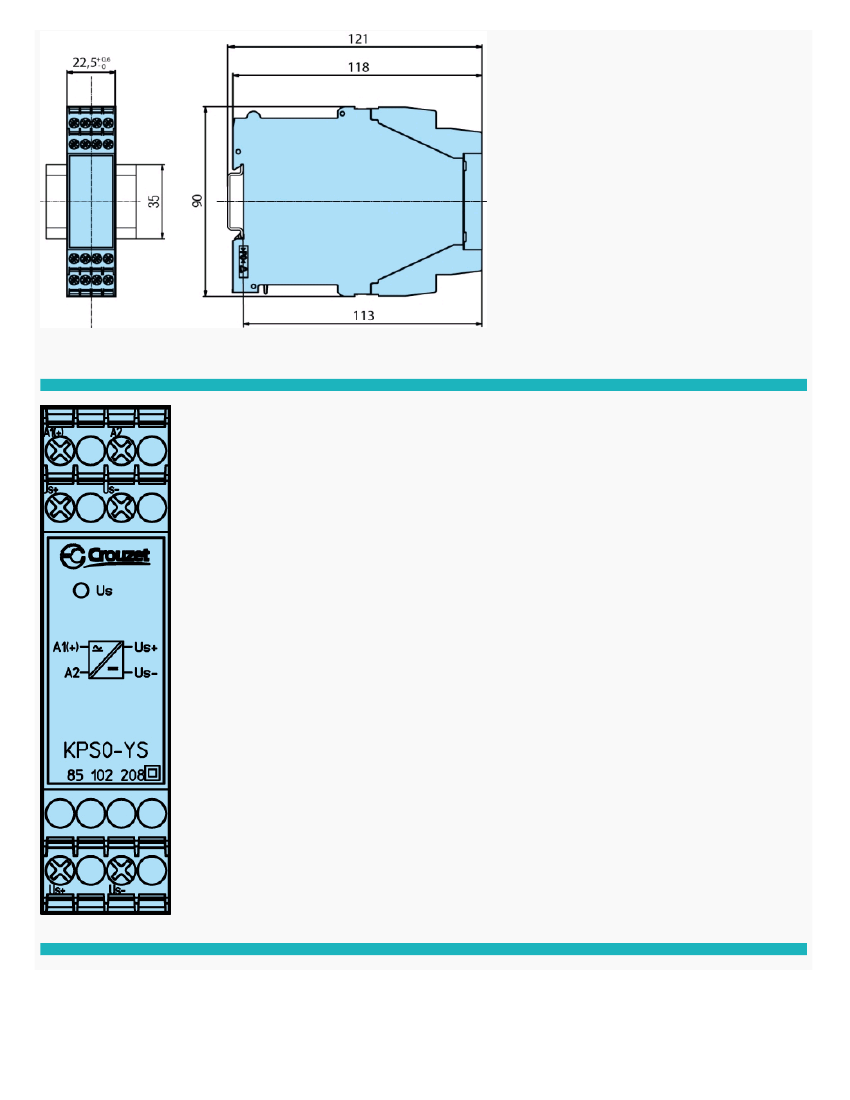

Dimensions (mm)
Dimensions (mm)
Screw terminals
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
23/06/2014
www.crouzet.com

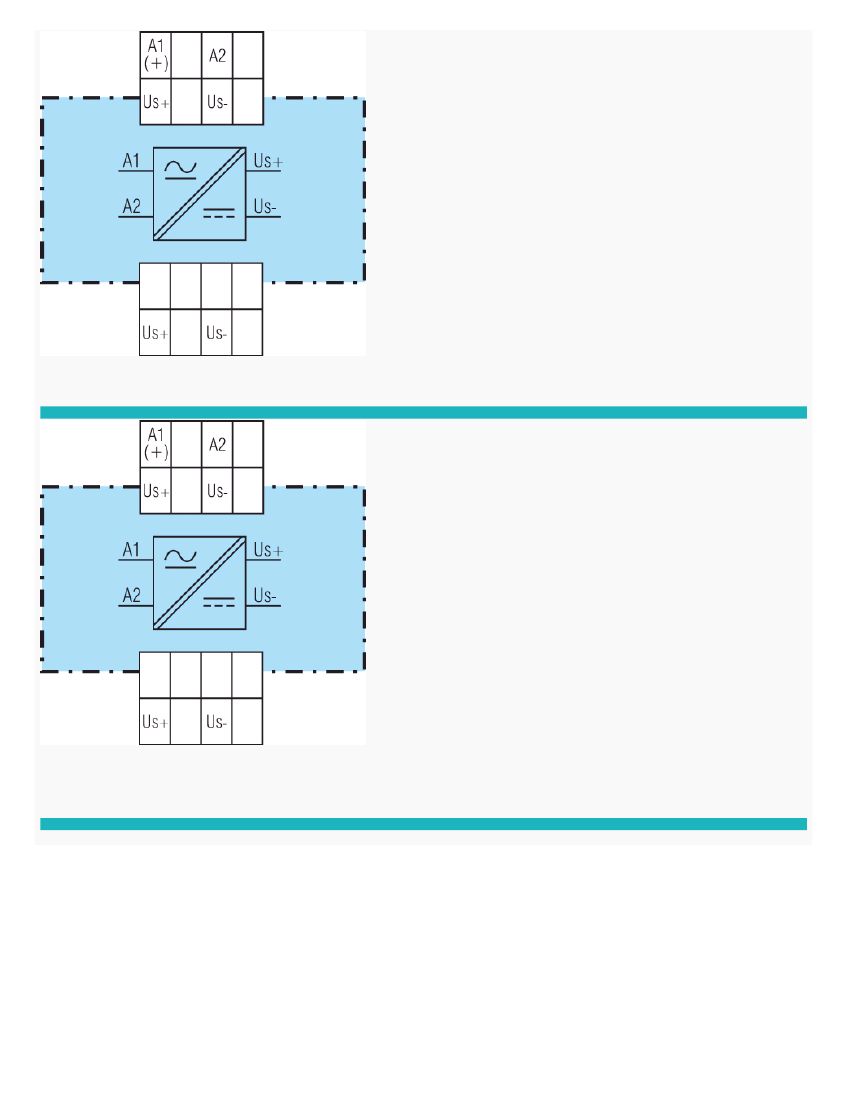

A1 (+), A2 : Primary voltage Us+, Us- : Secondary voltage
Connections
A1 (+), A2 : Primary voltage Us+, Us- : Secondary voltage
Applications
24 V

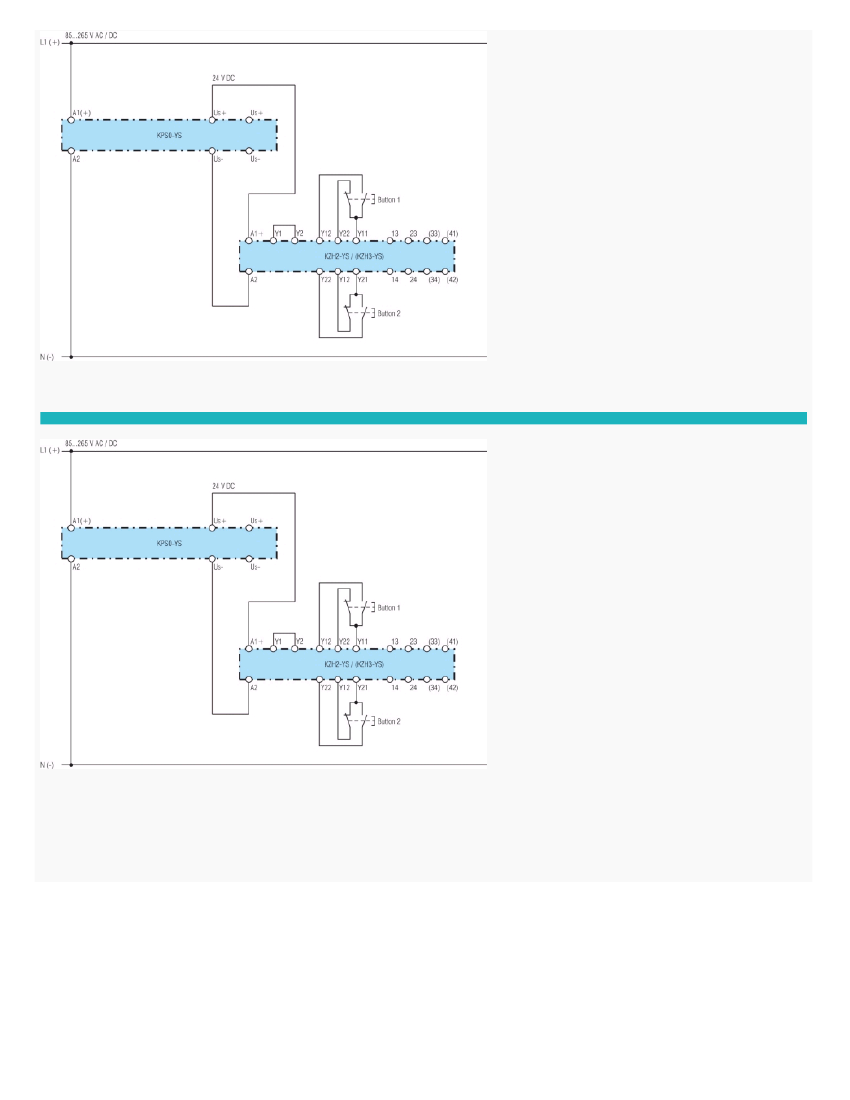

Two-hand safety relay supplied with 110 or 230 V
