Relay connectors - ST-REL2-KG 60/2 - 2823696
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Relay connector, fitted with miniature switching relay, contacts (AgNi): Medium to large loads, 1 N/C contact,
60 V AC/DC input voltage, with light indicator, can be plugged into basic terminal blocks

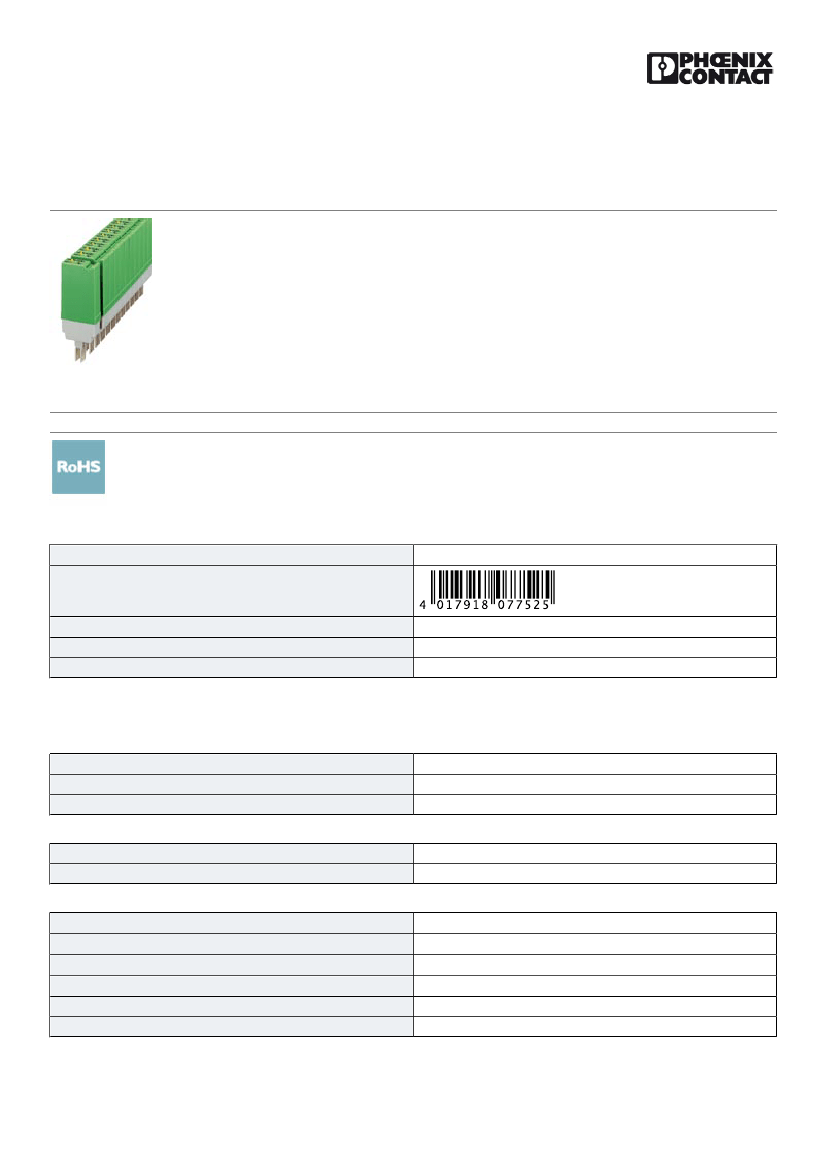

The illustration shows version ST-
REL 2-KG 24/2
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918077525
85364190
Made to Order (non-returnable)
10 STK
Technical data
Dimensions
Width
Height
Depth
14.6 mm
33 mm
66.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
Coil side
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Typical response time
Typical release time
Protective circuit
60 V AC/DC
0.8 ... 1.1
10 mA
7 ms (with DC)
11 ms (with DC)
Bridge rectifier, varistor
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/2823696
Relay connectors - ST-REL2-KG 60/2 - 2823696
Technical data
Coil side
Operating voltage display
Power dissipation for nominal condition
yes
0.6 W
Contact side
Contact type
Type of switch contact
Contact material
Maximum switching voltage
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
Single contact, 1 N/C contact
Single contact
AgNi
250 V AC/DC
8A
6A
95 W (at 24 V DC)
50 W (at 48 V DC)
45 W (at 60 V DC)
45 W (at 110 V DC)
75 W (at 220 V DC)
1500 VA (for 250 V AC)
General
Test voltage relay winding/relay contact
Operating mode
Mechanical service life
2.5 kV AC (50 Hz, 1 min.)
100% operating factor
Approx. 2x 10 cycles
7
Standards and Regulations
Standards/regulations
DIN VDE 0110b, Gr. C for 250 V DC
IEC 60255/DIN VDE 0435 (in relevant parts)
DIN EN 50178/DIN VDE 0160 (in relevant parts)
EN 60730/DIN VDE 0631
DIN VDE 0160 (in relevant parts)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit
diagram
Approvals
Approvals
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/2823696
Relay connectors - ST-REL2-KG 60/2 - 2823696
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC 7500651.22.01.00244
