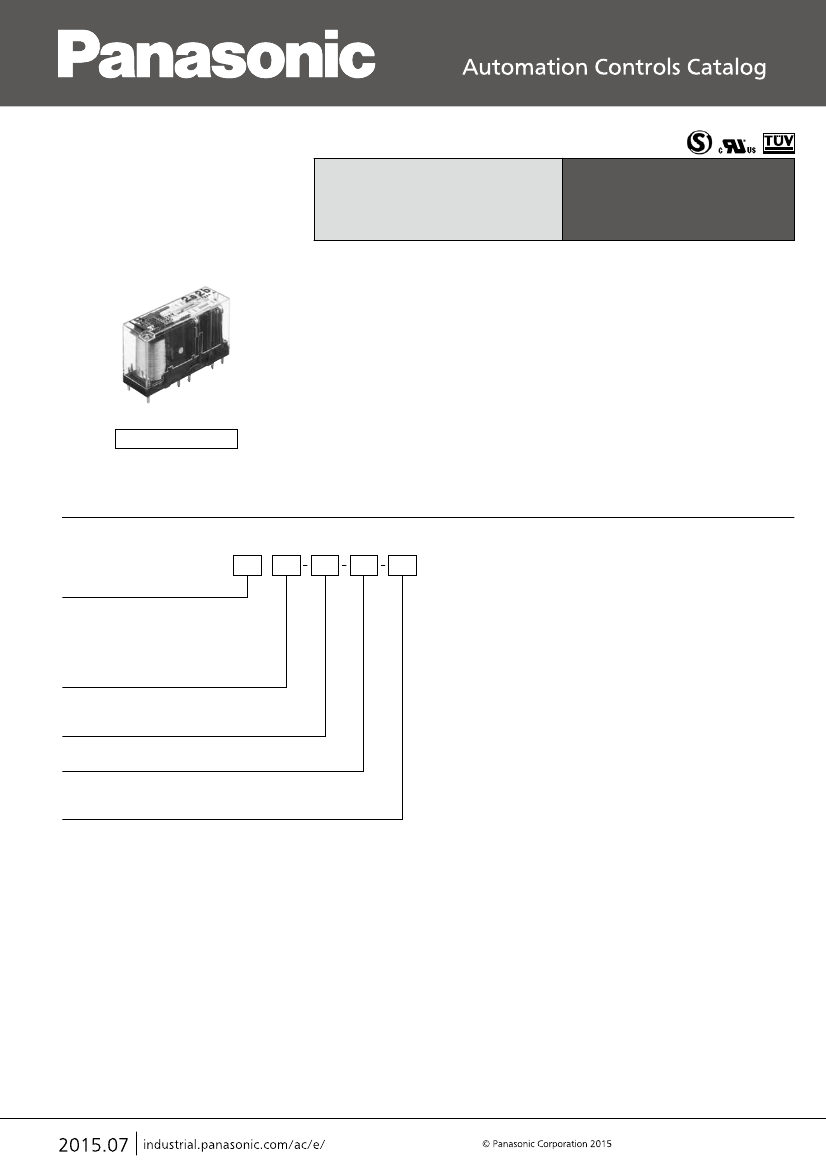

Slim type safety relays
SF RELAYS
Slim type
TYPICAL APPLICATIONS
1. Machine tools
2. Robots
3. Safety PLCs
4. Circuits with stringent safety
standard requirements such as those
in motor vehicle production
equipment.
FEATURES
1. Acquisition of Korean safety
certification (“S” mark)
Excluding with diode type
RoHS compliant
Protective construction: Flux-resistant
type
2. Forcibly guided contact structure
3. Slim profile (mm
inch)
40/50 (L)
×
13 (W)
×
24 (H)
1.575/1.969 (L)
×
.512 (W)
×
.945 (H)
4. Fast response time is achieved
(8 ms or less).
5. With diode and LED indication type
available
6. Sockets and terminal sockets
(spade and ring tongue terminal
compatible) are available.
ORDERING INFORMATION
SF S
S: Slim type
Contact arrangement
2: 2 Form A 2 Form B
3: 3 Form A 1 Form B
4: 4 Form A 2 Form B
5: 5 Form A 1 Form B
6: 3 Form A 3 Form B
Operation indication
Nil: Without LED indication
L: With LED indication
Nominal coil voltage
12, 24, 48V DC
Function
Nil: None
D: With diode
Notes: 1. Please consult us about other coil voltages.
2. LED indication color is green.
–1–
ASCTB119E 201507-T
SFS
2. Specifications (relay)
Characteristics
Item
Contact arrangement
Contact resistance (Initial)
Contact material
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
Max. switching current
Min. switching capacity (Reference value)*
1
Nominal operating power
Insulation resistance (Initial)
Between open contacts
Specifications
4 poles
6 poles
2 Form A 2 Form B 3 Form A 1 Form B 4 Form A 2 Form B 5 Form A 1 Form B 3 Form A 3 Form B
Max. 100 mΩ (By voltage drop 6 V DC 1A)
Au flashed AgSnO
2
type
6A 250V AC, 6A 30V DC
1,500VA, 180W
250V AC, 125V DC
6 A (Reduce by 0.1 A/°C for temperatures 70 to 85°C
158 to 185°F)
1mA 5V DC
Approx. 360mW
Approx. 500mW
Contact
Rating
Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,500 Vrms for 1 min. (Detection current: 10mA)
2,500 Vrms for 1 min.
(Detection current: 10mA);
7-8/9-10 between open contacts
2,500 Vrms for 1 min. (Detection current: 10mA);
7-8/11-12 between open contacts
9-10/13-14 between open contacts
11-12/13-14 between open contacts
4,000 Vrms for 1 min. (Detection current: 10mA);
3-4/5-6 between open contacts
3-4/7-8 between open contacts
5-6/9-10 between open contacts
7-8/9-10 between open contacts
Electrical
characteristics
Breakdown
voltage
(Initial)
Between contact sets
4,000 Vrms for 1 min.
(Detection current: 10mA);
3-4/5-6 between open contacts
3-4/7-8 between open contacts
5-6/9-10 between open contacts
Between contact and coil
Operate time (at 20°C
68°F)
Response time (at 20°C
68°F)*
2
Release time (at 20°C
68°F)
Mechanical
characteristics
Shock
resistance
Vibration
resistance
Mechanical
Functional
Destructive
Functional
Destructive
4,000 Vrms for 1min (Detection current: 10mA)
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time)
Max. 8ms (Nominal coil voltage applied to the coil, excluding contact bounce time and without diode)*
4
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time)
200 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10μs)
1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10μs)
10 to 55 Hz at double amplitude of 1.5 mm
Min. 10
7
(at 180 times/min.)
250 V AC 6 A resistive load: Min. 10
5
(at 20 times/min.)
30 V DC 6 A resistive load: Min. 10
5
(at 20 times/min.)
250 V AC 1 A resistive load: Min. 5×10
5
(at 30 times/min.)
30 V DC 1 A resistive load: Min. 5×10
5
(at 30 times/min.)
[AC 15] 240 V AC 2 A inductive load: Min. 10
5
(at 20 times/min., cosϕ = 0.3)
[DC 13] 24 V DC 1 A inductive load: Min. 10
5
(at 20 times/min., L/R = 48 ms)
Ambient temperature: –40°C to +85°C
–40°F to +185°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at max. rating)
Approx. 20 g
.71 oz
Approx. 23 g
.81 oz
Expected life
Electrical
Conditions
Unit weight
Conditions for operation, transport and
storage*
3
Max. operating speed
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Response time is the time after the coil voltage turns off until the time when “a” contact turns off.
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
*4. Response time of built-in diode type is 12 ms or less (excluding contact bounce time when nominal coil voltage is applied to the coil).
–3–
ASCTB119E 201507-T
SFS
REFERENCE DATA
1. Operate/response/release time
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
20pcs. (a contacts: 80, b contacts: 40)
2. Coil temperature rise
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
3pcs.
Measured portion: Inside the coil
Ambient temperature: Room temperature
(27°C
80.6°F),
70°C
158°F,
85°C
185°F
50
3. Malfunctional shock
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
3pcs.
50
40
No. of contacts
Temperature rise,
°C
Operate time
Release time
Response time
Z
Z'
X
X'
40
Y
Y'
Deenergized condition
Energized condition
Y
200m/s
2
Z
200m/s
2
30
30
X
200m/s
2
20
20
10
10
0
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Time, ms
0
90
100
0A Room temperature
6A Room temperature
0A 70°C
158°F
6A 70°C
158°F
0A 85°C
185°F
4.5A 85°C
185°F
110
120
130
Coil applied voltage, %V
200m/s
2
Z'
200m/s
2
Y'
200m/s
2
X'
4. Max, switching capacity
10
8
7
Contact current, A
6
5
4
3
2
AC resistive load
DC resistive load
1
0.7
0.5
0.3
0.2
0.1
10
20 30
50 70 100 200 300 500
125 250
Contact voltage, V
1000
Other contact gaps when contacts are welded
Sample: SFS4-DC24V (4 Form A 2 Form B)
The table below shows the state of the other contacts.
In case of form “NO” contact weld the coil applied voltage is 0 V.
In case of form “NC” contact weld the coil applied voltage is nominal.
3-4 (NC)
3-4 (NC)
5-6 (NC)
7-8 (NO)
9-10 (NO)
11-12 (NO)
13-14 (NO)
5-6 (NC)
State of other contacts
7-8 (NO)
9-10 (NO)
>0.5
>0.5
>0.5
>0.5
11-12 (NO)
>0.5
>0.5
13-14 (NO)
>0.5
>0.5
Welded contact No.
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5: contact gap is kept at min. 0.5 mm
.020inch
Empty cells: either ON or OFF
Note: Contact gaps are shown at the initial state.
If the contact transfer is caused by load switching, it is necessary to check the actual loading.
–4–
ASCTB119E 201507-T
SFS

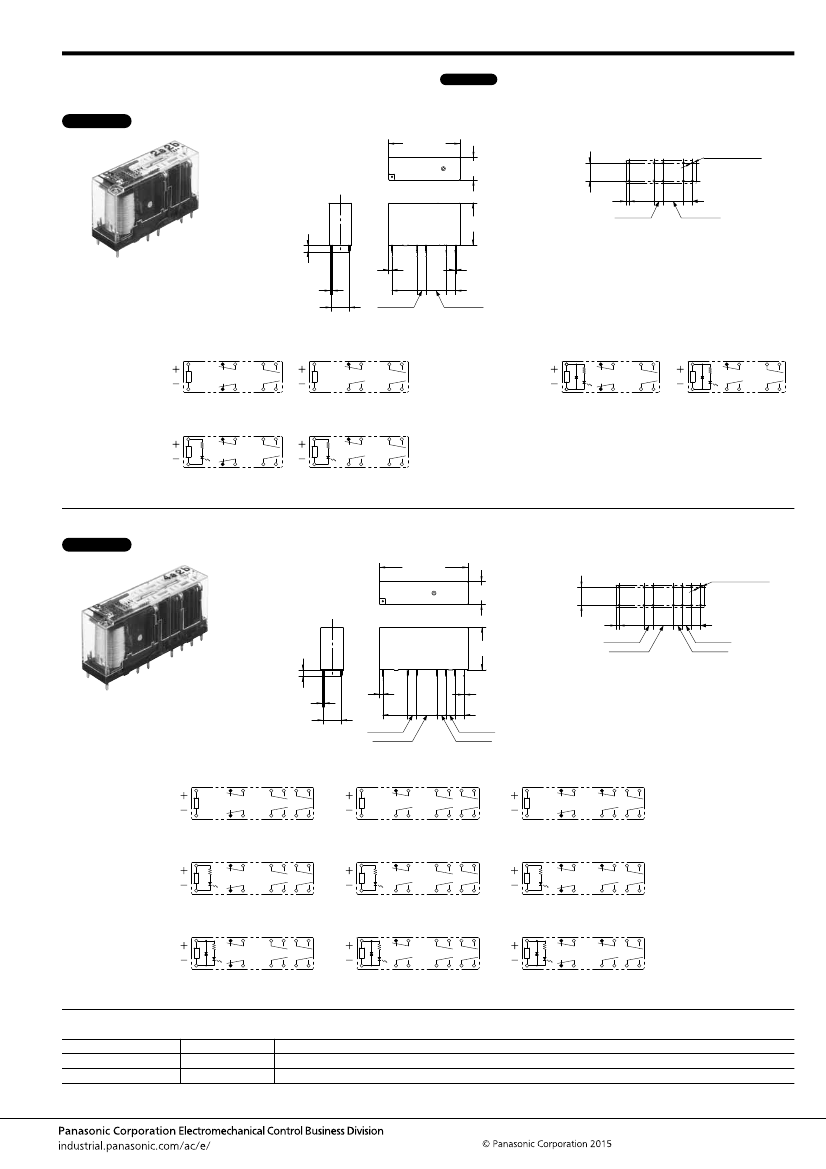

DIMENSIONS
(mm
inch)
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
1. 4 poles (2 Form A 2 Form B, 3 Form A 1 Form B)
External dimensions
Max. 40
Max. 1.575
Max. 13
Max. .512
(1.83)
(.072)
3.5
.138
Max. 24
Max. .945
13.97
.550
5.08
.200
5.08
.200
11.43
.450
PC board pattern (Bottom view)
10.16
.400
10-1.4
.055
dia.
Tolerance:
±0.1
±.004
1.83
.072
1.0
.039
10.16
.400
13.97
.550
5.08
.200
0.5
.020
5.08
.200
11.43
.450
General tolerance:
±0.3
±.012
Schematic (Bottom view)
1
3
4
7
8
1
3
4
7
8
1
3
4
7
8
1
3
4
7
8
Standard
2
5
6
9 10
2
5
6
9 10
With diode and
LED indication type
2
5
6
9 10
2
5
6
9 10
(2 Form A 2 Form B)
1
3
4
7
8
(3 Form A 1 Form B)
1
3
4
7
8
(2 Form A 2 Form B)
(3 Form A 1 Form B)
With LED indication
2
5
6
9 10
2
5
6
9 10
(2 Form A 2 Form B)
(3 Form A 1 Form B)
2. 6 poles (4 Form A 2 Form B, 5 Form A 1 Form B, 3 Form A 3 Form B)
CAD Data
External dimensions
Max. 50
Max. 1.969
Max. 13
Max. .512
PC board pattern (Bottom view)
10.16
.138
14-1.4
.055
dia.
3.5
.138
Max. 24
Max. .945
13.97
.550
(1.83)
(.072)
5.08
.200
11.43
.450
5.08
.200
5.08
.200
5.08
.200
Tolerance:
±0.1
±.004
1.0
.039
10.16
.400
1.83
.072
13.97
.550
5.08
.200
11.43
.450
0.5
.020
5.08
.200
5.08
.200
5.08
.200
General tolerance:
±0.3
±.012
Schematic (Bottom view)
1
3
4
7
8 11 12
1
3
4
7
8 11 12
1
3
4
7
8 11 12
Standard
2
5
6
9 10 13 14
2
5
6
9 10 13 14
2
5
6
9 10 13 14
(4 Form A 2 Form B)
1
3
4
7
8 11 12
1
(5 Form A 1 Form B)
3
4
7
8 11 12
1
(3 Form A 3 Form B)
3
4
7
8 11 12
With LED indication
2
5
6
9 10 13 14
2
5
6
9 10 13 14
2
5
6
9 10 13 14
(4 Form A 2 Form B)
1
3
4
7
8 11 12
1
(5 Form A 1 Form B)
3
4
7
8 11 12
1
(3 Form A 3 Form B)
3
4
7
8 11 12
With diode and
LED indication type
2
5
6
9 10 13 14
2
5
6
9 10 13 14
2
5
6
9 10 13 14
(4 Form A 2 Form B)
(5 Form A 1 Form B)
(3 Form A 3 Form B)
SAFETY STANDARDS
Certification authority
UL/C-UL
TÜV
File No.
E43149*
B 15 05 13461 346
6A 277V AC, 6A 30V DC
6A 250V AC (cos
φ
=1.0), 6A 30V DC (0ms), AC15: 2A 240V AC (cos
φ
=0.3), DC13: 1A 24V DC (L/R 48ms)
* CSA standard: Certified by C-UL
–5–
ASCTB119E 201507-T
