Product data sheet
Characteristics

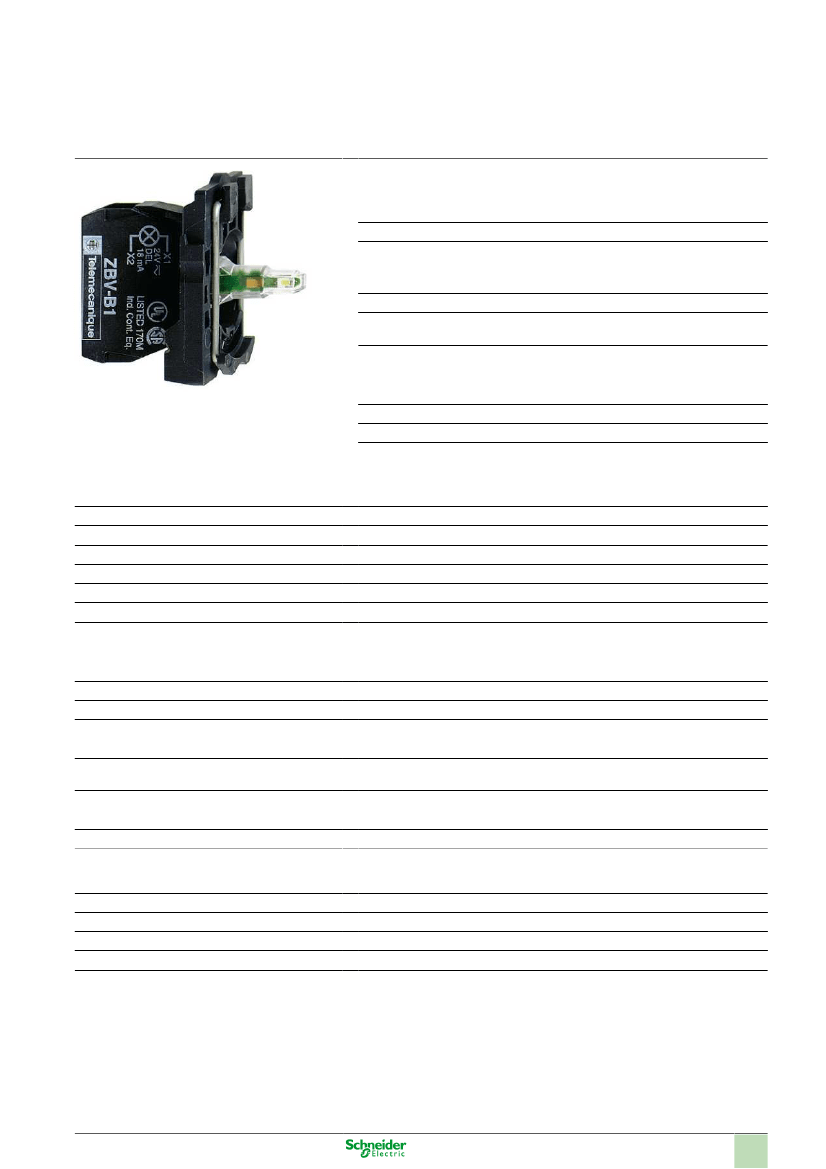

ZB5AV18B5
orange flashing light block with body/fixing
collar integral LED 24V
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Connections - terminals
Commercialised
Harmony XB5
Complete body/light block assembly
ZB5
Plastic
1
Screw clamp terminals: >= 1 x 0.22 mm² without
cable end conforming to EN 60947-1
Screw clamp terminals: <= 2 x 1.5 mm² with cable
end conforming to EN 60947-1
Integral LED
Orange
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Light source
Bulb base
Light source colour
Protected LED
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Tightening torque
Shape of screw head
1.18 in (30 mm)
1.65 in (42 mm)
1.26 in (32 mm)
(X1-X2)PL
0.05 lb(US) (0.022 kg)
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Slotted head compatible with flat Ø 5.5 mm screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Cross head compatible with Philips no 1 screwdriver
600 V (degree of pollution: 3) conforming to EN 60947-1
6 kV conforming to EN 60947-1
Flashing
24 V AC/DC, 50/60 Hz
21.6...26.4 V AC
19.2...30 V DC
18 mA
100000 h at rated voltage and 25 °C
1 kV conforming to IEC 61000-4-5
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Signalling type
[Us] rated supply voltage
Supply voltage limits
Current consumption
Service life
Surge withstand
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class II conforming to IEC 60536
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
Feb 28, 2016
1
Product certifications
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
2 kV conforming to IEC 61000-4-4
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Class B conforming to IEC 55011
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
CS2
00785901655480
1
0.04
Non-Stock - Not normally stocked in distribution facility
N
FR
Contractual warranty
Period
18 months
2
