38HWSP8S6RT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38HWSP8S6RT

38HWSP8S6RT: DescriptionPushbutton Switches Pushbutton Switch, Subminiature Surface Mount, SPST, RoHS Compliant; CategoryMechanical and electronic products switch; File Size168KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

38HWSP8S6RT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38HWSP8S6RT	-	-	View	Buy Now

38HWSP8S6RT Overview

Pushbutton Switches Pushbutton Switch, Subminiature Surface Mount, SPST, RoHS Compliant

38HWSP8S6RT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Actuator type	PLUNGER
body width	8.1 mm
body height	5.75 mm
Body length or diameter	8.97 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Sealed Surface Mount Subminiature Pushbutton Switches

SerieS 38H

Sealed Surface Mount Subminiature

Pushbutton Switches

FeatureS

•

Surface Mount Process Compatible

•

Sealed Construction

•

Solder-Coated Terminals

•

Tape and Reel Packaging

•

SPST and SPDT Momentary Contact

•

Sealed Per IP67

Pushbutton Switches

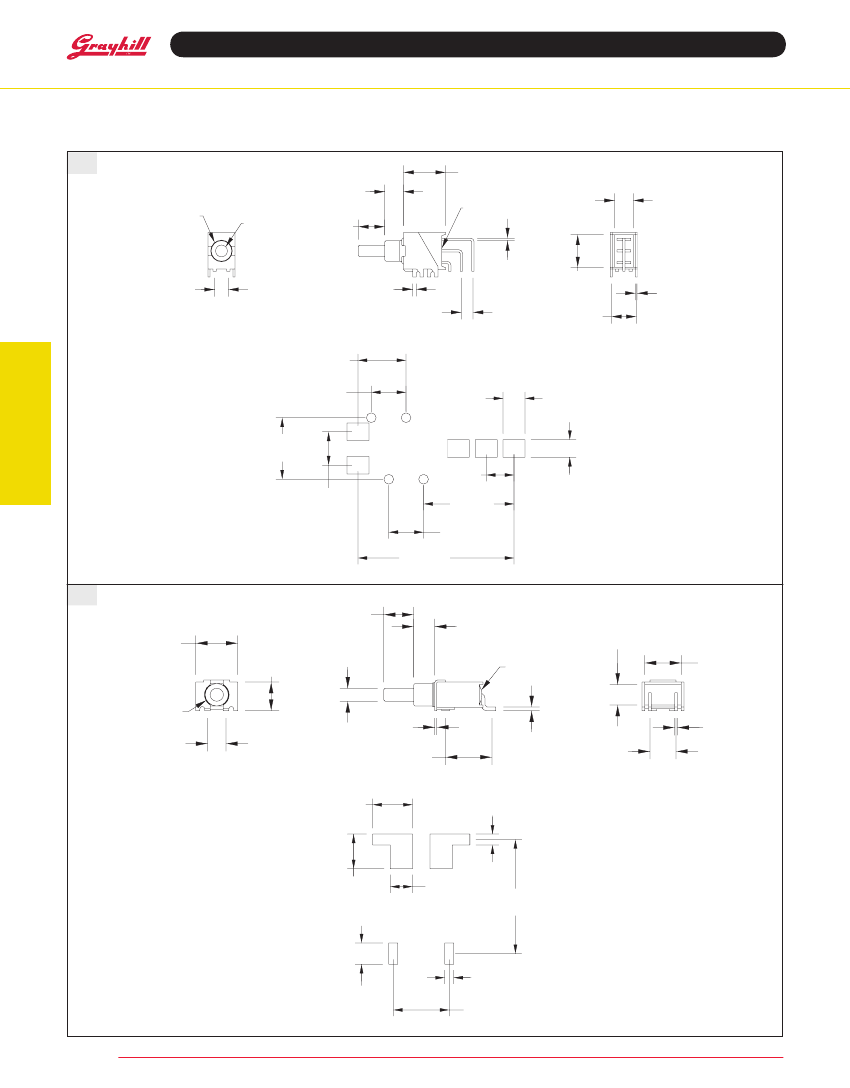

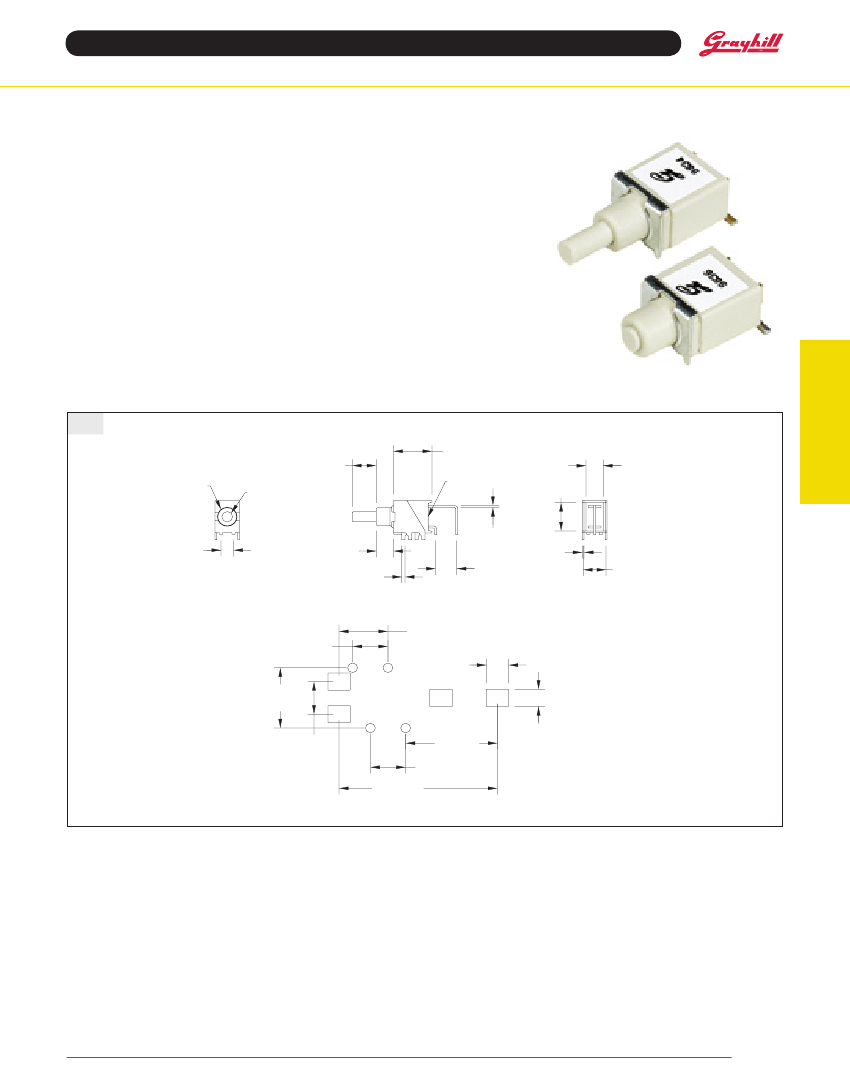

diMenSiOnS

in inches (and millimeters)

.548

(9,30)

EPOXY SEAL

.420

(7,10)

Ø.177

(Ø4,50)

.342

(5,80)

Ø.102

(Ø2,60)

.242

(4,10)

.177

(3,00)

.242

(4,10)

.045

(0,76)

.030

(0,50)

.300

(5,08)

.024

(0,40)

.325

(5,50)

SPSt

.125

(3,18)

.173

(4,39)

.079

(2,00)

.221

(5,60)

.063

(1,60)

.120

(3,00)

.325

(8,27)

.125

(3,18)

.561

(14,25)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

38HWSP8S6RT Related Products

	38HWSP8S6RT	38HWSP9S6RT
Description	Pushbutton Switches Pushbutton Switch, Subminiature Surface Mount, SPST, RoHS Compliant	Pushbutton Switches Submin SPST Off-(On) .4 A 20 VAC or VDC
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	18 weeks	18 weeks
Actuator type	PLUNGER	PLUNGER
body width	8.1 mm	8.1 mm
body height	5.75 mm	5.75 mm
Body length or diameter	8.97 mm	8.97 mm
Contact (AC) maximum rated R load	.02A@20VAC	.02A@20VAC
Maximum contact current (AC)	0.02 A	0.02 A
Maximum contact current (DC)	0.02 A	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC	.02A@20VDC
Maximum contact voltage (AC)	20 V	20 V
Maximum contact voltage (DC)	20 V	20 V
Electrical life	30000 Cycle(s)	30000 Cycle(s)
JESD-609 code	e4	e4
Installation features	SURFACE MOUNT-RIGHT ANGLE	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
method of packing	TAPE AND REEL	TAPE AND REEL
seal	EPOXY TERMINAL SEALED; IP67	EPOXY TERMINAL SEALED; IP67
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPDT	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER	SOLDER
Base Number Matches	1	1

Recommended Resources

Practical low-noise instrument amplification circuit diagram

Motor short circuit measuring instrument circuit

Ventilation fan automatic control circuit

Simple and reliable short circuit protector circuit

555 emergency DC fluorescent lamp circuit

CL3274 (TV) infrared remote control receiving preamplifier circuit
