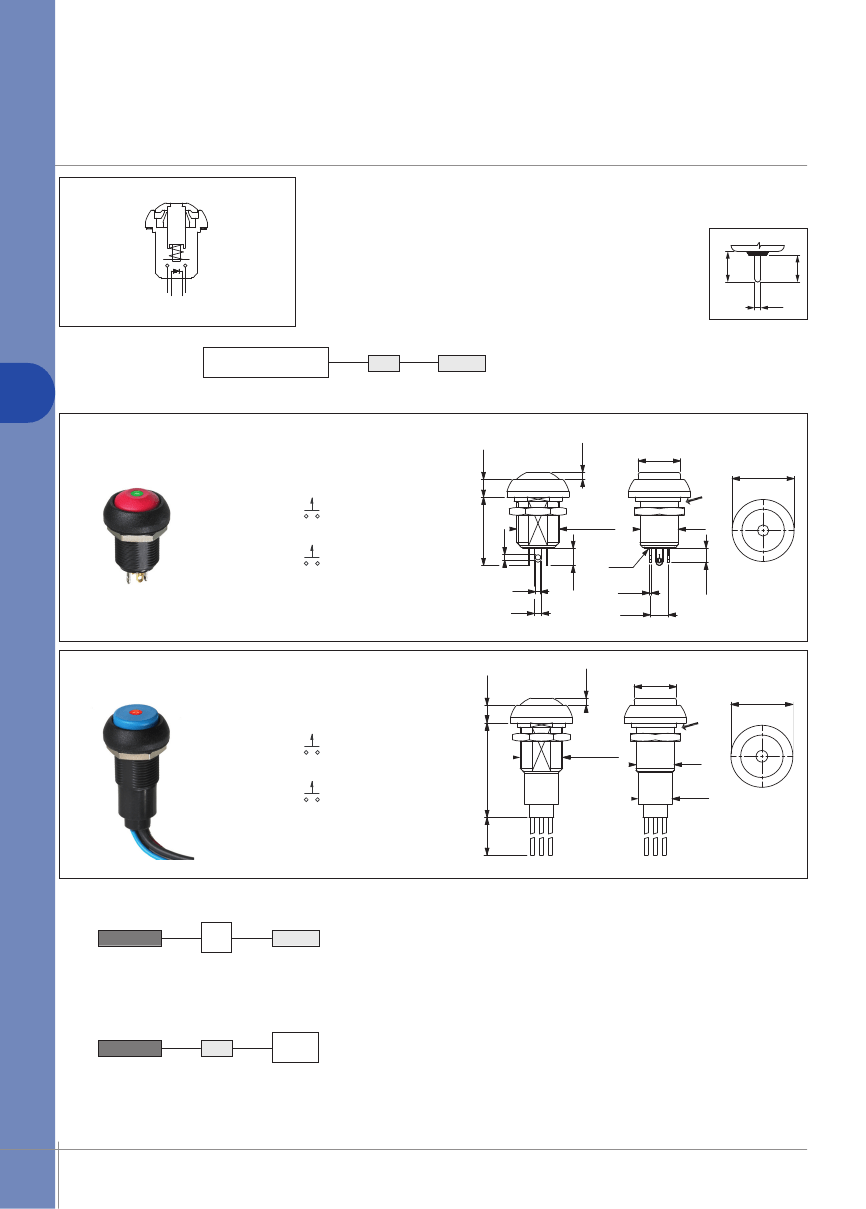

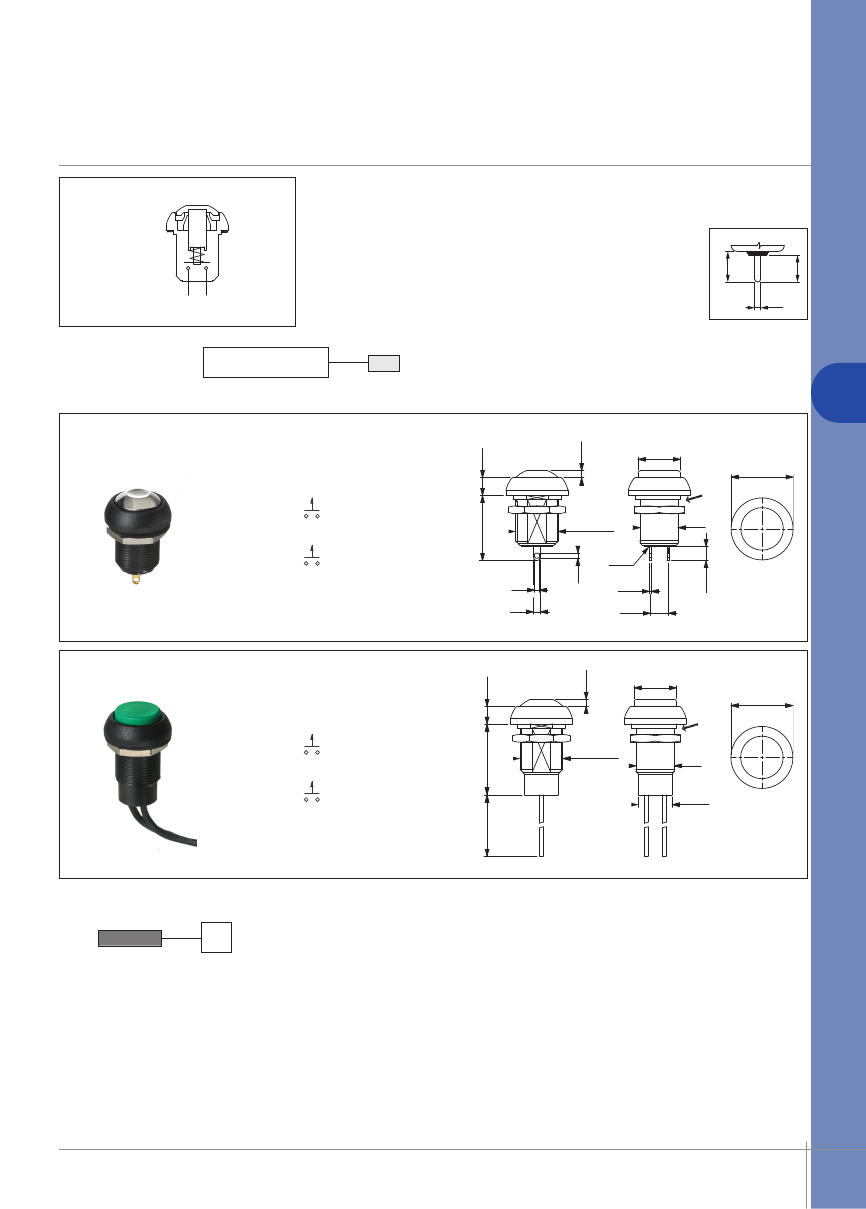

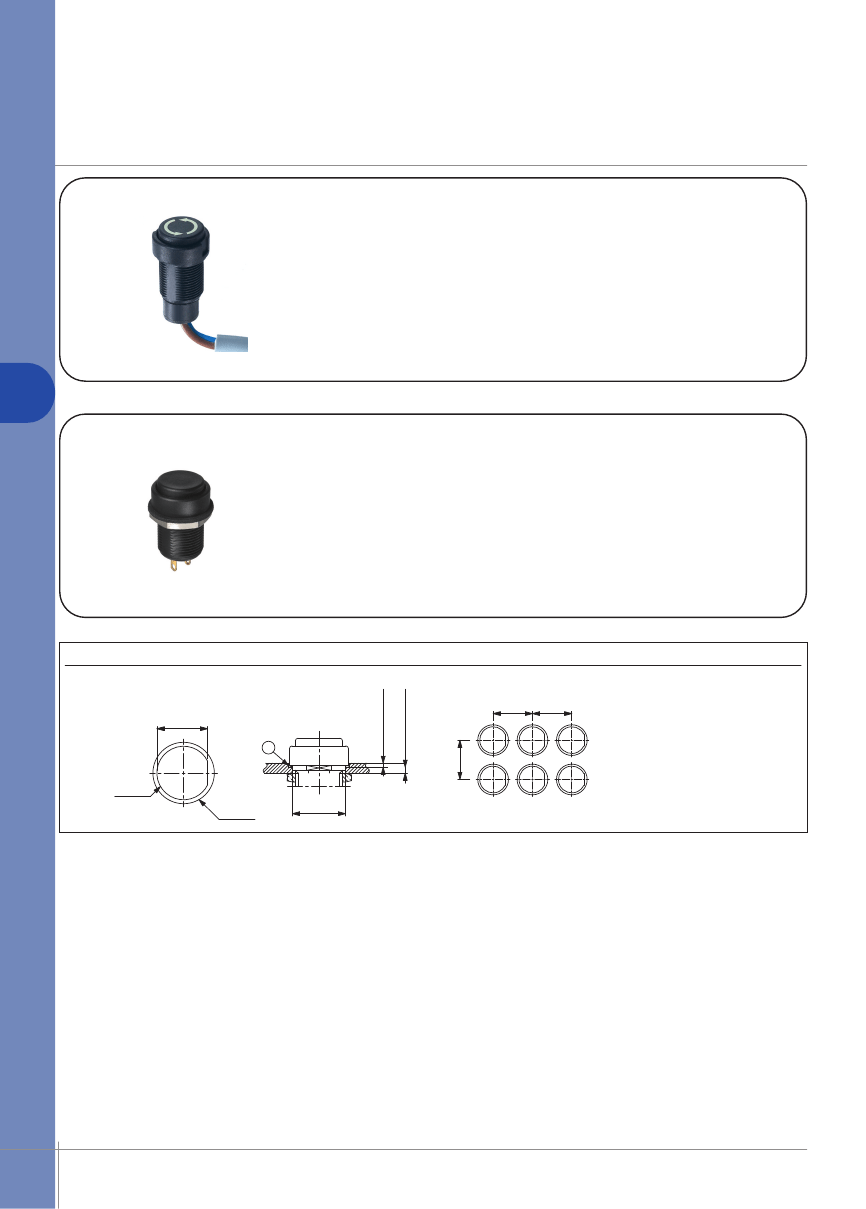

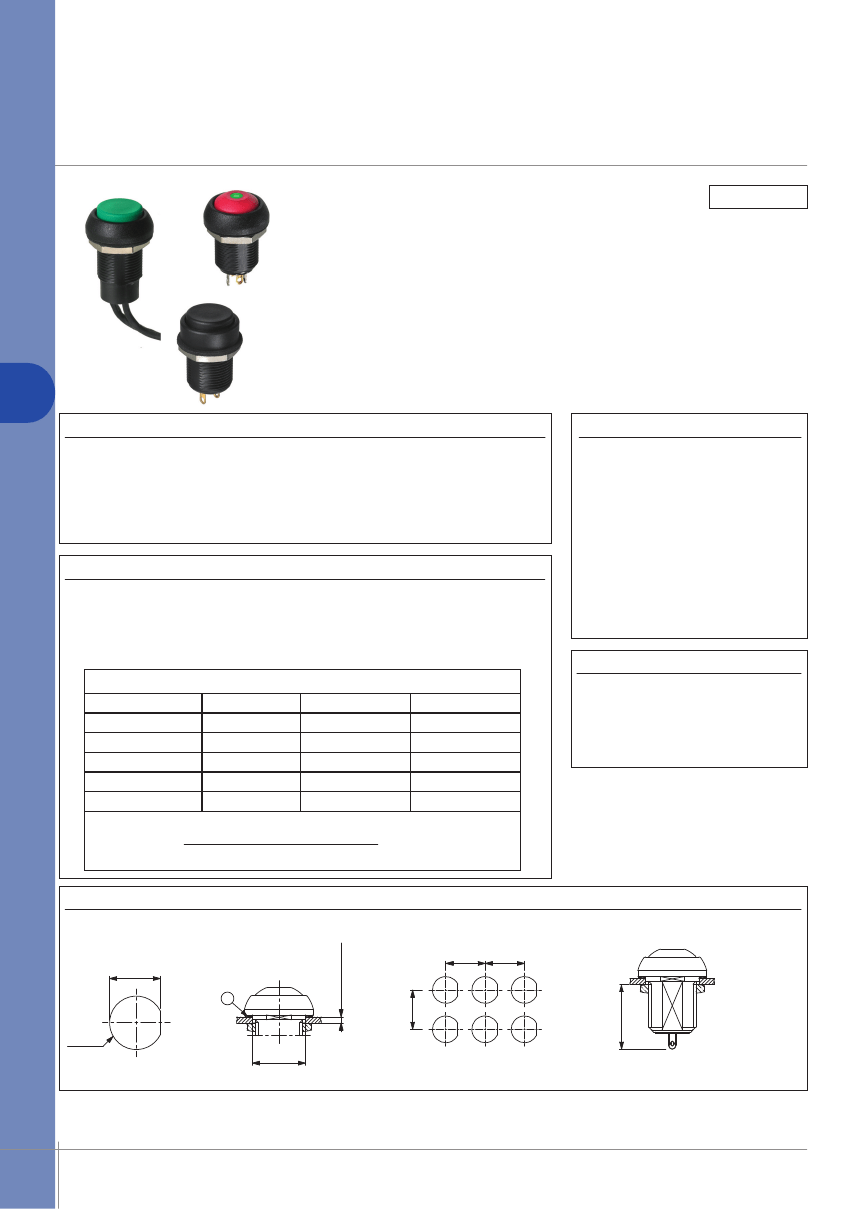

IL series
Sealed pushbutton switches for thick panels - long bushing Ø 12 mm - momentary
Distinctive features and specifications
UG1410-A-R2
K
Momentary pushbuttons for thick panels
K
Illuminated or non-illuminated
K
Tactile feedback
K
Flat round actuator for optional marking
K
Sealed to IP67 (standard models only)
B1
ENVIRONMENTAL SPECIFICATIONS
GENERAL SPECIFICATIONS
• Front panel sealing according to IEC 60529 : IP67 (standard models)
IP54 (options X1242 and 234)
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d
• Salt spray : IEC 512-6, test 11f
• Operating temperature : -40°C to +85°C
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
2A 24VDC, 200.000 cycles
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.000 Vrms
LED COMPONENT SPECIFICATIONS
• Panel thickness : 1,50 mm (.059) min.
10 mm (.393) max.
• Total travel :
1,7 mm (.067)
+/- 0,3 mm
• Typical operating force : 4N
+/- 2N
• Low level or mechanical life :
1.000.000 cycles
• Torque (applied to nut) : 1 Nm max.
with metal nut U166
1,5 Nm max. with plastic nut U4248
• Soldering : 300°C max. for
3 seconds
MATERIALS
LED colour
Super red (L0S)
Yellow (L0Y)
Green (L0G)
Blue (L0B)
White (L0W)
Forward current
20mA
20mA
20mA
20mA
20mA
Typ. forward voltage Max. forward voltage
2,1V
2,1V
2,1V
3,2V
3,35V
2,3V
2,3V
2,3V
3,8V
4,25V
• Case : thermoplastic UL94-V0
• Actuator : polyamide 6/6
• Bushing/bezel : polyamide 6/6
• Contacts : silver, gold plated
• Terminal seal : epoxy
A resistor must be series-connected by the user.
Resistor value = supply voltage - LED forward voltage
LED forward current
MOUNTING
-
STANDARD BEZEL
Back of panel space requirement
20.00 20.00 20.00 20.00
(.787)(.787) (.787)(.787)
Panel cut-out
12.90 12.90
(.507)(.507)
1
1
1.50min-10.00Max
(.059MIN.-.393MAX.)
1.50min-10.00Max
(.059MIN.-.393MAX.)
Matrix mounting
20.00
(.787)
20.00
(.787)
Ø13.60
Ø13.60
(.535DIA)
(.535DIA)
Ø13.50
Ø13.50
(.531DIA)
(.531DIA)
Flat seal
Mounting for reduced bezel : see options X1242 and 234 at the end of the series.
The company reserves the right to change specifications without notice.
B1-6
www.apem.com
APEM
16.40
(.645)
16.40
(.645)
CILPE
CILPE
IL series
Sealed pushbutton switches for thick panels - long bushing Ø 12 mm - momentary
Overview
IL
SERIES
Actuator shape
R
P
Round, curved
Round, flat
3
Electrical function
Normally open
(NO)
F
P
S
Terminals
Flying leads
Straight PC
Solder lugs
Contacts
AD
Silver, gold
plated
B1
Actuator colour
1
2
3
4
5
6
7/1
8
9
A
B
Blue
Black
Green
Grey
Yellow
Red
White
Bright chrome
Orange
Satin chrome
Dark blue
Blank
L0S
L0Y
L0G
L0B
L0W
LED colour
Non-illum.
Super red
Yellow
Green
Blue
White
Options
X1242
Reduced bezel,
frontal mounting
234
Reduced bezel,
standard mounting
hes:
switc s.
tom
ct cus f the serie
a
Comp end o
see
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches and options in the same order as in above chart
Dimensions :
first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
A sealing boot
is available to protect the switches against frost and sand (P/N U5125).
It is presented after the IA series and in section H.
Mounting accessories
: Standard hardware supplied : 1 flat seal (standard bezel) or 1 O-ring (reduced bezel) and 1 metal hex
nut 14 mm (.551) across flats. Hex nut part number U166.
Plastic nut 17 mm (.669) across flats, thickness 4 mm (.157) available on request. Part number U4248.
Packaging unit
: 25 pieces
APEM
www.apem.com
B1-7
IL series
Sealed pushbutton switches for thick panels - long bushing Ø 12 mm - momentary
Illuminated
• Curved or flat actuator
• Antirotation bushing
Straight
P
5.20
(.204)
4.55
(.179)
8.70
(.342)
2.80
(.110)
1.00
(.039)
Function 3 (NO)
CILLFCT
MODEL
STRUCTURE
B1
Solder lug terminals
ECH0.9
CIPCOSP
CIPC
Actuator marking available on ILP models (symbol 10 mm max.). On request.
5.00
(.196)
LE 15-11-2011
Curved actuator
ILR3SAD
Flat actuator
ILP3SAD
Normally open
©
Flat
2.00
(.078)
Ø12.00
(.472DIA)
Ø17.50
(.688DIA)
19.30
(.759)
Ø12.00x0.75SI
(.472DIAx0.75IS)
1.50
(.059)
10.80
(.425)
Normally open
6.10
(.240)
1.20
(.047)
2.00
(.078)
EPOXY
5.20
(.204)
0.40
(.015)
5.08
(.200)
Also available with straight PC terminals :
IL•3PAD
5.00
(.196)
2.00
(.078)
Flying lead terminals
©
Flat
Ø12.00
(.472DIA)
CILR3SLDT
Ø17.50
(.688DIA)
27.00 Max.
(1.063 MAX.)
Curved actuator
ILR3FAD
Flat actuator
ILP3FAD
Normally open
Ø12.00x0.75SI
(.472DIAx0.75IS)
10.80
(.425)
Normally open
500±10
19.68±.393)
CILR3SLDT
Ø9.50
Ech 0.9
LE 16/11/2011
(.374DIA)
Wire colours : black : NO contact, red : LED anode(+), blue : LED cathode(-)
CILR3FLDT
ACTUATOR COLOUR
1
: blue -
2
: black -
3
: green -
4
: grey -
5
: yellow -
6
: red -
7/1
: white -
8
: bright chrome -
9
: orange
A
: satin chrome -
B
: dark blue
LED COLOUR
CILR3FLDT
Ech 0.9
LE 16/11/2011
L0S
: red -
L0Y
: yellow -
L0G
: green -
L0B
: blue -
L0W
: white
B1-8
www.apem.com
APEM
IL series
Sealed pushbutton switches for thick panels - long bushing Ø 12 mm - momentary
Non-illuminated
• Curved or flat actuator
• Antirotation bushing
Straight
P
5.20
(.204)
4.55
(.179)
8.70
(.342)
2.80
(.110)
1.00
(.039)
Function 3 (NO)
CILFCT
MODEL
STRUCTURE
CIPCOSP
CIPC
Actuator marking available on ILP models (symbol 10 mm max.). On request.
B1
Solder lug terminals
5.00
(.196)
2.00
(.078)
ECH0.9
ILR3SAD
Flat actuator
ILP3SAD
Normally open
©
Flat
Ø12.00
(.472DIA)
Ø17.50
(.688DIA)
LE 15-11-2011
Curved actuator
Normally open
18.40
(.724)
Ø12.00x0.75SI
(.472DIAx0.75IS)
10.80
(.425)
2.00
(.078)
5.08
(.200)
Also available with straight PC terminals :
IL•3PAD
5.20
(.204)
1.20
(.047)
1.50
(.059)
EPOXY
0.40
(.015)
CILR3SDT
5.00
(.196)
2.00
(.078)
Flying lead terminals
©
Flat
Ø12.00
(.472DIA)
Ø17.50
(.688DIA)
21.00 Max.
(.826 MAX.)
Curved actuator
ILR3FAD
Flat actuator
ILP3FAD
Normally open
Ø12.00x0.75SI
(.472DIAx0.75IS)
10.80
(.425)
Normally open
500±10
19.68±.393)
CILR3SDT
Ech 0.9
LE 16/11/2011
Ø9.50
(.374DIA)
CILR3FDT
ACTUATOR COLOUR
1
: blue -
2
: black -
3
: green -
4
: grey -
5
: yellow -
6
: red -
7/1
: white -
8
: bright chrome -
9
: orange
A
: satin chrome -
B
: dark blue
CILR3FDT
Ech 0.9
LE 16/11/2011
APEM
www.apem.com
B1-9
IL series
Sealed pushbutton switches for thick panels - long bushing Ø 12 mm - momentary
Custom switches
Reduced bezel for compact matrix mounting - option X1242
• Dia. 15 (.590) reduced bezel
• Mounting from the front into a threaded panel cut-out
• Matrix mounting : 16 x 16 mm (.630x.630)
• Illuminated or non-illuminated
• Same terminal options and colours as standard models
• Part numbers on request.
ILP3FAD...X1242
B1
Reduced bezel for compact matrix mounting - option 234
• Dia. 15 (.590) reduced bezel
• Standard panel mounting
• Matrix mounting : 17,5 x 17,5 mm (.689x.689)
• Illuminated or non-illuminated
• Same terminal options and colours as standard models
• Part numbers on request.
ILP3SAD...234
MOUNTING
-
REDUCED MODEL
17.50
(.689)
17.50
(.689)
Panel cut-out
0.80min-4.30Max
(.031MIN.-.169MAX.)
12.90
(.507)
2
Matrix mounting
1.50min-10.00Max
(.059MIN.-.393MAX.)
17.50
(.689)
Ø13.60
(.535DIA)
O-ring
Ø15.60
(.614DIA)
Ø13.50
(.531DIA)
CIMPE2
ECH1 le 29/03/2012
CIMPE2
B1-10
www.apem.com
20
(.787)
APEM
