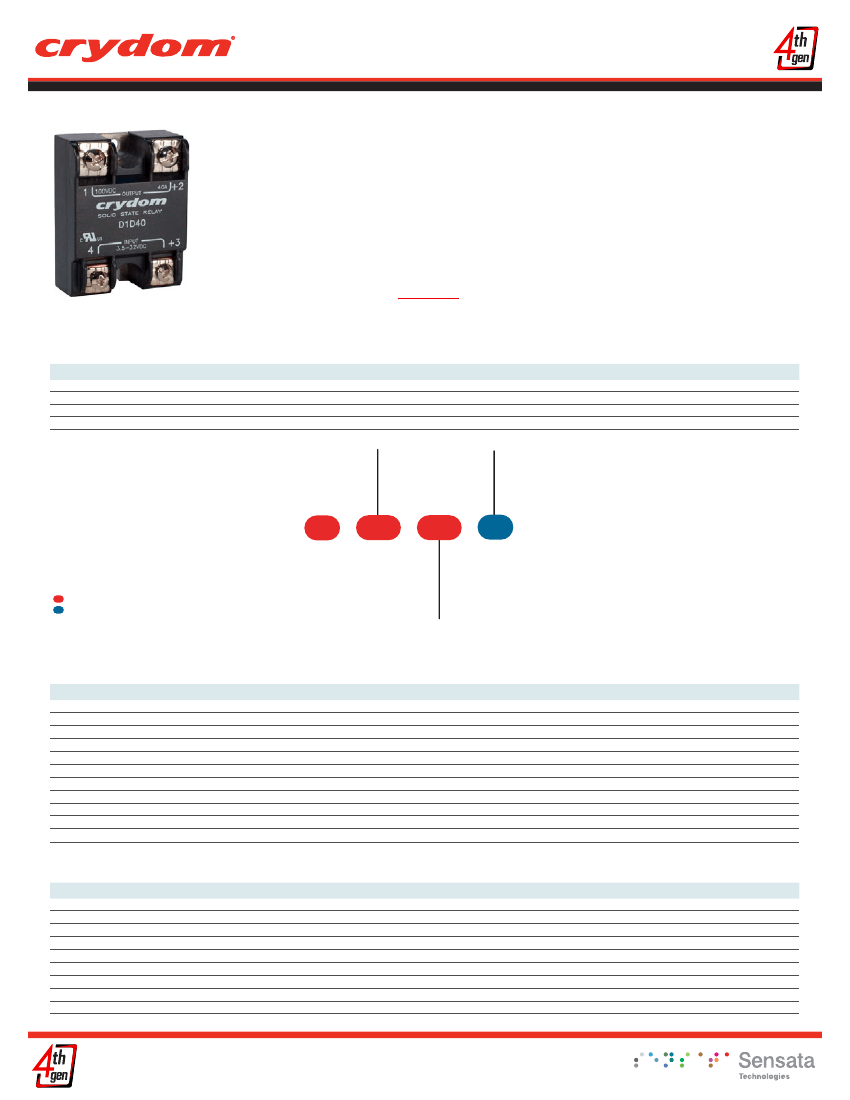

Datasheet
1-DC Series
•
Ratings from 7 A to 40 A @ 200 VDC and
from 7 A to 10 A @ 500VDC
•
Mosfet Output
•
UL Approved, CE Compliant to EN60950-1
•
Improved SEMS screw and washer
•
Redesigned housing with anti-rotation barriers
For
Generation 3
datasheet
click here
•
DC control
•
EMC Compliant to Level 3
•
Epoxy Free Design
Panel Mount
PRODUCT SELECTION
Load Voltage
100 VDC
200 VDC
400 VDC
500 VDC
7A
D1D07
D2D07
D4D07
D5D07
Operating Voltage
1D:
1-100 VDC
2D:
1-200 VDC
4D:
1-400 VDC
5D:
1-500 VDC
10 A
12 A
D1D12
D2D12
D4D12
20 A
D1D20
40 A
D1D40
D2D40
D5D10
Termination
Blank:
Screws & clamps
K:
Installed standoffs with
screws for PC Board
mounting
(1)
AVAILABLE OPTIONS
Series
D
Required for valid part number
For options only and not required for valid part number
Not all part number combinations are available.
Contact Crydom Technical Support for information on
the availability of a specific part number.
1D
07
K
*
Rated Load Current
07:
7 Amps
10:
10 Amps (500 VDC only)
12:
12 Amps (not for 500 VDC)
20:
20 Amps (100 VDC only)
40:
40 Amps (100 & 200 VDC only)
OUTPUT SPECIFICATIONS
(2)
Description
Recommended Operating Voltage [Vdc]
Absolute Maximum Rating [Vdc]
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum Load Current [Adc]
(3)
Minimum Load Current [mA]
(4)
Maximum Surge Current (10msec) [Adc]
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Maximum On-State Resistance [RDS-ON] [Ohms]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Heat Sink for Rated Current @ 40°C [°C/W]
Maximum Pulse Width Modulation Frequency [Hz]
(5)
7A
1-72
100
0.1
7
1
23
0.5
0.07
2
5
5000
12 A
1-72
100
0.2
12
1
28
0.9
0.072
2
3
4000
20 A
1-72
100
0.3
20
1
42
0.8
0.039
1.71
2
3500
40 A
1-72
100
0.3
40
1
106
1
0.025
0.68
1
2500
7A
1-150
200
0.1
7
1
22
1.5
0.21
1.24
3
3500
12 A
1-150
200
0.3
12
1
31
0.7
0.062
0.71
3
2000
40 A
1-150
200
0.3
40
1
106
0.8
0.021
0.22
0.7
950
7A
1-300
400
0.3
7
1
18
2.3
0.33
0.56
2
1200
12 A
1-300
400
0.3
12
1
36
2.6
0.22
0.39
1
900
7A
1-385
500
0.2
7
1
19
3.5
0.5
0.6
1
1100
10 A
1-385
500
0.3
10
1
29
3.3
0.33
0.43
0.7
900
INPUT SPECIFICATIONS
(2)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
(6)
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [µsec]
Maximum Turn-Off Time [µsec]
DC Control
3.5-32 VDC
-32 VDC
3.5 VDC
1 VDC
10 mA
15 mA
Current Regulated
100
100
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet

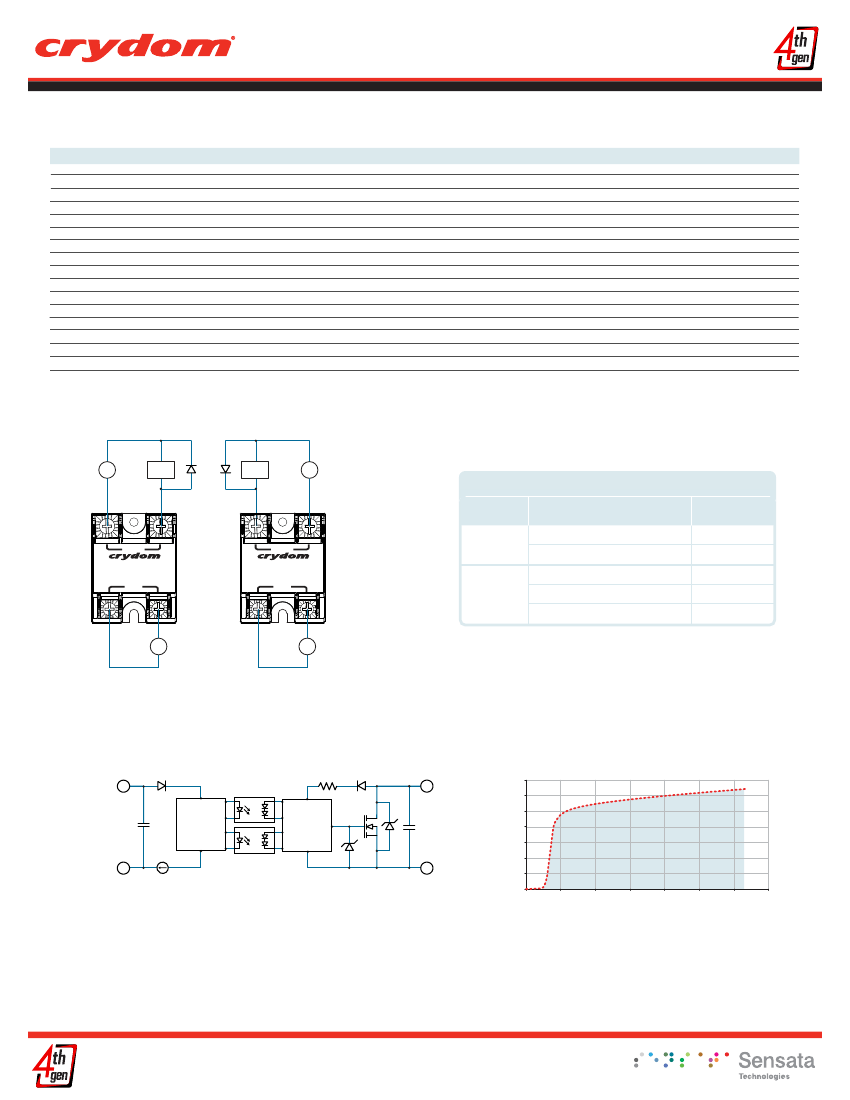

GENERAL SPECIFICATIONS
(2)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(7)
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Input/Load Terminal Screw Torque Range (in-lb/Nm)
(1)
Input/Output Terminal Screw Thread Size
Humidity per IEC60068-2-78
MTBF (Mean Time Between Failures) at 40°C ambient temperature
(8)
MTBF (Mean Time Between Failures) at 60°C ambient temperature
(8)
Panel Mount
Parameters
3750 Vrms
10
9
Ohms
8 pF
-40 to 100 °C
-40 to 125 °C
2.66 oz (75.5 g)
UL94 V-0
Aluminum
13-15 /1.5-1.7
18-20 / 2-2.2
18-20 / 2-2.2
w/”K” option 8-10 / 0.9-1.13
#6-32 UNC / #8-32 UNC
93% non-condensing
21,395,130 hours (2,441 years)
11,545,504 hours (1,317 years)
WIRING DIAGRAM
+
V
-
+
*
Inductive loads must be diode suppresed.
-
V
+
Load
*
*
Load
+
Recommended Wire Sizes
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
) / 3.3 [maximum]
20 AWG (0.5 mm
2
) / 0.518 [minimum]
Wire Pull-Out
Strength (lbs)[N]
10 [44.5]
90 [400]
30 [133]
110 [490]
90 [400]
1
OUTPUT
S O L I D S TAT E R E L AY
+2
1
OUTPUT
S O L I D S TAT E R E L AY
+2
Input
4
INPUT
+3
4
INPUT
+3
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
) / 8.4 [maximum]
+
V
-
+
V
-
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Input Current vs Input Voltage
Standard Regulated “DC” Inputs
+DC
3
2
+DC
14
Input Current (mA)
12
10
8
6
4
2
0
0
5
10
15
20
25
30
35
Control
Circuit
Trigger
Circuit
-DC
4
1
-DC
DC Input Voltage
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet

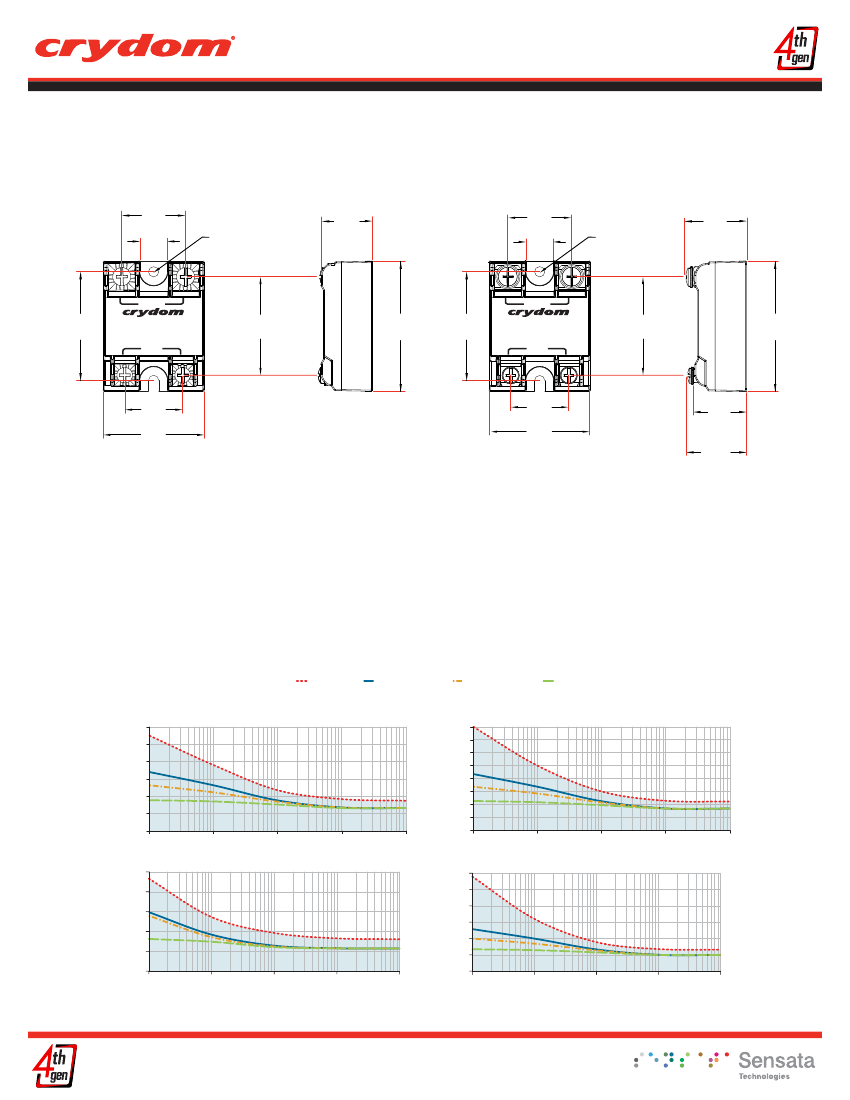

MECHANICAL SPECIFICATIONS
(2)
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
Panel Mount
Screw Termination
1.1
[27.9]
0.49
[12.4]
0.89
[22.6]
Hex Standoff Termination (“K”
Option)
(1)
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.04
[26.4]
(2 places)
1
OUTPUT
S O L I D S TAT E R E L AY
+2
1
OUTPUT
S O L I D S TAT E R E L AY
+2
1.88
[47.6]
1.7
[43.2]
+3
2.25
[57.3]
1.88
[47.6]
4
1.7
[43.2]
2.25
[57.3]
4
INPUT
INPUT
+3
1.0
[25.4]
1.75
[44.5]
1.0
[25.4]
1.75
[44.5]
0.93
[23.6]
(4 places)
1.0
[25.4]
(2 places)
GENERAL NOTES
(1)
Option “K” is designed and tested for use with printed circuit boards or ring/fork terminals having a thickness between 0.031 and 0.093 inches (0.79 to 2.36 mm).
(2)
All parameters at Tc=25°C unless otherwise specified.
(3)
Heat sinking required, see derating curves.
(4)
Low current loads and high ambient temperature can affect turn-on time.
(5)
8VDC Minimum control voltage. Resistive loads only. Consider switching losses; at maximum frequency reduce to 75% output current.
(6)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(7)
Decrease maximum control voltage 1.35V/°C above 80°C ambient temperature.
(8)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
For additional information or specific questions, contact Crydom Technical Support.

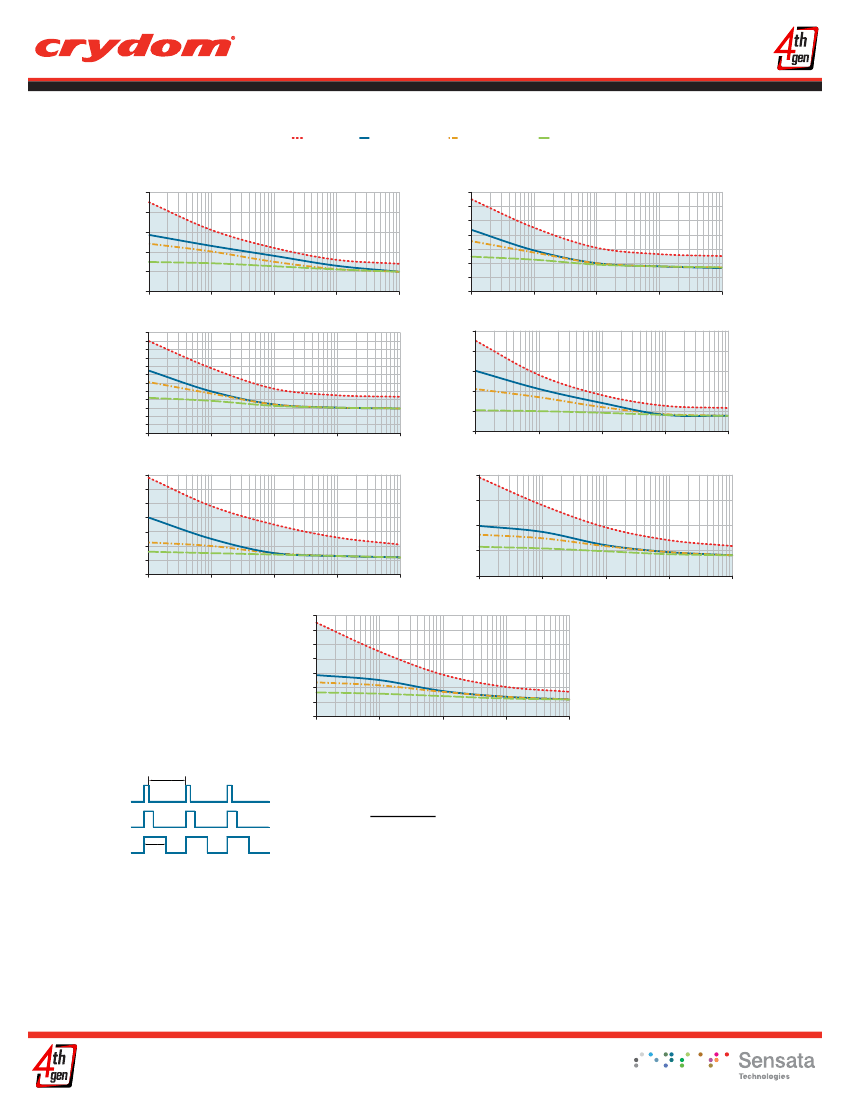

SURGE CURRENT INFORMATION
60
Single Pulse
(i)
Duty Factor (10%)
(ii)
Duty Factor (20%)
(ii)
Duty Factor (50%)
(ii)
D1D07
Surge Current (Amp)
80
70
60
50
40
30
20
10
0
D1D12
Surge Current (Amp)
50
40
30
20
10
0
0.1
1
10
100
1000
0.1
1
10
100
1000
Surge Duration (msec)
100
Surge Duration (msec)
D1D20
300
250
D1D40
Surge Current (Amp)
Surge Current (Amp)
0.1
1
10
100
1000
80
60
40
20
0
200
150
100
50
0
0.1
1
10
100
1000
Surge Duration (msec)
Surge Duration (msec)
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet
SURGE CURRENT INFORMATION
D2D07
50
70
Panel Mount
Single Pulse
(i)
Duty Factor (10%)
(ii)
Duty Factor (20%)
(ii)
Duty Factor (50%)
(ii)
D2D12
Surge Current (Amp)
60
50
40
30
20
10
0
0.1
1
10
100
1000
Surge Current (Amp)
40
30
20
10
0
0.1
1
Surge Duration (msec)
10
100
1000
Surge Duration (msec)
D2D40
240
220
200
180
160
140
120
100
80
60
40
20
0
D4D07
50
Surge Current (Amp)
Surge Current (Amp)
40
30
20
10
0
0.1
1
Surge Duration (msec)
10
100
1000
0.1
1
10
100
1000
Surge Duration (msec)
40
D4D12
70
60
D5D07
Surge Current (Amp)
50
40
30
20
10
0
0.1
1
10
100
1000
Surge Current (Amp)
30
20
10
0
0.1
1
Surge Duration (msec)
70
60
D5D10
Surge Duration (msec)
10
100
1000
Surge Current (Amp)
50
40
30
20
10
0
0.1
1
10
100
1000
Surge Duration (msec)
Period
Duty Factor 10%
Duty Factor 20%
Duty Factor 50%
Pulse
Wide
For Pulse Wide Modulation applications select
the curve according duty factor and pulse duration as following.
Pulse Wide
Period
x100 (%)
Duty Factor
=
(i) for Single Surge Pulse Tc=40°C ;Tj 175°C
(ii) for Repetitive Surge Pulse Tc=40°C ;Tj 130°C
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
Datasheet

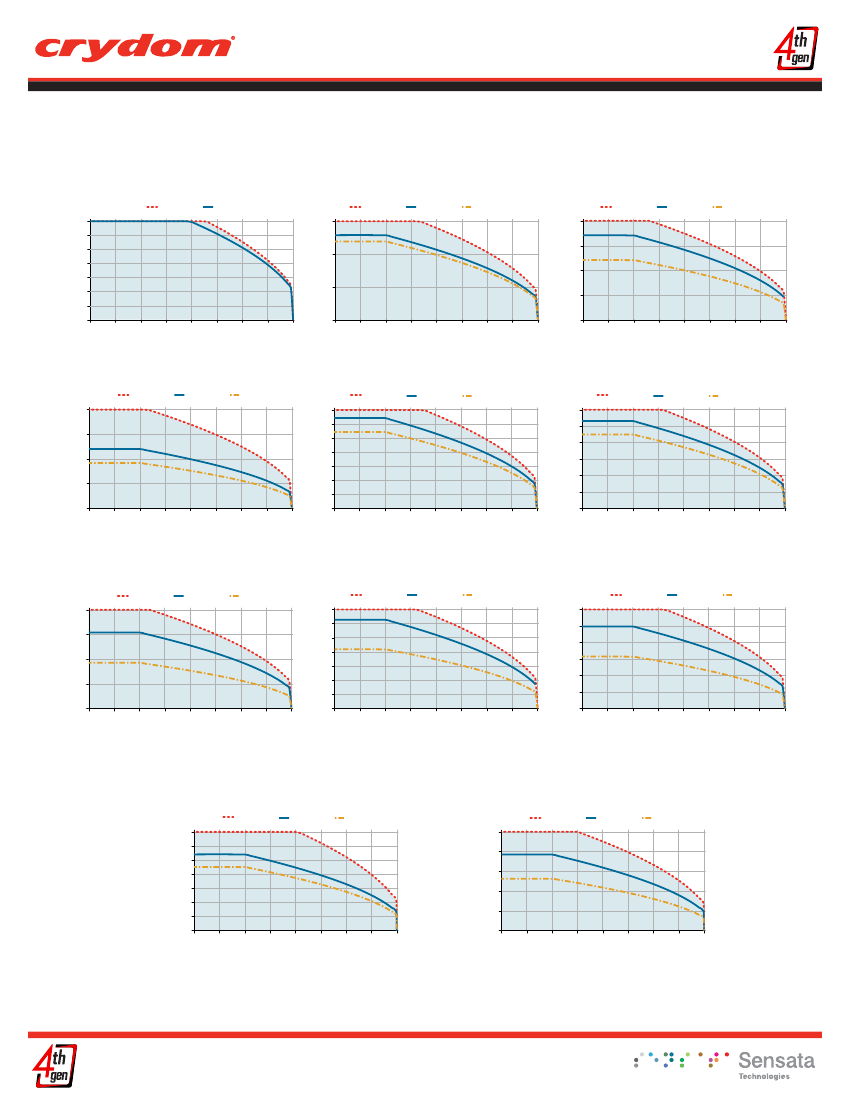

THERMAL DERATE INFORMATION
D1D07
5°C/W
7
6
5
4
3
2
1
0
20
30
40
50
60
70
80
90
100
No Heat Sink
(iii)
12
3°C/W
(iii)
SSR metal base plate acting as heat sink, it must be exposed to free ambient air.
Panel Mount
D1D12
5°C/W
No Heat Sink
(iii)
20
2°C/W
D1D20
3°C/W
No Heat Sink
(iii)
Load Current (Amps)
Load Current (Amps)
Load Current (Amps)
8
15
10
5
0
4
0
20
30
40
50
60
70
80
90
100
20
30
40
50
60
70
80
90
100
Ambient Temperature (ºC)
Ambient Temperature (ºC)
Ambient Temperature (ºC)
D1D40
1°C/W
40
3°C/W
5°C/W
7
6
5
4
3
2
1
0
20
30
40
50
3°C/W
D2D07
5°C/W
No Heat Sink
(iii)
12
3°C/W
D2D12
5°C/W
No Heat Sink
(iii)
Load Current (Amps)
Load Current (Amps)
30
20
10
0
Load Current (Amps)
10
8
6
4
2
0
20
30
40
50
60
70
80
90
100
20
30
40
50
60
70
80
90
100
60
70
80
90
100
Ambient Temperature (ºC)
Ambient Temperature (ºC)
Ambient Temperature (ºC)
D2D40
0.7°C/W
40
1.5°C/W
5°C/W
7
6
5
4
3
2
1
0
20
30
40
50
2°C/W
D4D07
3°C/W
No Heat Sink
(iii)
12
1°C/W
D4D12
2°C/W
5ºC/W
Load Current (Amps)
Load Current (Amps)
30
20
10
0
Load Current (Amps)
10
8
6
4
2
0
20
30
40
50
60
70
80
90
100
20
30
40
50
60
70
80
90
100
60
70
80
90
100
Ambient Temperature (ºC)
Ambient Temperature (ºC)
Ambient Temperature (ºC)
D5D07
1°C/W
7
6
5
4
3
2
1
0
20
30
40
50
60
70
80
90
100
3°C/W
5ºC/W
10
0.7°C/W
D5D10
2°C/W
5°C/W
Load Current (Amps)
Load Current (Amps)
8
6
4
2
0
20
30
40
50
60
70
80
90
100
Ambient Temperature (ºC)
Ambient Temperature (ºC)
Do not forget to visit us at:
www.crydom.com
Copyright © 2018 Crydom Inc. Specifications subject to change without notice.
京公网安备 11010802033920号
EEWORLD
