3302D: DescriptionToggle Switches 20A SPDT, On-Off-On 6" Wire Leads, IP67; CategoryTopical application Mechanical and electrical/engineering/automation; File Size563KB，1 Pages; ManufacturerElectroswitch

Download Datasheet Parametric Compare View All

3302D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3302D	-	-	View	Buy Now

3302D Overview

Toggle Switches 20A SPDT, On-Off-On 6" Wire Leads, IP67

3302D Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Electroswitch
Product Category	Toggle Switches
RoHS	Details
Contact Form	SPDT
Switch Function	ON - OFF - ON
Mounting Style	Panel
Termination Style	Wire Leads
Current Rating	10 A, 20 A
Voltage Rating AC	125 VAC, 250 VAC
Bushing Size	15/32-32
Actuator	Bat
Terminal Seal	Sealed
IP Rating	IP67
Illumination	None
Mounting Type	Bushing
Operating Temperature Range	- 10 C to + 65 C
Life	100000 Cycles

Preview

Download Datasheet

View All

Contact

Electroswitch

Phone: 888-768-2797

sales@electro-nc.com

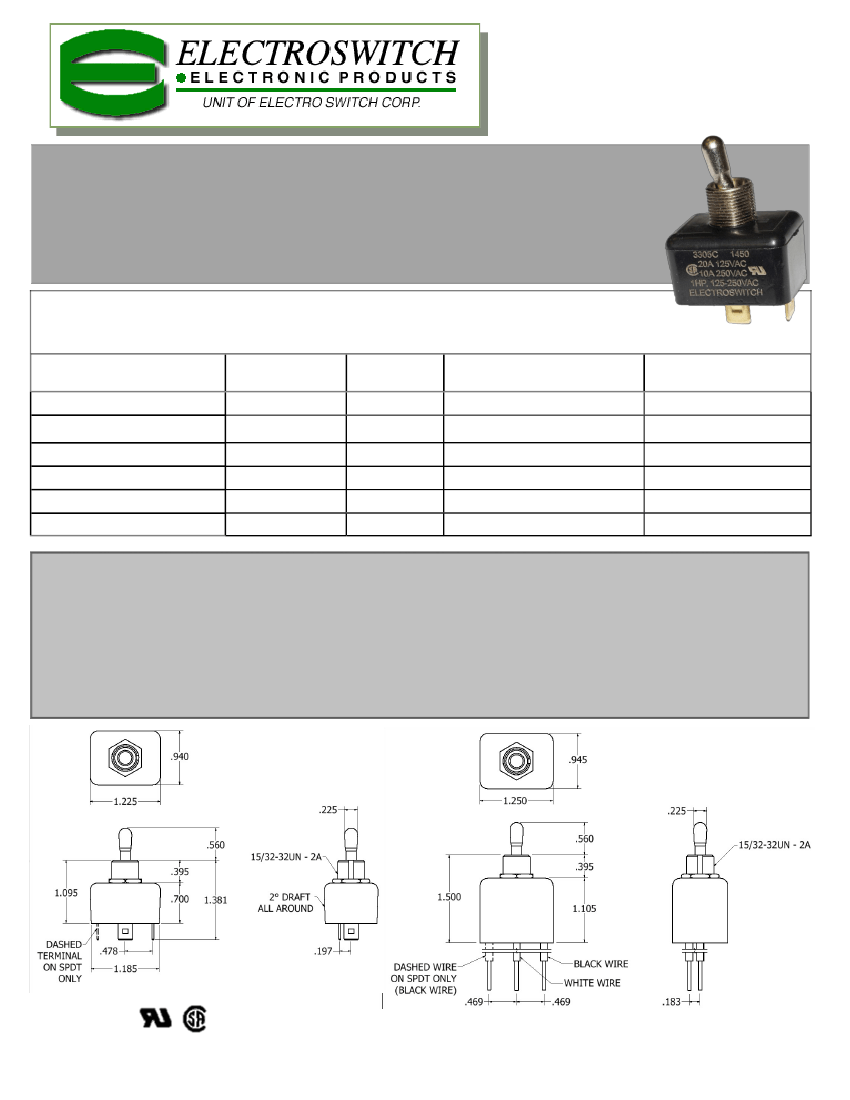

IP67 Sealed Toggle Switches

Highest quality for the most demanding applications

3300 Series

Standard 15/32" diameter bushing. Standard Bat length is .560".

Current Rating

20A -125VAC, 1 HP

3300 Series Toggle

Electrical Rating: 20A - 125 VAC , 10A - 250 VAC, 1 HP 125-250 VAC

Life Cycles:

Operating Temp:

Sealing:

100,000 Electrical

-10°C to +65°C

100,000 Mechanical

Catalog No.

3305C

3305D

3301C

3301D

3302C

3302D

Fig 1

Fig 2

Fig 1

Fig 2

Fig 1

Fig 2

Action

SPST on-none-off

SPDT on-none-on

SPDT on-off-on

Termination

.250" QC

6” Wire Leads, #16 Gauge

.250" QC

6" Wire Leads, #16 Gauge

.250" QC

6” Wire Leads, #16 Gauge

seal tested per IP67 standards to withstand submersion in water to a depth of 1 meter for 30 minutes, Meets IP68

Dielectric Strength 1000 Volts RMS Minimum

Mounting Means 15/32” Bushing, Keyway .078 - .083 Wide X .037 - .043 Deep, Standard Hardware supplied

Fig 1

Fig 2

All Information subject to change without notice

3302D Related Products

	3302D	3301D	3301C	3302C	3305C
Description	Toggle Switches 20A SPDT, On-Off-On 6" Wire Leads, IP67	Toggle Switches 20A SPDT, On-None-On 6" Wire Leads, IP67	Toggle Switches 20A SPDT, On-None-On .250" QC, IP67	Toggle Switches 20A SPDT, On-Off-On .250" QC, IP67	Toggle Switches 20A SPST On-None-Off .250" QC, IP67
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Electroswitch	Electroswitch	Electroswitch	Electroswitch	Electroswitch
Product Category	Toggle Switches	Toggle Switches	Toggle Switches	Toggle Switches	Toggle Switches
RoHS	Details	Details	Details	Details	Details
Contact Form	SPDT	SPDT	SPDT	SPDT	SPST
Switch Function	ON - OFF - ON	ON - NONE - ON	ON - NONE - ON	ON - OFF - ON	ON - NONE - OFF
Mounting Style	Panel	Panel	Panel	Panel	Panel
Termination Style	Wire Leads	Wire Leads	Quick Connect Terminal	Quick Connect Terminal	Quick Connect Terminal
Current Rating	10 A, 20 A	10 A, 20 A	10 A, 20 A	10 A, 20 A	10 A, 20 A
Voltage Rating AC	125 VAC, 250 VAC	125 VAC, 250 VAC	125 VAC, 250 VAC	125 VAC, 250 VAC	125 VAC, 250 VAC
Bushing Size	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32
Actuator	Bat	Bat	Bat	Bat	Bat
Terminal Seal	Sealed	Sealed	Sealed	Sealed	Sealed
IP Rating	IP67	IP67	IP67	IP67	IP67
Illumination	None	None	None	None	None
Mounting Type	Bushing	Bushing	Bushing	Bushing	Bushing
Operating Temperature Range	- 10 C to + 65 C	- 10 C to + 65 C	- 10 C to + 65 C	- 10 C to + 65 C	- 10 C to + 65 C
Life	100000 Cycles	100000 Cycles	100000 Cycles	100000 Cycles	100000 Cycles
Packaging	-	-	Bulk	Bulk	Bulk
