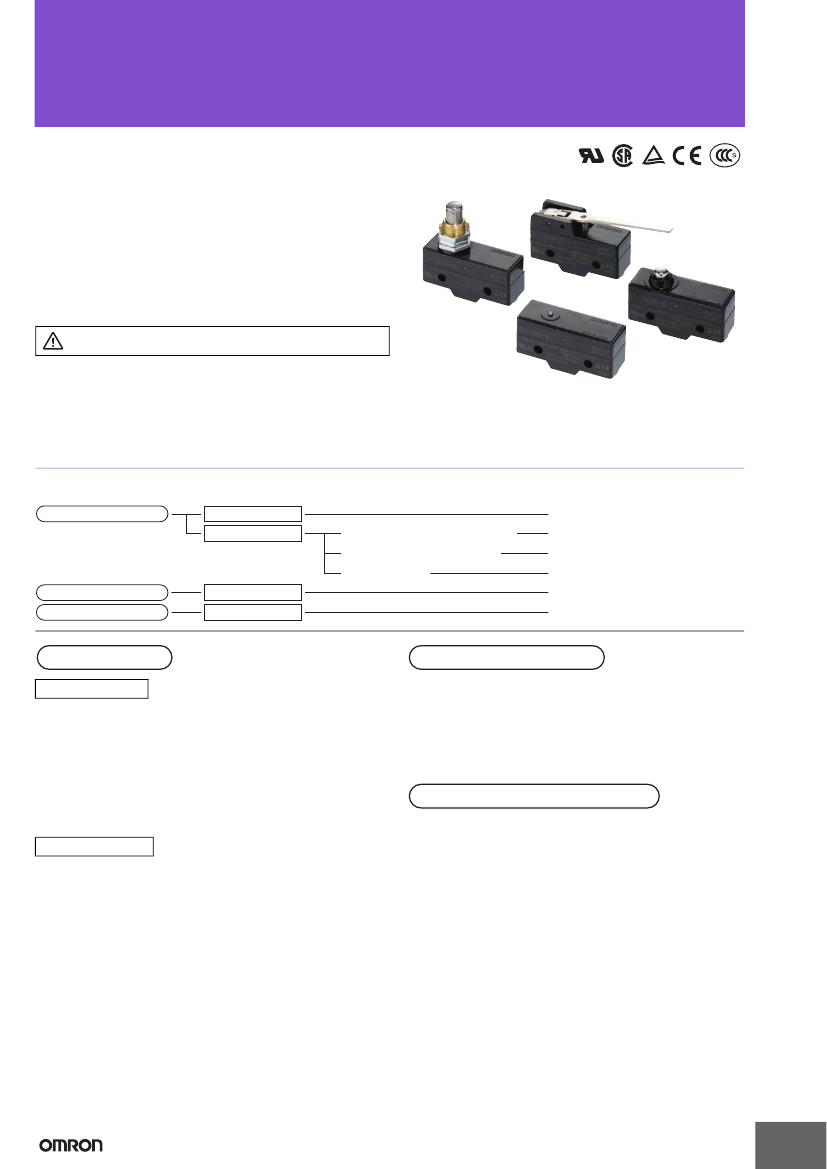

General-purpose Basic Switch
Z
CSM_Z_DS_E_4_4
Best-selling Basic Switch Boasting
High Precision and Wide Variety
• A large switching capacity of 15 A with high repeat accuracy.
• A wide range of variations in contact form for your selection: basic,
split-contact, maintained-contact, and adjustable contact gap types.
• A series of standard models for micro loads is available.
• A series of molded terminal-type models incorporating safety
terminal protective cover is available.
Be sure to read
Safety Precautions
on page 26 and
Safety Precautions
for All Basic Switches.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Model Number Structure
Configuration
Basic models
General-purpose
Drip-proof
Without terminal protective cover
With terminal protective cover
Molded terminal
Split-contact models
Maintained-contact models
General-purpose
General-purpose
Refer to page 3.
Refer to page 5.
Refer to page 5.
Refer to page 2.
Refer to page 4.
Refer to page 4.
Basic Models
General-purpose
•
A variety of actuators is available for a wide range of application.
•
The contact mechanism of models for micro loads is a crossbar
type with gold-alloy contacts, which ensures highly reliable
operations for micro loads.
•
Contact Gap:
H2: 0.20 mm (extra-high-sensitivity)
H: 0.25 mm (high-sensitivity, micro voltage current load)
G: 0.5 mm (standard)
E: 1.8 mm (high-capacity)
Split-contact Models
•
This type is identical in construction to the general-purpose basic
switch except that it has two pairs of simultaneous acting contacts
by splitting moving contacts.
•
Since the moving contacts are connected to a common terminal,
either parallel or series connection is possible.
•
Highly reliable micro load switching is ensured if the model is used
as a twin-contact switch.
Maintained-contact Models
•
The maintained-contact type has a reset button at the bottom of the
switch case, in addition to the pushbutton (plunger) located on the
opposite side of the reset button. Use these buttons alternately.
•
Since the Switch has greater pretravel than overtravel, it is suitable
for use in reversible control circuits, manual reset circuits, safety
limit circuits, and other circuits which are not preferable for
automatic resetting. (For further details, refer to individual
datasheets.)
Drip-proof
•
These Switches use a rubber boot on the actuator and adhesive fill
between the case and cover to increase resistance to drips.
•
Models with drip-proof terminal protective covers and molded
terminals with resin filling are also available.
1
Z
Model Number Legend
Basic Models
Standard Models (Drip-proof Type/Molded Terminals)
Z-@@@@-@
(1)(2)(3)(4) (5)
(1) Ratings
01
15
H2
H
G
E
None
S
D
K
K3
Q3
Q
Q8
Q22
Q21
L
L2
W21
W
W3
W32
W4
W44
W78
W52
W22
W2
W25
W49
W54
W2277
M
M22
M2
NJ
NJS
None
55
A55
: 0.1 A (micro load)
: 15 A
: 0.20 (extra-high-sensitivity)
: 0.25 mm (high-sensitivity,
micro load)
: 0.5 mm (standard)
: 1.8 mm (high-capacity)
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Pin plunger
Slim spring plunger
Short spring plunger
Spring plunger (medium OP)
Spring plunger (high OP)
Panel mount plunger (low OP)
Panel mount plunger (medium
OP)
Panel mount plunger (high OP)
Panel mount roller plunger
Panel mount cross roller
plunger
Leaf spring (high OF)
Roller leaf spring
Short hinge lever
Hinge lever (low OF)
Hinge lever (medium OF)
Hinge lever (high OF)
Low-force hinge lever
Long hinge lever
Low-force wire hinge lever
(low OF)
Low-force wire hinge lever
(high OF)
Short hinge roller lever
Hinge roller lever
Hinge roller lever (large roller)
Short hinge cross roller lever
Hinge cross roller lever
Unidirectional short hinge
roller lever (low OF)
Reverse hinge lever
Reverse short hinge roller
lever
Reverse hinge roller lever
Flexible rod (high OF)
Flexible rod (low OF)
Z-@55-M@@
@M
(1)
(2)(3) (4)
(1) Drip-proof Type
(2) Lead Outlets
None
19
: VSF
: VCT
D Type
R Type
(2) Contact Gap
(3) Directions of Lead
Outlets (See following
L Type
diagrams.)
L
R
D
: Left
: Right
: Descending
(3) Actuator
(4) Length of Lead
Outlets
1
3
: 1m
: 3m
Split-contact Models
Maintained-contact Models
Z-10F@Y-B
(1) (2)(3)(4) (5)
(1) Ratings
10
F
None
S
D
Q
Q22
W
W22
W2
M22
: 10 A (split-contact models)
: 1 mm (high-capacity)
:
:
:
:
:
:
:
:
:
Pin plunger
Slim spring plunger
Short spring plunger
Panel mount plunger
Panel mount roller plunger
Hinge lever
Short hinge roller lever
Hinge roller lever
Reverse short hinge roller
lever
Z-15-E@R
(1) (2)(3)(4)
(1) Ratings
15
E
None
S
W
R
: 15 A
: 1.8 mm (high capacity)
: Pin plunger
: Slim spring plunger
: Hinge lever
: Maintained-contact models
(2) Contact Gap
(3) Actuator
(2) Contact Gap
(3) Actuator
(4) Structure
(4) Construction
Y
B
: Split-contact models
: Screw terminal
(with toothed washer)
(5) Terminals
(4) Degree of Protection
: General-purpose
: Drip-proof
(not include the terminals)
: Drip-proof
(including the terminals)
: Solder terminal
: Screw terminal
(with toothed washer)
: Screw terminal with terminal
cover (for Z-15G@A55 only)
(5) Terminals
None
B
B5V
Note: For combinations of models,
Ordering
Information
on page 3 to 6.
2
Z
Minimum Order Lot
The following models are available at the minimum order lot specified below.
Orders must be placed per lot.
Classification
Actuator
Short spring plunger
Panel mount plunger
Panel mount roller plunger
Panel mount cross roller
plunger
Short hinge lever
Hinge lever
Low-force hinge lever
Low-force hinge wire lever
Short hinge roller lever
Hinge roller lever
Reverse short hinge roller
lever
Reverse hinge roller lever
Standard
Z-15GD-B
Z-15GQ
Z-15GQ-B
Z-15GQ8-B
Z-15GQ22
Z-15GQ22-B
Z-15GQ21-B
Z-15GW21-B
Z-15GW
Z-15GW-B
Z-15GW4-B
---
Z-15GW22
Z-15GW22-B
Z-15GW2
Z-15GW2-B
Z-15GM22-B
Z-15GM2-B
High-sensitivity
---
---
---
---
---
---
Z-15HW24-B
Z-15HW78-B
---
---
---
---
Minimum
order lot (pcs)
10
Split-contact Models
Actuator
Pin plunger
Slim spring plunger
Short spring plunger
Panel mount plunger
Panel mount roller
plunger
Hinge lever
Short hinge roller
lever
Hinge roller lever
Reverse short hinge
roller lever
*2
Contact gap
Terminal
*1
F (1.0 mm)
Model
---
Z-10FY-B
Maintained-contact Models
Actuator
Pin plunger
Slim spring plunger
Hinge lever
Model
Z-15ER
Z-15ESR
Z-15EWR
---
Z-10FSY-B
---
Z-10FDY-B
---
Z-10FQY-B
---
Z-10FQ22Y-B
---
Z-10FWY-B
---
Z-10FW22Y-B
---
Z-10FW2Y-B
---
Z-10FM22Y-B
*1.
: Solder terminal
: Screw terminal
*2. The pin plungers of reverse-type models are continuously pressed by the
actuator levers with compression coil springs and the pin plungers are freed
by operating the levers. Reverse-type models are highly vibration- and
shock-resistive because the pin plungers are normally pressed.
