two highly precise split springs that ensures long
durability.
●
Using insertion molded terminals
that prevents flux penetration.
●
In addition to self-clinching PCB, left-angled,
right-angled terminals,
2 types of soldering terminals are available.
RoHS Compliant
D
2
F

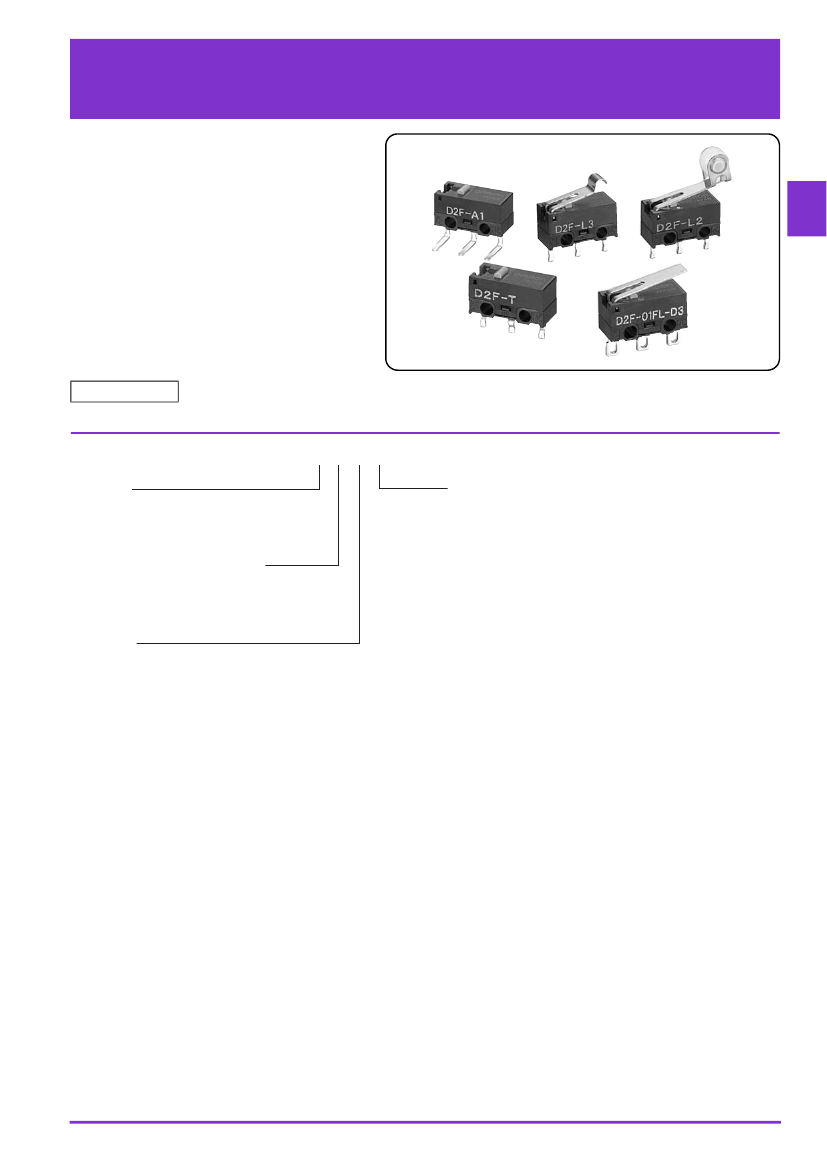

Model Number Legend
1 2 3 4
D2F -
@ @ @ @
1. Ratings
None : 125 VAC 3A
125 VAC 1A (Low operating force)
01 : 30 VDC 0.1A
2. Maximum Operating Force (OF)
None : 1.47 N {150 gf}
F : 0.74 N {75 gf}
Note. The given values are for pin plunger models only.
4. Terminals
None : PCB terminals (Straight)
-T : Self-clinching PCB terminals
-A : PCB terminals (Right-angled)
-A1 : PCB terminals (Left-angled)
-D3 : Solder terminals
-D : Compact solder terminals
3. Actuator
None : Pin plunger
L : Hinge lever
L2 : Hinge Roller Lever
L3 : Simulated roller lever (R1.3)
L30 : Simulated roller lever (R2.5)
1
D2F
List of Models
Ratings
Maximum Operating Force (OF) *
Actuator
Pin plunger
Terminals
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
Hinge lever
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
Hinge roller
lever
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
Simulated roller
lever (R1.3)
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
Simulated roller
lever (R2.5)
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
*
OF are value for Pin plunger.
3A
General Purpose
1.47 N {150 gf}
D2F
D2F-T
D2F-A
D2F-A1
D2F-D3
D2F-D
D2F-L
D2F-L-T
D2F-L-A
D2F-L-A1
D2F-L-D3
D2F-L-D
D2F-L2
D2F-L2-T
D2F-L2-A
D2F-L2-A1
D2F-L2-D3
D2F-L2-D
D2F-L3
D2F-L3-T
D2F-L3-A
D2F-L3-A1
D2F-L3-D3
D2F-L3-D
D2F-L30
D2F-L30-T
D2F-L30-A
D2F-L30-A1
D2F-L30-D3
D2F-L30-D
1A
Ultra Subminiature Basic Switch
0.1 A
General Purpose
1.47 N {150 gf}
D2F-01
D2F-01-T
D2F-01-A
D2F-01-A1
D2F-01-D3
D2F-01-D
D2F-01L
D2F-01L-T
D2F-01L-A
D2F-01L-A1
D2F-01L-D3
D2F-01L-D
D2F-01L2
D2F-01L2-T
D2F-01L2-A
D2F-01L2-A1
D2F-01L2-D3
D2F-01L2-D
D2F-01L3
D2F-01L3-T
D2F-01L3-A
D2F-01L3-A1
D2F-01L3-D3
D2F-01L3-D
D2F-01L30
D2F-01L30-T
D2F-01L30-A
D2F-01L30-A1
D2F-01L30-D3
D2F-01L30-D
Low Operating Force
0.74 N {75 gf}
D2F-01F
D2F-01F-T
D2F-01F-A
D2F-01F-A1
D2F-01F-D3
D2F-01F-D
D2F-01FL
D2F-01FL-T
D2F-01FL-A
D2F-01FL-A1
D2F-01FL-D3
D2F-01FL-D
D2F-01FL2
D2F-01FL2-T
D2F-01FL2-A
D2F-01FL2-A1
D2F-01FL2-D3
D2F-01FL2-D
D2F-01FL3
D2F-01FL3-T
D2F-01FL3-A
D2F-01FL3-A1
D2F-01FL3-D3
D2F-01FL3-D
D2F-01FL30
D2F-01FL30-T
D2F-01FL30-A
D2F-01FL30-A1
D2F-01FL30-D3
D2F-01FL30-D
Low Operating Force
0.74 N {75 gf}
D2F-F
D2F-F-T
D2F-F-A
D2F-F-A1
D2F-F-D3
D2F-F-D
D2F-FL
D2F-FL-T
D2F-FL-A
D2F-FL-A1
D2F-FL-D3
D2F-FL-D
D2F-FL2
D2F-FL2-T
D2F-FL2-A
D2F-FL2-A1
D2F-FL2-D3
D2F-FL2-D
D2F-FL3
D2F-FL3-T
D2F-FL3-A
D2F-FL3-A1
D2F-FL3-D3
D2F-FL3-D
D2F-FL30
D2F-FL30-T
D2F-FL30-A
D2F-FL30-A1
D2F-FL30-D3
D2F-FL30-D
D
2
F
Contact Form
●SPDT
Contact Specifications
Item
Specifications
Contact
Material
Gap (standard value)
Minimum applicable load (see note) *
Silver alloy
0.25 mm
100 mA at 5 VDC
1 mA at 5 VDC
Model
D2F models
D2F-01 models
Gold alloy
Crossbar
COM
NO NC
*
Please refer to "Using
Micro Loads"
in "Precautions" for more information
on the minimum applicable load.
Ratings
Model
Maximum Operating
Force (OF)
Rated voltage
125 VAC
30 VDC
D2F models
1.47N (General-purpose)
0.74N (Low Operating Force)
D2F-01 models
1.47N (General-purpose)
0.74N (Low Operating Force)
Resistive load
3A
2A
1A
0.5 A
-
0.1 A
Note. The above rating values apply under the following test conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Approved Safety Standard
The items shown in the
"List
of Models" above are not standard approved models.
Consult your OMRON sales representative for specific models with standard approvals.
UL (UL1054) /CSA (CSA C22.2 No.55)
Rated voltage
125 VAC
30 VDC
Model
D2F (General-purpose)
3A
2A
D2F (Low operating force)
1A
0.5 A
D2F-01
-
0.1 A
2
D2F

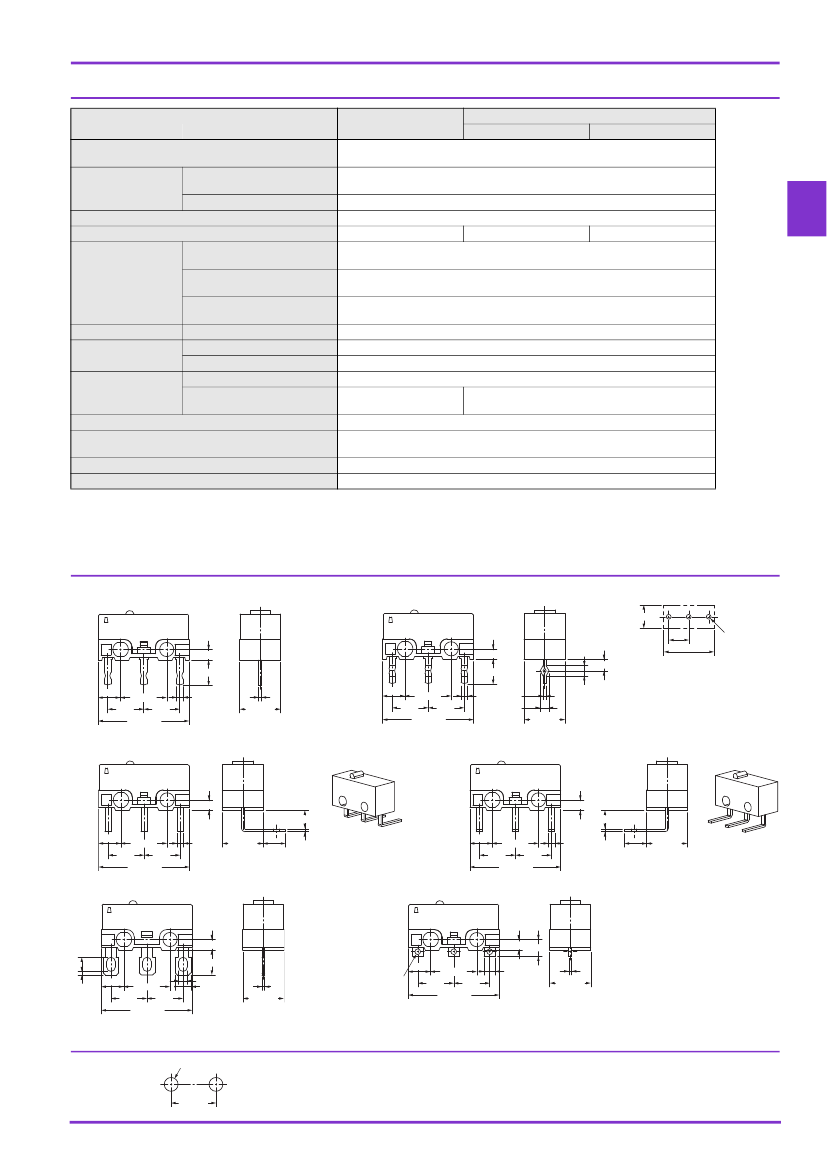

Characteristics
Model
Item
Permissible operating speed
Permissible operating
frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the same
polarity
Dielectric strength
Between current-carrying metal
parts and ground
Between each terminal and
non-current-carrying metal parts
Vibration resistance * 1
Shock resistance
Malfunction
Durability
Malfunction * 1
Mechanical
Durability * 2
Degree of protection
Ambient operating temperature
Ambient operating humidity
Weight
Electrical
100,000 operations min.
(30 operations/min)
Mechanical
Electrical
100 mΩ max.
D2F-01 models
Ultra Subminiature Basic Switch
D2F models
0.74 N (Low operating force)
1.47 N (General-purpose)
Pin plunger models: 1 mm to 500 mm/s,
Lever models: 5 mm to 500 mm/s
Pin plunger models: 200 operations/min,
Lever models: 100 operations/min
30 operations/min
100 MΩ min. (at 500 VDC with insulation tester)
50 mΩ max.
600 VAC 50/60 Hz for 1min
1,500 VAC 50/60 Hz for 1min
1,500 VAC 50/60 Hz for 1min
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
{approx. 100G} max.
300 m/s
2
{approx. 30G} max.
1,000,000 operations min. (60 operations/min)
30,000 operations min.
(30 operations/min)
IEC IP40
-40°C to +85°C (at ambient humidity 60% max.)
(with no icing or condensation)
85% max. (for +5°C to +35°C)
Approx. 0.5 g (pin plunger models)
30 mΩ max.
D
2
F
Note. The data given above are initial values.
*1. The values are at Free Position and Total Travel Position values for pin plunger, and Total Travel Position value for lever.
Close or open circuit of the contact is 1ms max.
*2. For testing conditions, consult your OMRON sales representative.
Terminals/Appearances
●PCB
terminals (Straight)
(Unit: mm)
●Self-clinching
PCB terminals
<PCB Mounting Dimensions (Reference)>
5.8
±0.15
3-1.2 dia. holes
1.5
3.5
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
0.9
0.4
5.8
±0.15
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
3.4
0.9 0.4
±0.05
1.25
±0.15
5.8
±0.15
1.5
1.6
±0.15
5.08
±0.1
12.8
±0.15
●PCB
terminals (Right-angled)
●PCB
terminals (Left-angled)
1.5
2.6
±0.2
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
0.9
5.8
±0.15
3.1
±0.2
0.4
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
2.6
±0.2
0.9
0.4
5.8
±0.15
3.1
±0.2
●Solder
terminals
●Compact
solder terminals
1.5
2
0.5
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
3.5
1.2
2.2
0.4
5.8
±0.15
3−0.8 dia. holes
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
1.6
2.4
0.4
5.8
±0.15
Mounting Holes
(Unit: mm)
2-2 dia. mounting holes
6.5
±0.15
3
D2F

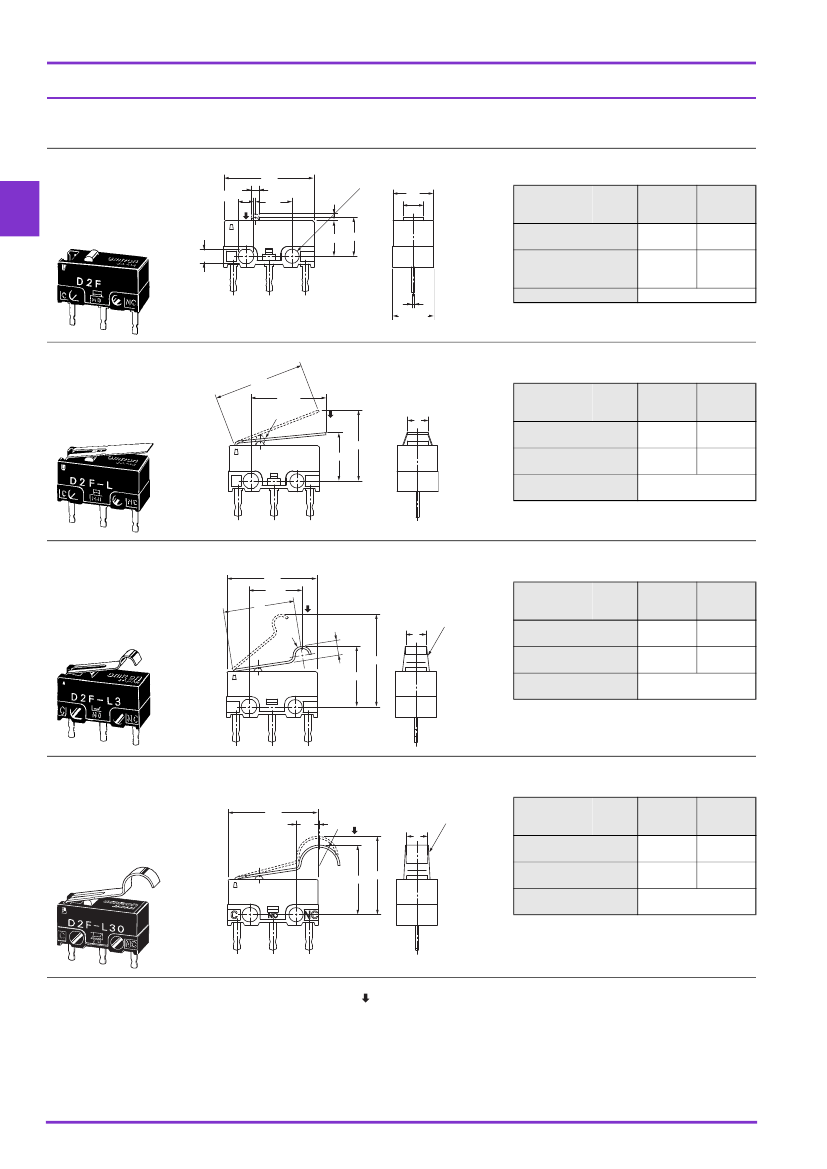

Dimensions
(Unit: mm)
/Operating Characteristics
Ultra Subminiature Basic Switch
The following illustrations and drawings are for D2F models with PCB terminals (straight). Self-clinching, solder, compact solder, and right-angled, left angled terminals
are omitted from the following drawings. Refer to the
previous page
for these terminals.
When ordering, replace
@
with the code for the terminal that you need. See the
"List of Models"
for available combinations of models.
●Pin
Plunger Models
D2F@
D2F-01@
D2F-F@
D2F-01F@
1.2
2.2
+0.12
0
dia.
A
12.7
5.2
2
+0.12
dia. holes
0
PT
5.7
2.9
Operating
Characteristics
Operating Force
Releasing Force
Model D2F-@
D2F-01@
D2F-F@
D2F-01F@
5
OP
D
2
F
OF Max. 1.47 N {150 gf} 0.74 N {75 gf}
RF Min. 0.20 N {20 gf} 0.05 N {5 gf}
0.5 mm
0.25 mm
0.12 mm
0.5 mm
0.25 mm
0.12 mm
2
+0.12
0
Pretravel
PT Max.
Overtravel
OT Min.
Movement Differential MD Max.
0.4
5.8
±0.15
Operating Position
OP
5.5±0.3 mm
●Hinge
Lever Models
D2F-L@
D2F-01L@
D2F-FL@
D2F-01FL@
12.8
(10.8)
A
t=0.3 *
3
FP
OP
Operating
Characteristics
Operating Force
Releasing Force
Model D2F-L@
D2F-01L@
OF Max.
RF Min.
0.78 N {80 gf}
0.05 N {5 gf}
0.55 mm
0.5 mm
D2F-FL@
D2F-01FL@
0.25 N {25 gf}
0.02 N {2 gf}
0.55 mm
0.5 mm
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
10 mm
6.8±1.5 mm
* Stainless-steel lever
●Simulated
Roller Lever Models (R1.3)
D2F-L3@
12.7
D2F-01L3@
(7.5)
D2F-FL3@
10
D2F-01FL3@
R1.3
Model
A
2.1
t=0.3 *
3
FP
OP
Operating
Characteristics
Operating Force
Releasing Force
OF Max.
RF Min.
D2F-L3@
D2F-01L3@
0.78 N {80 gf}
0.05 N {5 gf}
0.5 mm
0.45 mm
D2F-FL3@
D2F-01FL3@
0.39 N {40 gf}
0.02 N {2 gf}
0.5 mm
0.45 mm
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
13 mm
8.5±1.2 mm
* Stainless-steel lever
●Simulated
Roller Lever Models (R2.5)
D2F-L30@
D2F-01L30@
12.7
D2F-FL30@
D2F-01FL30@
3.3
R2.5 A
3
t=0.3 *
Operating
Characteristics
Operating Force
Releasing Force
Model D2F-L30@
D2F-01L30@
OF Max.
RF Min.
0.54 N {55 gf}
0.04 N {4 gf}
0.5 mm
0.5 mm
D2F-FL30@
D2F-01FL30@
0.3 N {31 gf}
0.02 N {2 gf}
0.5 mm
0.5 mm
OP
FP
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
12.6 mm
9.5±1.0 mm
* Stainless-steel lever
Note 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
4
D2F
●Hinge
Roller Lever Models
D2F-L2@
D2F-01L2@
D2F-FL2@
D2F-01FL2@
Ultra Subminiature Basic Switch
12.8
4
(10)
A
4.8
dia.×2.8
*2
Operating
Characteristics
(4.6)
Model D2F-L2@
D2F-01L2@
OF Max.
RF Min.
0.78 N {80 gf}
0.05 N {5 gf}
0.55 mm
0.5 mm
D2F-FL2@
D2F-01FL2@
0.39 N {40 gf}
0.02 N {2 gf}
0.55 mm
0.5 mm
Operating Force
Releasing Force
t=0.3 *1
4
OP
FP
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
16.5 mm
13±2 mm
D
2
F
*1. Stainless-steel lever
*2. Polyacetal resin roller
Note 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
Precautions
★Please
refer to "Basic Switches Common Precautions" for correct use.
Cautions
●Soldering
• Terminal connection
When soldering, make sure that the temperature of the
soldering iron tip is not higher than 300°C, and complete the
soldering within 3 seconds. Do not apply any external force for
1 minute after soldering. Soldering at an excessively high
temperature or soldering for more than 3 seconds may
deteriorate the characteristics of the Switch.
• Connecting to PCB terminal Boards
When using automatic soldering baths, we recommend
soldering at 260°C ±5°C within 5 seconds. Make sure that the
liquid surface of the solder does not flow over the edge of the
board.
When soldering terminals manually, perform soldering within 3
seconds at iron tip temperature not higher than 350°C. Do not
apply any external force for at least 1 minute after soldering.
When applying solder, keep the solder away from the case of
the Switch and do not allow solder or flux to flow into the case.
Correct Use
●Mounting
Use M2 mounting screws with plane washers or spring washers
to securely mount the Switch. Tighten the screws to a torque of
0.08 to 0.1 N·m {0.8 to 1 kgf·cm}.
●Using
Micro Loads
Using a model for ordinary loads to open or close the contact of
a micro load circuit may result in faulty contact. Use models that
operate in the following range. However, even when using micro
load models within the following operating range, if inrush
current occurs when the contact is opened or closed, it may
increase the contact wear and so decrease durability. Therefore,
insert a contact protection circuit where necessary. The
minimum applicable load is the N-level reference value. This
value indicates the malfunction reference level for the reliability
京公网安备 11010802033920号
EEWORLD
