1590-3

Description
Standoffs & Spacers SWAGE THREAD STDOFF .140"L BRASS 2-56
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size321KB,1 Pages
ManufacturerKeystone
Download Datasheet Parametric View All

1590-3 Online Shopping

Suppliers Part Number Price MOQ In stock
1590-3 - - View Buy Now

1590-3 Overview

Standoffs & Spacers SWAGE THREAD STDOFF .140"L BRASS 2-56

1590-3 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerKeystone
Product CategoryStandoffs & Spacers
RoHSDetails
ProductStandoffs
TypeSwage
Thread Size2-56
Length0.187 in
MaterialBrass
Outside Diameter0.156 in
PlatingNickel
PackagingBulk
Inside Diameter0.125 in
Factory Pack Quantity100

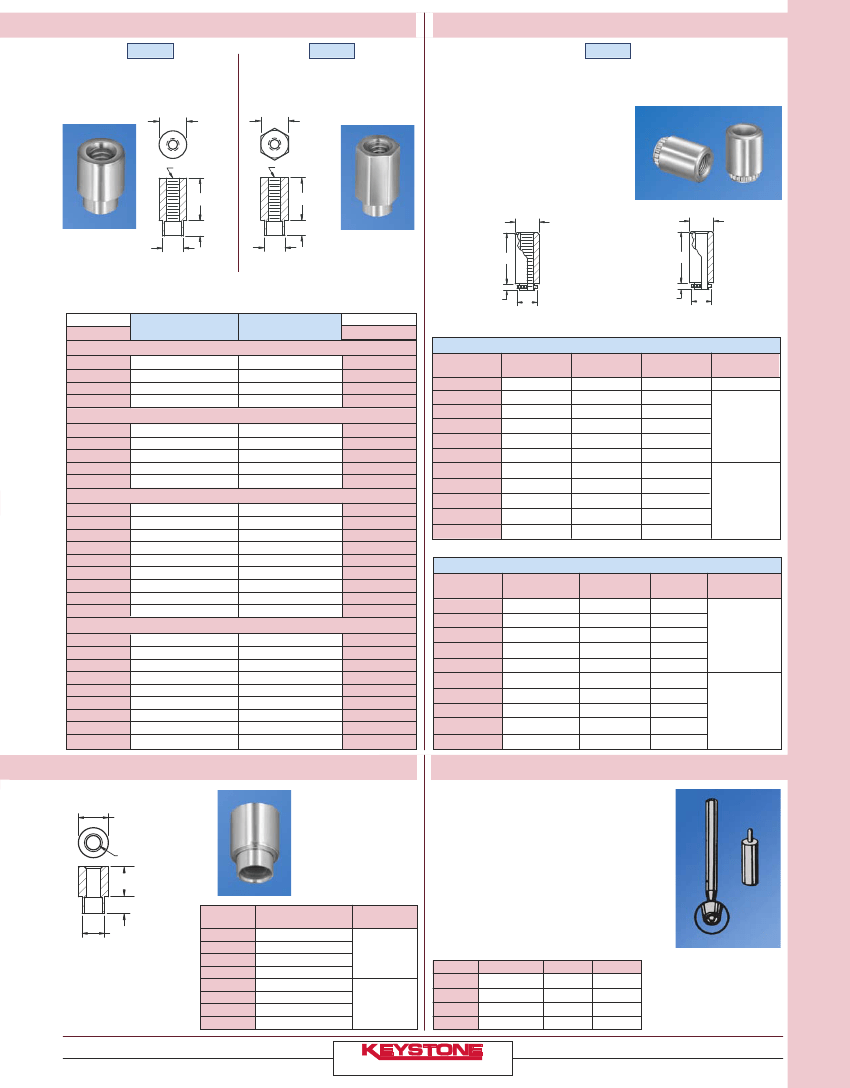

SWAGE THREADED STANDOFFS
ROUND
HEX
FORCE-FIT STANDOFFS
ROUND
A broaching-type fastener/standoff for installation in panels and circuit boards
.060 (1.52) and thicker made of plastic and other non-ductile materials. Available
threaded or with clearance holes. Easy to install, presses into punched or drilled holes.
O.D.
HEX
MATERIAL:
Stainless Steel per ASTM-A581/A582
MOUNTING HOLES:
THREAD
H
.105 (2.7)
L.D.
THREAD
H
.105 (2.7)
L.D.
.147 (3.7) hole for 2-56
.166 (4.2) hole for 4-40
.213 (5.4) hole for 6-32
TOLERANCE ON MOUNTING HOLES:
+.003/-.000
O.D.
O.D.
L
L
SWAGE
/
FORCE FIT STANDOFFS
MATERIAL:
Brass, ASTM-B16, Nickel Plate (QQ-N-290)
For .062 (1.52) thick boards
.060
[1.52]
MAX.
A
.060
[1.52]
MAX.
A
ROUND
CAT. NO.
1589-2
1590-2
1591-2
1596-2
2260-2
2261-2
2262-2
2263-2
2264-2
1560A
1790-2
1650-2
1651-2
1623-2
1624-2
1625-2
1792-2
1652-2
1560B
1612-2
1546
1561B
1604-2
1605-2
1608-2
1796-2
1609-2
H
L.D. SHANK
HEIGHT ABOVE PANEL
DIAMETER
2-56 THREAD
×
.156 (4.0) O.D.
.125 (3.2)
.125 (3.2)
.187 (4.7)
.125 (3.2)
.250 (6.4)
.125 (3.2)
.375 (9.5)
.125 (3.2)
4-40 THREAD
×
.187 (4.7) O.D.
.125 (3.2)
.139 (3.5)
.187 (4.7)
.139 (3.5)
.250 (6.4)
.139 (3.5)
.375 (9.5)
.139 (3.5)
.500 (12.7)
.139 (3.5)
4-40 THREAD
×
.250 (6.4) O.D.
.125 (3.2)
.187 (4.7)
.187 (4.7)
.187 (4.7)
.250 (6.4)
.187 (4.7)
.375 (9.5)
.187 (4.7)
.500 (12.7)
.187 (4.7)
.625 (15.9)
.187 (4.7)
.750 (19.1)
.187 (4.7)
.875 (22.2)
.187 (4.7)
1.000 (25.4)
.187 (4.7)
6-32 THREAD
×
.250 (6.4) O.D.
.125 (3.2)
.187 (4.7)
.187 (4.7)
.187 (4.7)
.250 (6.4)
.187 (4.7)
.375 (9.5)
.187 (4.7)
.500 (12.7)
.187 (4.7)
.625 (15.9)
.187 (4.7)
.750 (19.1)
.187 (4.7)
.875 (22.2)
.187 (4.7)
1.000 (25.4)
.187 (4.7)
HEX
CAT NO.
1731-2
1734-2
1740-2
1743-2
2270-2
2271-2
2272-2
2273-2
2274-2
1653-2
1746-2
1627-2
1628-2
1629-2
1654-2
1655-2
1749-2
1630-2
1620-2
1752-2
1621-2
1622-2
1758-2
1759-2
1761-2
1775-2
1784-2
CAT. NO.
4860
4861
4862
4863
4864
4865
*
4866
4867
4868
4869
4870
*
Threaded
THREADED
L
LENGTH
.065 (1.7)
065 (1.7)
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.065 (1.7)
.125
(3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
O.D.
.219 (5.6)
.219 (5.6)
.219 (5.6)
.219 (5.6)
.219 (5.6)
.219 (5.6)
.281 (7.1)
.281 (7.1)
.281 (7.1)
.281 (7.1)
.281 (7.1)
CLEAR HOLE
CAT. NO.
4850
4851
4852
4853
4854
4855
4856
4857
4858
4859
L
LENGTH
.065 (1.7)
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500
(12.7)
.065 (1.7)
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
O.D.
.219 (5.6)
.219 (5.6)
.219 (5.6)
.219 (5.6)
.219 (5.6)
.281 (7.1)
.281 (7.1)
.281 (7.1)
.281 (7.1)
.281 (7.1)
Clear Hole
.165
.184
.184
.184
.184
.184
.231
.231
.231
.231
.231
A
(4.2)
(4.7)
(4.7)
(4.7)
(4.7)
(4.7)
(5.9)
(5.9)
(5.9)
(5.9)
(.59)
THREAD
2-56
4-40
6-32
*Thread depth .375 (9.5)
A
.184 (4.7)
.184 (4.7)
.184 (4.7)
.184 (4.7)
.184 (4.7)
.231 (5.9)
.231 (5.9)
.231 (5.9)
.231 (5.9)
.231 (5.9)
HOLE
.116 (2.9)
For # 4
.143 (3.6)
For # 6
SWAGE CLEAR HOLE SPACERS
.250
[6.4]
SWAGE STAKING TOOLS
Precision made staking tool kits are made from .250
(6.4) diameter heat treated steel, zinc plated. Each kit
includes the correct swage top staking tool anvil to
create a professional appearance. These tools may be
used with an arbor press or hand tapped.
C
H
.109 [2.8]
.187 [4.8]
MATERIAL:
Brass, ASTM-B16,
Nickel Plate (QQ-N-290)
For .062 (1.52) thick boards
CAT. NO.
5058-2
5060-2
5061-2
5062-2
5059-2
5063-2
5064-2
5065-2
H
HEIGHT ABOVE PANEL
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
C
HOLE
.120 (3.0)
For # 4
.140 (3.5)
For # 6
CAT. NO.
STANDOFF DIA.
TL-19
.156 (4.0)
TL-22
.187 (4.7)
TL-20
.250 (6.4)
TL-21
.250 (6.4)
®
THREAD
2-56
4-40
4-40
6-32
HOLE SIZE
.120 (3.0)
Tel (718) 956-8900
Fax (718) 956-9040
(800) 221-5510
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
