THE MULTI-TOUCH RING ENCODER WITH GRAYHILL INSTINCT TECHNOLOGY
A naturally human evolution
of the interface.

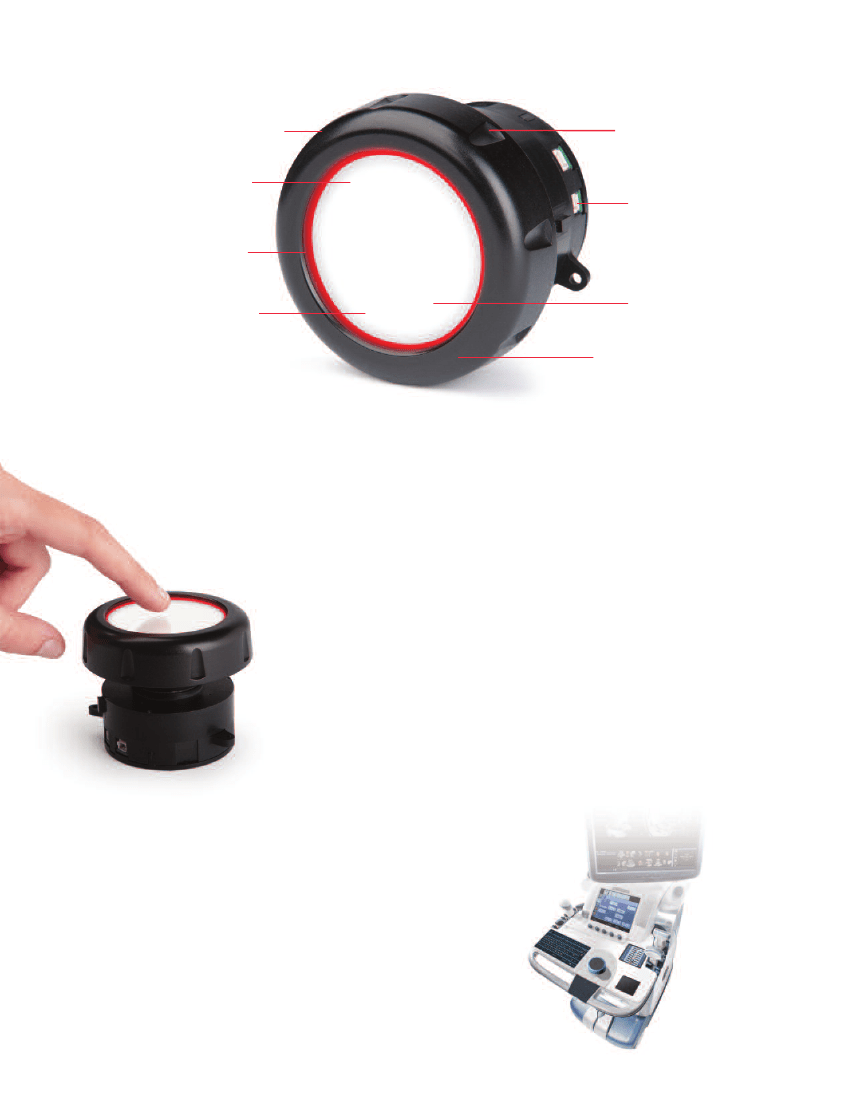

Pushbutton for selection
Sealed for
easy cleaning
Multi-touch touchpad
for multiple functions
and selection
Backlit and colored
highlight ring
Proximity sensing
USB connects to
CPU for decoding
gestures
Rugged, scratch
resistant surface
Rotating Ring Encoder
Instinct
™
technology. Intuitively functional.
Grayhill Instinct is a set of multi-touch gesture recognition software
tools that, when integrated with Grayhill physical components,
creates more intuitive human interface solutions.
The Multi-Touch Ring Encoder combines a touchpad with multi-touch
tracking, an optical encoder and pushbutton into one easy-to-use
device. By combining gesture recognition technology with a ring
encoder, we provide the ultimate in input flexibility. Menu search,
selection, navigation and much more are all in one user interface
that can be easily integrated into future devices.
A shorter distance from mind to machine.
An intuitive, easy to use interface improves operator
productivity. Our Instinct technology enables an operator’s
thoughts to be seamlessly communicated to the device. This
allows faster interaction without needing to take eyes off of the
screen. For the operator it makes controlling a machine easier
to manage. And unlike touch screens, the display is left clean
and unblocked. Plus, ergonomics are improved by consolidating
all controls within easy reach.
Design uncluttered,
easy-to-clean
instruments using
Grayhill's Multi-Touch
Ring Encoder.
Let your fingers do the directing.
Finger gestures are a popular means of controlling contemporary electronic devices. Instinctive,
memorable movements provide a variety of commands…all without the fingers leaving the
touchpad. Grayhill’s Instinct technology tracks up to five finger touches at a time. The Multi-Touch
Ring Encoder combines the multi-touch touchpad with an optical encoder and a push button to
offer even more functionality. Several gestures are shown below.

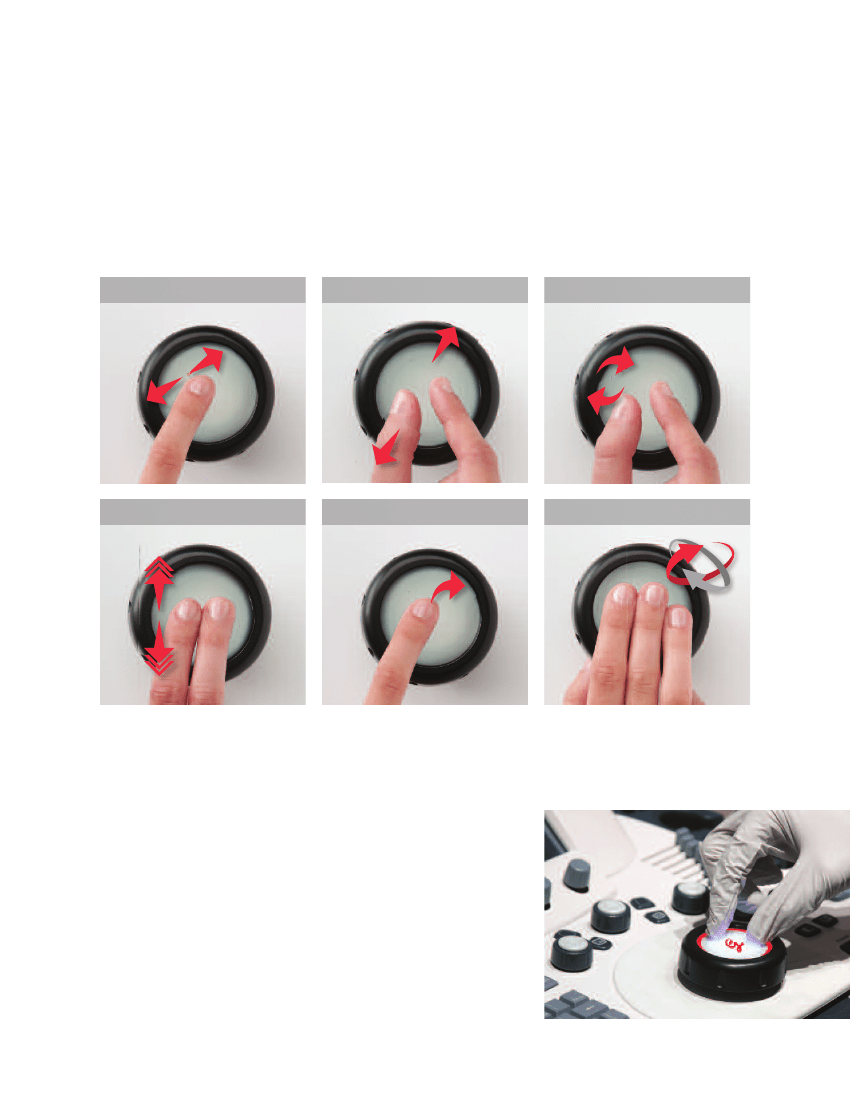

Move Cursor
Zoom
Rotate
Momentum Scroll
Flick
3d Gesture
An elegant engineering solution for
controlling electronic equipment.
Simplicity in use and device design. The Multi-Touch Encoder can
replace keypads, knobs, trackballs and switches. This makes for clean
design and cuts costs of manufacturing. Combined with the Instinct
gesture recognition library, the multi-touch encoder increases the
engineer’s flexibility in building functionality into any product.
Possible applications include:
• Medical devices
• Commercial aviation
• Off-highway vehicles
• Gaming

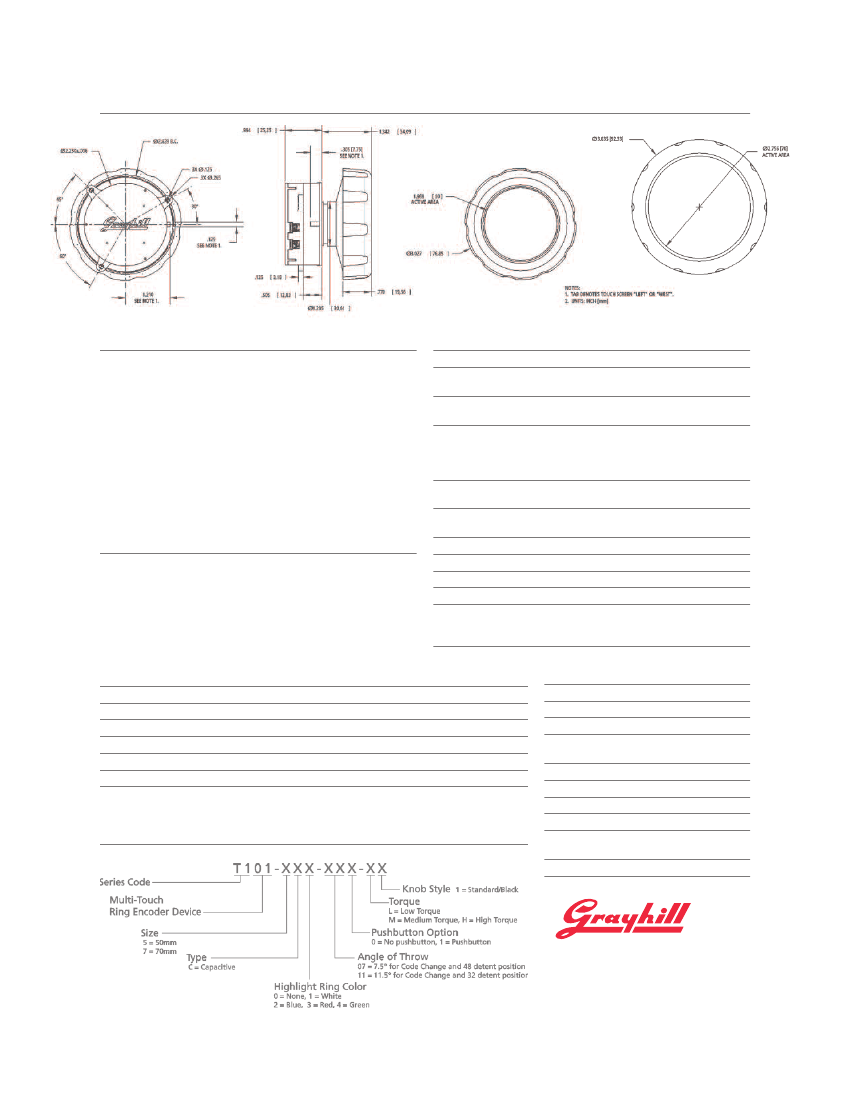

DIMENSIONS in inches (and millimeters)
FEATURES
• Grayhill Instinct Gesture Recognition Technology
™
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
Seal
Humidity
Chemical resistance
(Resistance to accidental
spills and disinfectants)
-10°C to +60°C
IP65 knob with labyrinth seal
through panel
95% Humidity at 60°C
for 240 hours
24 Hr exposure to betadine, Coffee,
Water, Cola, NACL, Isopropyl Alcohol
Betadine, Hydrogen Peroxide,
“Quats,” and Cidex
• Three devices in one:
+ Multi-Touch Touchpad
+ Optical Encoder
+ Pushbutton
• Impervious to cleaning solutions and disinfectants
• Easy to integrate into any device
• Rugged, scratch-resistant surfaces
• Backlit illumination and colored highlight ring
• Redundant quadrature and push button output
• Patent pending
ELECTRICAL PERFORMANCE SPECIFICATIONS
USB
2.0, 3.0 Compatible, Full speed
HID Compliant
2.5 to 5.5 Vdc
250mA max (at full backlight) @5V
500,000 cycles minimum
3,000,000 actuations minimum
2-Bit Quadrature, Channel A leads
Channel B by 90° electrically during
CW rotation
SOFTWARE DEVELOPMENT KIT
Part Number T101-DEV1
Operating Voltage
Input Current
Rotational Life
Pushbutton Life
Encoder Output
Grayhill offers an Instinct Software Development Kit that provides
the user with a common development platform for prototyping and
evaluating different solutions. The Software Development Kit is
comprised of a mounted Multi-Touch Ring Encoder, a standard USB
cable and demo software.
ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS
Designed and tested for use in systems requiring IEC 60601-1
RF Emissions
Electrostatic Discharge
Electrical Fast Transient/Burst
Power Frequency (50/60 Hz) Magnetic Field
Conducted RF
Radiated RF
CISPR 11 Group 1 Class B
IEC 61000-4-2 ±6kV Contact ±8kV Air
IEC 6100-4-4 ±1kV Coupling Clamp
IEC 6100-4-8 3 A/m
IEC 61000-4-6 Level 1 - 120dBuV, 150 kHz to 80 MHz
IEC 61000-4-3 3 V/M 80 MHz to 2.5 GHz
PIN OUT
1
2
3
ENCODER
Output A
Output B
Pushbutton
PIN OUT
1
2
3
4
USB
+Vcc
USB Negative (D-)
USB Positive (D+)
Gnd
ORDERING INFORMATION
MATING CONNECTOR
Molex 501939-0400 and 501939-0300
Intuitive Human Interface Solutions
Patent Pending
BLTN.1172
©2012 Grayhill, Inc.
561 Hillgrove Avenue
LaGrange, Illinois 60525
Phone: 708-354-1040
Fax: 708-354-2820
grayhill.com
