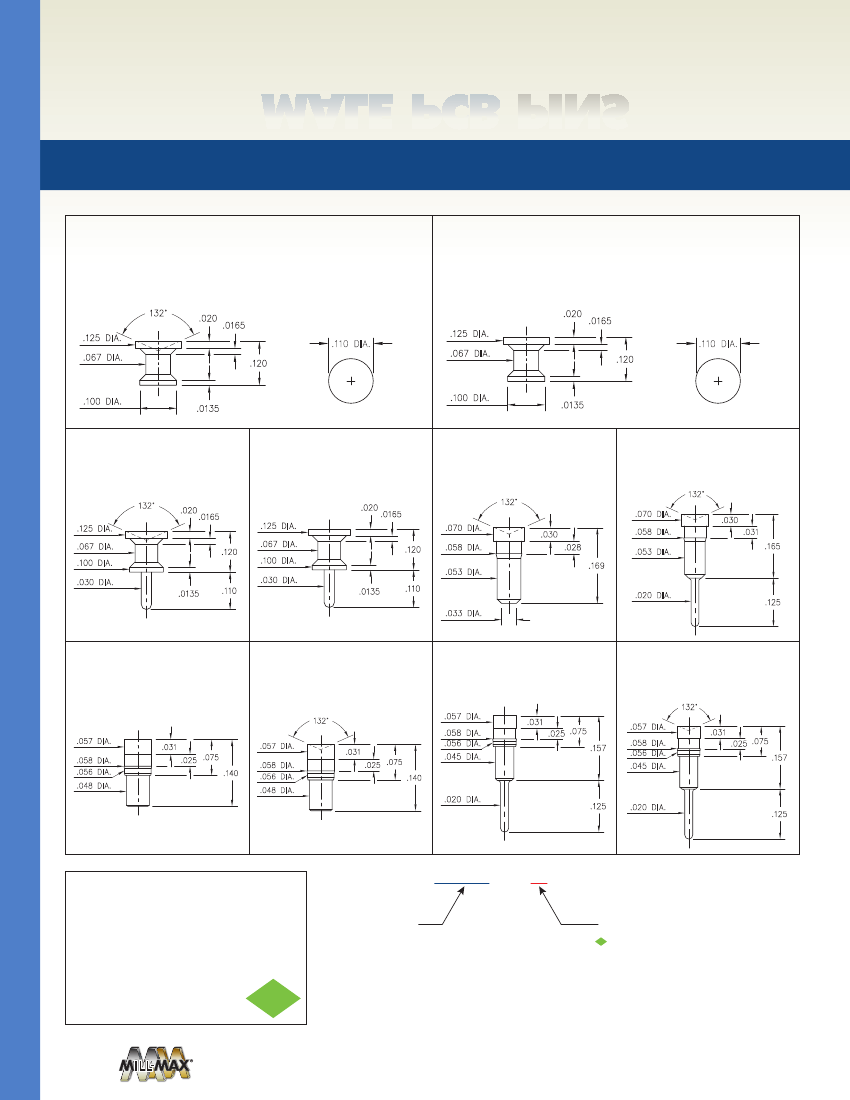

MALE PCB

PINS

PRINTED CIRCUIT PINS

1943

1943-0-00-15-00-00-03-0

Concave face Target contact, surface mount

Also available on 16mm wide carrier tape:

2,200 parts per 13” reel.

See page 224.2 for Tape & Reel details

132°

.125 DIA.

.067 DIA.

.120

.020

1944

1944-0-00-15-00-00-03-0

Flat face Target contact, surface mount

Also available on 16mm wide carrier tape:

2,200 parts per 13” reel.

See page 224.2 for Tape & Reel details

.0165

P.C.B. Layout

.110 DIA.

.125 DIA.

.067 DIA.

.020

.0165

P.C.B. Layout

.110 DIA.

.120

.100 DIA.

.0135

.100 DIA.

.0135

1945

1945-0-00-15-00-00-03-0

1946

Concave face Target contact, solder Tail

1946-0-00-15-00-00-03-0

1947

Flat face Target contact, solder Tail

1947-0-00-15-00-00-03-0

1948

.070 DIA.

Concave face Target contact, surface mount

Press-fit in .056 mounting hole

132°

1948-0-00-15-00-00-03-0

132°

.030

Concave face Target contact, Solder Tail

Press-fit in .056 mounting hole

132°

.125 DIA.

.067 DIA.

.100 DIA.

.030 DIA.

.020

.0165

.020

.125 DIA.

.120

.0165

.070 DIA.

.030

.028

.169

.058 DIA.

.053 DIA.

.031

.165

.067 DIA.

.100 DIA.

.030 DIA.

.120

.058 DIA.

.053 DIA.

.0135

.110

.0135

.110

.033 DIA.

.020 DIA.

.125

1949

1949-0-00-15-00-00-03-0

1950

Flat face Target contact, surface mount

Press-fit in .056 mounting hole

1950-0-00-15-00-00-03-0

1951

.057 DIA.

.058 DIA.

.056 DIA.

Concave face Target contact, surface mount

Press-fit in .056 mounting hole

132°

1951-0-00-15-00-00-03-0

1952

.057 DIA.

Flat face Target contact, Solder Tail

Press-fit in .056 mounting hole

.031

1952-0-00-15-00-00-03-0

132°

Concave face Target contact, solder Tail

Press-fit in .056 mounting hole

.057 DIA.

.058 DIA.

.056 DIA.

.048 DIA.

.025 .075

.157

.031

.025 .075

.140

.057 DIA.

.058 DIA.

.056 DIA.

.048 DIA.

.031

.025 .075

.140

.045 DIA.

.058 DIA.

.056 DIA.

.045 DIA.

.025 .075

.157

.020 DIA.

.125

.020 DIA.

.125

PAGE 223.1 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: 194X - 0 - 00 -

15

- 00 - 00 - 03 - 0

BASIC PART #

SPECIFY PIN FINISH:

15

10

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
