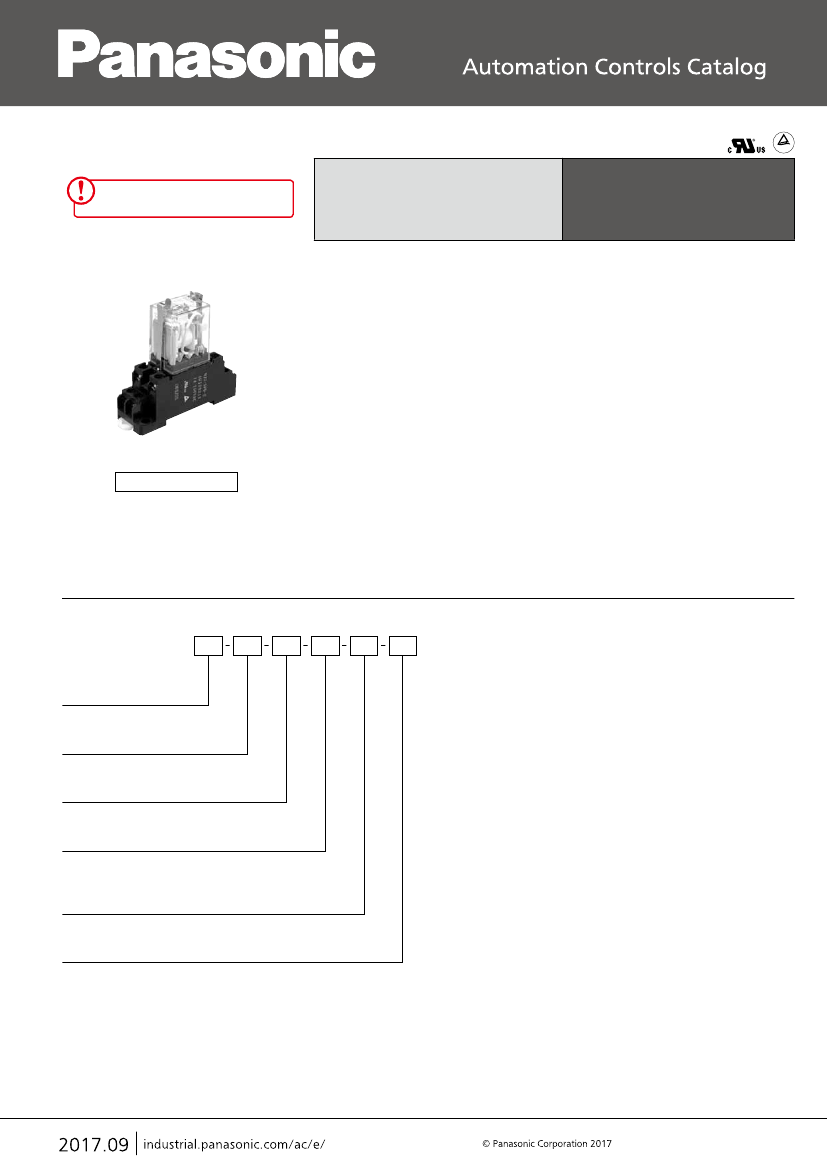

2. The LED indication color is green for the DC coil and red for the AC coil.
–1–
ASCTB6E 201709-T
HJ
TYPES
1. Au plating type
1) Plug-in type
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
12V AC
24V AC
48V AC
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-DC 12V-6
HJ2-DC 24V-6
HJ2-DC 48V-6
HJ2-DC110V-6
HJ2-AC 12V-6
HJ2-AC 24V-6
HJ2-AC 48V-6
HJ2-AC100V-6
HJ2-AC120V-6
HJ2-AC200V-6
HJ2-AC220/240V-6
4 Form C
Part No.
HJ4-DC 12V-6
HJ4-DC 24V-6
HJ4-DC 48V-6
HJ4-DC110V-6
HJ4-AC 12V-6
HJ4-AC 24V-6
HJ4-AC 48V-6
HJ4-AC100V-6
HJ4-AC120V-6
HJ4-AC200V-6
HJ4-AC220/240V-6
To Be Discontinued
Last time buy: September 30, 2018
2) Plug-in type (with LED indication)
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
12V AC
24V AC
48V AC
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-L-DC 12V-6
HJ2-L-DC 24V-6
HJ2-L-DC 48V-6
HJ2-L-DC110V-6
HJ2-L-AC 12V-6
HJ2-L-AC 24V-6
HJ2-L-AC 48V-6
HJ2-L-AC100V-6
HJ2-L-AC120V-6
HJ2-L-AC200V-6
HJ2-L-AC220/240V-6
4 Form C
Part No.
HJ4-L-DC 12V-6
HJ4-L-DC 24V-6
HJ4-L-DC 48V-6
HJ4-L-DC110V-6
HJ4-L-AC 12V-6
HJ4-L-AC 24V-6
HJ4-L-AC 48V-6
HJ4-L-AC100V-6
HJ4-L-AC120V-6
HJ4-L-AC200V-6
HJ4-L-AC220/240V-6
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
3) Plug-in type (with diode)
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
2 Form C
Part No.
HJ2-DC 12V-D-6
HJ2-DC 24V-D-6
HJ2-DC 48V-D-6
HJ2-DC110V-D-6
4 Form C
Part No.
HJ4-DC 12V-D-6
HJ4-DC 24V-D-6
HJ4-DC 48V-D-6
HJ4-DC110V-D-6
4) Plug-in type (with diode and LED indication)
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
2 Form C
Part No.
HJ2-L-DC 12V-D-6
HJ2-L-DC 24V-D-6
HJ2-L-DC 48V-D-6
HJ2-L-DC110V-D-6
4 Form C
Part No.
HJ4-L-DC 12V-D-6
HJ4-L-DC 24V-D-6
HJ4-L-DC 48V-D-6
HJ4-L-DC110V-D-6
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
5) Plug-in type (with CR)
Nominal coil
voltage
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-AC100V-R-6
HJ2-AC120V-R-6
HJ2-AC200V-R-6
HJ2-AC220/240V-R-6
4 Form C
Part No.
HJ4-AC100V-R-6
HJ4-AC120V-R-6
HJ4-AC200V-R-6
HJ4-AC220/240V-R-6
6) Plug-in type (with CR and LED indication)
Nominal coil
voltage
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-L-AC100V-R-6
HJ2-L-AC120V-R-6
HJ2-L-AC200V-R-6
HJ2-L-AC220/240V-R-6
4 Form C
Part No.
HJ4-L-AC100V-R-6
HJ4-L-AC120V-R-6
HJ4-L-AC200V-R-6
HJ4-L-AC220/240V-R-6
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
2. Without Au plating type
1) Plug-in type
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
12V AC
24V AC
48V AC
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-DC 12V
HJ2-DC 24V
HJ2-DC 48V
HJ2-DC110V
HJ2-AC 12V
HJ2-AC 24V
HJ2-AC 48V
HJ2-AC100V
HJ2-AC120V
HJ2-AC200V
HJ2-AC220/240V
4 Form C
Part No.
HJ4-DC 12V
HJ4-DC 24V
HJ4-DC 48V
HJ4-DC110V
HJ4-AC 12V
HJ4-AC 24V
HJ4-AC 48V
HJ4-AC100V
HJ4-AC120V
HJ4-AC200V
HJ4-AC220/240V
2) Plug-in type (with LED indication)
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
12V AC
24V AC
48V AC
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-L-DC 12V
HJ2-L-DC 24V
HJ2-L-DC 48V
HJ2-L-DC110V
HJ2-L-AC 12V
HJ2-L-AC 24V
HJ2-L-AC 48V
HJ2-L-AC100V
HJ2-L-AC120V
HJ2-L-AC200V
HJ2-L-AC220/240V
4 Form C
Part No.
HJ4-L-DC 12V
HJ4-L-DC 24V
HJ4-L-DC 48V
HJ4-L-DC110V
HJ4-L-AC 12V
HJ4-L-AC 24V
HJ4-L-AC 48V
HJ4-L-AC100V
HJ4-L-AC120V
HJ4-L-AC200V
HJ4-L-AC220/240V
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
3) Plug-in type (with a test button)
Nominal coil
voltage
12V DC
24V DC
100/110V AC
200/220V AC
2 Form C
Part No.
HJ2-T-DC 12V
HJ2-T-DC 24V
HJ2-T-AC100V
HJ2-T-AC200V
4 Form C
Part No.
HJ4-T-DC 12V
HJ4-T-DC 24V
HJ4-T-AC100V
HJ4-T-AC200V
4) Plug-in type (with LED indication and a test button)
Nominal coil
voltage
12V DC
24V DC
100/110V AC
200/220V AC
2 Form C
Part No.
HJ2-L-T-DC 12V
HJ2-L-T-DC 24V
HJ2-L-T-AC100V
HJ2-L-T-AC200V
4 Form C
Part No.
HJ4-L-T-DC 12V
HJ4-L-T-DC 24V
HJ4-L-T-AC100V
HJ4-L-T-AC200V
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
–2–
ASCTB6E 201709-T
To Be Discontinued
Last time buy: September 30, 2018
HJ
6) Plug-in type (with diode and LED indication)
4 Form C
Part No.
HJ4-DC 12V-D
HJ4-DC 24V-D
HJ4-DC 48V-D
HJ4-DC110V-D
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
2 Form C
Part No.
HJ2-L-DC 12V-D
HJ2-L-DC 24V-D
HJ2-L-DC 48V-D
HJ2-L-DC110V-D
4 Form C
Part No.
HJ4-L-DC 12V-D
HJ4-L-DC 24V-D
HJ4-L-DC 48V-D
HJ4-L-DC110V-D
5) Plug-in type (with diode)
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
2 Form C
Part No.
HJ2-DC 12V-D
HJ2-DC 24V-D
HJ2-DC 48V-D
HJ2-DC110V-D
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
7) Plug-in type (with CR)
Nominal coil
voltage
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-AC100V-R
HJ2-AC120V-R
HJ2-AC200V-R
HJ2-AC220/240V-R
4 Form C
Part No.
HJ4-AC100V-R
HJ4-AC120V-R
HJ4-AC200V-R
HJ4-AC220/240V-R
8) Plug-in type (with CR and LED indication)
Nominal coil
voltage
100/110V AC
110/120V AC
200/220V AC
220/240V AC
2 Form C
Part No.
HJ2-L-AC100V-R
HJ2-L-AC120V-R
HJ2-L-AC200V-R
HJ2-L-AC220/240V-R
4 Form C
Part No.
HJ4-L-AC100V-R
HJ4-L-AC120V-R
HJ4-L-AC200V-R
HJ4-L-AC220/240V-R
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
RATING
1. Coil data
1) AC coils (50/60Hz)
Nominal coil
voltage
12V AC
24V AC
48V AC
100/110V AC
110/120V AC
200/220V AC
220/240V AC
80%V or less of
nominal voltage
(Initial)
30%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal coil current [±20%]
50Hz
102.9mA
54.5mA
30.7mA
11.8mA/13.9mA
10.9mA/12.5mA
6.8mA/8.1mA
6.8mA/7.8mA
60Hz
85.4mA
45.6mA
25.9mA
10.0mA/11.6mA
9.1mA/10.3mA
5.7mA/6.7mA
5.6mA/6.4mA
Approx. 1.2 to
1.5 V A
Approx. 1.0 to
1.3 V A
110%V of
nominal voltage
Nominal operating power
50Hz
60Hz
Max. applied voltage
(at 70°C
158°F)
2) DC coils
Nominal coil
voltage
12V DC
24V DC
48V DC
100/110V DC
Pick-up voltage
(at 20°C
68°F)
80%V or less of
nominal voltage
(Initial)
Drop-out voltage
(at 20°C
68°F)
10%V or more of
nominal voltage
(Initial)
Nominal coil current
75mA [±10%]
37mA [±10%]
18mA [±15%]
9.1mA/10mA [±15%]
Coil resistance
(at 20°C
68°F)
160Ω
650Ω
2,600Ω
11,000Ω
Nominal operating
power
0.9W
1.1W
Max. applied voltage
(at 70°C
158°F)
110%V of
nominal voltage
–3–
ASCTB6E 201709-T
HJ
2. Specifications
Characteristics
Arrangement
Contact
Contact resistance (Initial)
Contact material
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
Rating
Max. switching current*
4
Nominal operating power
Min. switching capacity
(Reference value)*
1
Au plating type
Without Au plating type
Between open contacts
Between contact sets
Item
2 Form C
Specifications
4 Form C
To Be Discontinued
Last time buy: September 30, 2018
Max. 50 mΩ (By voltage drop 6 V DC 1A)
Au plating type: Au plating Ag Without Au plating type: Ag
7 A 250V AC, 7 A 30V DC
1,750 VA
250V AC, 125V DC
7A
0.9W 1.2 VA
1mA 1V DC
1mA 5V DC
Min. 100MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1min. (Detection current: 10mA.)
2,000 Vrms for 1min. (Detection current: 10mA.)
2,000 Vrms for 1min. (Detection current: 10mA.)
Max. 60°C
140°F
(By resistive method, nominal coil voltage)
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time.)
(without diode)
Min. 100 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10μs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 1.0 mm (Detection time: 10μs.)
10 to 55 Hz at double amplitude of 1.0 mm
Min. 2×10
7
(at 180 times/min.)
Min. 10
5
(7A 250V AC)
Min. 5×10
5
(5A 250V AC)
Min. 10
5
(7A 30V DC)
Min. 10
5
(5A 250V AC)
Min. 2×10
5
(3A 250V AC)
Min. 10
5
(5A 30V DC)
5 A 250V AC, 5 A 30V DC
1,250 VA
5A
Insulation resistance (Initial)
Breakdown voltage
(Initial)
Electrical
characteristics
Between contact and coil
Temperature rise (coil) (at 70°C
158°F)
Operate time*
2
Release time*
2
Shock resistance
Vibration resistance
Mechanical
Functional
Destructive
Functional
Destructive
Mechanical
characteristics
Expected life
Electrical (resistive load) (at 20 times/min.)
Conditions for operation, transport and storage*
3
(Not freezing and condensing at low temperature)
Max. Operating speed
Conditions
Unit weight
Ambient temperature: –40°C to +70°C
–40°F to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at nominal switching capacity)
Approx. 34g
1.20 oz
Notes: In accordance with the Electrical Appliance and Material Safety Law, you cannot exceed a voltage of 150V AC when using the 4 Form C type.
For more information, please inquire.
When using low level loads, contact instability may result depending on conditions of use (switching frequency and ambient conditions, etc.); therefore, please use
the Au plating type.
*1. This value can change due to the switching frequency, environmental conditions and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. For the AC coil types, the operate/release time will differ depending on the phase.
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
*4. When using the socket and terminal socket, be sure to verify the max. continuous current.
Today is a romantic day, May 20th, which sounds like "I love you". On such a day, has there ever been someone in your heart that you always miss and pursue, but she has never found you? Youth sometime...
Hello everyone, I am a college student. Facing the fierce competition in today's society, we college students are really at a loss. I want to make a career plan and learn more about embedded systems. ...
I need some samples to test. I need a few MSP430FR5870s. I've tried so hard but still can't get them. I searched on Taobao before and found all kinds of films. This film has been discontinued, but the...
There is a new activity online~~This time we bring you GigaDevice's GD32F310G-START development board~GD32F310G-START
GD32F310 is a 32-bit general-purpose microcontroller based on the Arm Cortex-M4 RI...
EZ430 Chronos Wireless Watch Development Kit US Purchasing ProcessI have received the EZ430-Chronos development kit purchased from the United States two days ago. After playing with it for a while, I ...
Talking
京公网安备 11010802033920号
EEWORLD
