800AWSP8M7RE: DescriptionPushbutton Switches .4A @ 20V (AC/DC) On-(On) SPST/SPDT; CategoryMechanical and electronic products switch; File Size114KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric Compare View All

800AWSP8M7RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800AWSP8M7RE	-	-	View	Buy Now

800AWSP8M7RE Overview

Pushbutton Switches .4A @ 20V (AC/DC) On-(On) SPST/SPDT

800AWSP8M7RE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	5.842 mm
Body length or diameter	8.128 mm
Nozzle length	0.162 inch
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Installation features	THROUGH HOLE-RIGHT ANGLE
PCB hole count	3
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

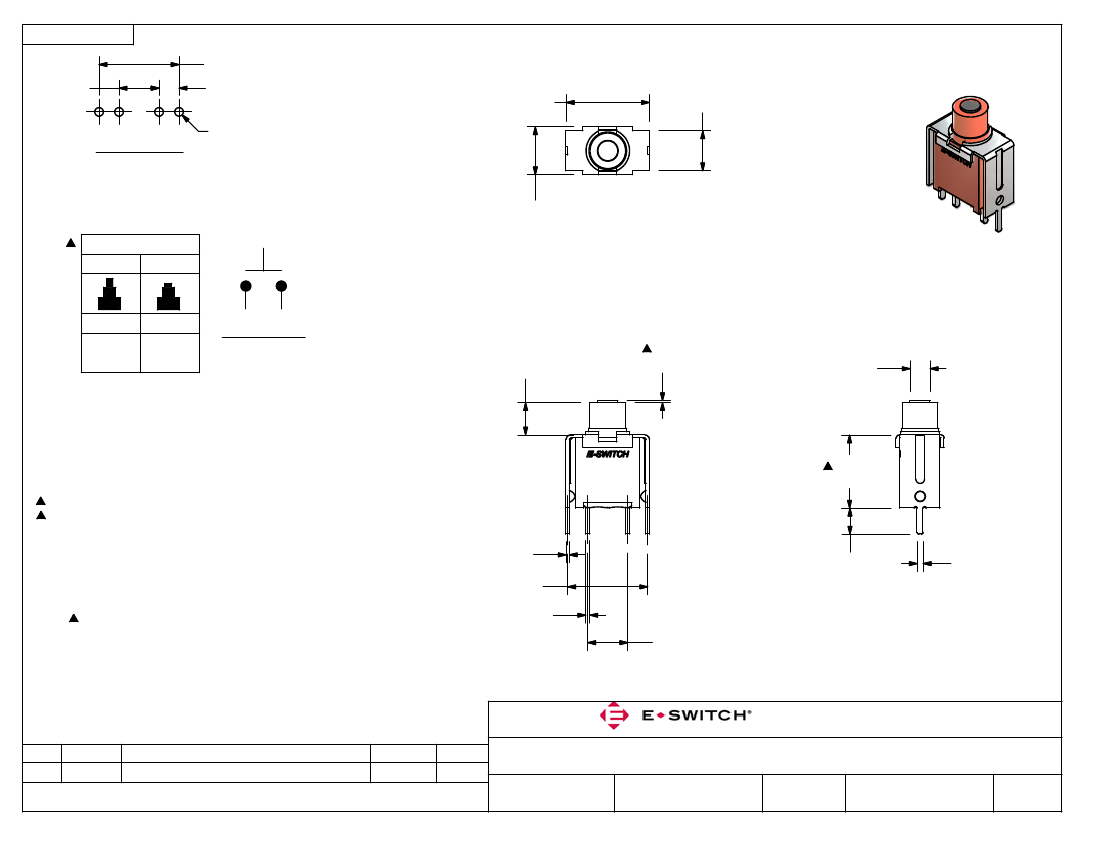

SHEET 1 OF 1

5.08

[.200 in]

10.16

[.400 in]

2.54

[.100 in]

n

1.09

[.043 in]

10.56

[.416 in]

5.08

[.200 in]

P.C. MOUNTING

6.10

[.240 in]

SWITCH FUNCTION

POS. 1

POS. 2

1

OFF

OPEN

(ON)

1-3

3

ISOMETRIC

CIRCUIT: SPST

4.11

[.162 in]

.25

[.010 in]

n

2.54

[.100 in]

(ON)=MOMENTARY

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 1A @ 250 VAC

3A @ 120 VAC OR 28 VDC

6. MECHANICAL LIFE: 50,000 MAKE-AND-BREAK CYCLES

7. CONTACT RESISTANCE: 20 mΩ MAX. INITIAL @ 2-4VDC

100mA FOR BOTH GOLD AND SILVER CONTACTS

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

9.30

[.366 in]

.40

[.016 in]

10.16

[.400 in]

.51

[.020 in]

1

3

3.30

[.130 in]

.76

[.030 in]

5.08

[.200 in]

B

REV

20063

PCR NO

UPDATE DRAWING

DESCRIPTION

07/18/11

DATE

BMA

BY

TITLE

SCALE

800AWSP9VS2QE FLUSH ACTUATOR

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

7/19/2011

DR

BMA

DWG

T833013

REV

B
