MHS122K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MHS122K

MHS122K: DescriptionSlide Switches SPDT 0.3A 30V On-On; CategoryMechanical and electronic products switch; File Size250KB，4 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

MHS122K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MHS122K	-	-	View	Buy Now

MHS122K Overview

Slide Switches SPDT 0.3A 30V On-On

MHS122K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Slide Switches SPDT 0.3A 30V On-On
body width	6.8 mm
body height	7.5 mm
Body length or diameter	16 mm
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	.3A@30VDC
Maximum contact voltage (DC)	30 V
Electrical life	10000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	MHS
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	3.92 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

MHS Series

Miniature Slide Switches

with aluminum actuator

SPECIFICATIONS

Contact rating:

300 mA at 30 VDC

Initial contact resistance:

20 milliohms max.

Insulation resistance:

100 megohms min. at 500 VDC

Dielectric strength:

500 VAC for 1 minute

Electrical life:

10,000 cycles min.

Operating temperature range:

-20°C to +85°C

Solder heat resistance:

260°C max. for 3 seconds

Actuation force:

250 ±150 grams

Solvent washing permissible

FEATURES

Miniature compact size.

Positive spring loaded ball detent mechanism.

Epoxy sealed terminals.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Wash-through open frame construction.

MATERIALS

Contacts & terminals:

Silver plated brass

Housing:

Tin plated steel

Actuator:

Aluminum alloy

Base:

Phenolic laminated sheet

.157 (4.0) TRAVEL/THROW

Terminal seal:

Epoxy

MODEL NO.

MHS122K

1P2T

.268

VERTICAL ACTUATOR

MODEL NO.

MHS133K

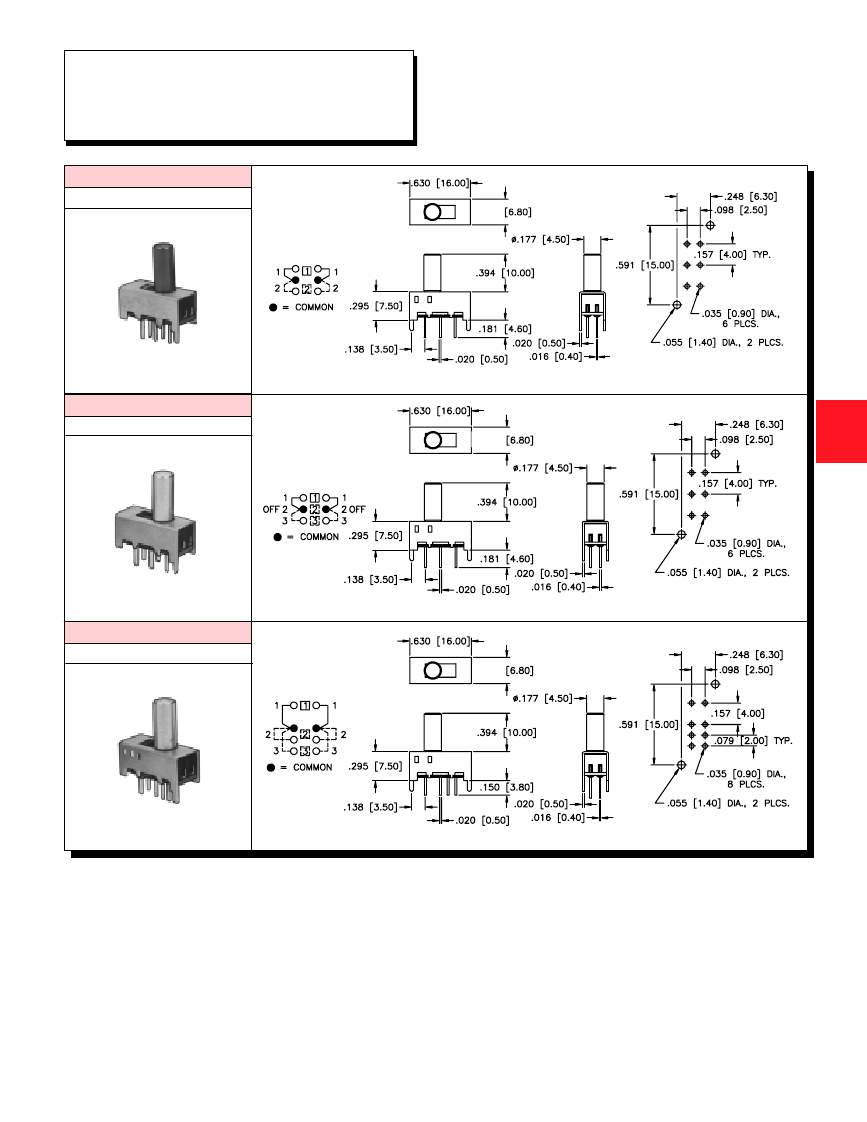

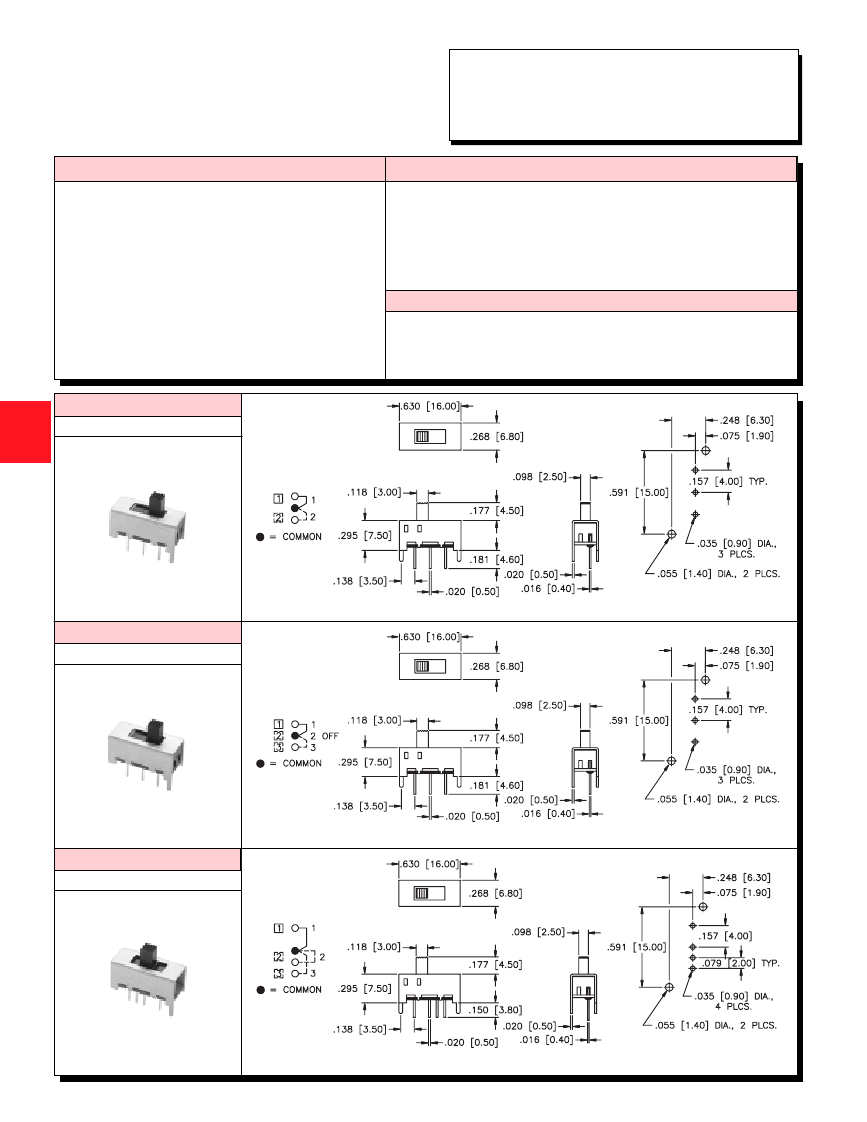

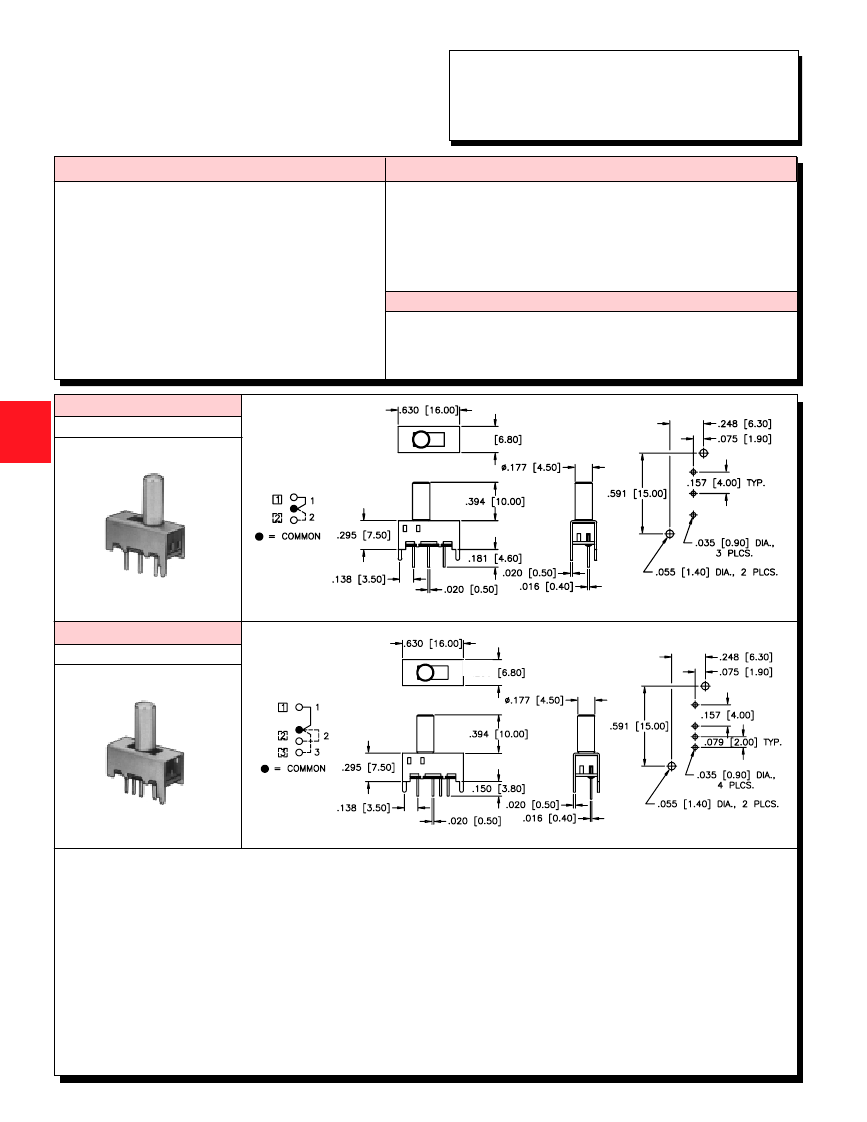

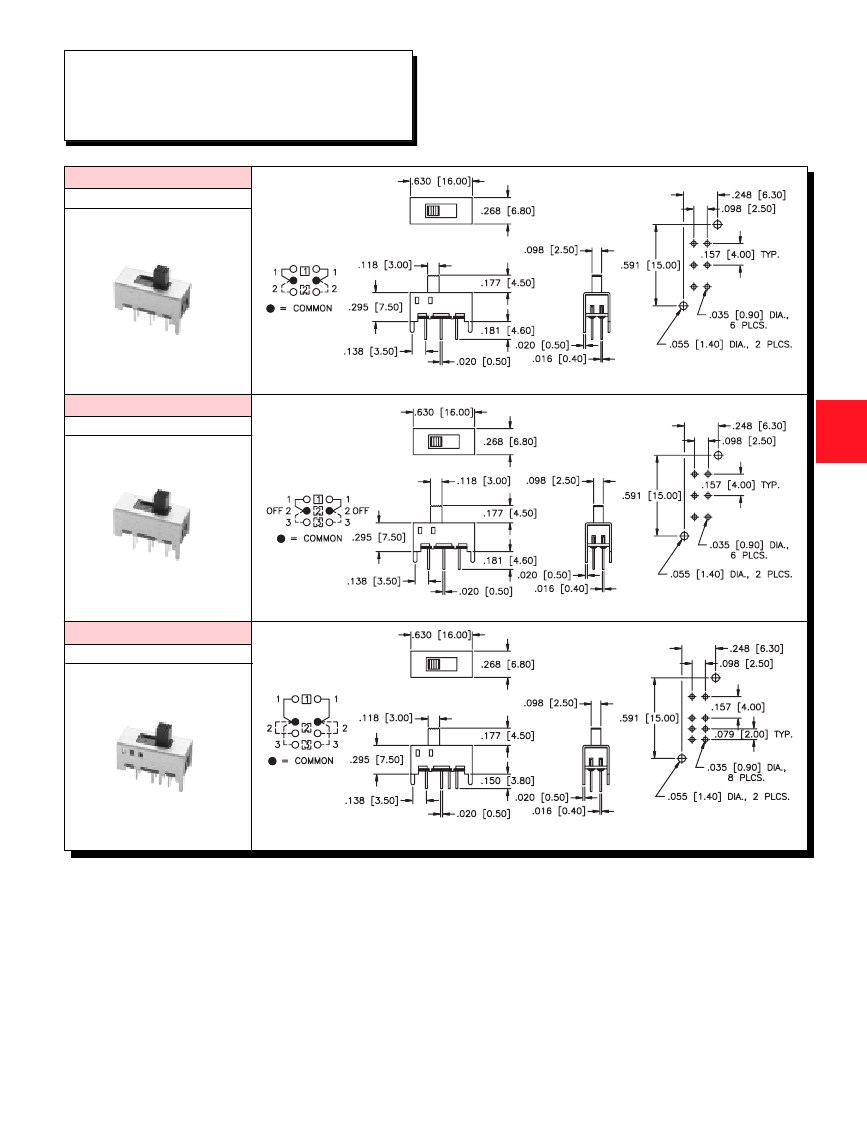

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

1P3T

.268

.079 (2.00) TRAVEL/THROW

VERTICAL ACTUATOR

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

O14

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com

MHS122K Related Products

	MHS122K	MHS223	MHS233K	MHS123K15D	MHS122
Description	Slide Switches SPDT 0.3A 30V On-On	Slide Switches Slide Switch Micro-Miniature	Slide Switches Mini slide DP TT	Slide Switches Slide Switch Micro-Miniature	Slide Switches Mini Slide Switch ON - OFF, Vertical
Is it Rohs certified?	conform to	conform to	conform to	-	conform to
Maker	APEM	APEM	APEM	-	APEM
Reach Compliance Code	compliant	compliant	compliant	-	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Samacsys Description	Slide Switches SPDT 0.3A 30V On-On	Slide Switches Slide Switch Micro-Miniature	Slide Switches Mini slide DP TT	-	Slide Switches Mini Slide Switch ON - OFF, Vertical
body width	6.8 mm	6.8 mm	6.8 mm	-	6.8 mm
body height	7.5 mm	7.5 mm	7.5 mm	-	7.5 mm
Body length or diameter	16 mm	16 mm	16 mm	-	16 mm
Maximum contact current (DC)	0.3 A	0.3 A	0.3 A	-	0.3 A
Contact (DC) maximum rated R load	.3A@30VDC	.3A@30VDC	.3A@30VDC	-	.3A@30VDC
Maximum contact voltage (DC)	30 V	30 V	30 V	-	30 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	-	10000 Cycle(s)
JESD-609 code	e4	e4	e4	-	e4
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	-	THROUGH HOLE-STRAIGHT
Maximum operating force	3.92 N	3.92 N	3.92 N	-	3.92 N
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-	-20 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	-	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	-	NO
Switch action	LATCHED	LATCHED	LATCHED	-	LATCHED
switch function	SPDT	DPDT	DP3T	-	SPDT
Switch type	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	-	SLIDE SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	-	Silver (Ag)
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER
