02/11/2015
www.crouzet.com

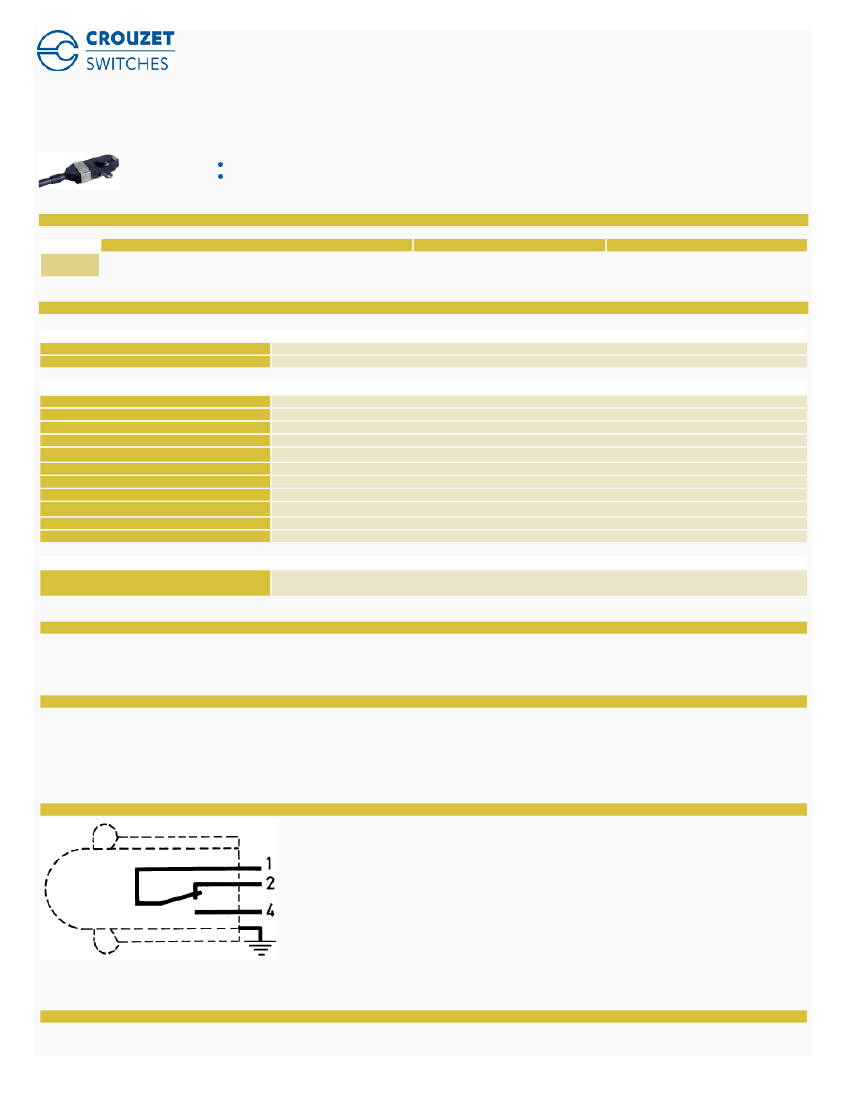

83123 Spherical cover 831230 Part number made to order
IP 66 protection
Compact dimensions
Part numbers
Type
MADE TO
ORDER
Spherical cover 831230
Function
I (changeover)
Connections
A05 VVF cable
Specifications
Electrical characteristics
Rating nominal / 250 VAC (A)
Rating thermal / 250 VAC (A)
5
12
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Maximum total travel force (N)
Max. permitted overtravel force (N)
Operating position (mm)
Maximum differential travel (mm)
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
7,5
1,5
8
30
16,5
±0,5
0,25
0,2
0 →+85
2 x 10
6
0,5
50
Connections
Connection
Cable 3 x 0.75 mm
2
in sheath Ø ext. 7.6 mm max.
Standard length 0.50 m
Comments
Common (1) : black
Normally closed (2) : brown
Normally open (4) : grey
Additional specifications
Components
Material
- Casing : nitrile
- Contacts : silver
- Contact holder : polyamide
- Mounting plate : passivated mild steel (zinc)
Principles

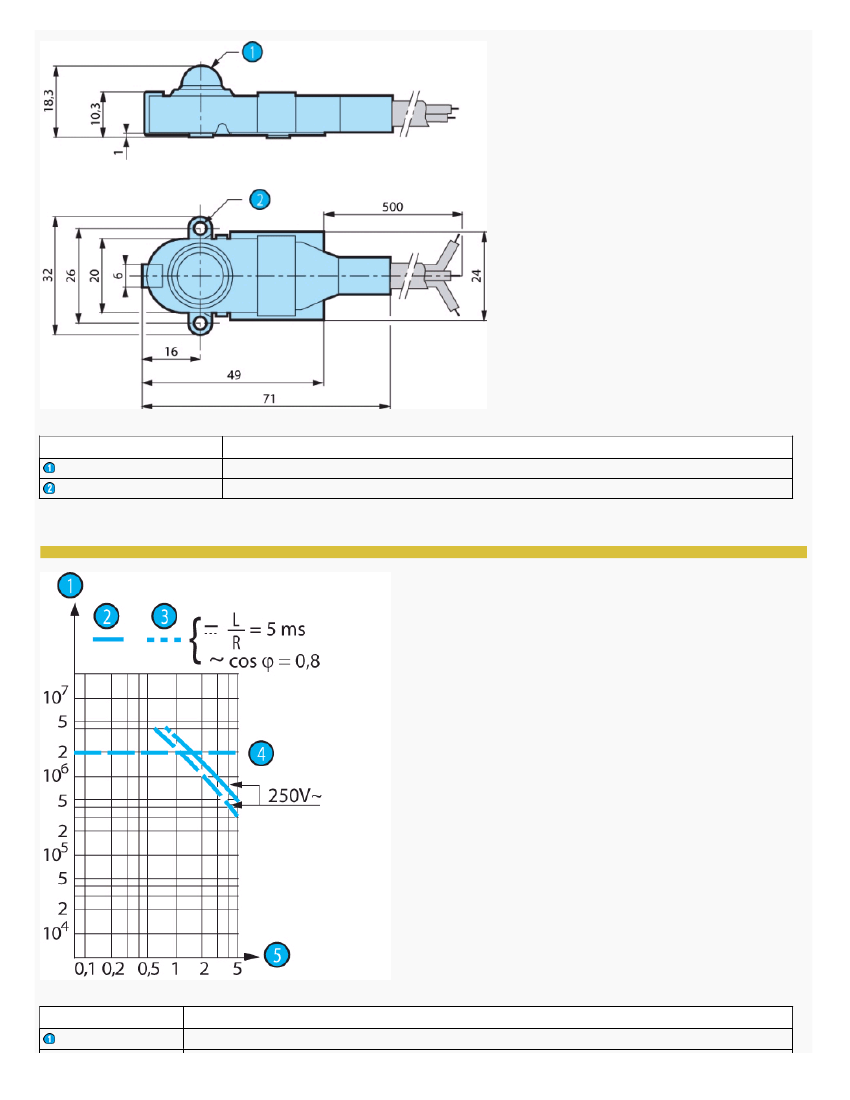

Dimensions (mm)
Product
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Resistive circuit
Inductive circuit
Mechanical life limit
Current in Amps
www.crouzet.com
Other information
Mounting - Operation
In order to comply with basic safety requirements, an insulator must be used if the device is being operated manually.
One of the fixing holes must be used as a protective earth.
Product adaptations
Special casing, leads, cables for specific environment
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
