Product Family Name
Push/Pull Switch
FEATURES
•
Moisture and contaminant
resistant
•
Designed for severe
temperatures
•
Vibration resistant
•
Sliding contacts
•
Knob available in variety of
colors
TYPICAL APPLICATIONS
•
Construction
•
Agricultural
•
Marine
•
Material Handling
•
Machine Tools
•
Mining
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.

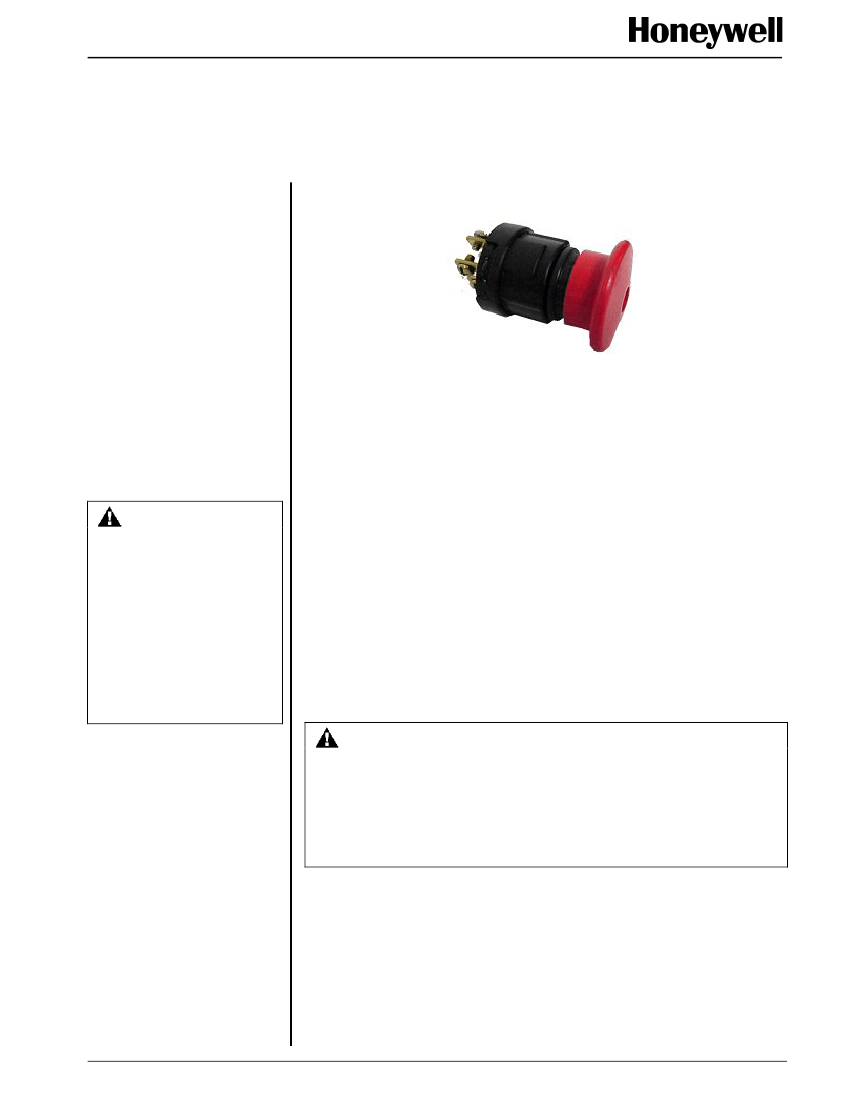

The Honeywell push/pull switch is a robust, environmentally sealed, sliding
contact switch incorporating two circuits with multiple combinations. The
sliding contacts provide positive contact closure and opening when the
switch knob is operated. The switch can be designed with a single circuit in
either the push or pull position, two circuits in either the push or pull
positions, or a single circuit in both the push and pull position. The dual o-
ring design protects the contact chamber by isolating it from any moisture or
any other contaminant
.
Replacement for Unsealed:
•
PTO Switches
•
Park Brake Switches
•
Emergency Stop Switches
WARNING
MISUSE OF DOCUMENTATION
•
The information presented in this product sheet is for reference only. Do
not use this document as a product installation guide.
•
Complete installation, operation, and maintenance information is
provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
Sensing and Control
Product Family Name
Push/Pull Switch
Part #
87941
87942
87943
87944
87945
Circuitry
2 NO Circuits in Push
1 NO Circuit in Push
1 NO and 1 NC Circuits in Push
2 NC Circuits in Push
1 NC Circuit in Push
SPECIFICATIONS
Maximum Design Electrical Load:
Operating Temperature Extremes:
Endurance Test Cycle Life at Design Electrical Load:
Standard Electrical Connection:
20 A @ 12-14 Vdc
10 A @ 24 Vdc
-40 ºC to 100 ºC
[-40 ºF to 212 ºF]
25,000 cycles
Integral Packard Connector
Screw Terminals
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as
being free of defective materials and faulty
workmanship. Contact your local sales office for
warranty information. If warranted goods are
returned to Honeywell during the period of coverage,
Honeywell will repair or replace without charge those
items it finds defective.
The foregoing is Buyer’s
sole remedy and is in lieu of all other warranties,
expressed or implied, including those of
merchantability and fitness for a particular
purpose.
Specifications may change without notice. The
information we supply is believed to be accurate and
reliable as of this printing. However, we assume no
responsibility for its use.
While we provide application assistance personally,
through our literature and the Honeywell web site, it
is up to the customer to determine the suitability of
the product in the application.
For application assistance, current specifications, or
name of the nearest Authorized Distributor, contact a
nearby sales office. Or call:
1-800-537-6945 USA/Canada
1-815-235-6847 International
FAX
1-815-235-6545 USA
INTERNET
www.honeywell.com/hobbs
honeywellhobbs.marketing@honeywell.com
www.honeywell.com/hobbs
Honeywell
1034 East Ash Street
Springfield, Illinois 62703
006161-1-EN IL50 GLO 804 Printed in USA
Copyright 2004 Honeywell International Inc. All Rights Reserved.
