SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED VOLTAGE
12
Vdc
OPERATING VOLTAGE RANGE
7 ~ 18
Vdc
RATED CURRENT (MAX)
16
mA
MINIMUM SPL @ 10 CM
108
dBA
RESONANT FREQUENCY
2,900 ± 500
Hz
0 pulse /sec
TONE OR PULSE RATE
CONTINUOUS
OPERATING TEMPERATURE
-30 ~ +85
°C
STORAGE TEMPERATURE
-40 ~ +85
°C
-
HOUSING MATERIAL
NYLON
-
TERMINAL MATERIAL
Sn PLATED BRONZE
grams
WEIGHT
40
THIS DOCUMENT CONTAINS DATA
PROPRIETARY TO PROJECTS UNLIMITED,
INC. ANY USE OR REPRODUCTION, IN ANY
FORM, WITHOUT PRIOR WRITTEN
PERMISSION OF PROJECTS UNLIMITED, INC.
IS PROHIBITED.
©2003, Projects Unlimited Inc.
LTR
-
A
REVISION HISTORY
DESCRIPTION
RELEASED FROM ENGINEERING
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
DATE
6/21/2006
2/28/2008
APPROVED
B.R.

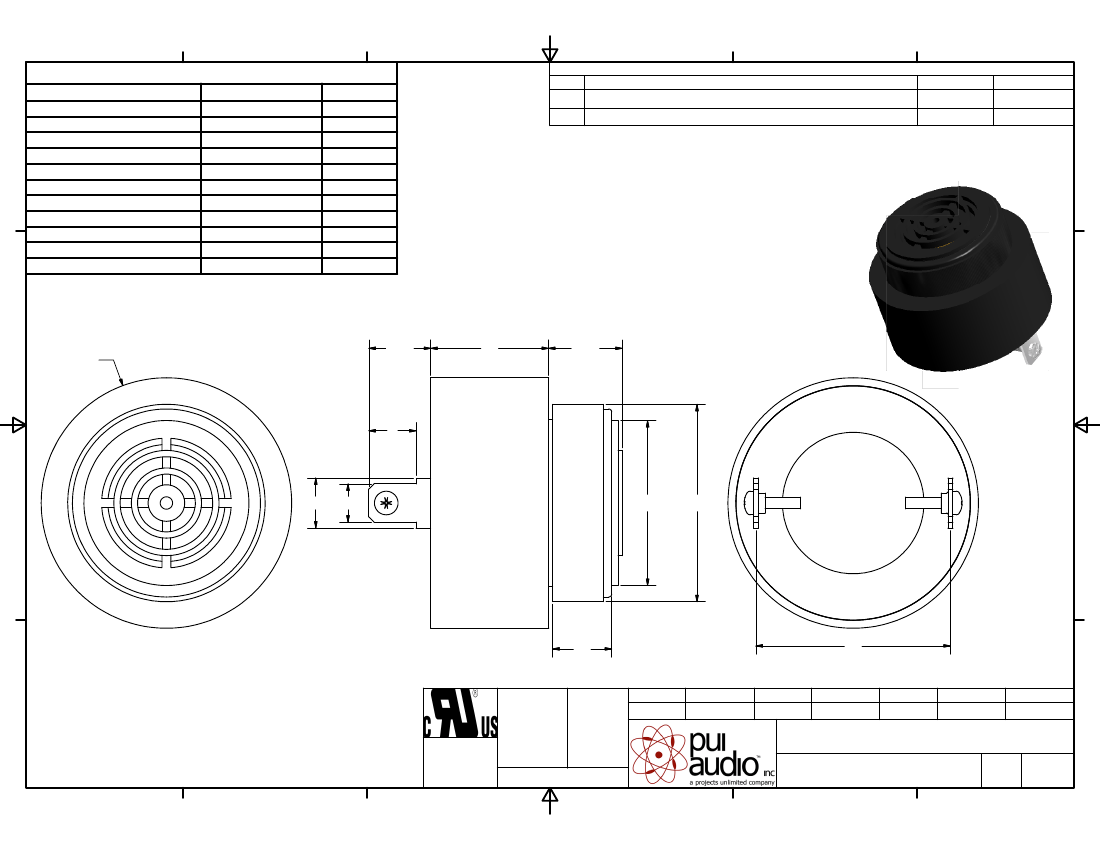

n
42.5
10.5
20
12.5
8
8.5
6.5
n
28
n
33.5
10
33
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
J.D.
6/21/2006
E.P.
6/21/2006
B.R.
6/21/2006 2/28/2008
THIS PART IS
UL RECOGNIZED
IN THE US AND
CANADA
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
A3
AI-4228-P-C18-R
UL Indicator
Edition
Sheet
AI-4228-P-C18-R.idw
-
1/1
