89562: DescriptionIndustrial Relays Interface Mod 4Ch IsolDPDTMod Rel24VDC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size139KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric View All

89562 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89562	-	-	View	Buy Now

89562 Overview

Industrial Relays Interface Mod 4Ch IsolDPDTMod Rel24VDC

89562 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	Industrial Relays
Coil Voltage	24 VDC
Application	Industrial
Current Rating	8 A
Length	79 mm
Product	Industrial
Factory Pack Quantity	1

Preview

Download Datasheet

View All

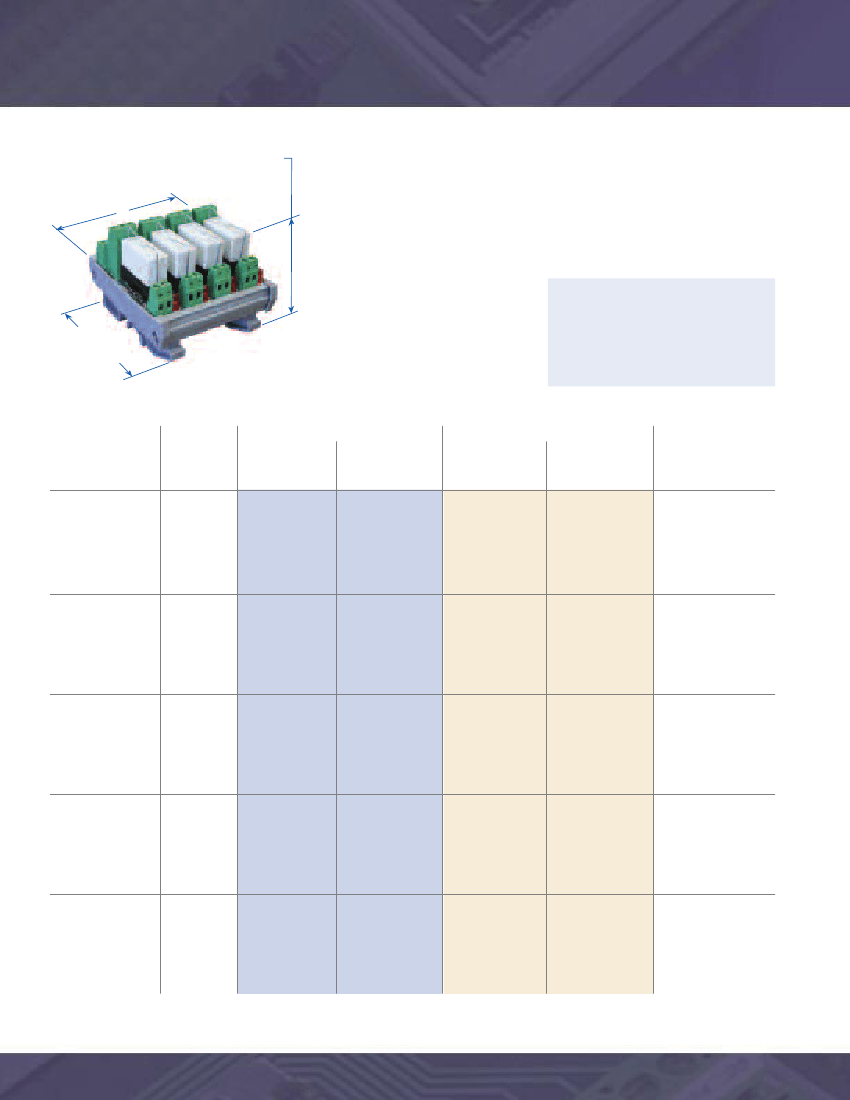

Interfaces, Relay Modules and Carriers

Isolated DPDT, 35 or 32 DIN Rail

RC2 / RM2 (Double Pole Double Throw)

TS35x7.5 71 mm (2.60 in.)

TS32x15 76 mm (2.99 in.)

Isolated channels (no bus) allow control of each relay by a different logic system, if necessary. Mix sourcing

(positive switching, Vcc on/off) and sinking (negative switching, ground on/off) on a single multi-relay

module. Provide spare relay channels for future needs without committing to a specific logic power supply,

and without committing coil-drive power for more than one relay at a time.

Altech Relay Modules provide high density packaging of miniature general purpose relays with Single Pole

Double Throw (Form C) and Double Pole Double Throw (2 Form C) contact configurations and low current

AC and DC coils. Load your own relays in our RC Relay Carrier, or order the RM Relay Module complete with

relays.

Call us with your custom module requirements!

• Screw-Cage Clamp Connections

• Spring Clamp Terminals

• LED Coil Voltage Indicator

• Reverse DC Polarity LED Protection

• Surge Suppression with DC Coil

• DIN Rail Mount, Panel Mount Available

Technical Information

Current ..................8 A

Voltage (max) ........250V AC / 24V DC

Wire Range ...........0.5-4 mm

/ 30-14 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

DPDT

Number of Channels

1 Channel

Coil Voltage

12V DC

24V DC

110V AC

220V AC

2 Channel

12V DC

24V DC

110V AC

220V AC

4 Channel

12V DC

24V DC

110V AC

220V AC

8 Channel

12V DC

24V DC

110V AC

220V AC

16 Channel

12V DC

24V DC

110V AC

220V AC

m )

m in .

87 .43

Screw terminal

Carrier Only

Module

with Relays

Part Number

8945.5

8951.5

8953.5

8954.5

8949.6

8951.6

8953.6

8954.6

8955.5

8956.5

8957.5

8959.5

8955.6

8956.6

8957.6

8959.6

8963.5

8972.5

8995.5

8999.5

8945.2

8951.2

8953.2

8954.2

8949.3

8951.3

8953.3

8954.3

8955.2

8956.2

8957.2

8959.2

8955.3

8956.3

8957.3

8959.3

8963.2

8972.2

8995.2

8999.2

Spring terminal

Carrier Only

Module

with Relays

Part Number

8945.5/S

8951.5/S

8953.5/S

8954.5/S

8949.6/S

8951.6/S

8953.6/S

8954.6/S

8955.5/S

8956.5/S

8957.5/S

8959.5/S

8955.6/S

8956.6/S

8957.6/S

8959.6/S

8963.5/S

8972.5/S

8995.5/S

8999.5/S

8945.2/S

8951.2/S

8953.2/S

8954.2/S

8949.3/S

8951.3/S

8953.3/S

8954.3/S

8955.2/S

8956.2/S

8957.2/S

8959.2/S

8955.3/S

8956.3/S

8957.3/S

8959.3/S

8963.2/S

8972.2/S

8995.2/S

8999.2/S

Module Length (L)

in mm (in)

21 (0.83)

40 (1.57)

79 (3.11)

157 (6.18)

311 (12.24)

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
