SERIES TL1105 SWITCHES
TACT
SWITCHES

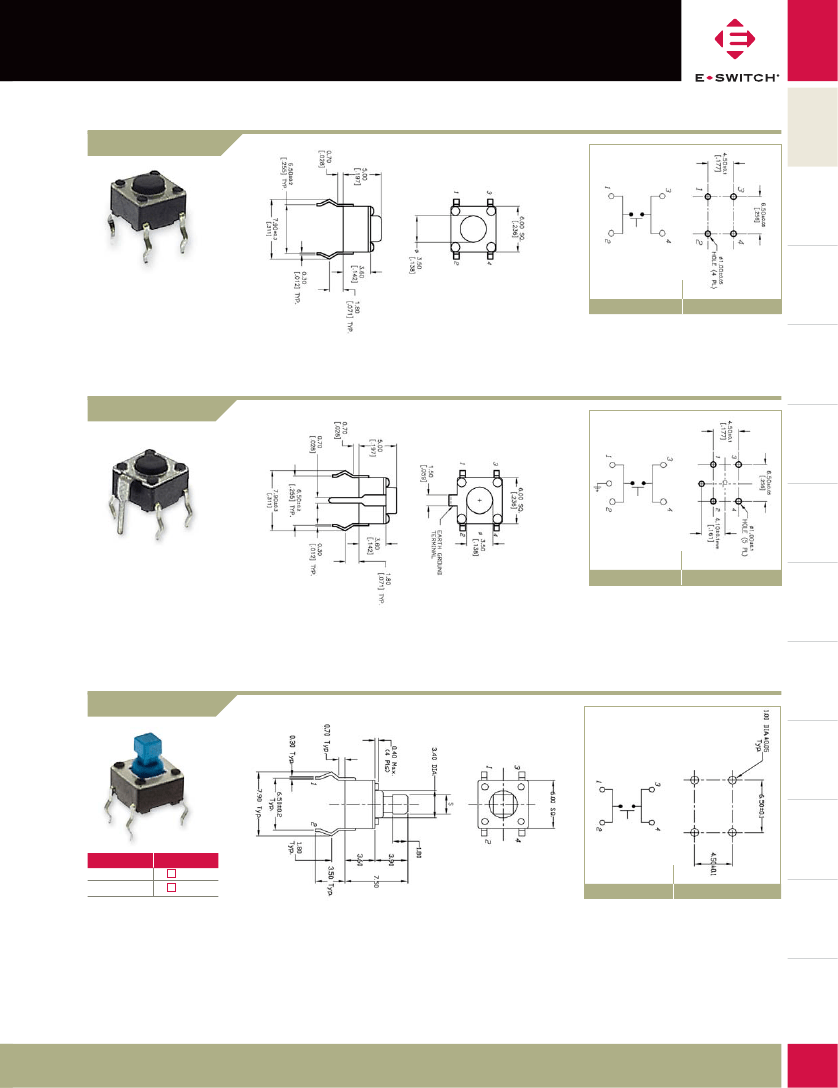

TACT SWITCHES - 6mm x 6mm
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Life Expectancy:
Contact Resistance:
Insulation Resistance:
50mA @ 12 VDC (50mA @ 50VDC-gold)
100,000 cycles
100mΩ max., typical @ 2-4 VDC
100mA for both silver and gold plated contacts
100MΩ min.
250 VAC
100 ± 50 gf, 160 ± 50 gf, 250 ± 50 gf
0.25 Typ
PUSHBUTTON
SWITCHES
Dielectric Strength:
Actuation Force:
Travel:
Operating Temperature: -20°C to 70°C
TOGGLE
SWITCHES
MATERIALS
Housing:
Nylon or PBT
Nylon, Acetal or PBT
Polyester
Gold or silver plated
Silver plated brass
FEATURES & BENEFITS
ROCKER
SWITCHES
Reliable dome contact technology
Strong tactile/audible feedback
Multiple operating force options
APPLICATIONS/MARKETS
Telecommunications
Consumer Electronics
Audio/visual
Medical
Testing/instrumentation
Computer/servers/peripherals
Actuator:
Cover:
Contacts:
Terminals:
▲
▲
▲
SLIDE
SWITCHES

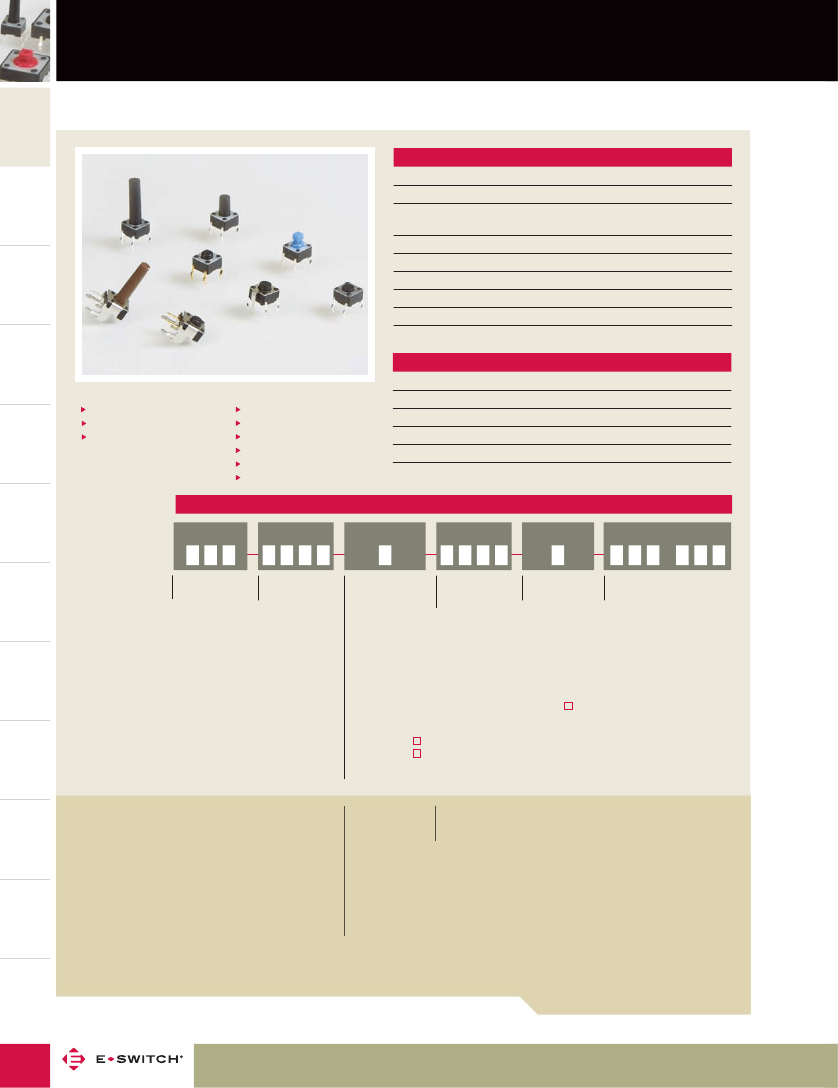

HOW TO ORDER
SERIES
MODEL NO.
ACTUATOR
("L" Dimension)
OPERATING
FORCE
CONTACT MTL./
TERMINATION
CAP
(Where Avail.)
CAP
COLOR
SNAP-ACTION
SWITCHES
TL
TLE = Earth Ground
1105
KEYLOCK
SWITCHES
(None) = 4.3mm
(None) = 4.3mm
A = 5.0mm
A = 5.0mm
B = 9.5mm
B = 9.5mm
C = 8.0mm
SP = 2.8mm
D = 13.0mm
E = 7.3mm
F = 7.0mm
G = 9.7mm
H = 12.5mm
K = 13.5mm
L = 17.0mm
P = 8.5mm
Y = 16.3mm
T = 2.4mm
SP = 2.8mm
F100
F160
F250
Q = Silver
R = Gold
See Cap Options
Caps available for
SP option only.
DIP
SWITCHES
– Square Snap-on Actuator Head
“L” Dimension is 7.5mm
ROTARY
SWITCHES

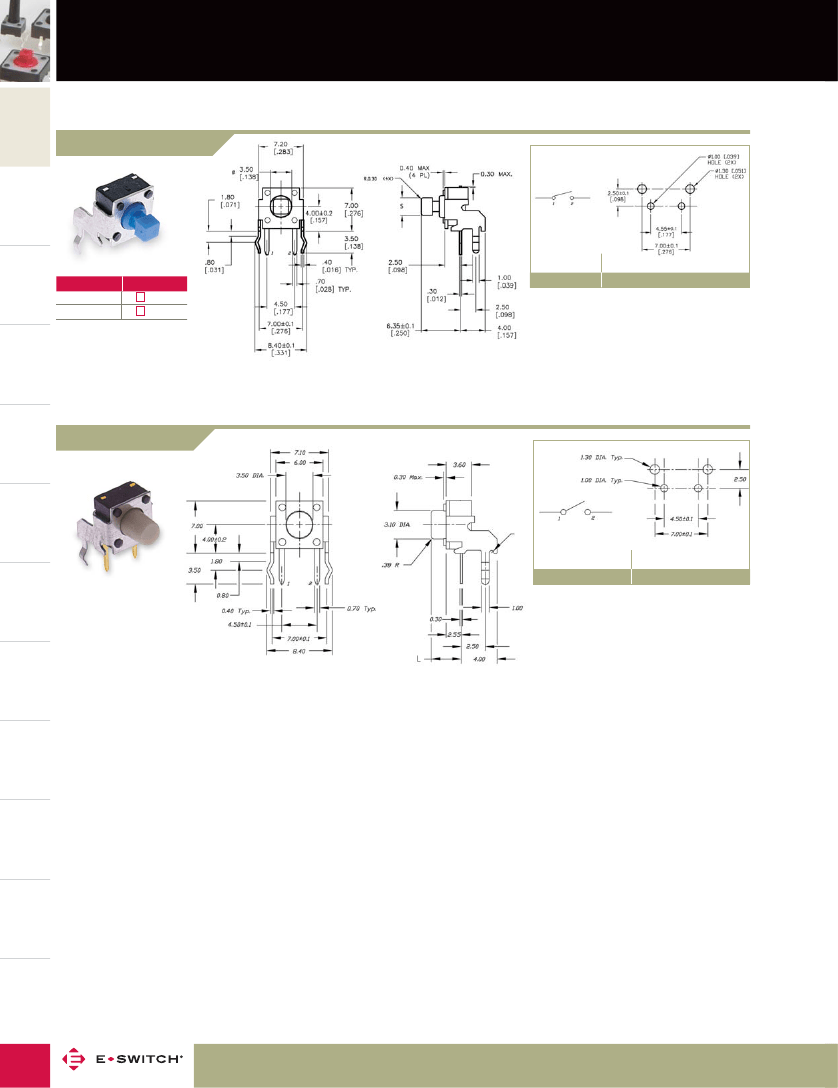

1
TL
1105
1
!Rt. Anglel
DETECTOR
SWITCHES
V =
3.85mm
W=
3.15mm
X =
5.85mm
R =
6.15mm
M =
6.85mm
=
8.35mm
N =11.85mm
Q =15.85mm
J = 2.4mm
D
JA= 2.8mm
D
FlOO
F160
F250
1
Q =Silver
R =Gold
1
Caps available for
JA option only.
See Cap Options
s
CAP
OPTIONS
► ► ►
D - Square Snap-on Actuator Head
"L" Dimension is 6.35mm
Example Ordering Number
TL-1105-SP-F160-Q-1R RED
Specifications subject to change without notice
2.28.2018
24
Phone: 800-867-2717
Fax: 763-531-8235
