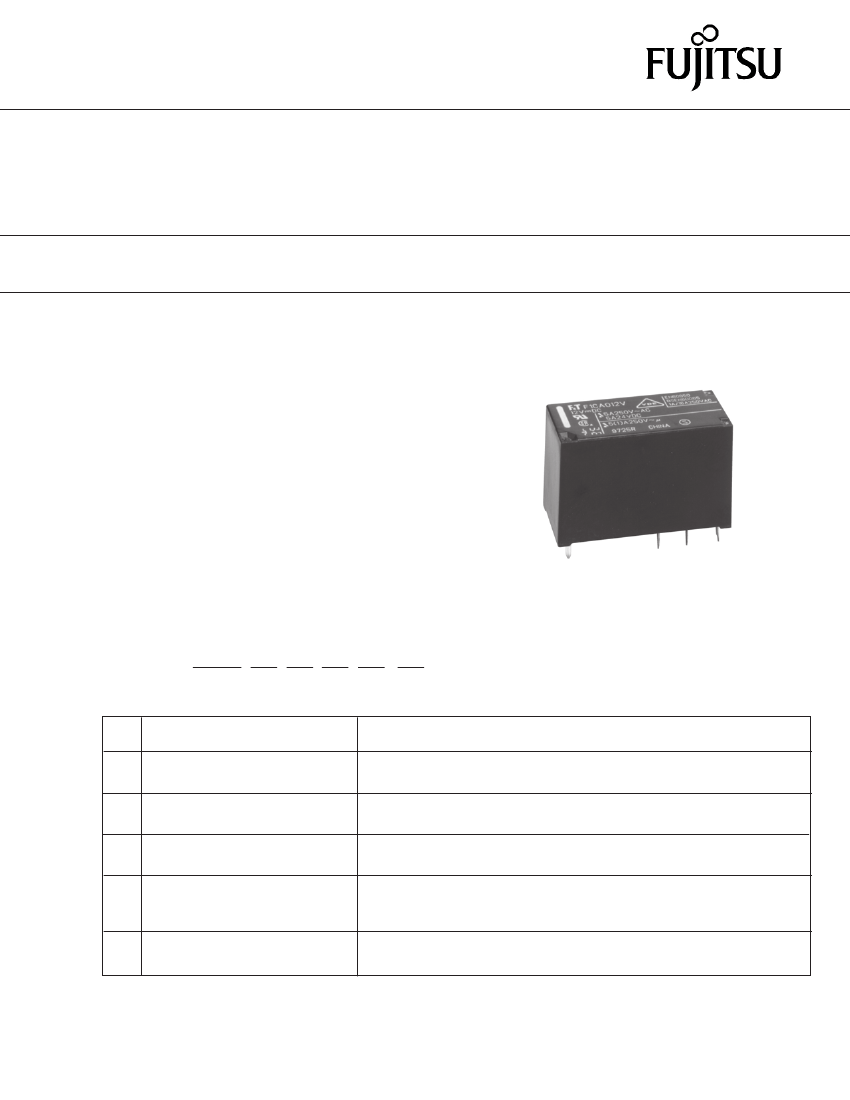

FTR-K1 SERIES
POWER RELAY
2 POLES - 5A LOW PROFILE TYPE
FTR-F1 Series
n
FEATURES
l
l
l
l
l
l
l
Low profile (height: 16.5mm)
DPST/DPDT 5A, TV-3 rating available
High insulation
(due to its reinforced insulation construction)
Insulation Distance (between coil and contacts): 8mm min.
Dielectric strength: 5KV
Surge strength: 10KV
Pin configuration compatible to VB
UL, CSA, VDE, SEMKO, CQC recognized
Plastic sealed, RT III
RoHS Compliant
Please see page 6 for more information
n
PARTNUMBER INFORMATION
[Example]
FTR-F1 A
(a)
(b)
A
(c)
005
(d)
V - RG
(e)
(f )
(a)
(b)
(c)
(d)
(e)
Relay type
Contact configuration
Coil type / enclosure
Coil rated voltage
Contact material / TV type
FTR-F1 : FTR-F1 Series
A
C
A
D
005
V
T
Nil
RG
: 2 form A (SPST-NO)
: 2 form C
: Standard type (530mW)
: High sensitivity type (400mW)
: 5....110VDC
Coil rating table at page 3
: Gold plate silver tin oxide (standard type)
: Gold plate silver tin oxide
(TV-3 rating type, only for 2 form A standard coil type)
: Standard type
: Transparent cover type
(f)
Special type
Actual marking does not carry the type name : "FTR"
E.g.: Ordering code: FTR-F1AA005V
Actual marking: F1AA005V
1
FTR-K1 SERIES
FTR-F1 SERIES
n
SPECIFICATION
Item
Contact
Data
Standard Type
F1 (A,C) A ( ) V
Configuration
Construction
Material
Resistance (initial)
Contact rating
Max. carrying current *¹
Max. switching voltage
Max. switching power
Min. switching load *²
Life
Mechanical
AC load
Electrical
Coil Data
DC load
Lamp load (TV-3)
Rated Power (at 20 ° C)
Operate Power (at 20 ° C)
Operating temperature range
Timing Data
Insulation
Operate (at nominal voltage)
Release (at nominal voltage)
Resistance (Initial)
Open contacts
Dielectric strength
Surge strength
Clearance
Creepage
EN61810-1, VDE0435
Voltage
Pollution degree
Material group
Category
Other
Vibration Resistance
Shock
Weight
Sealing
Misoperation
Endurance
Misoperation
Endurance
Coil and contacts
Coil and contacts
2 form A
(DPST-NO)
2 form C
Single
Gold plate silver tin oxide (AgSnO
2
)
Max. 100mOhm at 1A, 6VDC
5A, 250VAC / 24VDC
7A
400VAC/ 300VDC
1,250VA, 120W
10mA, 5VDC
Min. 20 x 10
6
operations
Min. 100 x 10
3
operations
Min. 100 x 10
3
operations
-
25 x 10
3
operations min.
-
400mW
225mW
TV-3 rating
F1 AA ( ) T
2 form A
(DSDT-NO)
Sensitive Type
F1 (A,C) D ( ) V
2 form A
(DPST-NO)
2 form C (DPDT)
530mW, 110V type: 550mW
260mW, 110V type: 270mW
-40 to +75 °C (no frost)
-40 to +70 °C (transparent cover type, -RG)
Max. 15ms (no diode, without bounce)
Max. 5ms (no diode, without bounce)
Min. 1,000MOhm at 500VDC
1,000VAC (50/60Hz) 1min.
5,000VAC (50/60Hz) 1min.
10.000V/ 1.2 x 50µs standard wave
8 mm
8 mm
250V
3
IIIa
C / 250V (reference voltage) (VDE0110b)
10 to 55Hz double amplitude 1.65mm
10 to 55Hz double amplitude 3.3mm
Min. 100m/s² (11 ± 1ms)
Min. 1000m/s² (6 ± 1ms)
Approximately 13 g
Sealed RTIII
Adjacent contacts 3,000VAC (50/60Hz) 1 min.
* 1 When max. carrying current is more than 10A, PCB layout needs to be considered.
* 2 Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual
load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.
2
FTR-K1 SERIES
FTR-F1 SERIES
n
COIL RATING
530mW standard type
Coil
Code
005
006
009
012
018
024
048
060
110
Rated Coil
Voltage
(VDC)
5
6
9
12
18
24
48
60
110
Coil Resistance
+/- 10% (Ohm)
47
68
155
270
610
1,100
4,400
6,800
22,000
Must Operate
Voltage
(VDC) *
3.5
4.2
6.3
8.4
12.6
16.8
33.6
42
77
Must Release
Max. Coil Voltage
Voltage
(VDC)
(VDC) *
0.5
0.6
0.9
1.2
1.8
2.4
4.8
6
11
8.5
10.2
15.3
20.4
30.6
40.8
81.6
102
187
550
530
Rated Power
(mW)
400mW high sensitive type
Coil
Code
003
005
006
009
012
024
048
Rated Coil
Voltage
(VDC)
3
5
6
9
12
24
48
Coil Resistance
+/- 10% (Ohm)
22.5
62
90
202
360
1,440
5,760
Must Operate
Voltage
(VDC) *
2.25
3.75
4.5
6.75
9
18
36
Must Release
Max. Coil Voltage
Voltage
(VDC)
(VDC) *
0.3
0.5
0.6
0.9
1.2
2.4
4.8
6
10
12
18
24
48
96
400
Rated Power
(mW)
Note: All values in the table are valid for 20°C and zero contact current.
* Specified operate values are valid for pulse wave voltage.
3
FTR-K1 SERIES
FTR-F1 SERIES
n
SAFETY STANDARDS
Type
UL
Compliance
UL 508
E63614
CSA
C22.2 No. 14
LR 40304
Contact rating
Flammability: UL 94-V0 (plastics)
5A, 24VDC (resistive)
5A, 250 VAC (resistive)
1/6 HP, 125VAC
1/4 HP, 250VAC
Pilot duty: C300
Pilot duty: R300 (F1AA( )T, F1AA( )V)
TV-3 (F1AA( )T)
5A, 250 VAC (cosφ=1)
2A, 250 VAC (cosφ=0.4)
5 A 24VDC (0ms), 85˚C
VDE
0435, 0631, 0700, 0860
40013858
SEMKO
EN 61058-1:1992 and A1
250VAC, 5 (1)A
EN 61095:1993 and A1+A11
>850˚C (except for -RG)
>775˚C(except for -RG)
IEC60335-1 GWFI IEC 60695-2-12
GWIT IEC 60695-2-13
Complies with BSI, IMC, CQC
n

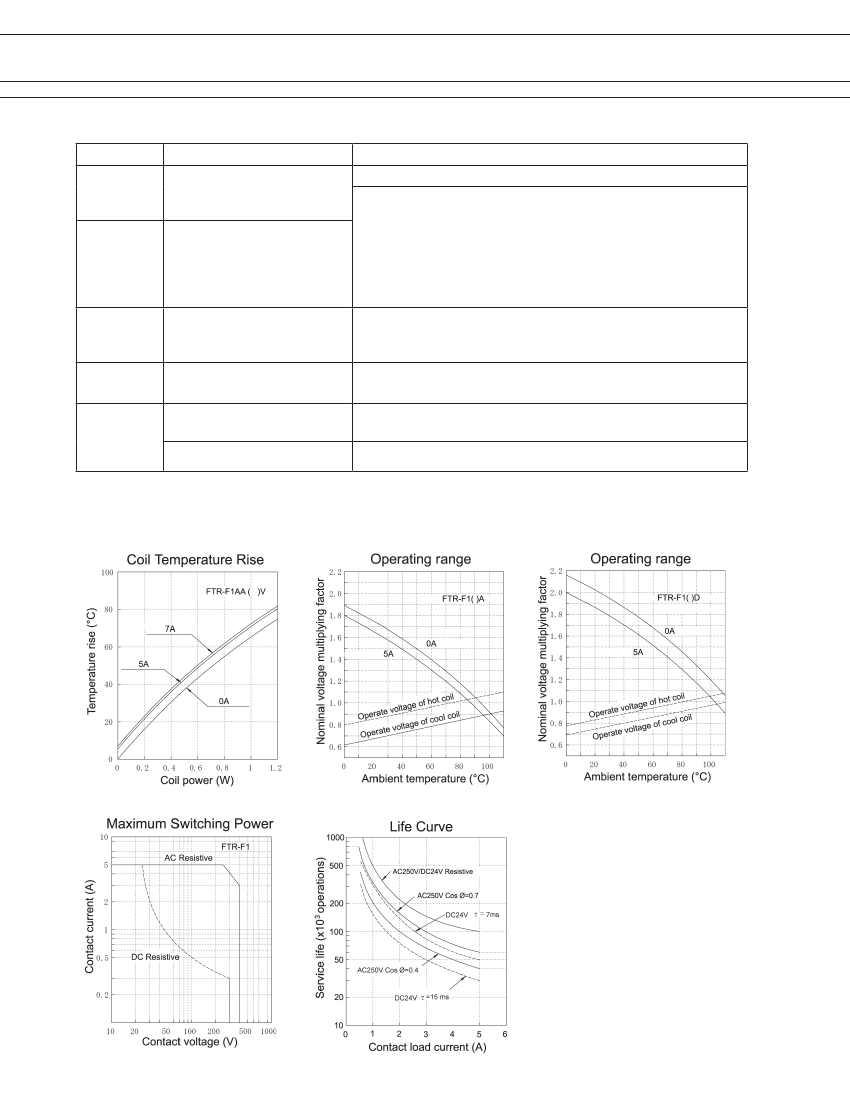

CHARACTERISTIC DATA
4
FTR-K1 SERIES
FTR-F1 SERIES
n

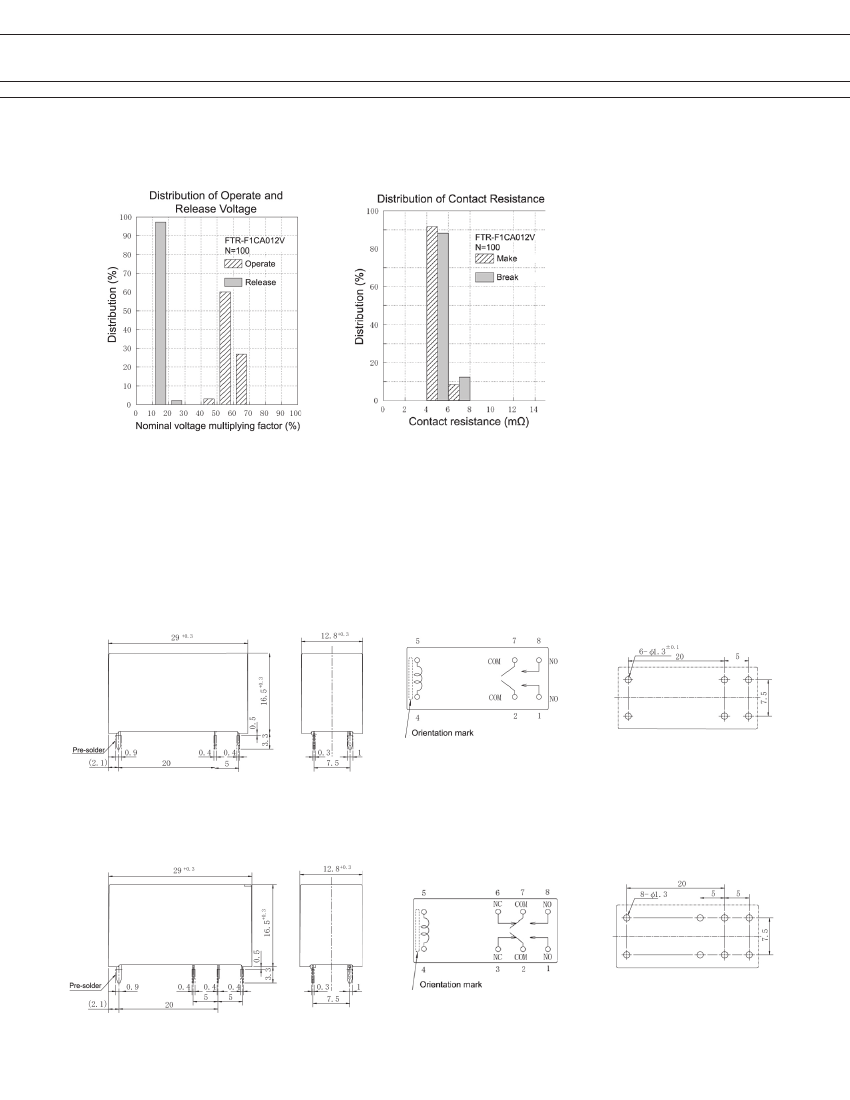

REFERENCE DATA
n
DIMENSIONS
l
Dimensions
FTR-F1A type
l
Schematics
(BOTTOM VIEW)
l
PC board mounting
hole layout
(BOTTOM VIEW)
FTR-F1C type
Unit: mm
5
