CURVETTE
LRA-Series
SINGLE POLE LIGHTED ROCKER & PADDLE SWITCHES
Since its introduction, the Curvette switch has become the barometer for versatility and performance in the
miniature switch market. This lighted version features the very same self cleaning contacts, international
approvals, along with a wide variety of circuits, ratings, and actuator options that make the Curvette the
switch of choice for various applications.
Product Highlights:
Clear or translucent style rockers
Neon or Incandescent illumination
Self-cleaning wiping style contacts
UL, CSA and VDE approved
Typical Applications:
HVAC
Office Lighting
Transportation
Commercial Food
Lawn & Garden
Power Strip
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |

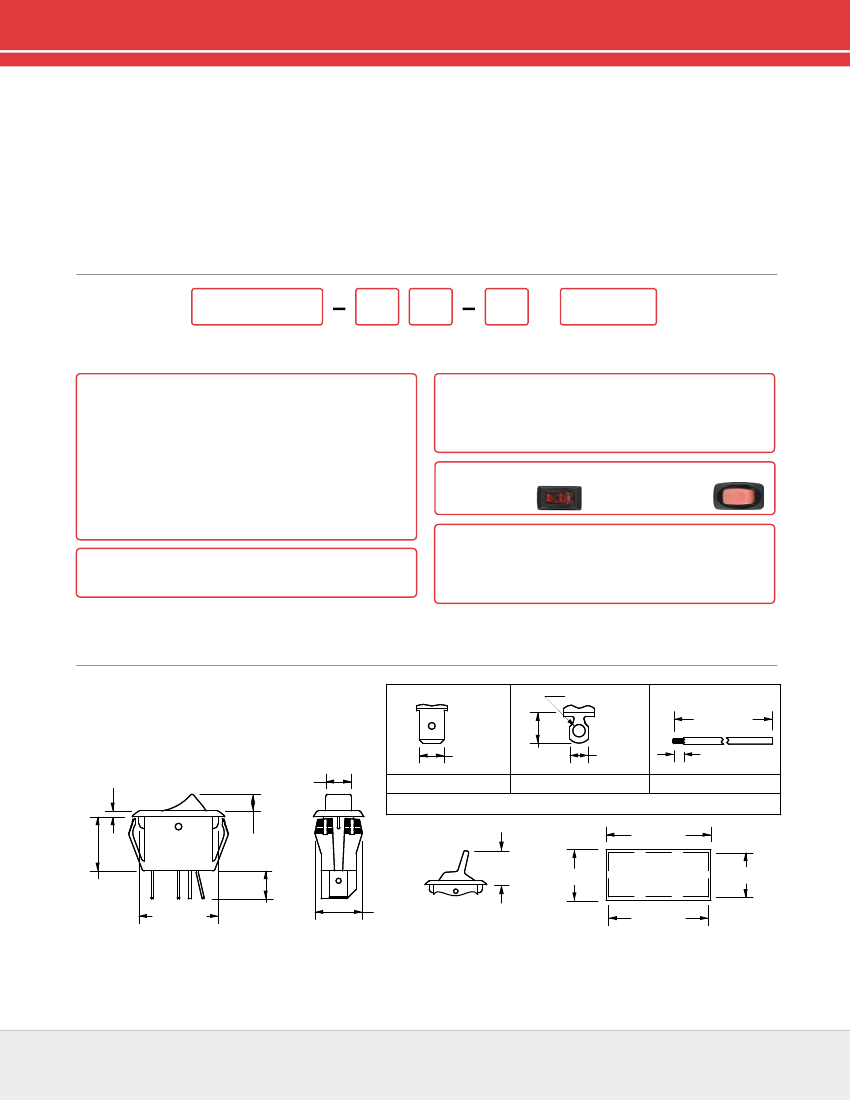

Curvette LRA-Series Lighted Rocker & Paddle Switches - General Specifications, Ordering Scheme, Dimensional Specifications
Dielectric Strength
UL/CSA:
1000V-live to dead metal parts
VDE:
4000V - live to dead metal parts;
750V - across open contacts
100,000 cycles
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
Electrical Life
1
Base Part Number
LRA911
2
Actuator
Style
R S
3
Actuator
Color
4
Bezel
Color/Style
B / 250N
5
Lamp Voltage
1 BASE PART NUMBER: SERIES / CIRCUITRY / RATING
2
/
TERMINATION
125 neon lamp (use 125N in Selection 5 Lamp Voltage)
10A 250VAC; 16A 125VAC; 10(4)A 125VACu
Solder Lugs
.250 Tabs
Wire Leads
OFF-NONE-ON
LRA210
LRA211
LRA215
250 neon lamp (select 250N in selection 5 Lamp Voltage)
15A 250 VAC; 10A 250VAC; 16A 125VAC; 10(4)A 250 T85
Solder Lugs
.250 Tabs
OFF-NONE-ON
LRA910
LRA911
LRA915
Incandescent lamp (select 006V-024V in selection 5 Lamp Voltage)
10A 30V
Solder Lugs
.250 Tabs
Wire Leads
OFF-NONE-ON
LRA510
LRA511
LRA515
2 ACTUATOR STYLE
P
Paddle
R
Rocker translucent
C
Rocker Clear
Notes:
LED illumination, PC terminals, independent lamps, and additional color options are
available. Consult factory.
1
Neon lamps not available with blue or green actuators.
2
Consult factory for additional ratings.
3 ACTUATOR COLOR
translucent
A
Amber
C
White
P
Yellow
S
Red
W
Pale Red
4 BEZEL COLOR/STYLE
STANDARD
B
Black (matte)
W
White (matte)
5 LAMP VOLTAGE
006V
6 volts incandescent
012V
12 volts incandescent
018V
18 volts incandescent
024V
24 volts incandescent
125N
1
125 volts neon
250N
1
250 volts neon
clear
A
Amber
C
Clear
G
1
Green
B
1
Blue
R
Red
OVAL
1
Black (gloss)
2
White (gloss)
.125[3.18] DIA
6.000[152.40]
.250[6.35]
.080[2.03]
.375[9.52]
.250 TAB (Q.C.)
.250[6.35]
.187[4.75]
.500[12.70]
WIRE LEAD
SOLDER LUG
TERMINAL TYPE
.187[4.75]
.710[18.03]
.725[18.41]
1.070[27.17]
.375[9.53]
.620[15.75]
PADDLE
1.125[28.58]
TEST CUT HOLE
IN ACTUAL
MATERIAL
1.072[27.23]
MOUNTING HOLE
Panel Thickness: .025 min. - .187 max.
Specific cutout dimension range
dependent on panel thickness and material.
Consult factory.
.550[13.97]
.480[12.19]
*Manufacturer reserves the right to change product specification without prior notice.
