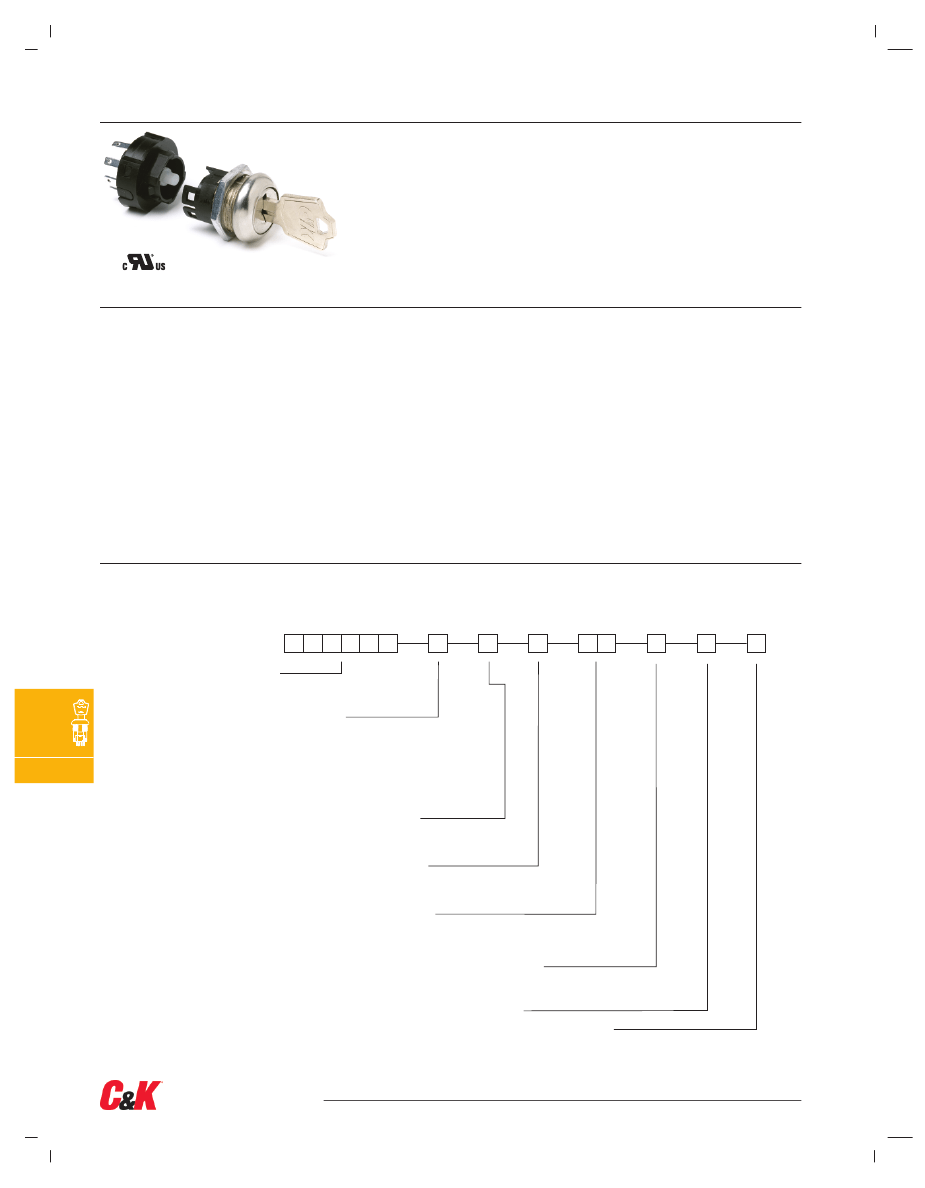

H Series
4 & 6 Tumbler Power Switchlocks
Features/Benefits
•
Positive detent
•
Multi-pole and multi-position
•
Snap-together assembly
•
Power switching
Typical Applications
•
Machine controls
•
Elevators
Models Available
Specifications
CONTACT RATING: Q contact material: 12 AMPS @ 125 V AC;
6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA). See page
L-37 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @ 2-4 V DC,
100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC.
INDEXING: 45º or 90º, 2-4 Positions.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Materials
LOCK: Zinc alloy with stainless steel facing (4 tumbler locks and
6 tumbler tubular lock).
KEYS: Two nickel plated brass keys with code number (4 tumbler).
Two die cast chrome plated zinc alloy keys (6 tumbler).
SWITCH HOUSING: 6/6 nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver plated.
See page L-37 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
MOUNTING NUT: Zinc alloy.
MOUNTING CLIP: Steel, zinc plated.
DRESS NUT: Brass, nickel plated.
TERMINAL SEAL: Epoxy.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L–35 through L–38. For additional options not shown in catalog, consult Customer Service Center.
L
Switchlock
Switch and Lock Function
H10113
SP, 90º Index, keypull pos.1
H2011U
DP, 90º Index, keypull pos. 1 & 2
H100AA
SP, 45º Index,
Keying
keypull pos. 1,2 & 3
2
Two nickel plated brass keys
H200AA
DP, 45º Index,
(4 tumbler) or two die cast zinc alloy
keypull pos. 1, 2 & 3
keys with chrome plating (6 tumbler)
H20113
DP, 90º Index,
T
One nickel plated brass key with plastic
keypull pos. 1
insert molded square head and one nickel
H1011U
SP, 90º Index,
plated brass key
keypull pos.1 & 2
H1417U
SP, 90º Index, keypull pos. 1,2 & 3
Lock Type
F
4 Tumbler lock with detent
V
6 Tumbler tubular lock
Lock Finish
2
Stainless steel facing
8
Gloss black facing
Terminations
05
Quick connect
WC
Wire lead
Mounting/Lock Style
N
With nut
D
With clip
Contact Material
Q
Silver
B
Gold
Key Color
NONE
Nickel plated brass (4 tumbler)
or chrome plated zinc alloy (6 tumbler)
2
Black
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–34
www.ck-components.com
H Series
4 & 6 Tumbler Power Switchlocks

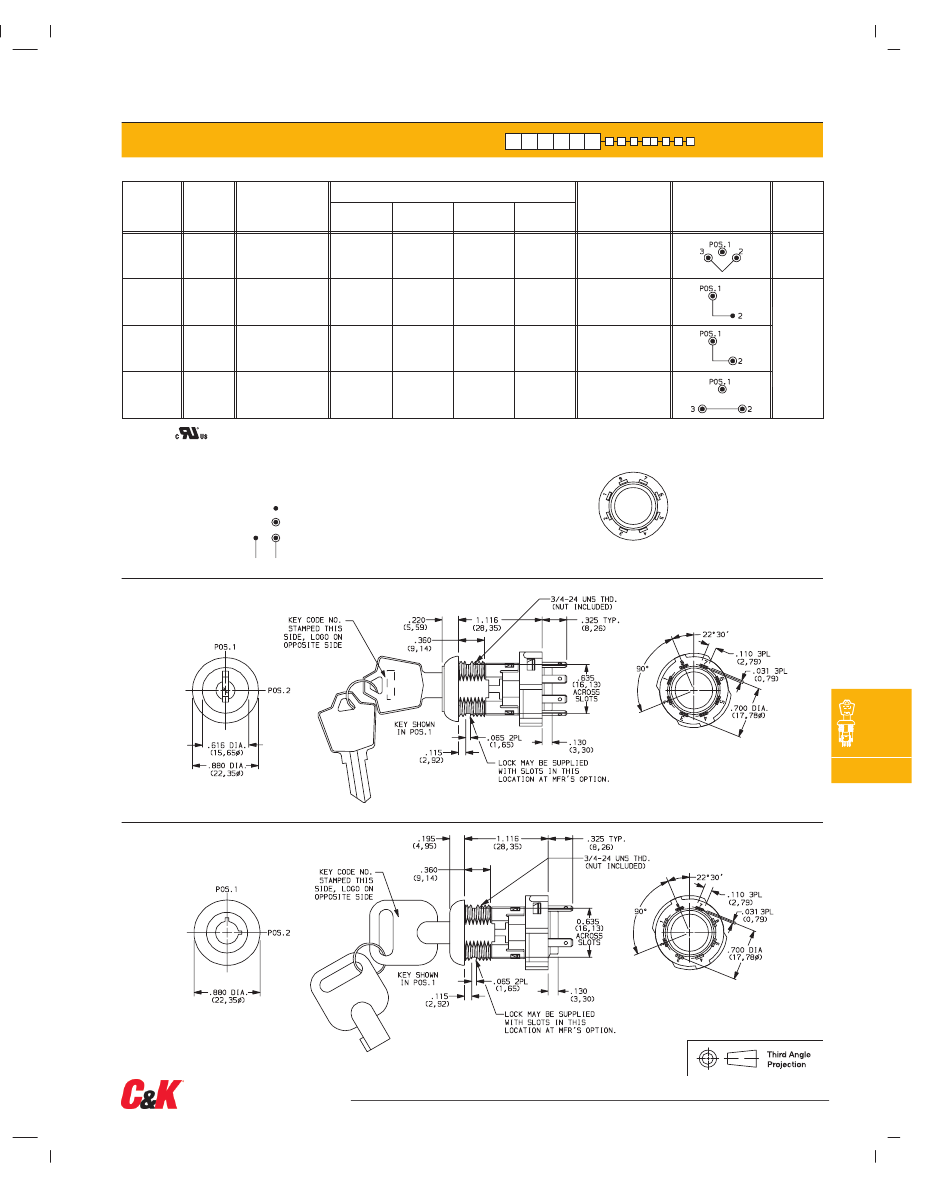

SWITCH AND LOCK FUNCTION
CONNECTED TERMINALS
NO.
TUMBLERS
NO.
POLES
SP
DP
MODEL
NO.
POS. 1
POS. 2
POS. 3
POS. 4
KEY PULL
POSITIONS
LOCK
CONFIGURATION
INDEXING
4
H100AA
H200AA
H10113
H20113
H1011U
H2011U
7-8
7-8, 3-4
8-1
8-1, 4-5
6-7
6-7, 2-3
Positions 1, 2 & 3
45º
4&6
SP
DP
7-8
7-8, 3-4
8-2
8-2, 4-6
Position 1
4&6
SP
DP
7-8
7-8, 3-4
8-2
8-2, 4-6
Positions 1 & 2
90º
4
SP
H1417U
6-8
8-2
5-6
Positions 1, 2 & 3
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
TERMINAL NUMBERS
LEGEND
= Detent Positions (45º or 90º )
= Key pull possible in these positions.
= Stop Positions
Terminal numbers molded on housing.
4 Tumbler
*
*
*
L
Switchlock
Part number shown: H101132F205NQ
6 Tumbler
Part number shown: H1011U2V205NQ
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–35
www.ck-components.com
H Series
4 & 6 Tumbler Power Switchlocks

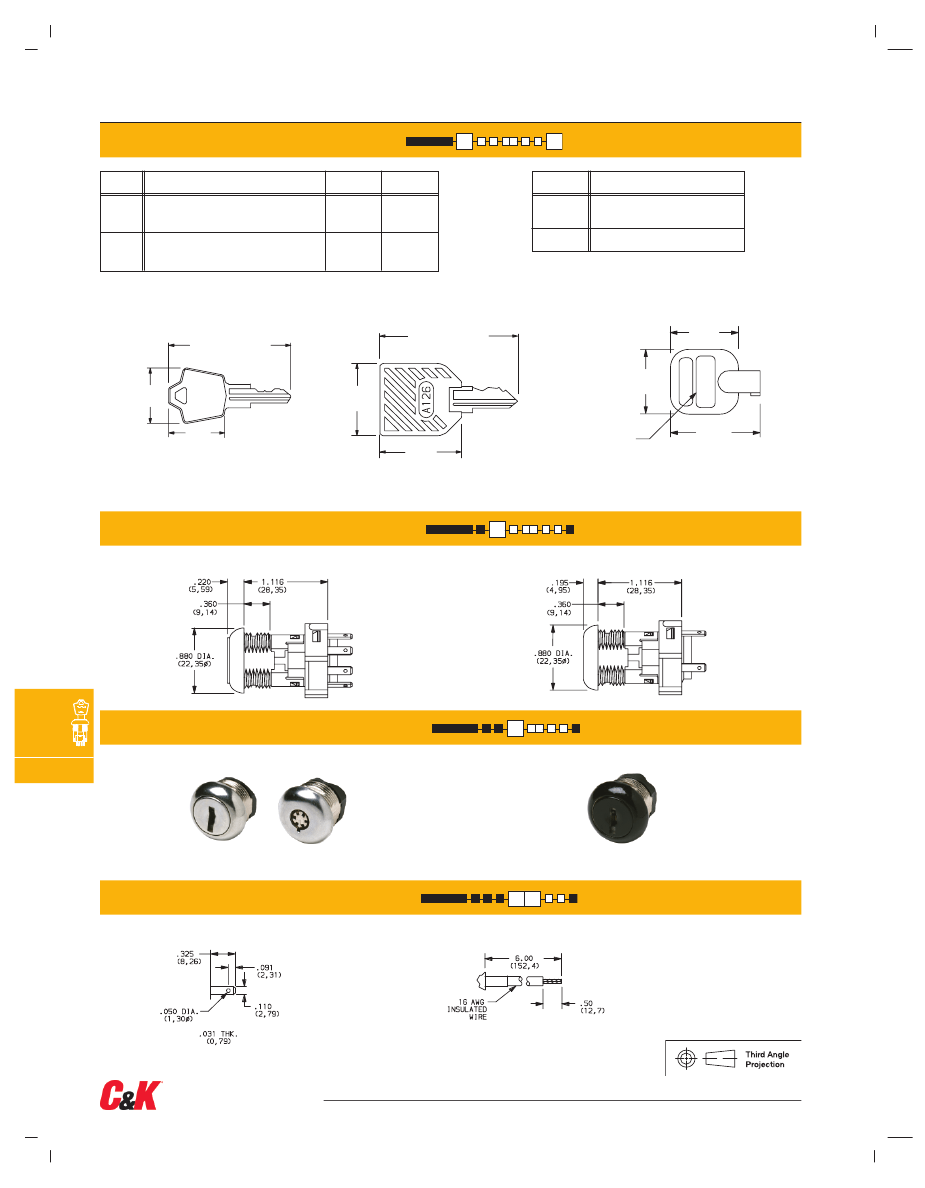

KEYING
OPTION
CODE
KEY OPTIONS
2 NICKEL PLATED BRASS KEYS
(4 TUMBLER) OR 2 CHROME PLATED
ZINC ALLOY KEYS (6 TUMBLER)
1 NICKEL PLATED BRASS KEY WITH
PLASTIC INSERT MOLDED SQUARE
HEAD & 1 NICKEL PLATED BRASS KEY
CODE NO.
ON KEY
YES
CODE NO.
ON LOCK
NO
OPTION
CODE
KEY COLOR
NICKEL PLATED BRASS
(4 TUMBLER) OR CHROME PLATED
ZINC ALLOY (6 TUMBLER)
BLACK
2
NONE
2
T
YES
NO
NOTE:
All orders keyed alike, standard. For more than one key code, replacement keys,
or other special features, consult Customer Service Center.
NICKEL PLATED BRASS KEY
1.635 (4 TUMBLER)
(41, 52)
NICKEL PLATED BRASS KEY WITH
PLASTIC INSERT MOLDED SQUARE HEAD
CHROME PLATED ZINC ALLOY KEY
.902
(22,91)
1.766 (4 TUMBLER)
(44, 85)
.798
(20, 26)
A126
.871
(22,12)
.948
(24, 07)
Code number
on opposite
side of key.
1.289
(32,74)
.775
(19, 68)
.775
(19, 68)
Key part number: 115140126
Key part number: 11599112602
Key part number: 363C1AAAA
NOTE:
Key head shape subject to change without notice.
LOCK TYPE
F
4 TUMBLER LOCK WITH ADDED DETENT
V
6 TUMBLER TUBULAR LOCK
LOCK FINISH
L
Switchlock
2
STAINLESS STEEL FACING
8
GLOSS BLACK FACING
Available with
V lock type only.
TERMINATIONS
05
.110"
QUICK CONNECT
WC
WIRE LEAD
Black wire standard, other colors, gages and
lengths available, consult Customer Service
Center. UL style 1015.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–36
www.ck-components.com
H Series
4 & 6 Tumbler Power Switchlocks

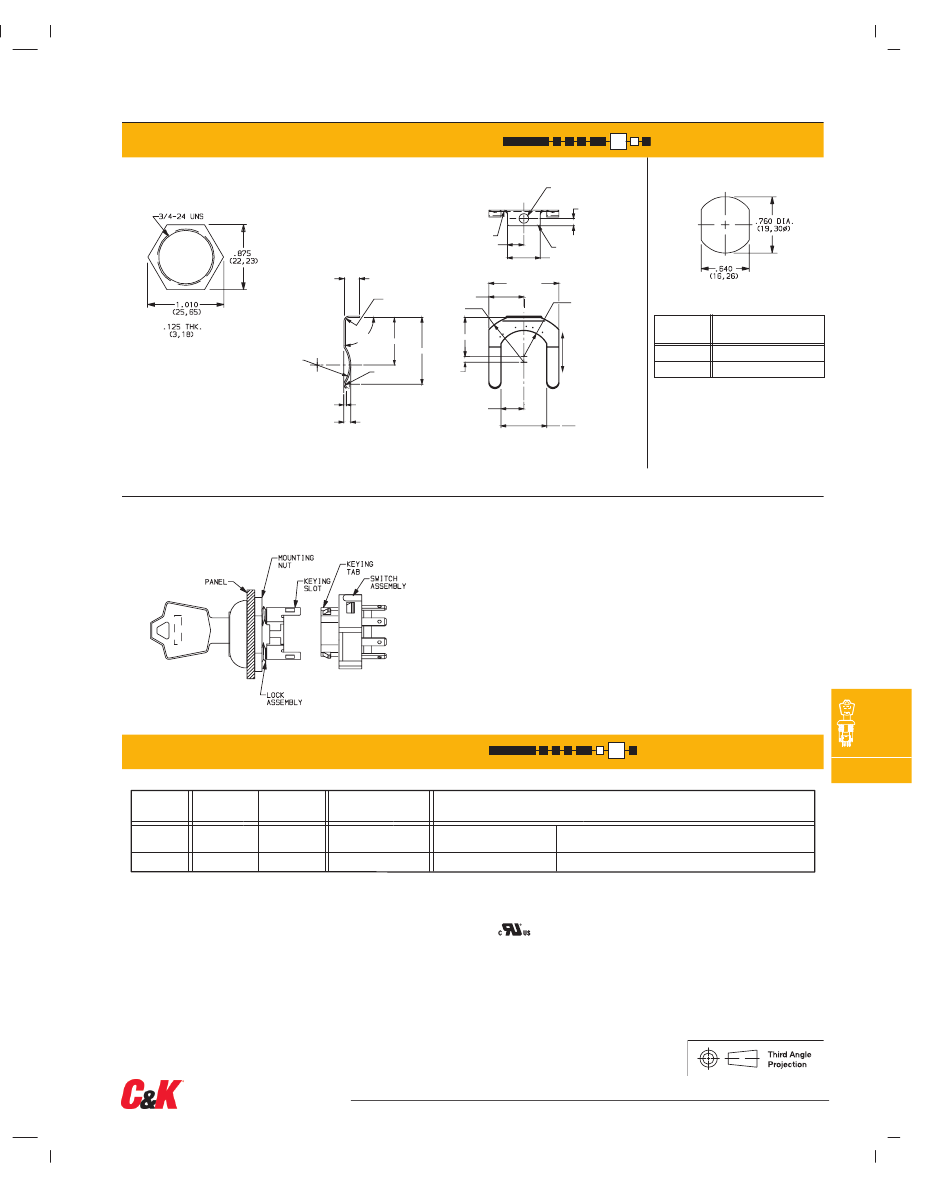

MOUNTING/LOCK STYLE
N
WITH NUT
D
WITH CLIP
Ø 0.136
PANEL MOUNTING
0.105 ± .010
R 0.048
0.235
R 0.030 ± .010
0.470
0.225 ± 0.010
1.000 ± .010
0.062
R 0.688
0.500
R 0.375
90
0
0.688
0.965 ± 0.010
0.563
U
S
N
o
5
6
3
6
PaT
5
MOUNTING
STYLES
GRAIN
DIRECTION
PANEL THICKNESS
.065-.085 (1,65-2,16)
.195 (4,95) max.
4
0
Nut part number: 937C00000
+.062
0.468 -.000
0.062
0.085
D
N
BURR SIDE UP
0.034
0.100
0.327 ± .003
0.657
0.652
Clip part number: 906B00000
Switch and Lock Assembly Instructions
1. Place lock assembly in mounting hole on panel,
secure with mounting nut.
2. Align keying tab on switch assembly with keying slot
on lock assembly.
3. Snap assemblies together.
4. Switch installation is permanent. Switch cannot be
removed from lock after assembly. Attempting to separate
switch and lock may cause damage to switchlock.
CONTACT MATERIAL
L
Switchlock
OPTION
CODE
RoHS
COMPLIANT *
YES
YES
RoHS
COMPATIBLE *
YES
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
POWER
LOW LEVEL/DRY CIRCUIT
RATING
12 AMPS @ 125 V AC; 6 AMPS @ 250 V AC;
1 AMP @ 125 V DC
(UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
1
2
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated.
* Note: See Technical Data section of this catalog for RoHS compliant and compatible
definition and specifications.
All models
with all options when ordered with ‘Q’ contact material.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–37
www.ck-components.com
H Series
4 & 6 Tumbler Power Switchlocks

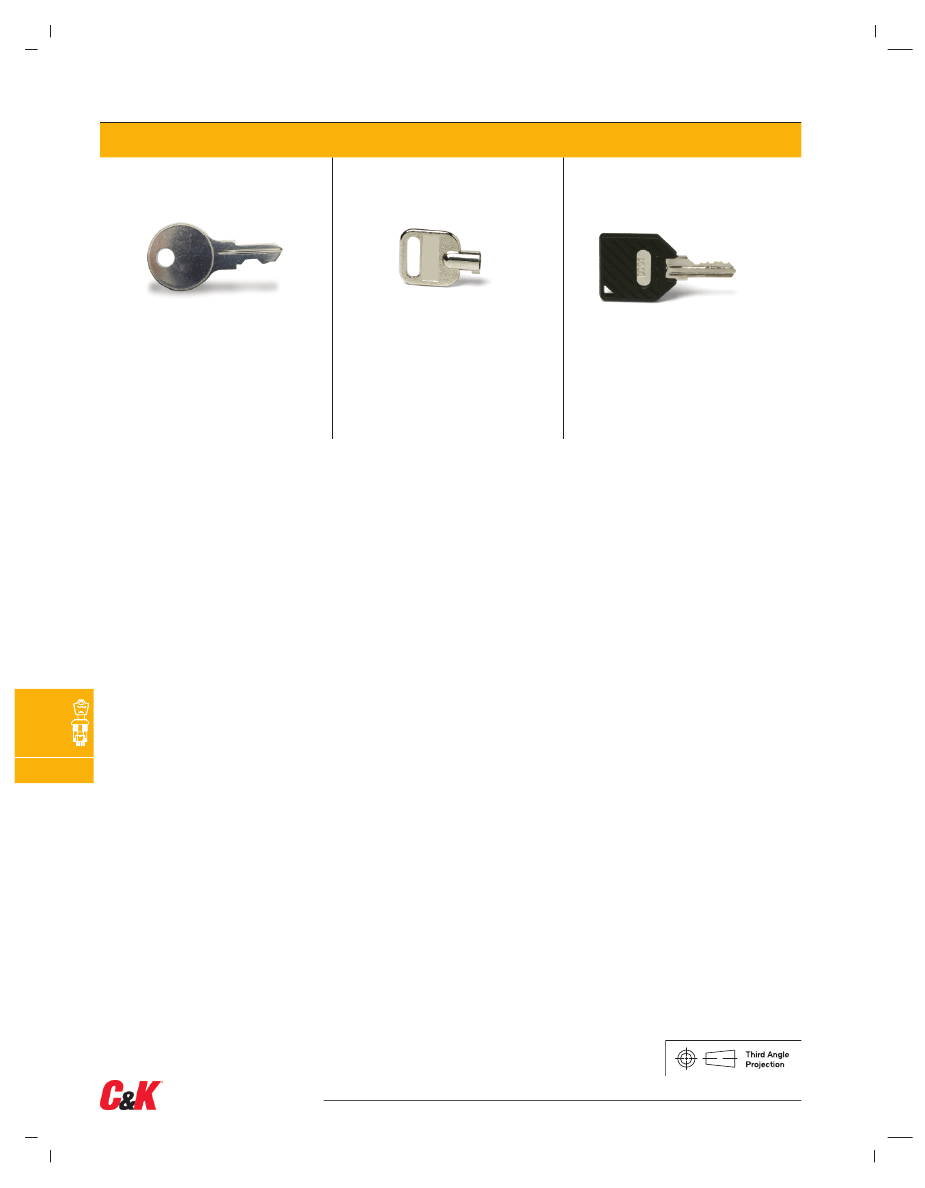

AVAILABLE HARDWARE
Key Code: A126
4 TUMBLER
PART NO.
(ONE KEY)
Key Code: AAAA
PART NO.
(ONE KEY)
Key Code: A126
4 TUMBLER
PART NO.
(ONE KEY)
363C1AAAA
Material:
Zinc Alloy
Finish: Chrome plate
115140126
Material:
Brass
Finish: Nickel plate
1159112602
BLACK
Material:
Brass
Finish: Nickel plate
6/6 Nylon insert molded head
L
Switchlock
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–38
www.ck-components.com
