ILLUMINATED INDICATORS
The LP-Series Illuminated Indicators are the perfect complement to the aesthetics, reliability and
performance of our L-Series rocker switches. As a critical safety feature, the illumination alerts the
operator of essential system functions or malfunctions, such as: Oil Pressure, High Temperature,
Transmission or other fluid levels, Parking Brake or General System confirmations. The L-Series styling
assures seamless integration into most any dashboard panel.
Product Highlights:
Vibration, Shock, and Thermoshock Resistant
12 or 24 Volts
Laser Etched or Lens Illumination
IP67 Sealing
Typical Applications:
On/Off-Highway Equipment
Agricultural Equipment
Construction Equipment
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
LP-Series Illuminated Indicators - General Specifications
Electrical
Terminals
Lighted
Brass or copper/silver plate
3/16” (4.76mm) & 1/4” (6.3mm)
Quick Connect terminations
standard.
Incandescent - rated 10,000 hours
LED - rated 100,000 hours 1/2 life
(LED is internally ballasted for
voltages to 24VDC)
Environmental
Environmental
Physical
Seals
Base
Insert
Connector
Markings
Bracket
Insert, base & bracket are sealed.
Nylon 66 GF rated to 85°C with a
flammability rating of 94VO.
Polycarbonate rated at 100°C.
Nylon 66 rated at 85°C. Polarized
Over 1000 pad printed or laser
etched legends available
Nylon 66 GF rated to 85°C
Mounting Specifications
.867 [22.02]
1.734 [44.04]
1.020 [25.91]
TEST CUT
HOLE IN
ACTUAL
MATERIAL
3.055 [77.60]
Panel Thickness Range
Acceptable Panel Thickness
.030 to .156 (.76mm to 3.96mm)
Recommended:
.030, .062, .093, .125 and .156
MOUNTING HOLE
PADDLE STYLE ACTUATOR
Q.C. SELECTION GUIDE
COMPANY
SERIES
PACKARD
METRI-PACK
630 SERIES
TIN PLATED
BRASS
PACKARD
PART NO.
12084590
12052224
12015870
12015869
12020035
12052222
AWG
WIRE GAGE
MM
2
IP67, representing an index of
protection as applied to electrical
equipment in accordance with IEC
529, BS 5490, DIN 400 50 &
NFC 20 010.
Corrosion Resistance
Mixed Flowing Gas MFG Class III
per ASTM B-827 & B-845, Method
H, with 3 years exposure.
Operating Temperature -40°C to +85°C
Vibration 1
Per Mil-Std 202F, Method 204D Test
Condition A 0.06 DA or 10G’s 10-
500 Hz. Tested with VCH connector.
Test criteria - No loss of circuit
during test and pre and post test
contact resistance.
Vibration 2
Resonance search
24-50 Hz 0.40 DA
50-2000 ±10 G’s peak
Results Horizontal Axis 3-5 G’s max.
Random
24 Hz
0.06 PSD-Gsq/Hz
60 Hz
0.50
100 Hz 0.50
200 Hz 0.025
2000 Hz 0.025
No loss of circuit during test; <10µ
chatter.
Shock
Per Mil-Std 202F, Method 213B, Test
Condition K @ 30G’s. Tested with
VCH connector. Test criteria -
No loss of circuit during test, pre,
and post test contact resistance.
Salt Spray
Per Mil-Std 202F, Method 101D, Test
Condition A, 48 Hrs.
Thermal Shock
Per Mil-Std 202F, Method 107F, Test
Condition A, -55°C to 85°C. Test
criteria - pre and post test contact
resistance.
Moisture Resistance
Per Mil-Std 202F, Method 106F, Test
Criteria - pre and post test contact
resistance.
3.0
12
12
3.0
2.0-1.0
16-14
1.0-.80
20-18
22-18
(2 REQ'D)
.80.-.50
(2 REQ'D)
.50-.35
20-22
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com

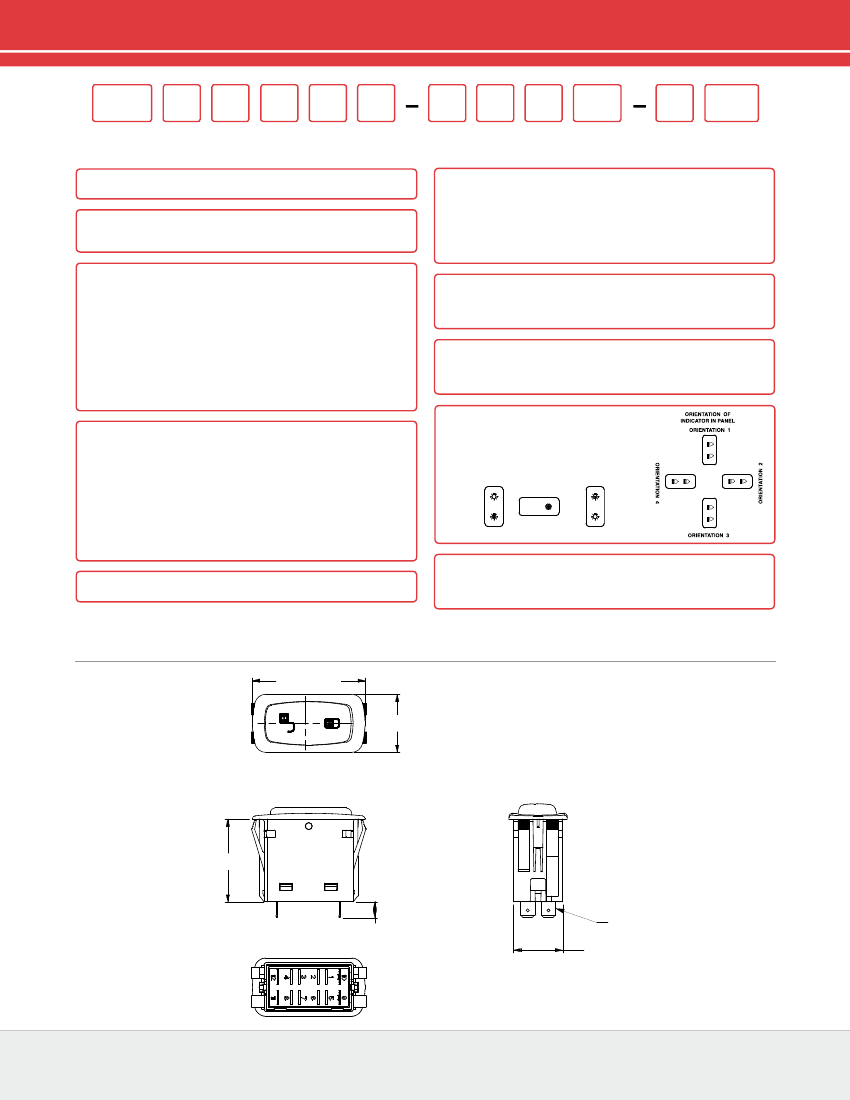

LP-Series Illuminated Indicators - Ordering Scheme, Dimensional Specifications
| 3
1
Series
LP 1 H R R 5
2
3
Termination Illumination
4
Lamp
5
Lamp
6
Bracket
Color
7
Insert
Color
9 A A Y2
8
Style
9
Style
10
Legend 1
11
Legend
Orientation
1 DU
12
Legend 2
1 SERIES
LP
L-Series Illumination Plug
2 TERMINATION
3
1
.250 (8.35) x .032 (0.51) Quick Connect
3
.187 (4.75) x .032 (0.51) Quick Connect
3 ILLUMINATION
LAMPS
ILLUMINATION
A
1
–
B
1
–
2
–
C
1
–
2
–
E
1&2
Parallel
H
1&2
Series
7 INSERT COLOR
1, 2
9
Painted Black - Laser Etch
A
Clear (Transparent)
B
White (Translucent)
C
Red (Translucent)
D
Amber (Translucent)
E
Green (Translucent)
F
Blue (Translucent)
8, 9 STYLE (same coding for both selections)
Z
Not Painted (used with Insert Colors A-F)
5
Clear Laser Etch Background Color (used with Insert Color 9)
A
White Laser Etch Background Color (used with Insert Color 9)
10 LEGEND OVER LAMP
1
00
No legend
__
Laser Etched or Body Legends
For legend options, visit us at carlingtech.com
11 LEGEND ORIENTATION
0
No legend
1
Orientation 1
2
Orientation 2
3
Orientation 3
4
Orientation 4
MC
MA
MA3MC
4F
MA
MC
MA1MC
LAMP WIRED TO TERMINALS
10 (+) 9 (–)
10 (+) 9 (–)
12 (+) 11 (–)
10 (+) 9 (–)
12 (+) 9 (–)
10 (+) 9 (–)
10 (+) 9 (–)
LAMP 1 LOCATED ABOVE TERMINALS 9 & 10 END OF BRACKET.
LAMP 2 LOCATED ABOVE TERMINALS 11 & 12 END OF BRACKET.
POSITIVE (+) AND NEGATIVE (–) SYMBOLS APPLY TO LED LAMPS ONLY.
4,5 LAMP (same coding for both selections)
2
Selection 4: specifies lamp 1 located above terminals 10 (+) & 9 (-).
Selection 5: specifies lamp 2 located above terminals 12 (+) & 11 (-).
No lamp
Incandescent
LED
2VDC
6VDC
12VDC
24VDC
0
(position 5 only)
4
3V
5
6V
Amber
Green
L
F
M
G
N
H
P
J
6
12V
Red
R
S
T
V
7
18V
8
24V
4F100
6 BRACKET COLOR
5
Black
12 LEGEND OVER LAMP
2
00
No legend
__
Laser Etched or Body Legends
For legend options, visit us at carlingtech.com
Notes:
1
To order separately, specify LPC and selection 7 code. Ex LPC-9
2
For LEDs, insert color must be clear, white or match color of LED.
3
For connector, specify part number LC2-01 (.187 tabs), LC3-01 (.250 tabs).
1.970 [50.04]
1.020 [25.91]
POS 3
POS 2
POS 1
1.450 [36.83]
.280 [7.11]
.250 x .032
[6.35] [.81]
.855 [21.72]
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
4 | Notes
