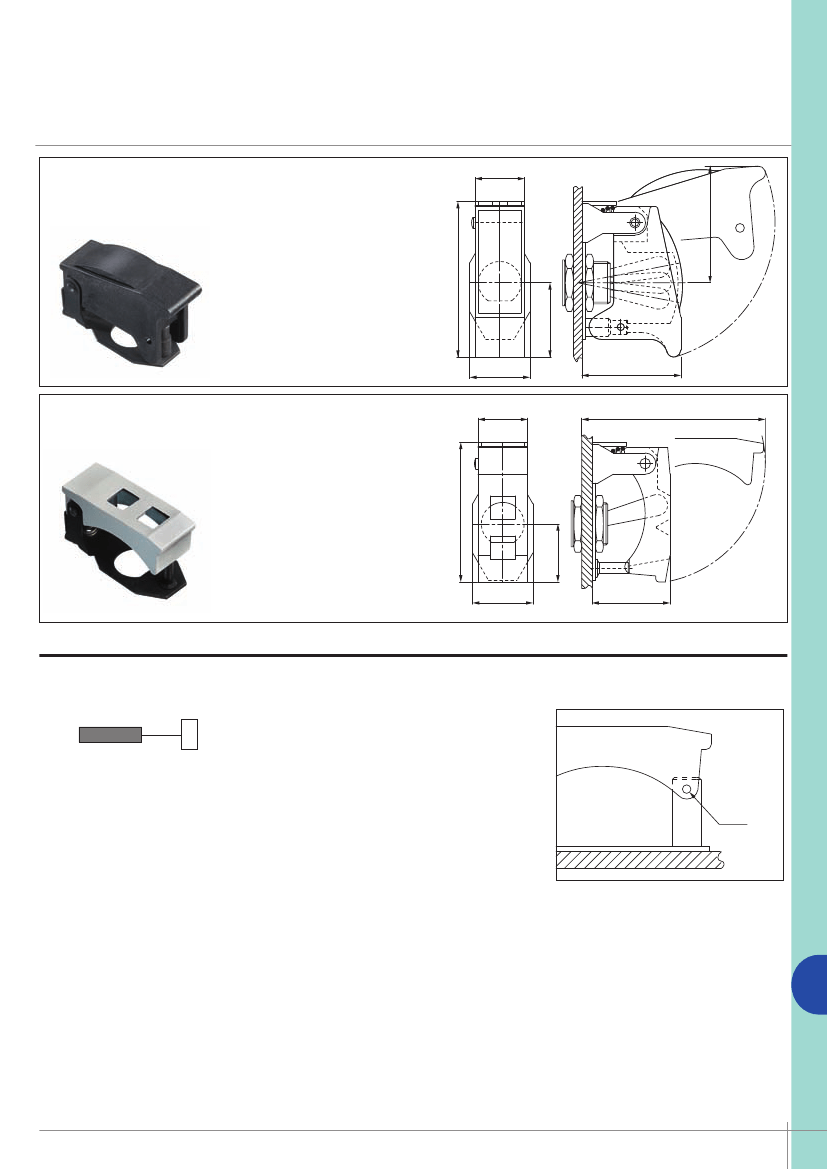

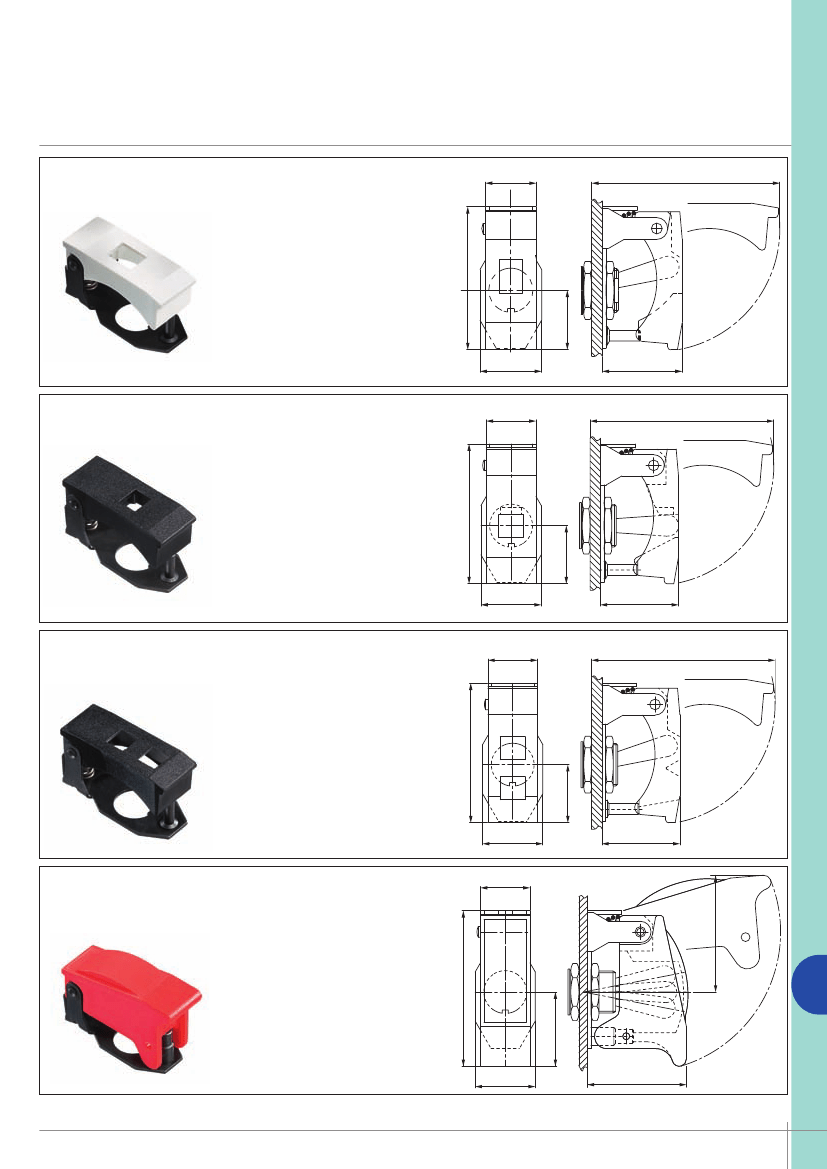

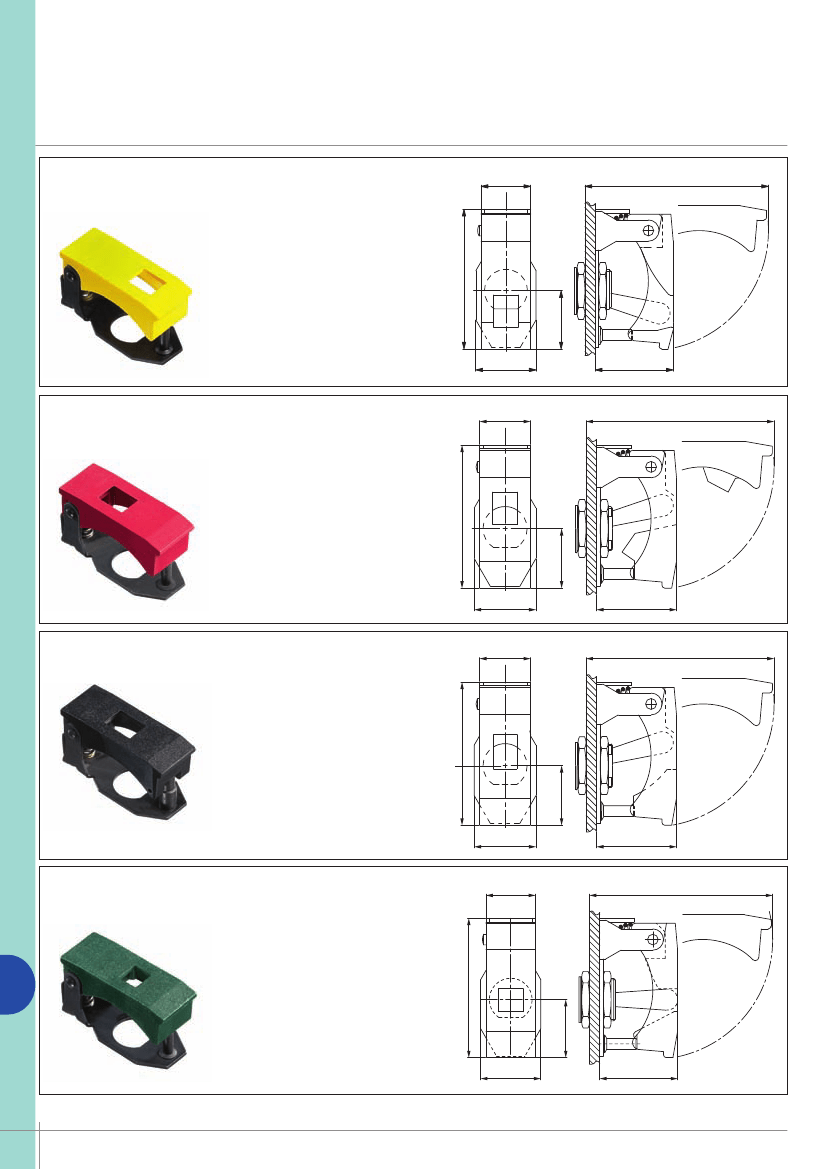

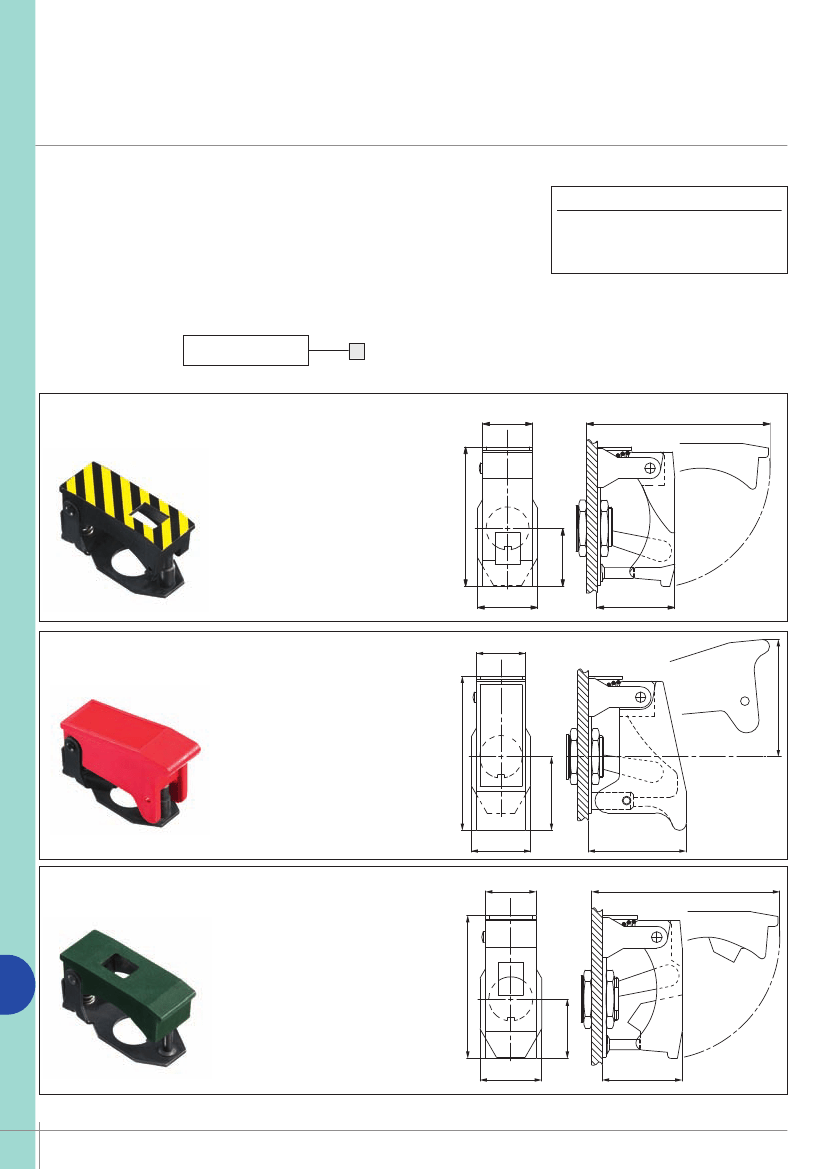

Security caps
For switch series 12000 - 3500 - 600H - 6000
With standard bushing
Security caps prevent any inadvertent lever operation.
When the cap is raised, the lever can be operated freely.
When the cap is fully depressed, the lever is reset/locked in a stable position.
They are designed for use on switches with Ø 11,9 (.468) or Ø 12 (.472) threaded
bushing and lever length 17,5 (.688) outside bushing.
Note : For correct switch operation, the security cap should be adjusted properly by
means of 2 nuts.
MATERIALS
• Support plate : matt black steel
• Cap : thermoset or thermoplastic
(20PN, 200PN, 300PN)
MODEL
STRUCTURE
Series 20 - for 2-position switches
• Lever returned then locked in down position (OFF)
Model No
22
23
24
25
26
27
28
29
25/28
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 20PN - for 2-position switches
• Lever returned then locked in down position (OFF)
Model No
22PN
23PN
24PN
25PN
26PN
27PN
28PN
29PN
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
44.00
(1.732)
21.00
(.826)
On this model, holes for wiring a seal are standard.
17.00
(.669)
28.00
(1.102)
Series 30 - for 3-position switches
• Lever returned then locked in upper position
Model No
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
39.40
(1.551)
14.00
(.551)
49.00
(1.929)
I
32
33
34
35
36
37
38
39
35/38
17.00
(.669)
16.40
(.645)
22.00
(.866)
I-4
www.apem.com
APEM
33.50
(1.318)
Security caps
For switch series 12000 - 3500 - 600H - 6000
With standard bushing
Series 40 - for 2-position switches
• Lever returned then locked in upper position
Model No
42
43
44
45
46
47
48
49
45/48
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
Model
140
(with smaller aperture) recommended for the 12000 series.
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 80 - for 3-position switches
• Lever returned then locked in center position
Model No
82
83
84
85
86
87
88
89
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 200 - for 2-position switches
• Lever returned then locked either in lower or in upper position
Model No
202
203
204
205
206
207
208
209
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 200PN - for 2 or 3-position switches - action preventer
• Lever not locked, but protected in the position where left
by the user
Model No
202PN
203PN
204PN
205PN
206PN
207PN
208PN
209PN
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
33.50
(1.318)
44.00
(1.732)
I
21.00
(.826)
17.00
(.669)
28.00
(1.102)
APEM
www.apem.com
I-5
Security caps
For switch series 12000 - 3500 - 600H - 6000
With flatted bushing
Series 50 - for 2-position switches
• Lever returned then locked in down position (OFF)
Model No
52
53
54
55
56
57
58
59
55/58
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 60 - for 3-position switches
• Lever returned then locked in upper position
Model No
62
63
64
65
66
67
68
69
65/68
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 70 - for 2-position switches
• Lever returned then locked in upper position
Model No
72
73
74
75
76
77
78
79
75/78
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
Black/yellow striped
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
Model
170
(with smaller aperture) recommended for the 12000 series.
17.00
(.669)
16.40
(.645)
22.00
(.866)
Series 100 - for 3-position switches
• Lever returned then locked in center position
Model No
102
103
104
105
106
107
108
109
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
I
17.00
(.669)
16.40
(.645)
22.00
(.866)
I-6
www.apem.com
APEM
Security caps
For switch series 12000 - 3500 - 600H - 6000
With flatted bushing
Series 300PN - for 2 or 3-position switches
• Lever not locked, but protected in the position where left
by the user.
Model No
302PN
303PN
304PN
305PN
306PN
307PN
308PN
309PN
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
33.50
(1.318)
44.00
(1.732)
21.00
(.826)
17.00
(.669)
28.00
(1.102)
Series 500 - for 2-position switches
• Lever returned then locked either in lower or in upper position
Model No
502
503
504
505
506
507
508
509
Colour
Grey
White
Orange
Black
Red
Green
Yellow
Blue
14.00
(.551)
49.00
(1.929)
39.40
(1.551)
17.00
(.669)
16.40
(.645)
22.00
(.866)
OPTIONS
P
Holes for wiring a seal
Ø1.50
(.059DIA)
Cap engraving available : consult factory.
I
APEM
www.apem.com
I-7

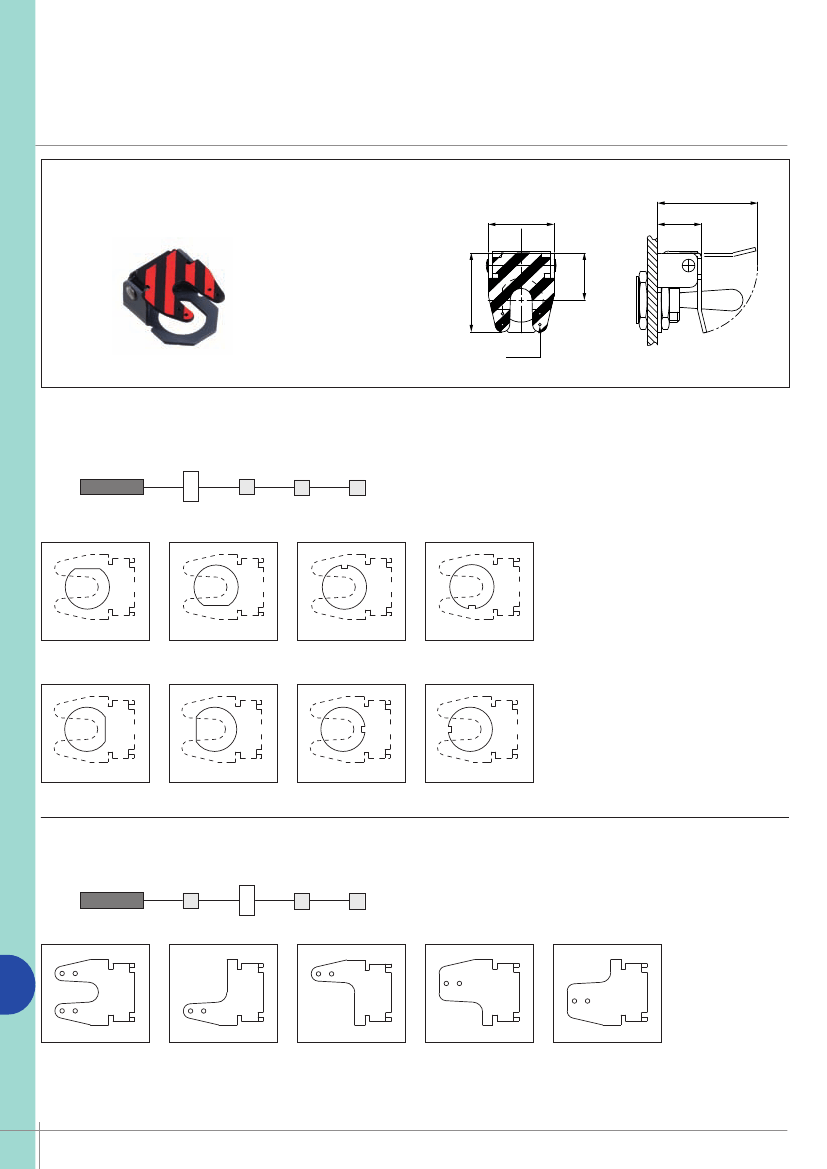

Security caps
For switch series 3500 - 600H - 6000
With standard or flatted bushing
Series 90
• Lever locked in center position
18.00
(.708)
12.00
(.472)
27.00
(1.062)
22.00
(.866)
Ø0.80
(.031DIA)
Plate features holes for wiring a seal.
To build a part number, select desired option from each category here below.
BUSHING SHAPES
90
For standard products
A
For other products
B
C
D
E
F
G
H
SECURITY CAP SHAPE
90
I
1
Locks in center
position
2
Prevents down
position
3
Prevents up
position
4
Locks in down
position
5
Locks in up
position
I-8
www.apem.com
13.00
(.512)
APEM
