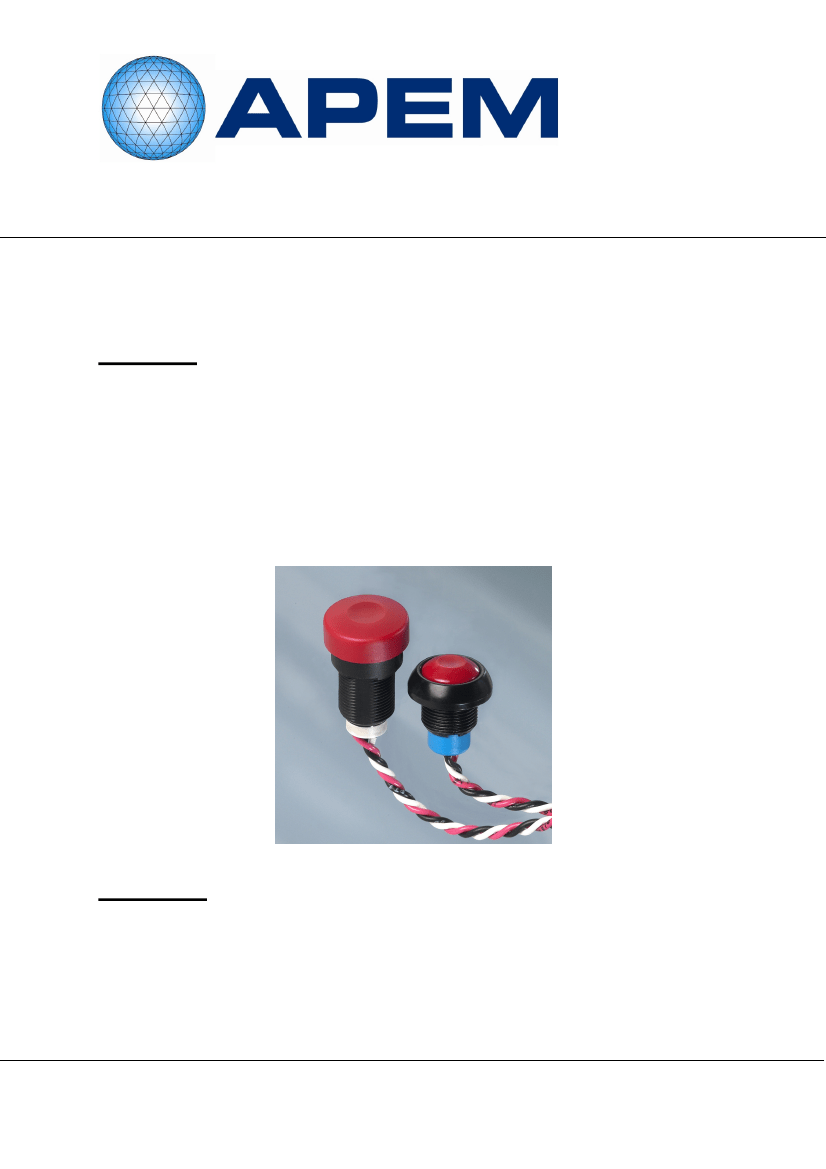

IH Series
HALL EFFECT SWITCHES

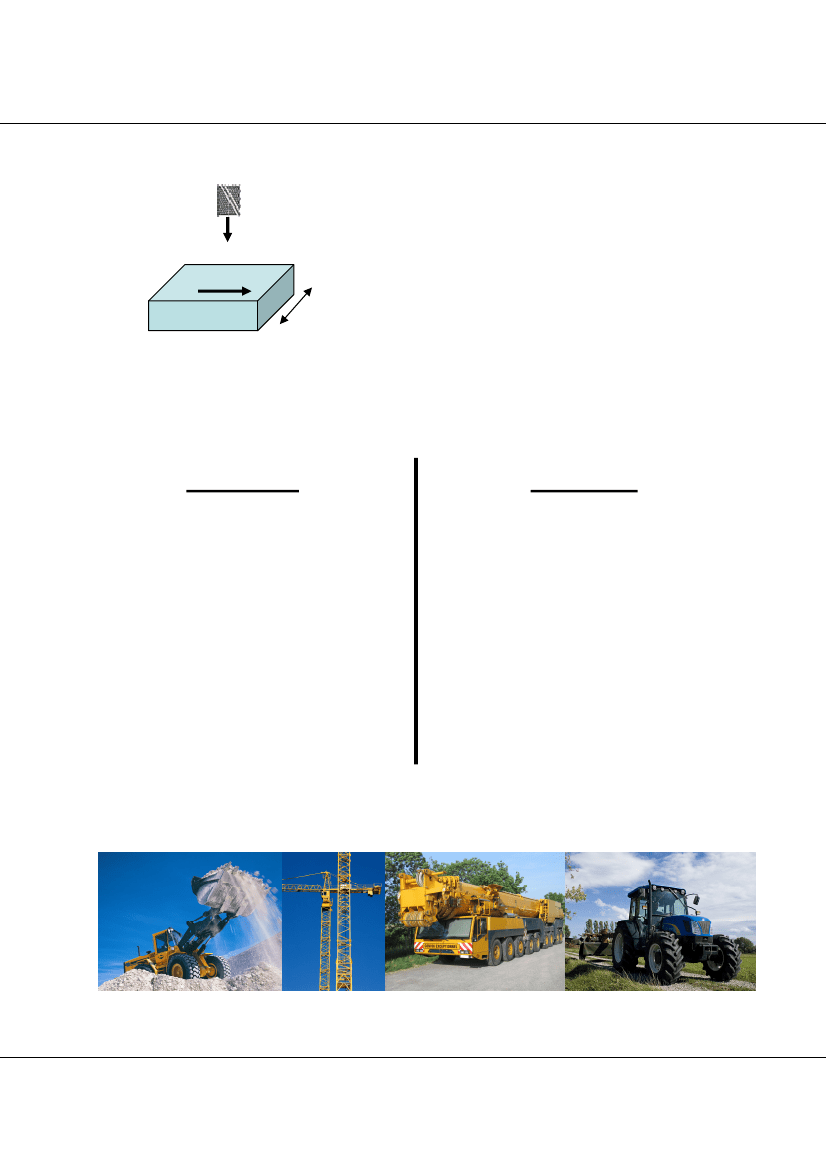

HALL EFFECT
i : current in conductor
needs supply
B : field generated by magnet
V : voltage « result »
V
Hall effect = contactless => long life
B
i
APPLICATIONS
IH Switch
This rugged switch is designed to
be subjected to a repetitive jogging
in harsh environments. The IHS is
recommended for applications
where the switch is often activated.
For example, in applications where
positioning the load is critical:
material handling, loaders, lifts
trucks, buckets and shovels …
IH Linear
This rugged switch is intended for
applications where a simple On /Off
control is not sufficient and where a
linear output is preferable. Typical
use of IHL: applications where
operators need to control motion
and speed. This switch is ideal for
control valves or variable speed
drives and can be used in various
applications including industrial
controls, heavy duty equipment and
handling.
A few applications
www.apem.com
2
IH1010-A - December 2010
IH Series
Product description

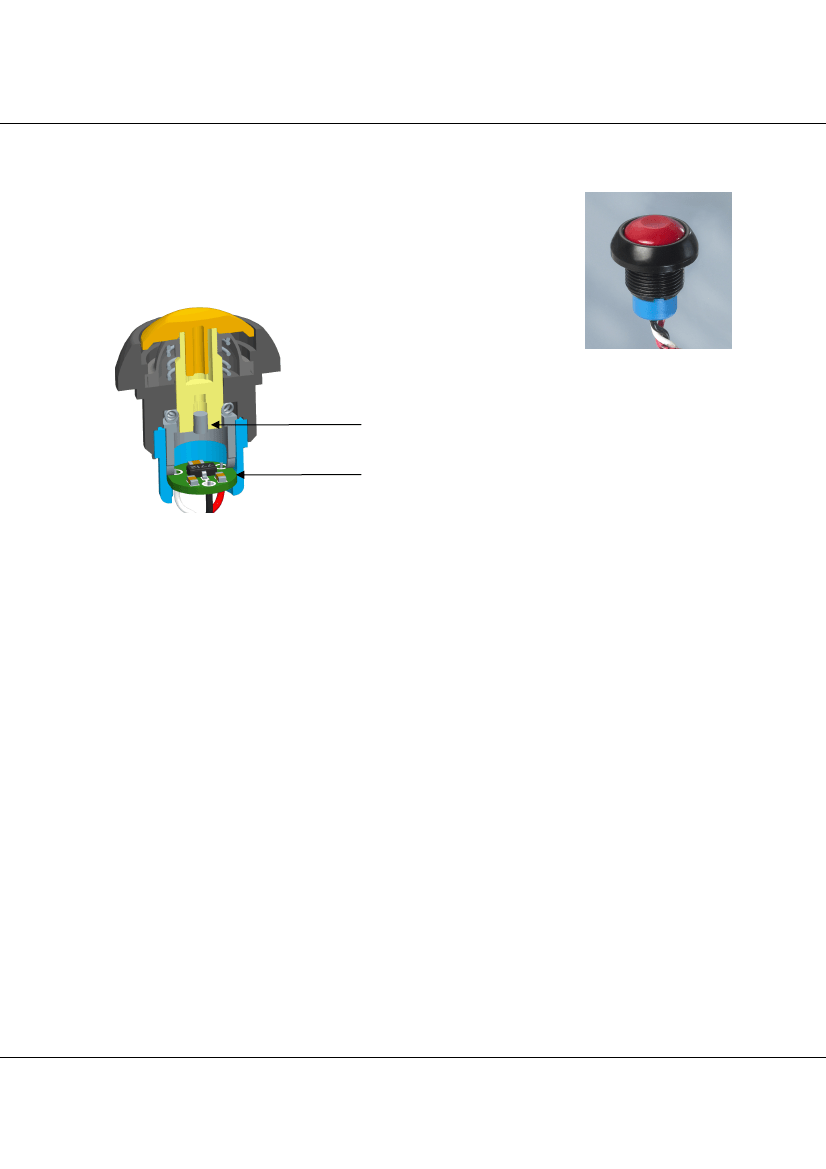

Apem has created a momentary switch, the IHS, using the hall
effect to have a long life contactless switching of 5 million
operations. This switch is sealed to IP67. The dome shaped
actuator is available in eight colours.
IH SWITCH
Magnet
Electronic circuit
Features
• 5 million cycles
• Hall Effect sensor technology for long life
• Eight actuator colors
• IP67 sealing
• Operating force: 6 N ± 2N
• Low behind-panel depth
• Compact: Ø12mm (.472) case
www.apem.com
3
IH1010-A - December 2010
IH Series

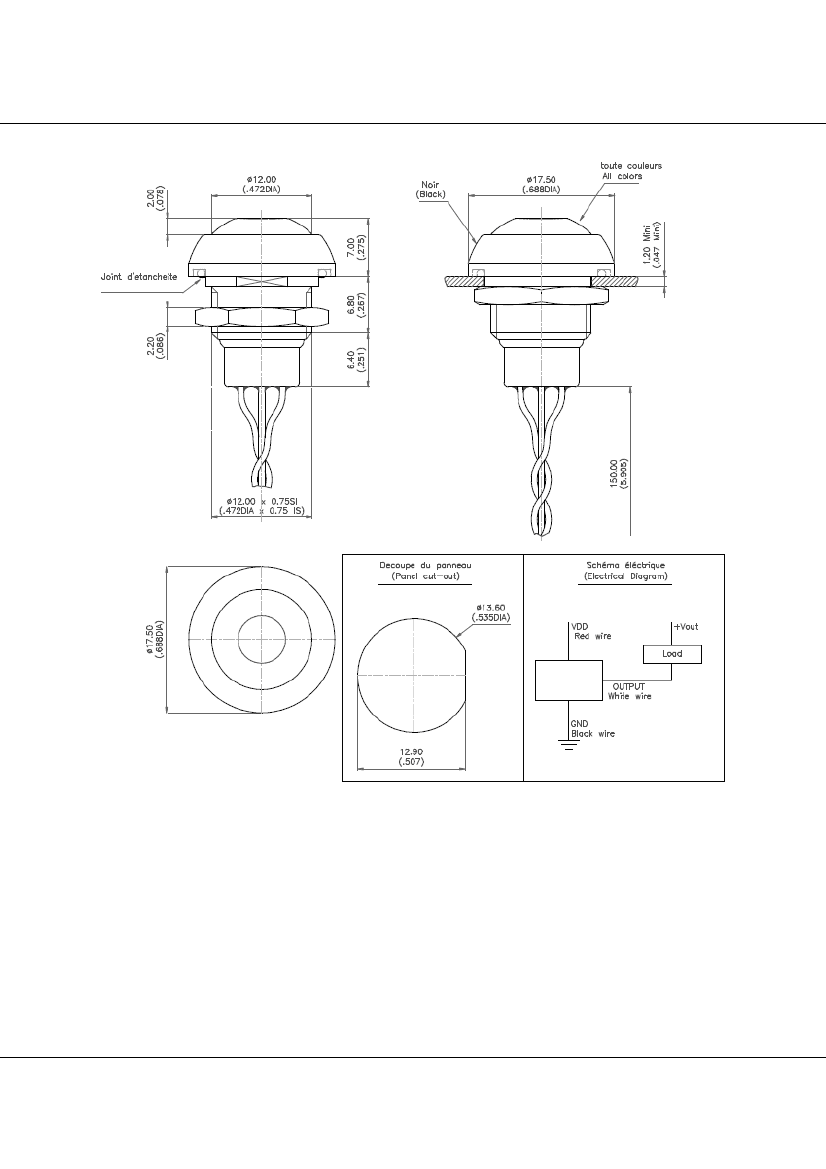

Order guide
IH SWITCH
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
• Sealing : IP67 according to IEC 529
• Temperature range: -40° to +85°
C
C
• Total travel: 1,80mm ( .070 )
ELECTRICAL AND GENERAL SPECIFICATIONS
• Electrical function: Normally open ( NO ) momentary
• Supply voltage: 3.5Vcc to 14.5Vcc
• Supply current: Vcc=12V: 2.5mA Typ. to 5mA max (current consumption in off position)
• Max.output current: 50mA
• Max.output voltage: 14.5Vcc
• Mechanical life: 5.000.000 cycles
MATERIALS
• Case: PBT, UL94-V0
• Plunger: polyamide 6/6
• Bushing: black painted Zamac
• Multi-wire lead: AWG26 (150mm)
www.apem.com
4
IH1010-A - December 2010
