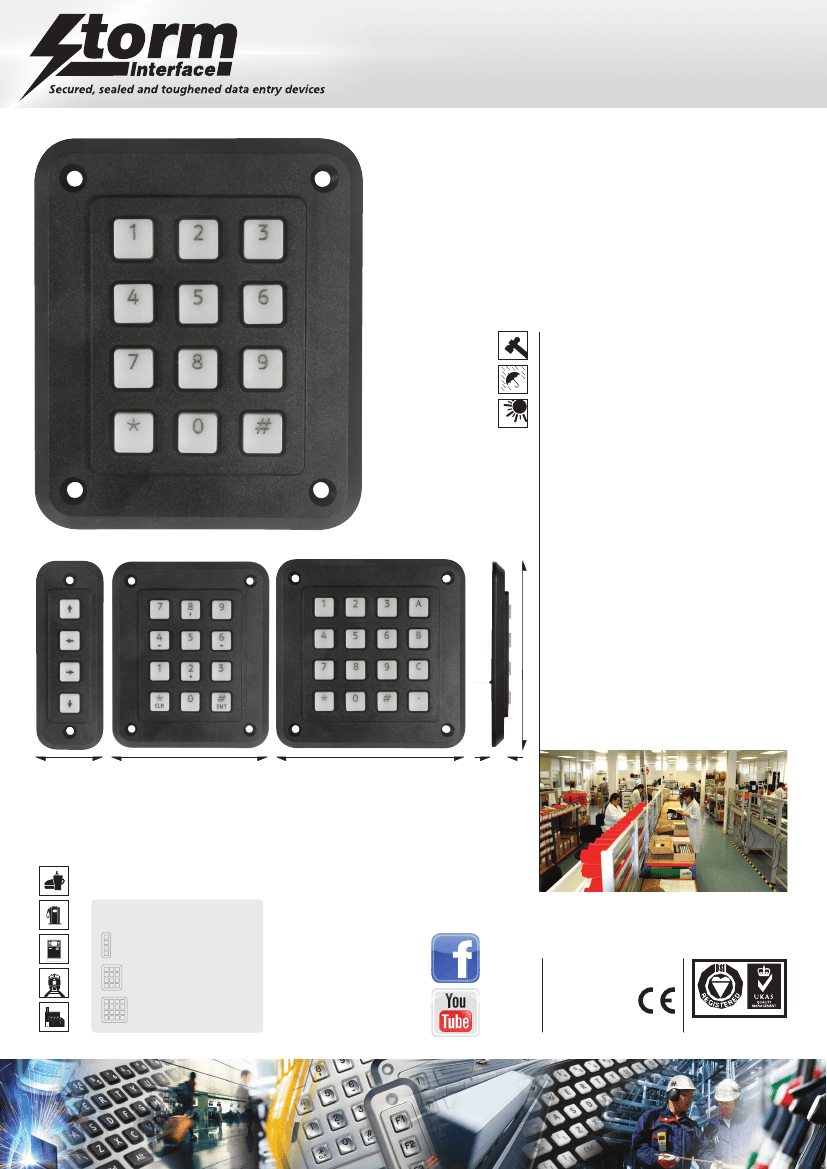

3000
SERIES
Robust, polymer
cased keypads
These responsive keypads
are robust, reliable and
splash resistant.
They are suitable for most
industrial and semi-sheltered
outdoor applications
Electrical
Contact Bounce
Contact Resistance
Insulation Resistance
Breakdown Voltage
Operating Voltage
Operating Current
UV
5ms (max)
100 ohms (max)
50 Mohms (min)
500V AC (max 60 secs.)
24V DC (max)
50mA (max)
Mechanical
Operational Life
Keytop Travel
Actuation Force
Connector
2 million cycles (min) per key
1.4mm nominal
180gms nominal
0.1" pitch, gold plated
square pin, male connector
Environmental
Water / Dust Sealed
Operational Temperature
IP54 (when fixed to a
suitable enclosure)
-10
o
C to +85
o
C (Dry)
Material
Casing
General Service Polymer (black)
Keytops
General Service Polymer (translucent)
Contact Circuit
Gold on Nickel Plated FR4
75mm
42.50mm
99.50mm
118.50mm
11.10mm
Suitable for use with Storm USB Keypad Encoder (4500-00)
3000 Series Part Numbers
F key format
3K04210
Arrow key format
3K04110
Telephone format
3K12T10
Calculator format
3K12010
Telephone format
3K16T10
Calculator format
3K16010
For more information & to order:
www.storm-interface.com
Whilst every effort
is made to ensure
details are correct
at time of print,
specifications are
subject to change
without notice.
Storm Interface products include technology
protected by international patents and
design registration. All rights reserved.
Storm is a trademark
of Keymat Technology Ltd
Storm Interface is a trading name
of Keymat Technology Ltd
003
Designed & produced
by
NIK Design
nik@nikdesign.co.uk
3K August 2013
