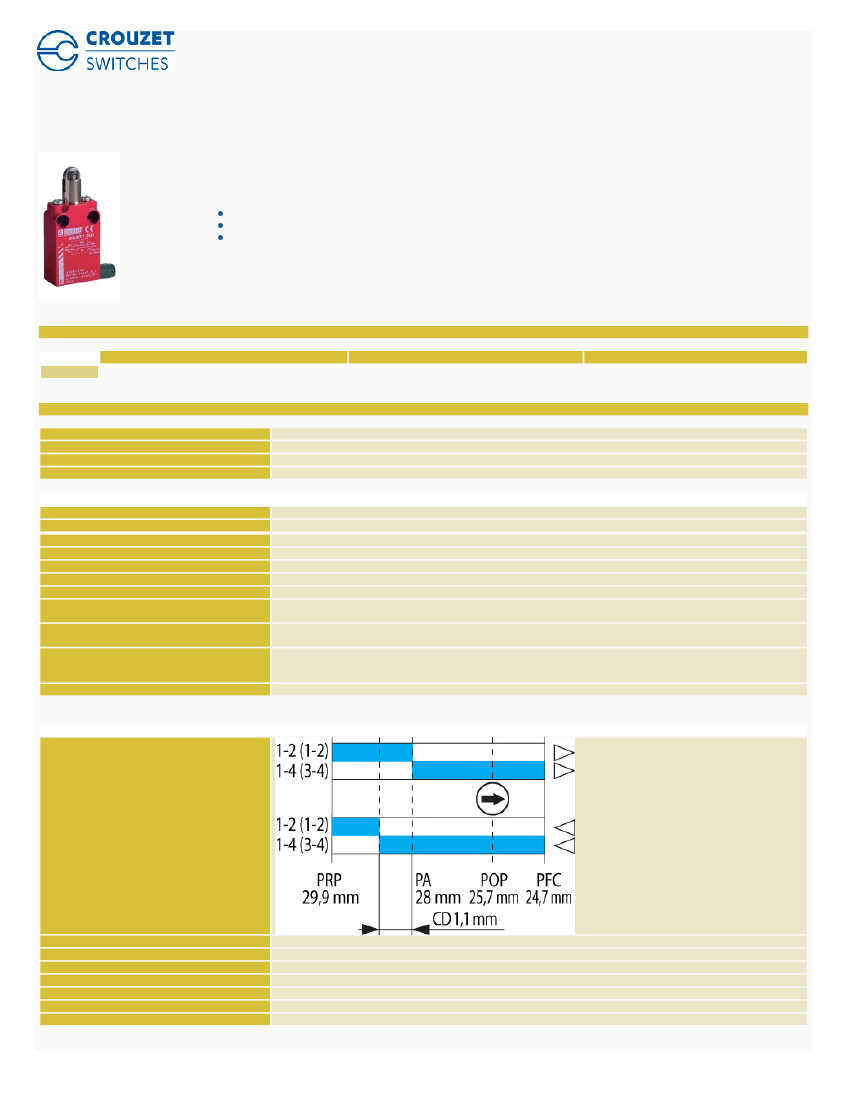

83870 with connector output Metal roller plunger Part number 83871140
IP 66/67
Metal case
cUL approval
Part numbers
Type
83 871 140
Metal roller plunger
Characteristics
4-pin
Type of output
Connector
Specifications
Conformity to standards
Protection against electric shocks
Degree of protection IEC 60529
Degree of protection according to NEMA 250
Electrical characteristics
Connection
Operating temperature (°C)
Assigned impulse voltage (Uimp) - V
Assigned insulation voltage Ui (V)
Thermal current I (A)
Low-load switching - Minimum voltage (V)
Low-load switching - Minimum current (mA)
Assigned working characteristics (EN 60 947.5.1, UL
508)
Electrical life according to IEC 947-5-1 appendix C
Electrical protection
-25 →+70 °C
2500 (5-pin : 1500)
250 (5-pin : 60)
4
10
100
C 300/Ie = 4 A max/Ue = 250 V max (5-pin : Ie = 4 A max - Ue = 48 V max)
Q 150
250 V 2.5 A AC15 500,000 operations
24 V 8 W DC13 500,000 operations
Integral protective earth conductor
Short-circuit protection device : IEC/EN 60947.5.1
Fuse 2 A gC
UL 508 (4 pins C300 - Q 150), (5 pins 48 VAC/DC 4 A)
Approvals
Mechanical characteristics
Sequence
Snap action
Minimum operating force (N)
Minimum total travel force (N)
Min. positive opening travel (N)
Mechanical life (millions of operations)
Vertical approach speed
Horizontal approach speed (30° cam)
Weight (g)
10
30
28
10
1 mm/min →0,5 m/s
1 mm/min →0,3 m/s
100
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Comments
4-pin : 1-2 / 1-4
5-pin : (1-2) / (3-4)
www.crouzet.com
Principles
Function

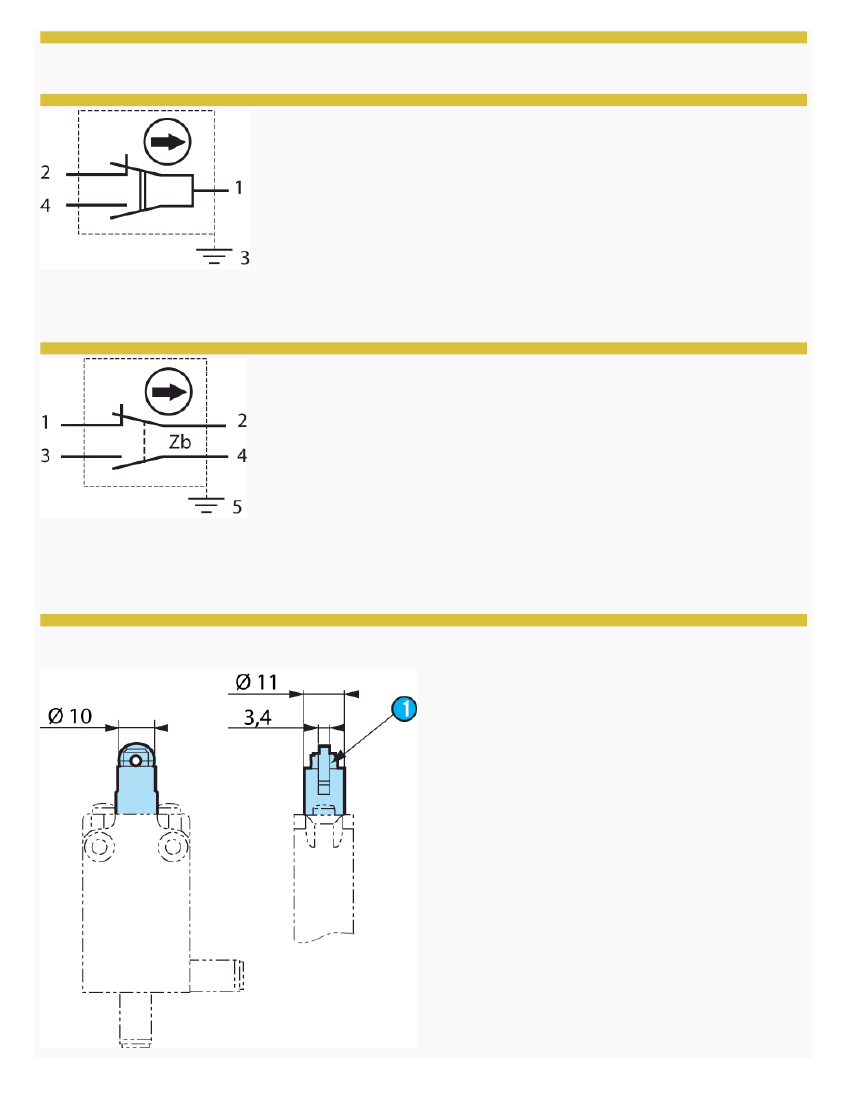

Four-terminal double break two-way contact element (form Zb) with positive opening NC contacts. The 2 moving contacts are electrically isolated from one another (5-pin version).
Principles
Function
Four-terminal double break two-way contact element (form Zb) with positive opening NC contacts. The 2 moving contacts are electrically isolated from one another (5-pin version).

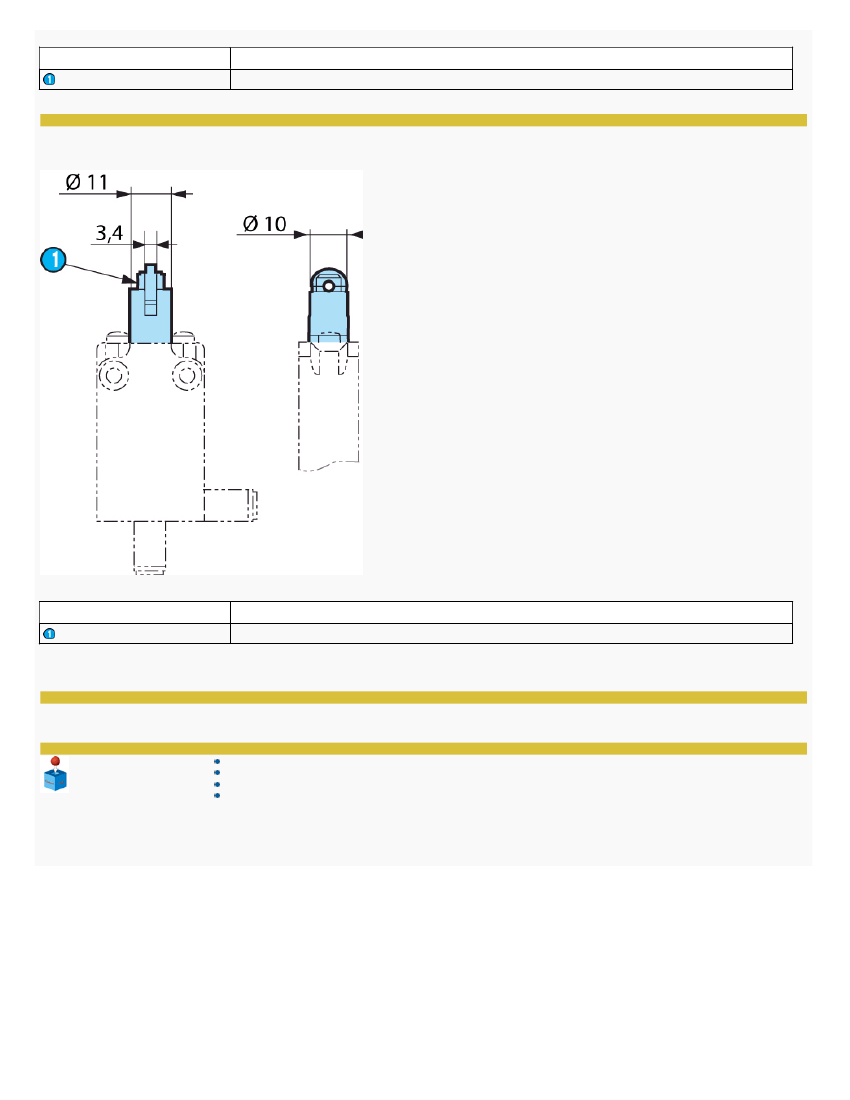

Dimensions (mm)
Product
83 871 1
