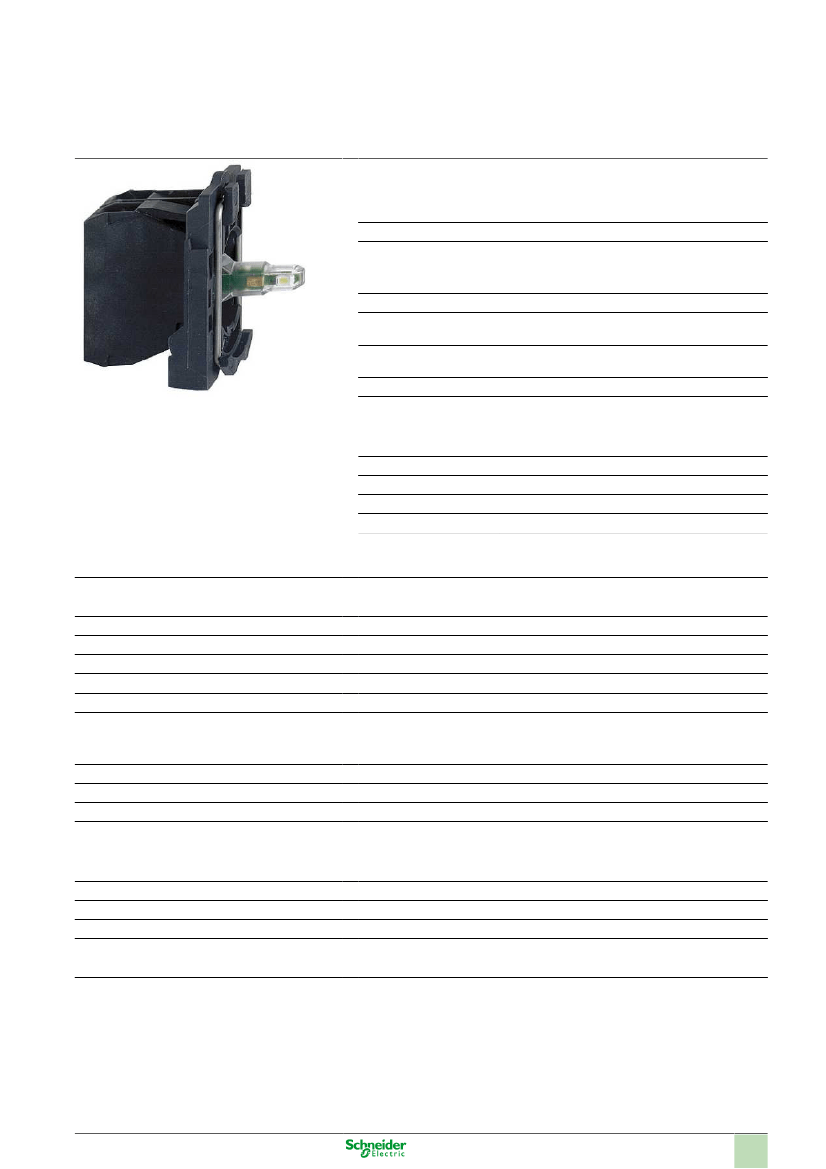

Product data sheet
Characteristics
ZB5AW0G33
green light block with body/fixing collar with
integral LED 110...120V 2NO
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Contacts type and
composition
Contacts operation
Connections - terminals
Commercialised
Harmony XB5
Complete body/contact assembly and light block
ZB5
Plastic
1
2 NO
Slow-break
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Screw clamp terminals: >= 1 x 0.22 mm² without
cable end conforming to EN 60947-1
Screw clamp terminals: <= 2 x 1.5 mm² with cable
end conforming to EN 60947-1
Protected LED
Integral LED
Direct
Green
Light source
Bulb base
Light block supply
Light source colour
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Contacts usage
Positive opening
Operating travel
Operating force
Operating torque
Mechanical durability
Tightening torque
Shape of screw head
1.18 in (30 mm)
1.65 in (42 mm)
1.26 in (32 mm)
(13-14)NO
0.09 lb(US) (0.042 kg)
Standard
Without positive opening
0.17 in (4.3 mm) (total travel)
0.1 in (2.6 mm) (NO changing electrical state)
2.3 N (NO changing electrical state)
0.44 lbf.in (0.05 N.m) (NO changing electrical state)
5000000 cycles
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Slotted head compatible with flat Ø 5.5 mm screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Cross head compatible with Philips no 1 screwdriver
Silver alloy (Ag/Ni)
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
10 A conforming to EN/IEC 60947-5-1
600 V (degree of pollution: 3) conforming to EN 60947-1
6 kV conforming to EN 60947-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Contacts material
Short circuit protection
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
Feb 29, 2016
1
Electrical durability
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor:
0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC
60947-5-4
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC
60947-5-4
Steady
110...120 V AC, 50/60 Hz
14 mA
100000 h at rated voltage and 25 °C
1 kV conforming to IEC 61000-4-5
Electrical reliability IEC 60947-5-4
Signalling type
[Us] rated supply voltage
Current consumption
Service life
Surge withstand
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class II conforming to IEC 60536
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
2 kV conforming to IEC 61000-4-4
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Class B conforming to IEC 55011
Product certifications
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
CS2
00785901387992
1
0.08
Stock - Normally stocked in distribution facility
Y
FR
Contractual warranty
Period
18 months
2
