Accessories & Hardware
Contents
Part Number
Page
AT001s .....................................................................Y3
AT100s .....................................................................Y5
AT200s .....................................................................Y6
AT400s .....................................................................Y8
AT500s ...................................................................Y13
AT600s ...................................................................Y16
AT700s ...................................................................Y18
AT2100s .................................................................Y19
AT3000s .................................................................Y19
AT4000s .................................................................Y23
AT4100s .................................................................Y27
AT9000s .................................................................Y34
Toggles
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Color Codes
A
Black
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
P
S
Brushed Chrome
Metallic Silver
B
White
C
Red
Indicators
Touch
Tilt
Accessories
Hardware Threading
Y
Many hardware pieces are available in both metric and inch threading, and in such cases
M
(metric) and
H
(inch) are noted in the descriptions. The customer must select threading by placing an M or H after the basic AT
part number. If the hardware is available only in metric or inch, no code is used in the description; threading is
designated on the drawing.
Supplement
Y2
www.nkkswitches.com

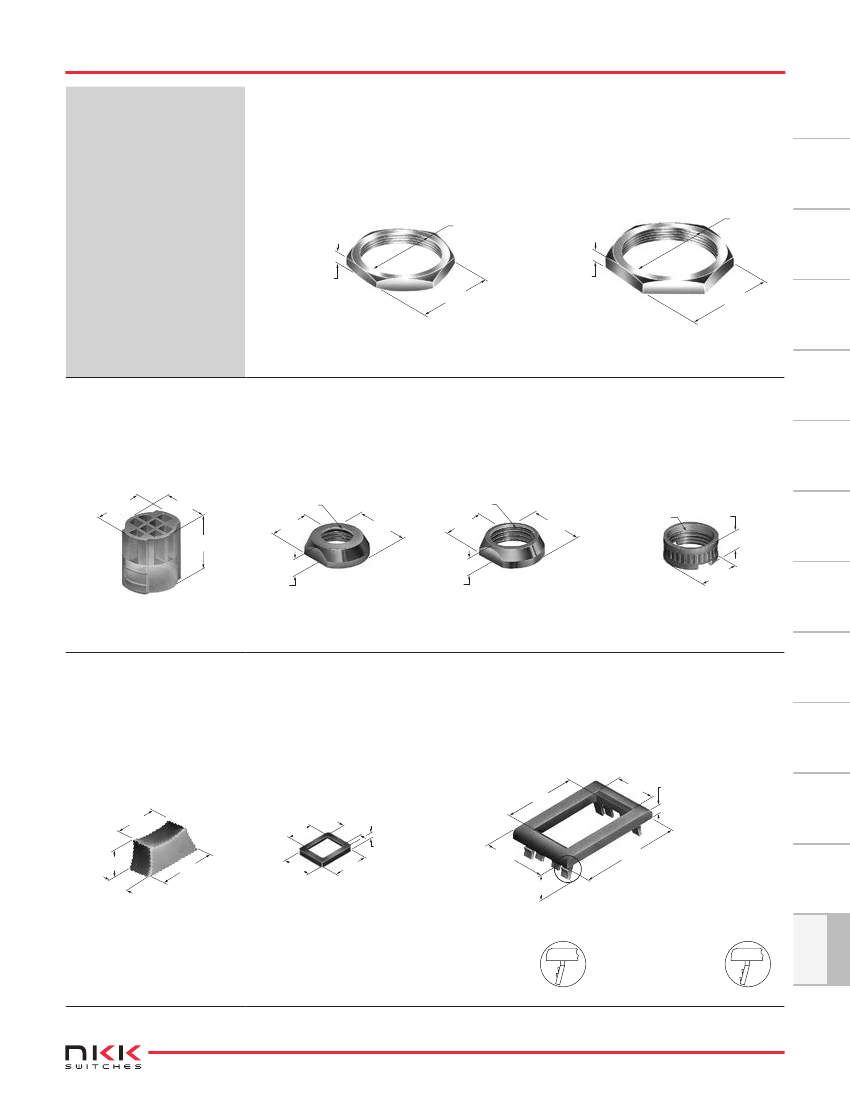

Accessories & Hardware
AT010s~
AT090s
AT016
16mm Hex Mounting Nut
Steel with nickel plating
Series: CKM LP01
AT019
19mm Hex Mounting Nut
Steel with nickel plating
Series: CKL
M16 P1
(19.0)
.748
(22.0)
.866
AT055
(14.0)
.551
(17.0)
.669
(16.0) Dia
.630
(14.0)
.551
(16.0) Dia
.630
M12 P1
AT062
(11.4)
.448
(6.2)
.244
(4.9)
.193
(1.3)
.051
(8.6)
.339
(15.62)
.615
(6.68)
.263
(25.04)
.986
(14.73)
.580
(6.9)
.272
(6.35)
.250
Y
Color Codes:
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
Y3
www.nkkswitches.com
Supplement
Accessories
AT064-1 accommodates
panel thickness
1.2 ~ 2.3mm
(.047 ~ .090”)
AT064-2 accommodates
panel thickness
1.57 ~ 3.18mm
(.062 ~ .125”)
Indicators
(7.0)
.276
Touch
(17.9)
.705
(9.9)
.390
(2.3)
.090
Tilt
.250” Wide Rocker
Polyamide
Colors: A B C
Series: A
AT063
Gasket
Nitrile butadiene rubber
Color: A
Series: B Threaded Bushing
AT064-1
Panel Frame for Rocker &
Paddle .365” Wide
Polyamide
Color: A
Series: M
AT064-2
Panel Frame for Rocker &
Paddle .365” Wide
Polyamide
Color: A
Series: M
Tactiles
Slides
(4.27)
.168
(4.27)
.168
(14.0) Dia
.551
Rotaries
(14.0) Dia
.551
(12.4) Dia
.488
M12 P1
M12 P1
(5.0)
.196
Keylocks
Crossover Guard
Polypropylene
Series: KB
AT056
Dress Cap Nut
Brass with chrome plating
Series: M P S
AT056T
Threaded Through Dress Nut
Brass with chrome plating
Series: M P S
AT057
Mounting Nut
Brass with zinc plating,
chromate finish
Series: KB
Programmable Illuminated PB
(2.5)
.098
(3.4)
.134
Pushbuttons
M19 P1
Rockers
Toggles
Accessories & Hardware
Toggles

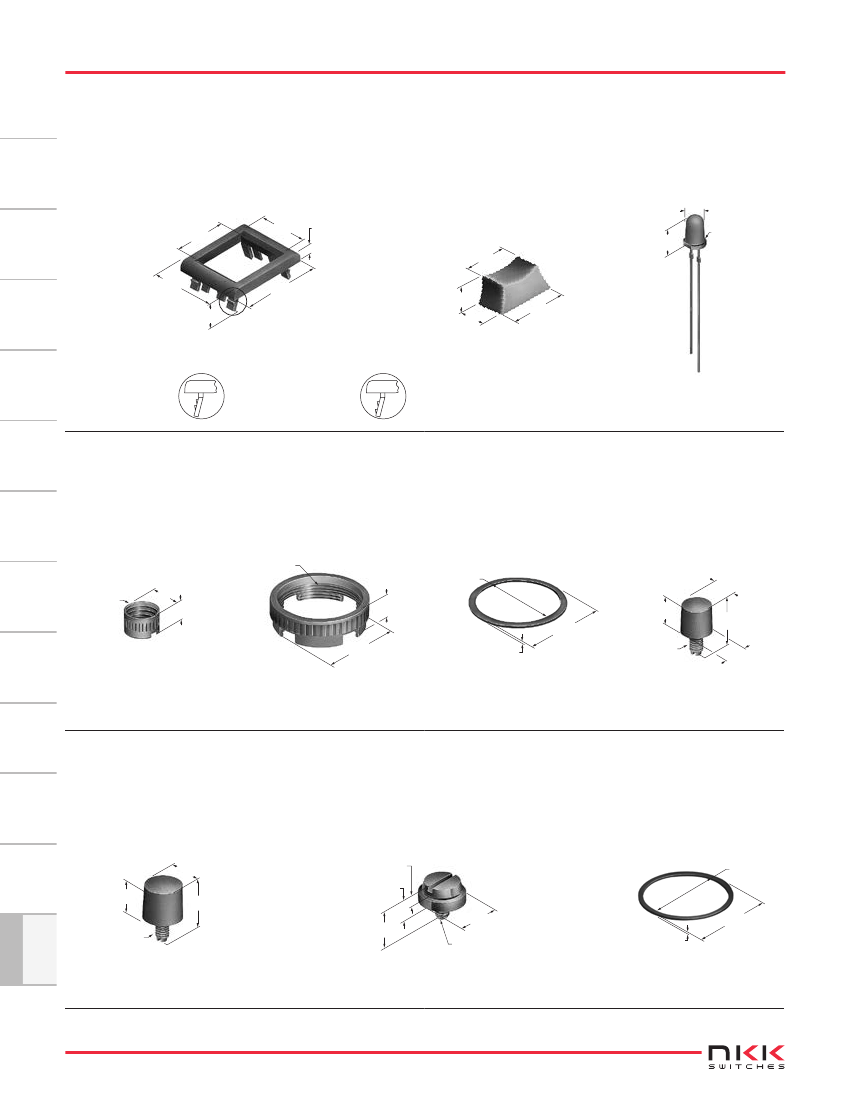

AT065-1
Rockers
Panel Frame for Rocker &
Paddle .450” Wide
Polyamide
Color: A
Series: M
AT065-2
Panel Frame for Rocker &
Paddle .450” Wide
Polyamide
Color: A
Series: M
AT066
.300” Wide Rocker
Polyamide
Color: A B C
Series: A
AT070
LED for AT208 Bezel
Colors: C F
Series: EB M MB24
Pushbuttons
(5.08) Dia
.200
(12.8)
.504
(12.0)
.472
(2.3)
.090
(11.4)
.448
(15.62)
.615
(6.68)
.263
(19.43)
.765
(7.7)
.303
(6.0) Dia
.236
Programmable Illuminated PB
(7.0)
.276
(7.6)
.300
(15.2)
.600
(+)
(–)
AT065-1 accommodates
panel thickness
1.2 ~ 2.3mm
(.047 ~ .090”)
AT065-2 accommodates
panel thickness
1.57 ~ 3.18mm
(.062 ~ .125”)
Keylocks
AT073
Mounting Nut
Brass with nickel plating
Series: HB
AT074
Mounting Nut for LB Panel Seal
Brass with chromate
Series: LB
AT075
O-ring for LB Panel Seal
Nitrile butadiene rubber
Series: LB
AT078
Rotaries
.315” (8.0mm) Diameter
Screw-on Cap
Polystyrene
Colors: A B C E F G H
Series: MB20 SCB WB
M22 P1
Slides
(22.0) Dia
.866
M8 P0.75
(9.0) Dia
.354
(5.0)
.197
(7.5) Dia
.295
(6.5)
.256
(25.0) Dia
.984
(5.5)
.217
(12.1)
.476
Tilt
Tactiles
(25.0) Dia
.984
(0.5)
.020
M3.5 P0.6
(8.0) Dia
.315
AT079
.394” (10.0mm) Diameter
Screw-on Cap
Polystyrene
Colors: A B C E F G H
Series: MB20 SCB WB
AT080
Indicators
Touch
Screw Adaptor for AT452 & AT454
Brass
Series: MB20 SCB
AT089
O-ring for YB Panel Seal
Nitrile butadiene rubber
Series: YB
(10.0) Dia
.394
(8.0)
.315
(2.4)
.094
(4.7)
.185
(16.0) Dia
.630
(13.6)
.535
Accessories
Y
M3.5 P0.6
(9.2)
.362
(12.0) Dia
.472
M3.5 P0.6
(0.5)
.020
(18.0) Dia
.709
Supplement
Color Codes:
Y4
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
www.nkkswitches.com
Accessories & Hardware
AT092
Knurled Mounting Nut
Glass fiber reinforced PBT
Series: YB YB2 (Square)
AT094
(34.93)
1.375
(7.3)
.287
(12.7)
.500
(11.89)
.468
(11.8)
.465
(2.0)
.079
(18.0) Dia
.709
(29.97)
1.180
(0.78) Dia Typ
.031
(2.7)
.106

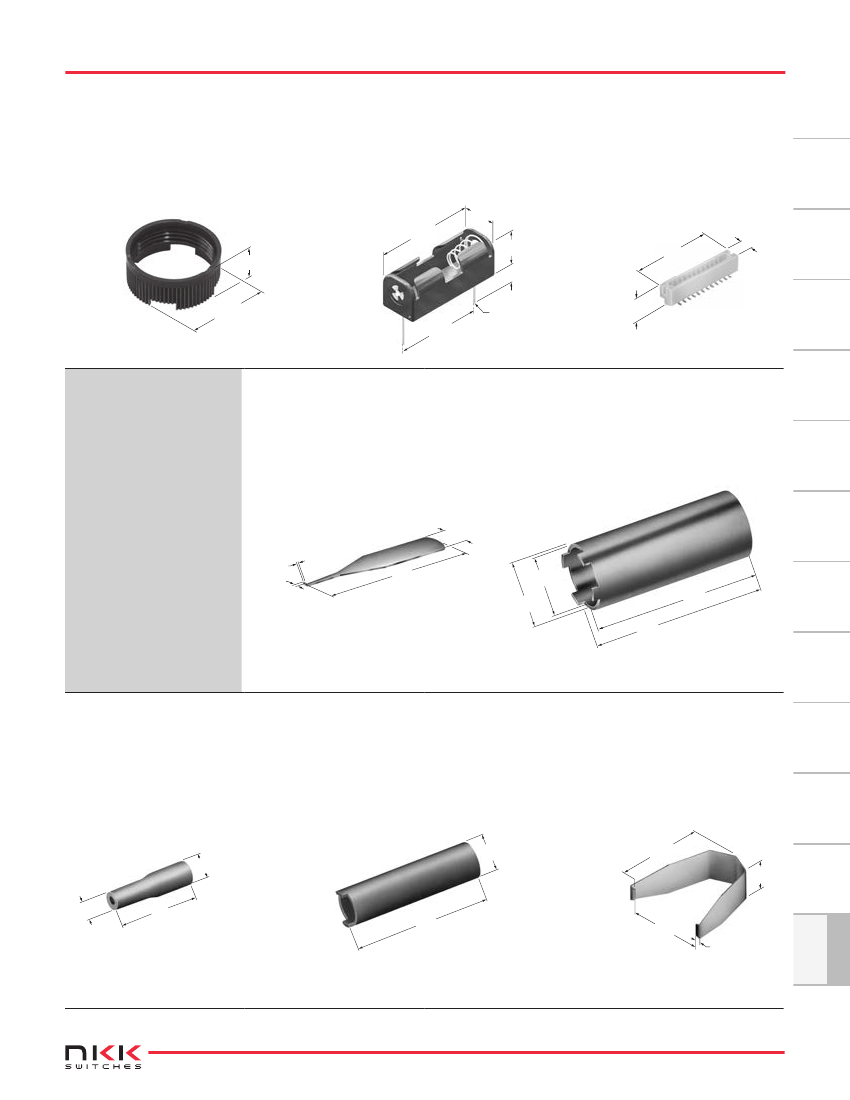

AT100s
AT105
Cap Removal Tool
Stainless steel
Series: HB KB LB UB YB
AT106
Socket Wrench
Aluminum with black alumite finish
Series: YB YB2
(10.0)
.394
(0.5)
.020
(1.0)
.039
(60.0)
2.362
(18.0) Dia
.709
(60.0)
2.362
(57.5)
2.264
AT107
Lamp Extractor
Polyvinyl chloride
Series: KB LW MLW YB
AT108
Socket Wrench
Aluminum with black alumite finish
Series: KB
AT109
Cap Extractor
Stainless steel
Series: HB KB LB UB YB
(5.0) Dia
.197
(10.0)
.394
(3.8) Dia
.150
(20.0)
.787
(1.5)
.059
Y
Color Codes:
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
Y5
www.nkkswitches.com
Supplement
Accessories
(50.0)
1.97
(25.0)
.954
Indicators
(14.0) Dia
.551
(29.6)
1.165
Touch
Tilt
Tactiles
Slides
(16.0) Dia
.630
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
(13.0)
.512
Rockers
PC Adaptor
Holder: Polypropylene
Spring: Spring steel with nickel plating
PC Pins: Brass with nickel plating
Series: DSA01
AT097
JST Connector for OLED Rocker
JST Part No. BM12B-SURS
PCB Mount
Series: SmartSwitch
Toggles
Accessories & Hardware
Toggles
AT110
Rockers
Socket Wrench
Brass
Series: HB
AT111
Lamping Tool
Stainless steel
Series: HB KB YB
AT112
Socket Wrench
Brass with nickel plating
Series: LB
Pushbuttons
(10.0)
.394
(10.0)
.394
(25.0) Dia
.984
Programmable Illuminated PB
(50.0)
1.97
(50.0)
1.97
(50.0)
1.97

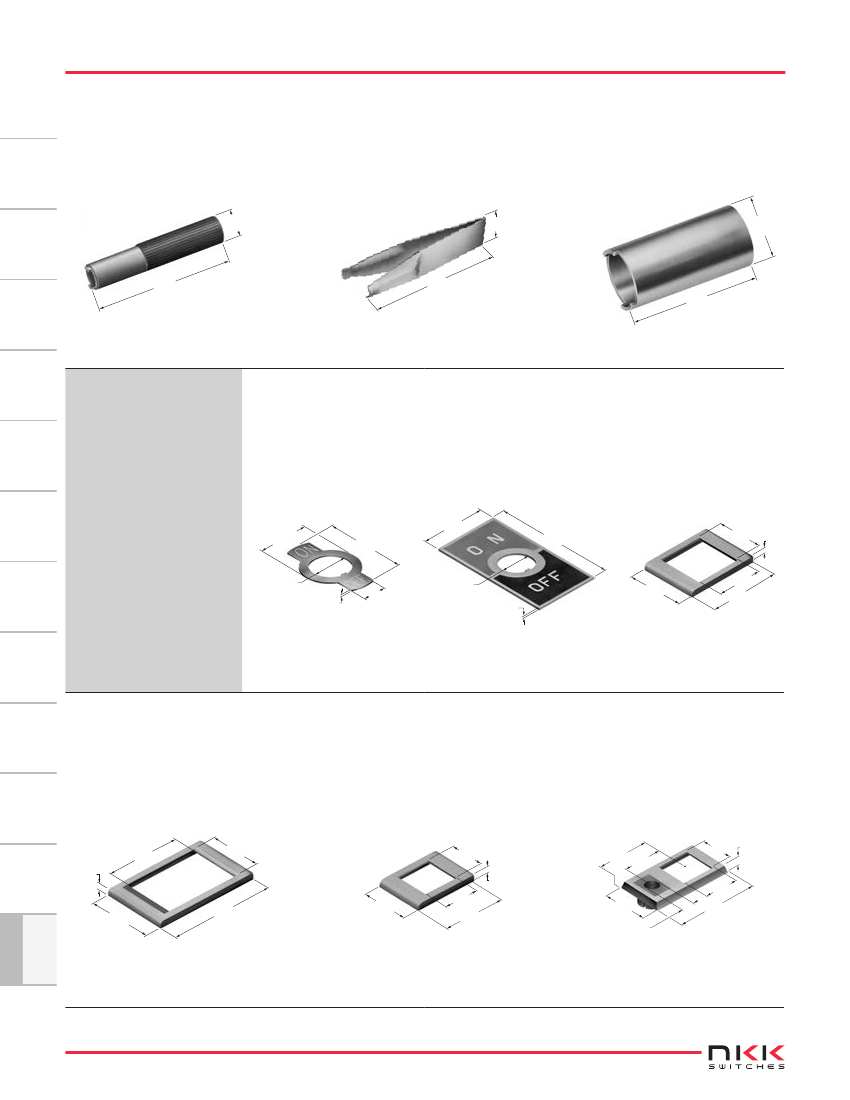

AT200s
AT201
Rotaries
Keylocks
ON-OFF Plate for
12mm Threaded Bushing
Brass with nickel plating
Series: M P S
AT202
ON-OFF Plate for
12mm Threaded Bushing
Aluminum
Colors: Red & black enamel
Series: M P S
AT204
Bezel
Polycarbonate
Colors: A B C D E F G H
Series: MLW
(17.2) Dia
.677
(27.0)
1.063
(28.0) Dia
1.102
(50.0)
1.969
(16.4)
.646
(2.2)
.087
Slides
(12.1) Dia
.476
(0.5)
.020
(8.0)
.315
(12.2) Dia
.480
(0.8)
.031
(20.0)
.787
(16.0)
.630
(25.5)
1.004
Tactiles
AT206
Tilt
Bezel
Polycarbonate
Colors: A B C D E F G H
Series: LW
AT207
Bezel
Polycarbonate
Colors: A B C E F G H
Series: EB MB24 MB25
AT208
Bezel for AT070 LED
Polycarbonate
Color: A
Series: EB M MB24 MB25
Touch
Indicators
(28.8)
1.134
(2.6)
.102
(19.4)
.764
(11.8)
.465
(2.2)
.087
(15.6)
.614
(12.0)
.472
(21.5)
.846
(19.0)
.748
(11.8)
.465
(13.5)
.531
(2.2)
.087
(12.0)
.472
(15.6)
.614
(5.4) Dia
.213
(30.2)
1.19
Accessories
(24.0)
.945
(41.0)
1.614
Y
Color Codes:
Y6
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
Supplement
www.nkkswitches.com
