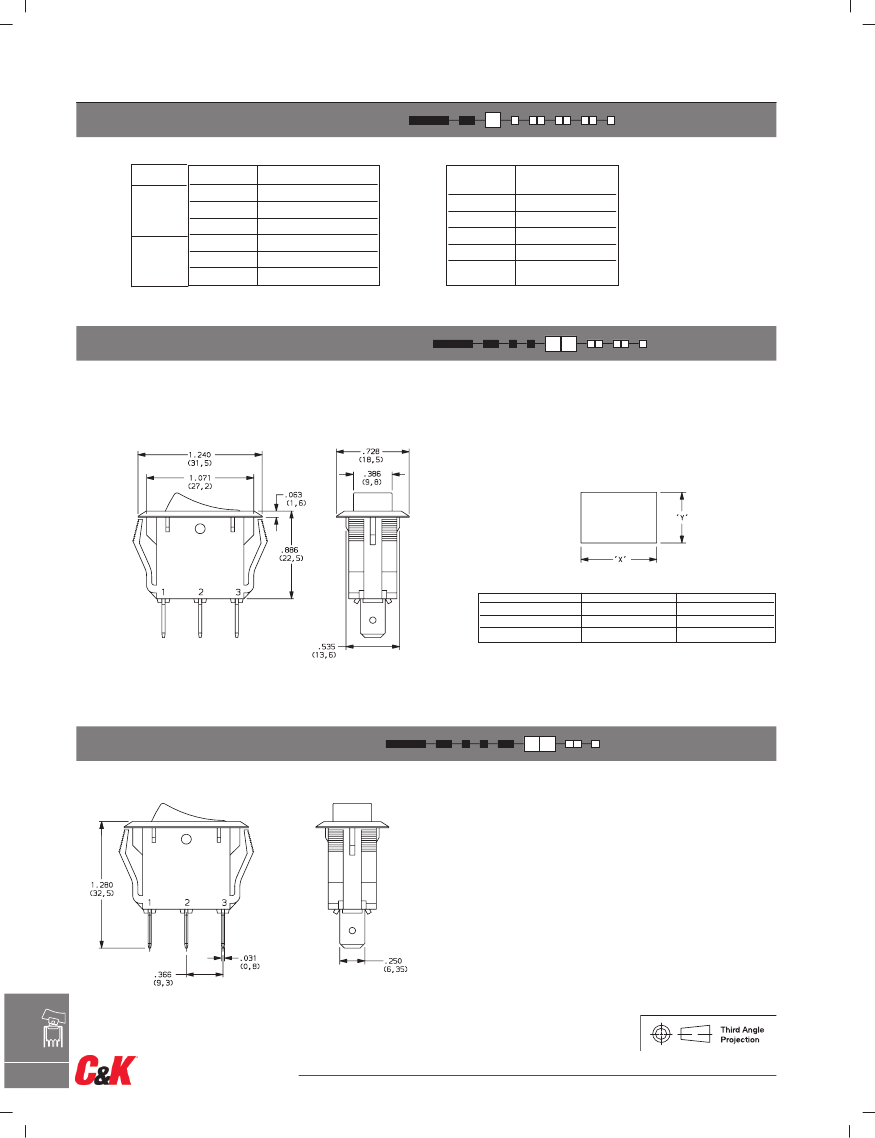

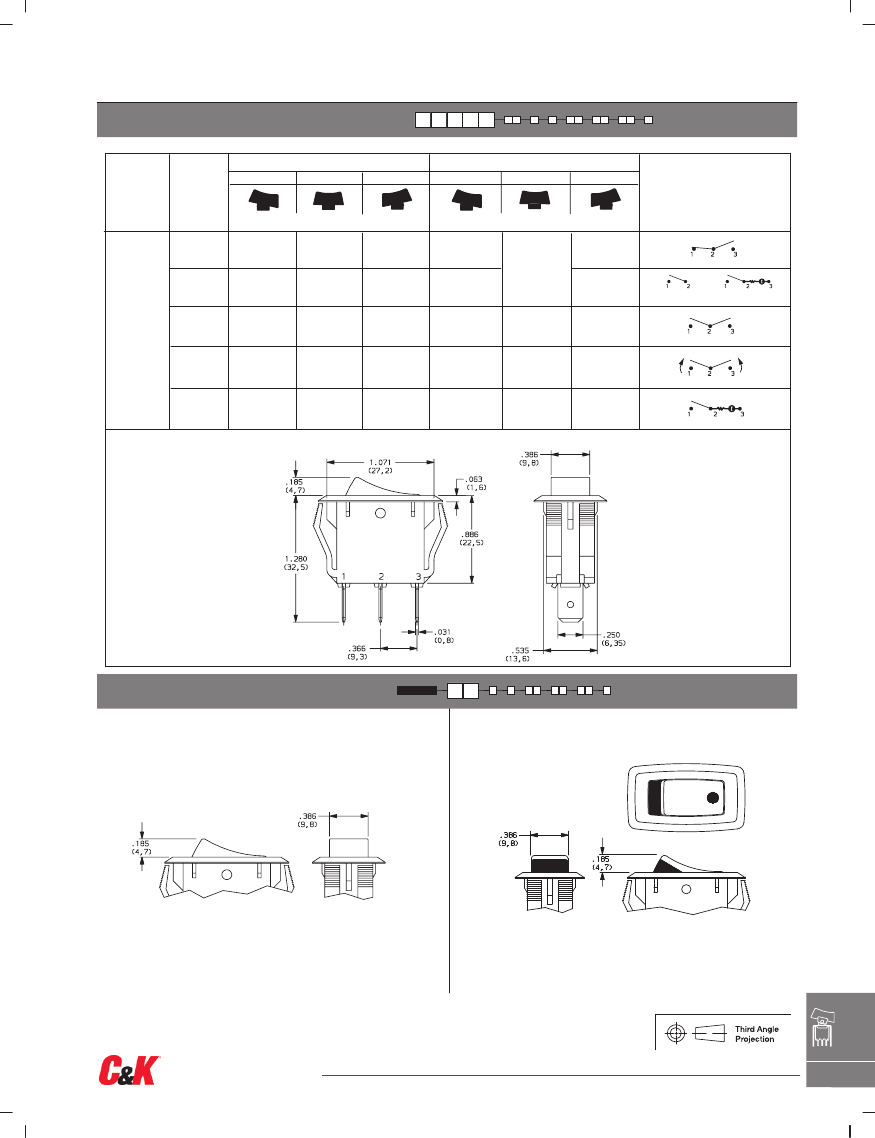

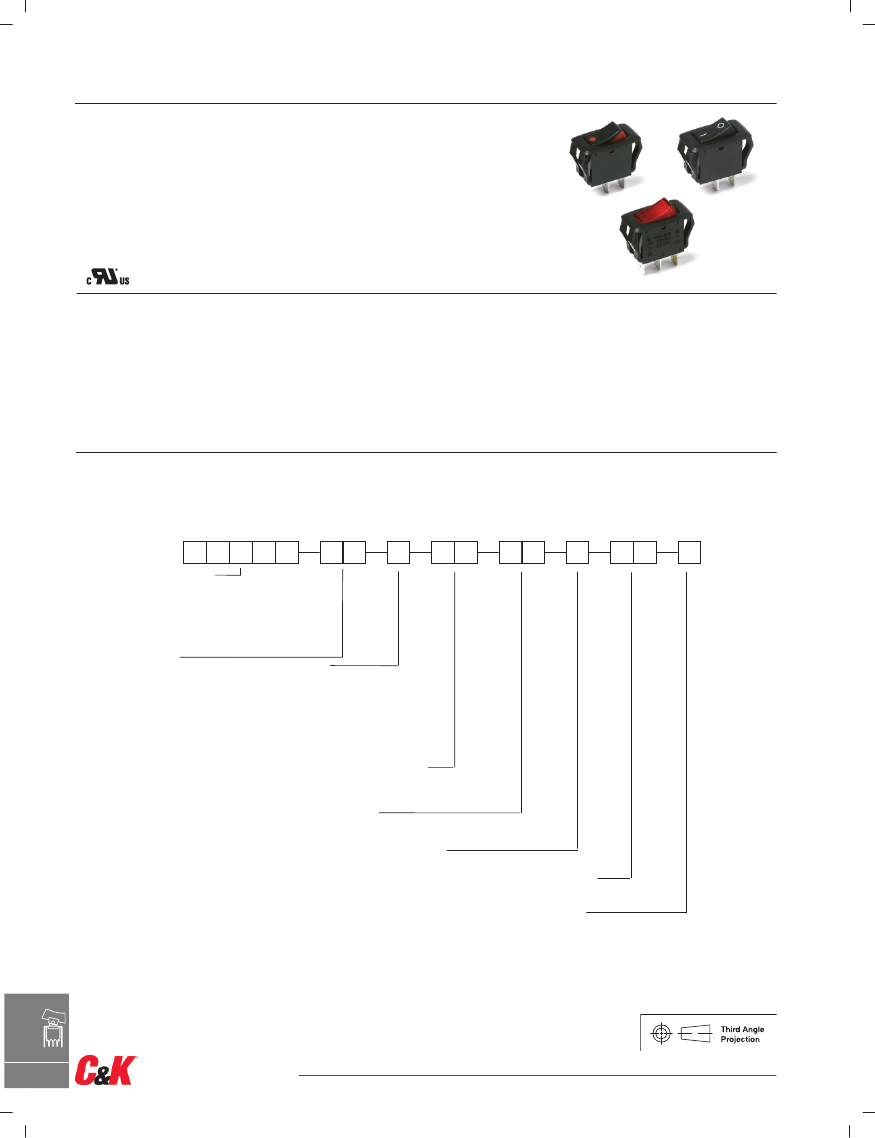

CG Series
Single Pole Power Rocker Switches
Features/Benefits
•
Bevelled frame
•
Illuminated versions available
•
Easy panel mount installation
Typical Applications
•
Computers and peripherals
•
Small appliances
•
Instrument panels
•
Industrial controls
•
RoHS compliant
UL 61058-1
Specifications
CONTACT RATING:
16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.
10 AMPS @ 250 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–87 through G–89. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CG101
SPDT On-None-On
CG102
SPST On-None-Off
CG103
SPDT On-Off-On
CG105
SPDT Mom-Off-Mom
CG12
*
SPST On-None-Off
Actuator
J1
Rocker
J2
**Two-tone
rocker
J3
Illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
Termination
05
.250” quick connect
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
P
”O -” international ON-OFF
Contact Rating
QF
Silver
Lamp Rating
(NONE)
No lamp
7
125 VAC neon
8
250 VAC neon
Rocker
* CG12 — for switches with both marking and illumination
** J2 — refer to table on next page for actuator options
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CG Series
Single Pole Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
Pos. 1
Pos. 2
Pos. 3
Pos. 1
CONNECTED TERMINALS
Pos. 2
Pos. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
ON
NONE
ON
1-2
C&K marking on opposite side
2-3
SCHEMATIC
CG101
CG102
SP
ON
NONE
OFF
1-2
N/A
OPEN
OR
For Illuminated
Version
CG103
ON
OFF
ON
1-2
OPEN
2-3
CG105
MOM
OFF
MOM
1-2
OPEN
2-3
CG12 *
ON
NONE
OFF
1-2
N/A
OPEN
* CG12 - for switches with both marking and illumination
Shown in Pos. 1
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
Rocker
NOTE:
J3 actuator available with CG102 switch function only.
NOTE:
Available with CG102 switch function only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
G
CG Series
Single Pole Power Rocker Switches
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
Ol
P
O-
NOTE:
Orientation of actuator marking and terminals.
Shown in Pos. 1
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
RATINGS
16 AMPS @ 125 VAC; 10 AMPS @ 250 VAC
10 AMPS @ 250 VAC
QF
SILVER
POWER
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
NOTE:
Lamp rating for J3 actuator option.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
G
FPGA/CPLD
