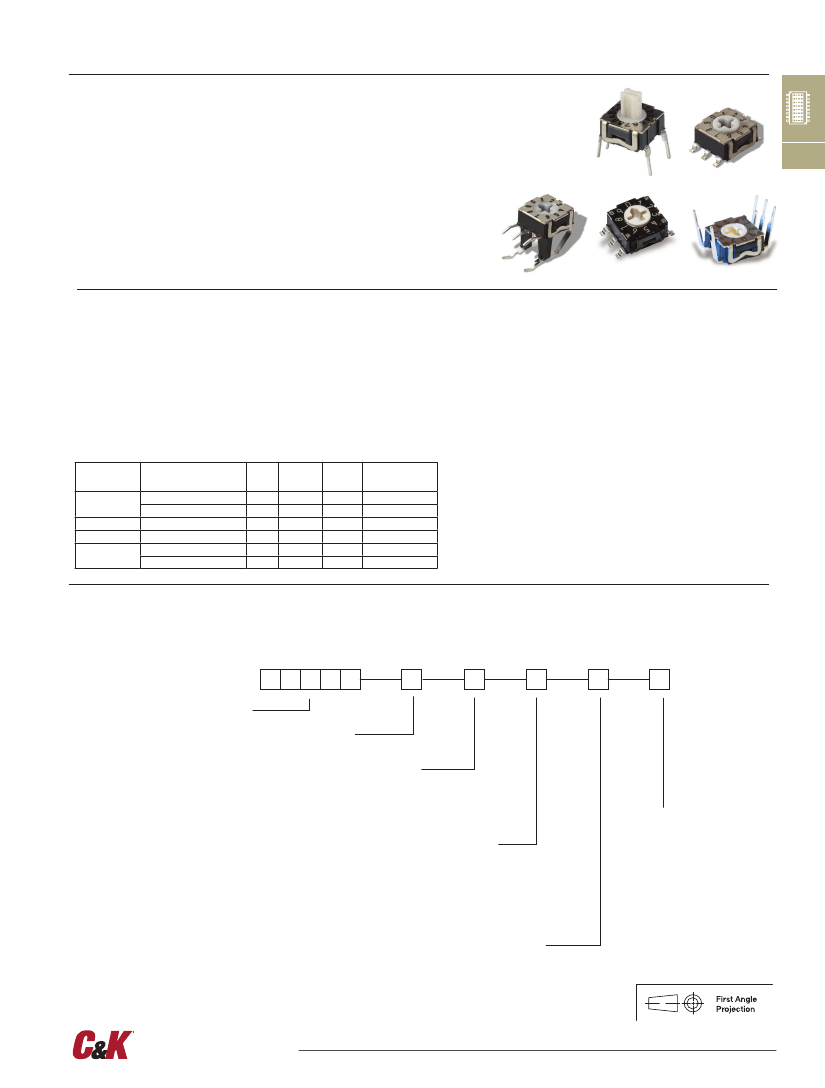

RTE Series
Low Profile Rotary DIP Switches
Features/Benefits
•
Thru-hole and surface mount
•
•
•
•
•
Typical Applications
•
Timers, automation components
•
Computer and peripherals
•
Alarms, access control,
smoke detectors, lighting,
home protection
•
Instrumentation
models
Miniature size with robust
metal cover in black or
silver nickel finish
4, 10, & 16 positions
Large choice of codings
Vertical, right angle or reverse
versions
RoHS compliant
H
DIP
Specifications
CONTACT RATING:
Gold: 100 mA max. 10µ A min. 30 V DC max. 20 mVDC min.
MECHANICAL LIFE: 20,000 indexations
CONTACT RESISTANCE: 100 mΩ max. initial;
150 mΩ after life
INSULATION RESISTANCE: 10
10
Ω min. initial
DIELECTRIC STRENGTH: 300 Vrms 1 mn
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -55°C to 85°C.
PACKAGING:
Quantities
Terminations
G
N
V
R
Actuator
Flush, screwdriver slot
Shaft for button
All versions
All versions
Flush, screwdriver slot
Shaft for button
Tube
Box
(in bulk)
Carrier
tape
1250
750
65
150
65
150
Standard
Package
1250 (1 reel)
750 (1 reel)
1950 (30 tubes)
1500 (10 boxes)
1950 (30 tubes)
1500 (10 boxes)
Materials
COVER: Brass, nickel plated (black or silver)
BASE: PPS
ACTUATOR: LCP
MOVABLE CONTACTS: Copper alloy, gold plated.
STATIONARY CONTACTS: Brass, gold plated.
TERMINALS: See page I-28 to I-29
O-RING: Silicone
SOLDERING PROCESS:
- Surface Mount Terminals: Infrared Reflow Soldering in accor-
dance with IEC 61760-1.
- Non Reverse Thru-Hole Terminals: Lead free single or double
wave soldering process according to C&K Procedure
PS-LF-001
- Reverse Thru-Hole Terminals: Manual soldering: 3 sec / 350°C.
Lead free single wave soldering process can be used but
validation of the process must be done by customer
Note:
Specifications and materials listed above are for
switches with standard options. For information on specific
and custom switches, consult Customer Service Center.
How To Order
The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete listing
of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
NOTE: Some of the configurations may not be available or could require some development.
R T E
Number of Positions
RTE04
RTE10
RTE16
ESD Protection and top plate
0
Without ESD - standard plate
1
With ESD - standard plate
2

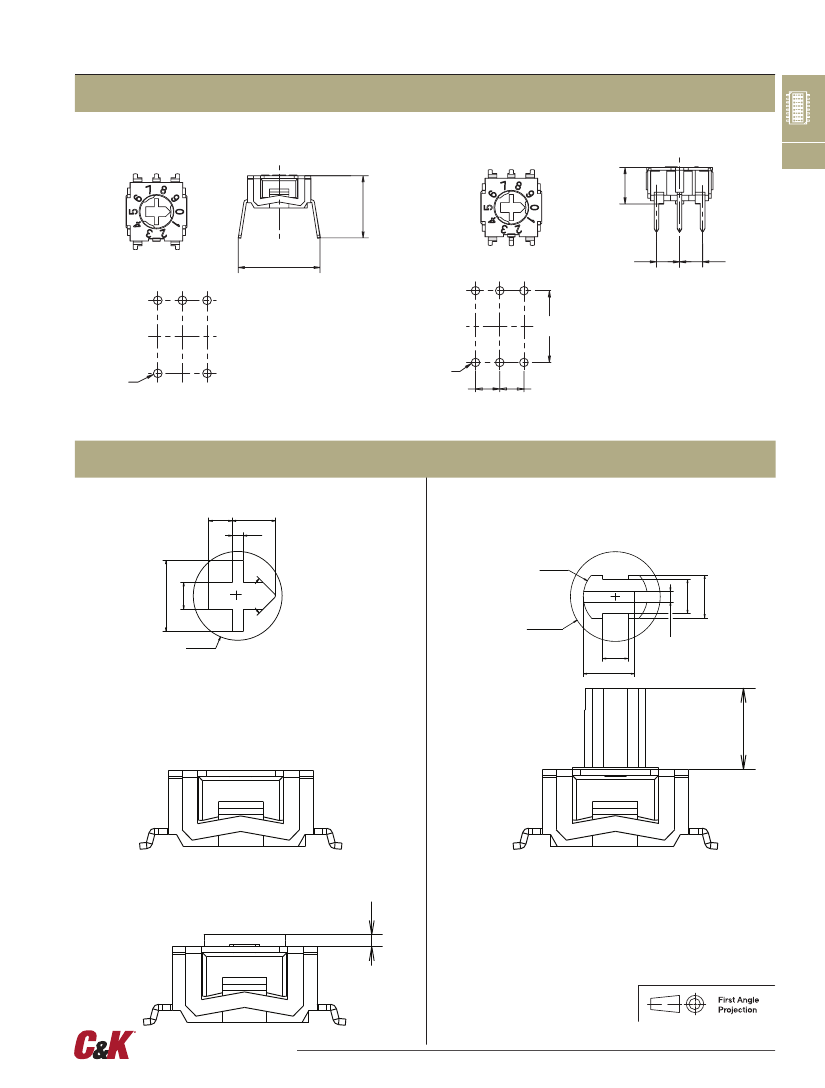

Actuator
B
Without ESD - black plate
0
Flush, screwdriver slot
2
Shaft for button
Contact/Terminal Material
4
Gold/ lead free tin
1 - Single pole function not available for RTE10/RTE16
2 - ESD protection available with “N” and “R” terminations only

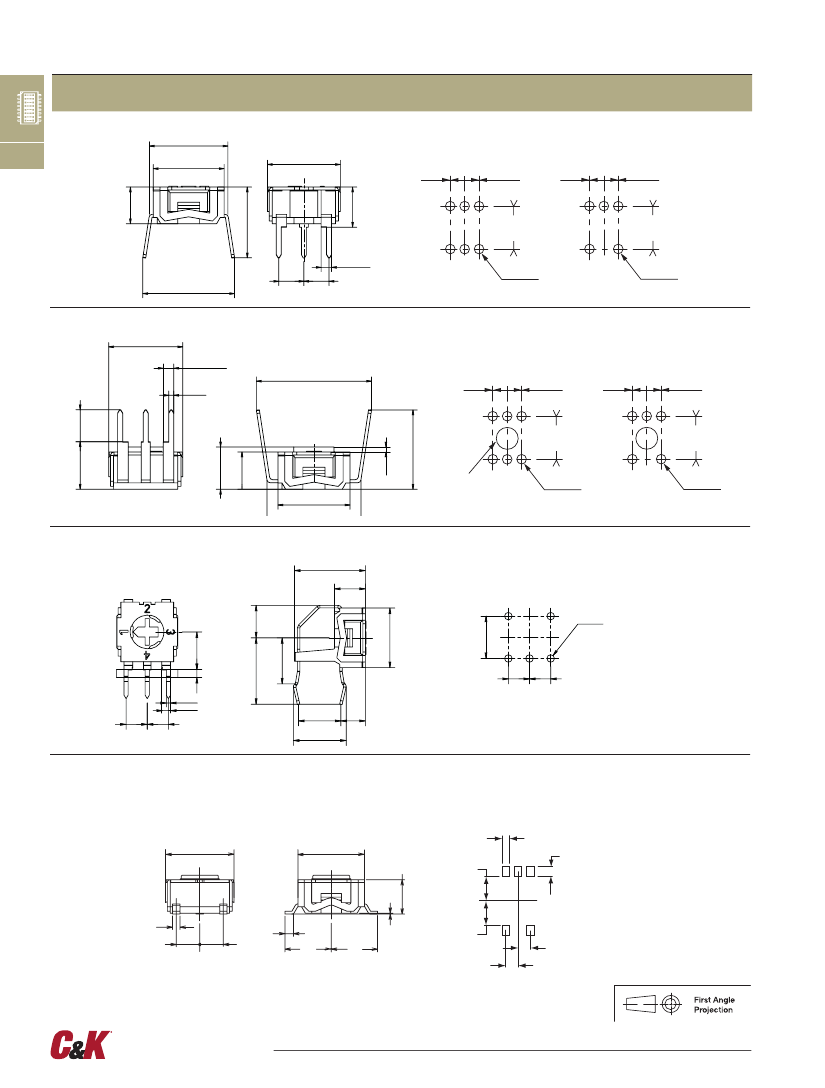

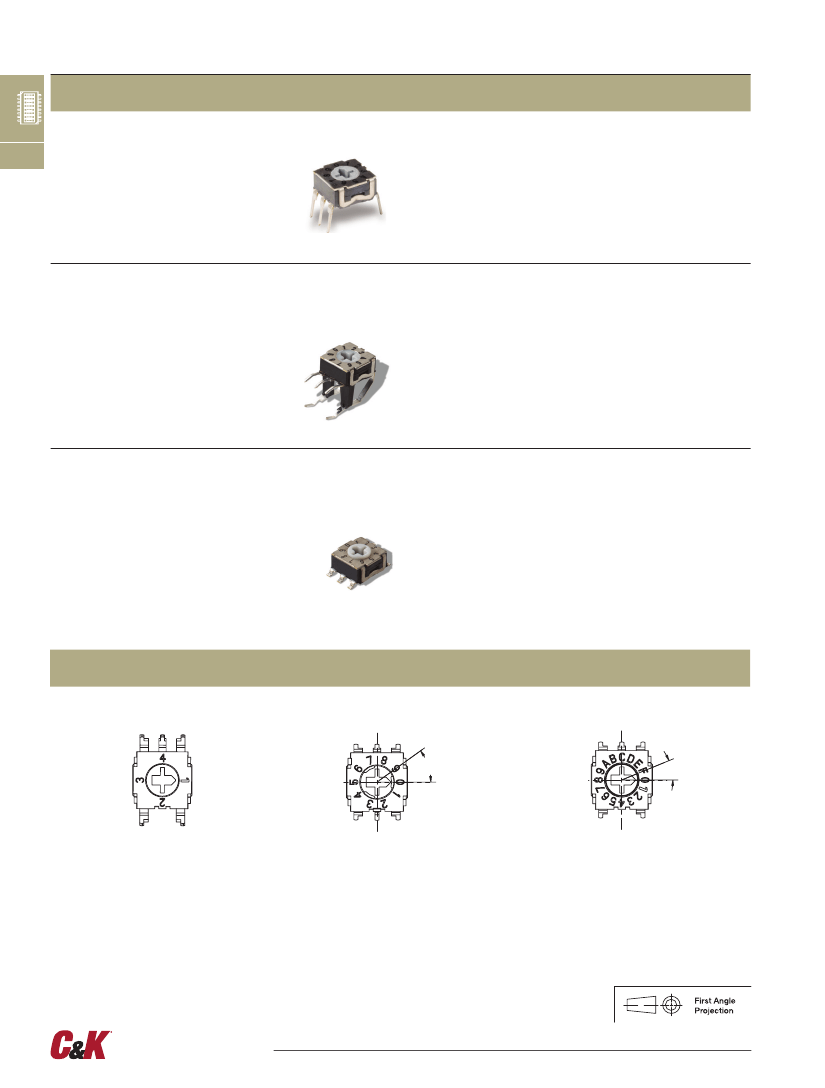

Terminations
N
Thru-hole
V
Right angle
G
Surface mount
R
Reverse, thru-hole
Switch Function
0
Single pole
1
1
BCD code
3
Gray Code (for RTE 10)
4
Hexadecimal code (for RTE 16)
7
Gray Code (for RTE16)
26 January 2018
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–25
www.ckswitches.com
