RP8100B2M1CEBLKBLKRED

Description
Illuminated Pushbutton Switches GOLD OVER SILVER THREADED BUSHING
CategoryMechanical and electronic products    switch
File Size1MB，4 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Environmental Compliance
Download Datasheet Parametric View All

RP8100B2M1CEBLKBLKRED Online Shopping

Suppliers Part Number Price MOQ In stock
RP8100B2M1CEBLKBLKRED - - View Buy Now

RP8100B2M1CEBLKBLKRED Overview

Illuminated Pushbutton Switches GOLD OVER SILVER THREADED BUSHING

RP8100B2M1CEBLKBLKRED Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerE-Switch
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typeROUND TYPE
body height9.4 mm
Body length or diameter17.5 mm
Contact (AC) maximum rated R load.125A@125VAC
Maximum contact current (AC)0.125 A
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load.1A@50VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)50 V
Electrical life500000 Cycle(s)
illuminationRED LED
Installation featuresPANEL MOUNT-THREADED
Maximum operating force3.92 N
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
sealEPOXY TERMINAL SEALED; IP67
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePUSHBUTTON SWITCH
Terminal surfaceGold (Au) - with Silver (Ag) barrier
Termination typeSOLDER

Preview

Download Datasheet
RP8100 Series Pushbutton Switch
ANTI-VANDAL
SWITCHES
Applications / Markets
DETECTOR
SWITCHES
Audio / Visual
Electrical Housewares
Floor Care Appliances
KEYLOCK
SWITCHES
DIP
SWITCHES
White Goods
Instrumentation
Medical Equipment
NAVIGATION
SWITCHES
RoHS
Specifications
Electrical Rating:
125mA @ 125VAC, 100mA @ 50VDC
Life Expectancy:
500,000 Cycles at full load
Contact Resistance:
50mΩ Max. (initial)
Insulation Resistance:
1,000MΩ Min. @ 500VDC
Dielectric Strength:
1,00VAC rms
Operating Temperature:
-30°C to 85°C
Travel:
1.5mm
Contact Arrangement:
SPST, Off-(On), Momentary
Actuation Force:
350 gf
Contact Bounce:
10ms MAX
Ingress Protection:
IP67
Features & Benefits
•
•
•
•
Threaded or snap in panel mount
500,000 life expectancy
LED illumination options
Sealed to IP67 ratings
SLIDE
SWITCHES
ROTARY
SWITCHES
ROCKER
SWITCHES
PUSHBUTTON
SWITCHES
Part Number Configurator
Series
Bushing
Termination
Contact
Material
C
- Gold Over
Silver
Seal
Housing
Color
BLK
- Black
Cap
Color
WHT
- White
BLK
- Black
RED
- Red
ORG
- Orange
YEL
- Yellow
GRN
- Green
BLU
- Blue
LED
Color
WHT
- White LED
RED
- Red LED
YEL
- Yellow LED
GRN
- Green LED
BLU
- Blue LED
NIL
- Non Illuminated*
SNAP ACTION
SWITCHES
RP8100
RP8101*

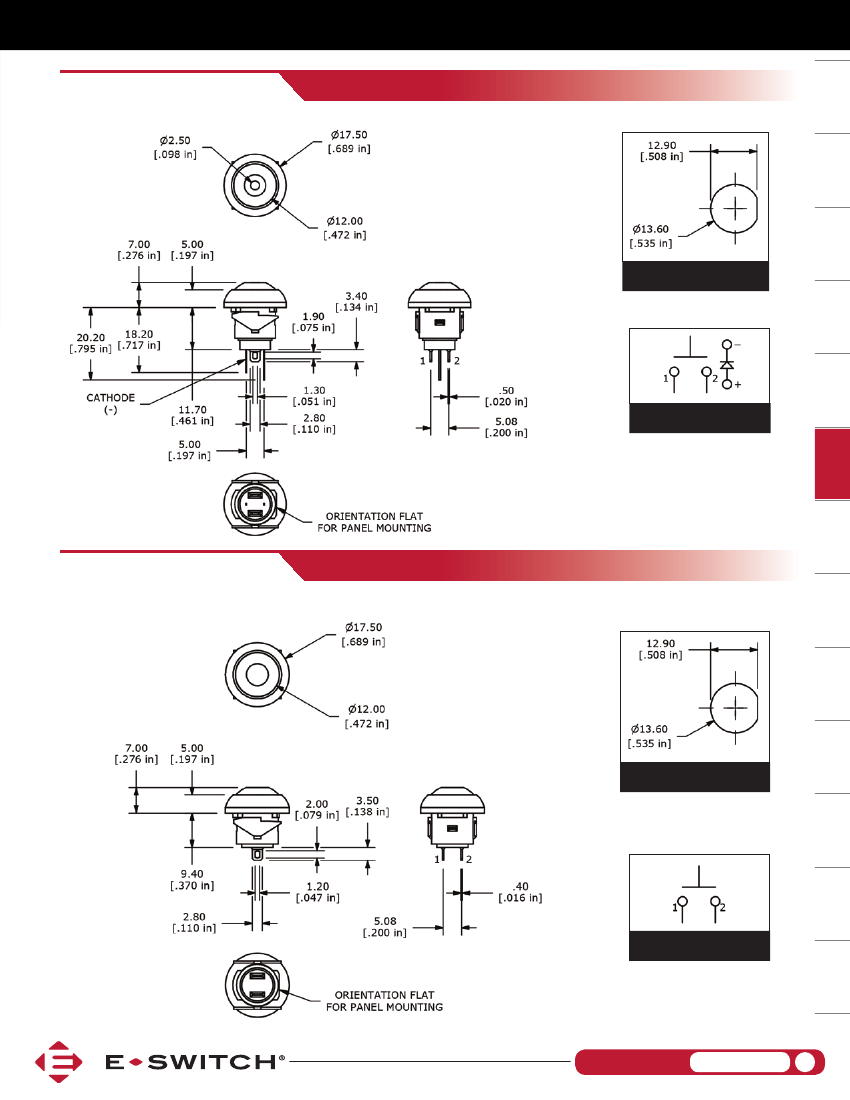

B1 -
Snap In

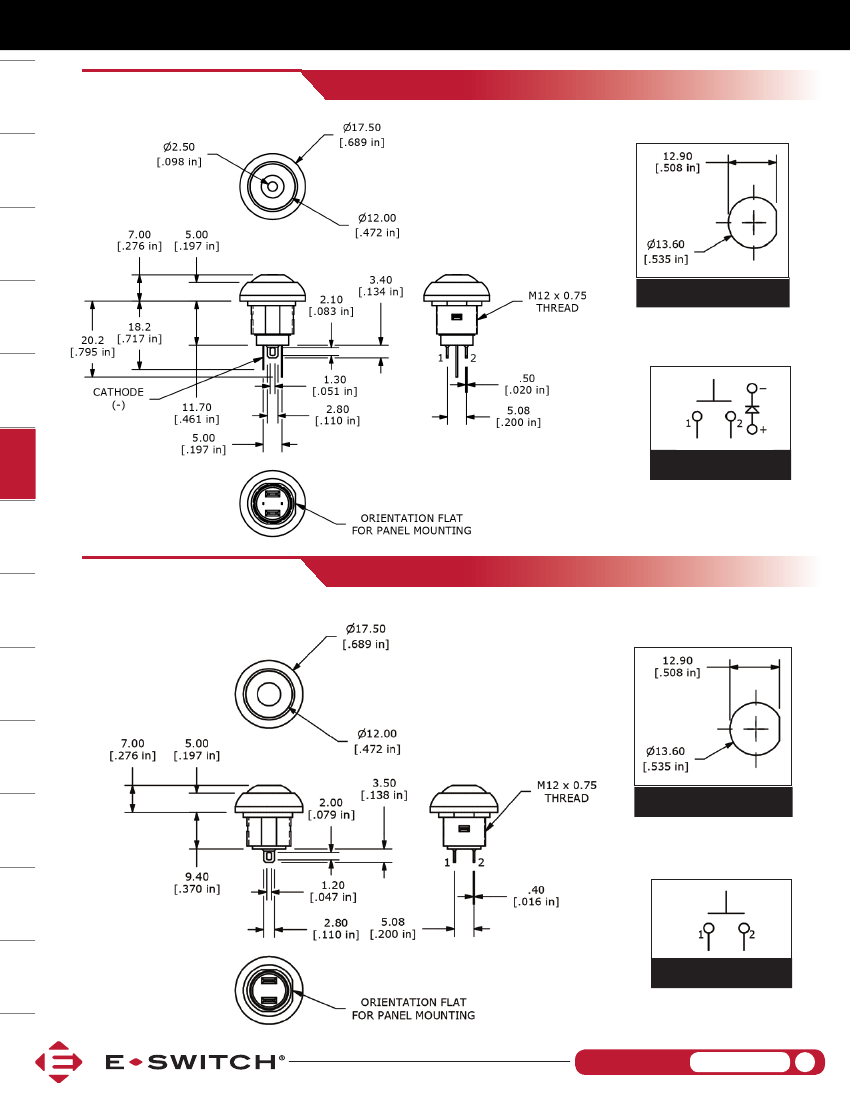

B2 -
Threaded
(12 x 0.75)*
M1
- Standard
E
- Epoxy
Sealed
TOGGLE
SWITCHES
TACTILE
SWITCHES

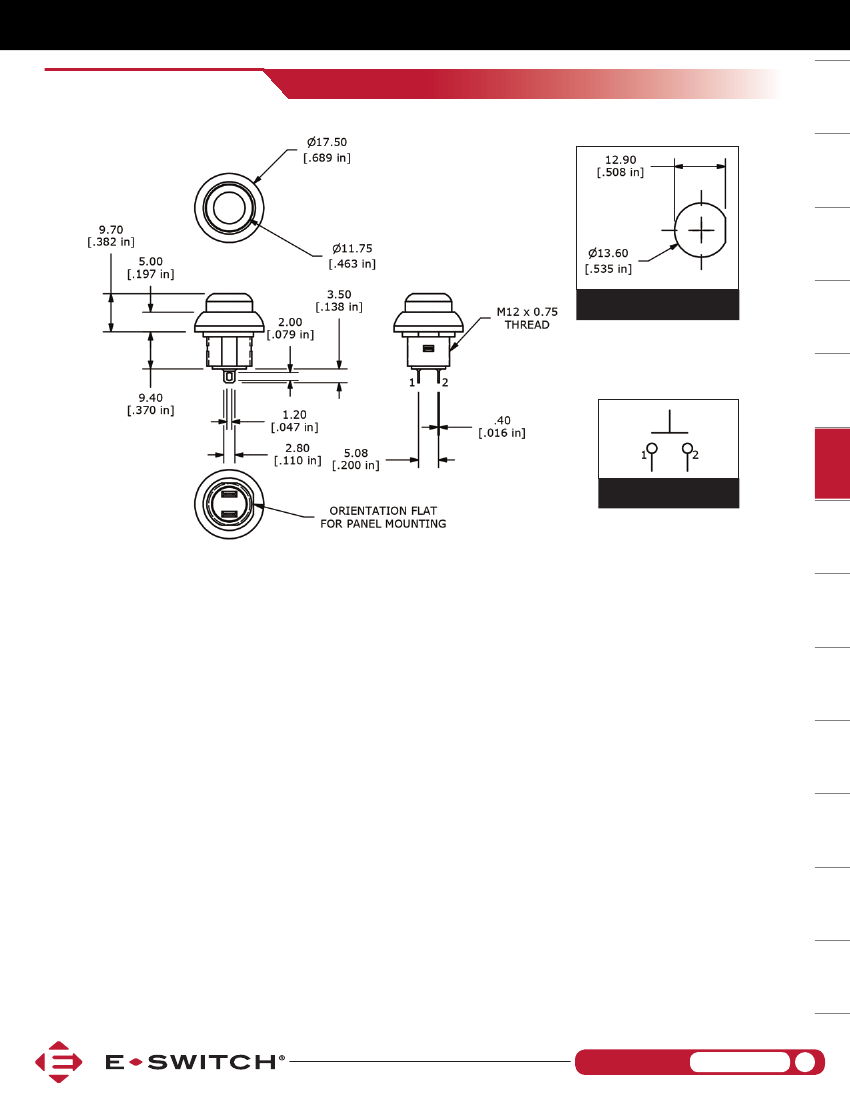

*The RP8101 series is only offered with B2 Bushing and is non-illuminated.
CAP
OPTIONS
Specifications subject to change without notice
www.e-switch.com
