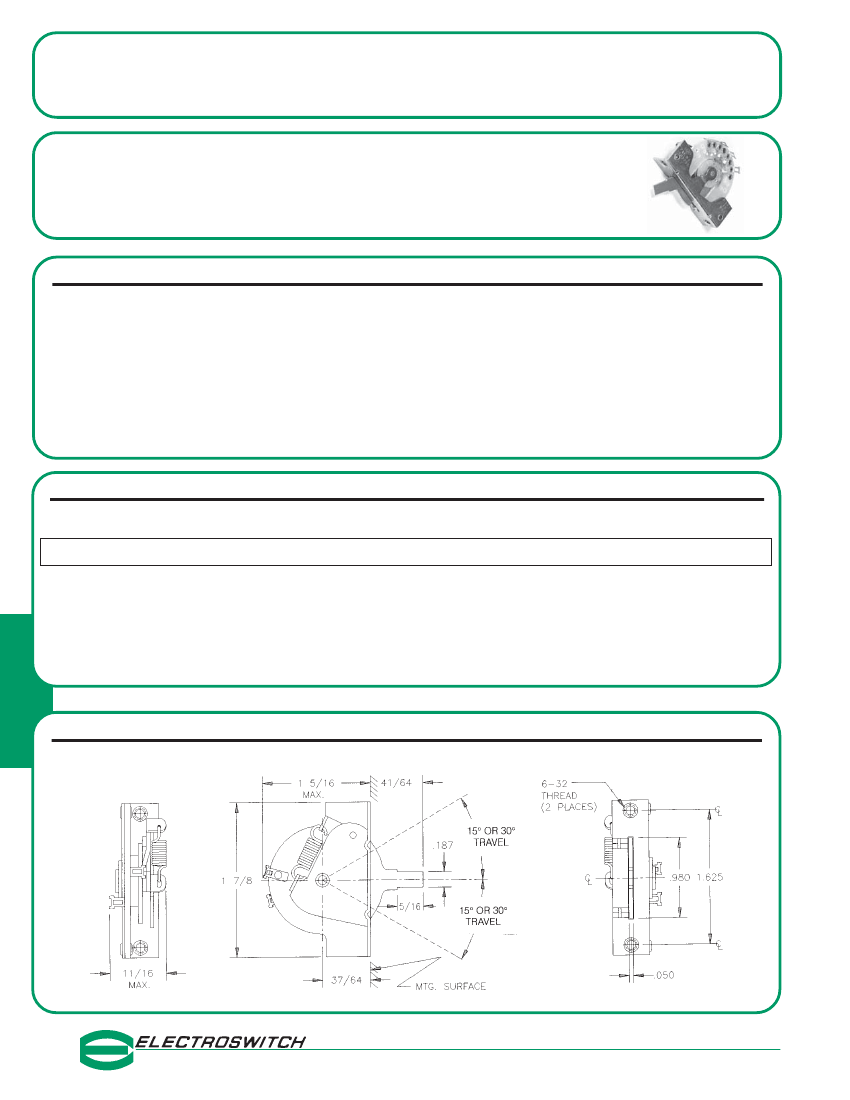

E2 - SERIES
Lever Action
1.5 AMPS @ 28 VDC
SPECIFICATIONS AND ORDERING INFORMATION
The E2 Series is our lever action switch, originally designed for the electric
guitar market. It offers positive 2-5 position switching, a 30° or a 15° index,
and solder lug terminals.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
1.5 amps @ 28 VDC; 0.5 amp @ 115 VAC.
Current Carrying Capacity:
9 amps.
Dielectric Strength:
1,000 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 3.5 milliohms.
Insulation Resistance:
In excess of 750,000 megohms.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Clips and Rotors:
Brass with silver plate as standard.
Insulation:
Glass epoxy.
Index:
Cam and roller with coil spring.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30°, 15° and spring return.
Index Stops:
Fixed stops standard.
Stop Strength:
25 in. lbs. minimum.
STANDARD PART NUMBER
LEVER
SWITCHES - 30° INDEXING - FIXED STOPS - SOLDER LUG TERMINALS
ACTIVE
POLES/
NO. OF
POLES POSITIONS SECTION SECTIONS
02
02
02
02
04
04
03
05
03
03
02
02
2
2
2
2
4
4
1
1
1
1
1
1
SHORTING
E2G0203S-1
E2G0205S-15
E2G0203S
E2G0203S-2
E2G0402S-3
E2G0402S
NON-
SHORTING
E2G0203N-1
-----------------
E2G0203N
E2G0203N-2
E2G0402N-3
E2G0402N
..........
..........
..........
..........
..........
..........
DESCRIPTION
2 POSITIVE INDEX POSITIONS BOTH SIDES OF CENTER.
POSITIVE INDEX BOTH SIDES OF CENTER.
SPRING RETURN BOTH SIDES TO CENTER.
SPRING RETURN TO CENTER.
POSITIVE INDEX.
DETAIL
E
E
E
E
E
E
POSITIVE INDEX ONE SIDE TO CENTER, SPRING RETURN OPPOSITE SIDE TO CENTER.
E
DIMENSIONS
STANDARD CONSTRUCTION
DETAIL E
DETAIL F
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
38
