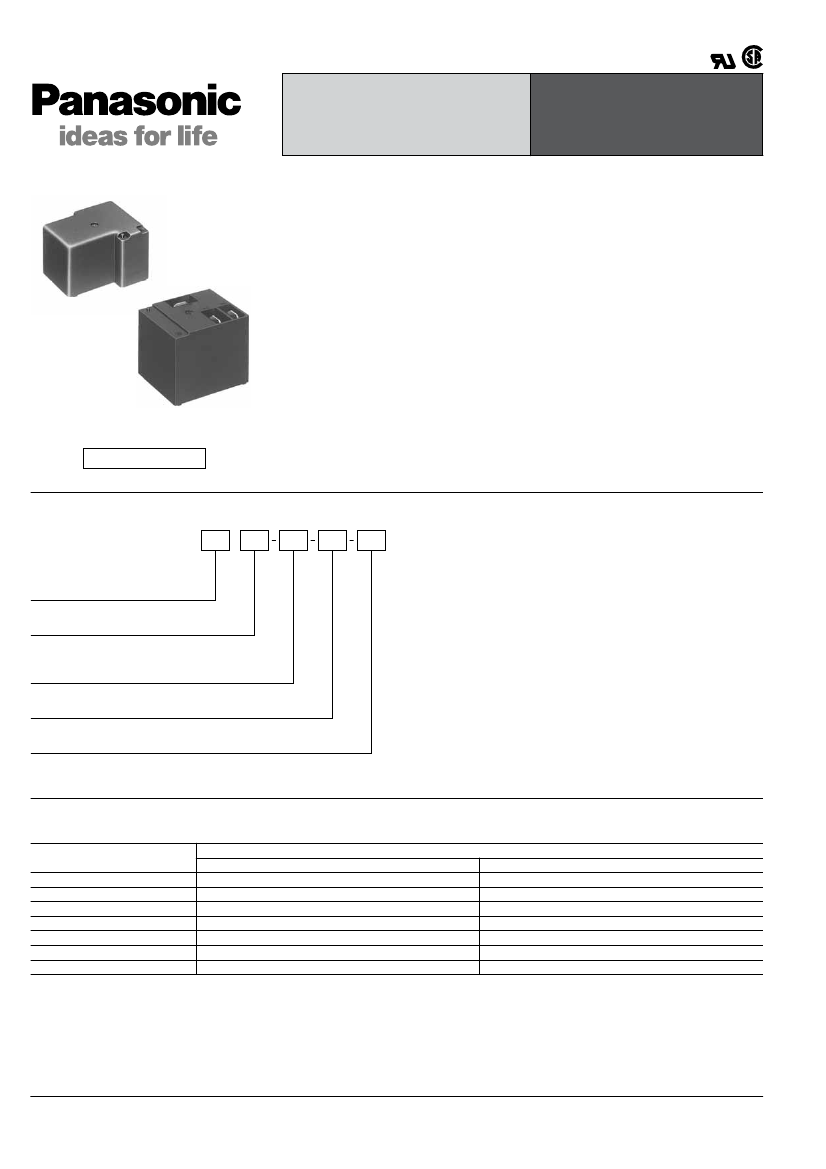

Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB187E 201202-T
JT-N
2. 1 Form C Sealed type
Nominal coil voltage
5V DC
6V DC
9V DC
12V DC
15V DC
18V DC
24V DC
Part No.
PCB type
JTN1S-PA-F-DC5V
JTN1S-PA-F-DC6V
JTN1S-PA-F-DC9V
JTN1S-PA-F-DC12V
JTN1S-PA-F-DC15V
JTN1S-PA-F-DC18V
JTN1S-PA-F-DC24V
TMP type
JTN1S-TMP-F-DC5V
JTN1S-TMP-F-DC6V
JTN1S-TMP-F-DC9V
JTN1S-TMP-F-DC12V
JTN1S-TMP-F-DC15V
JTN1S-TMP-F-DC18V
JTN1S-TMP-F-DC24V
Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
RATING
1. Coil data
Nominal coil
voltage
5V DC
6V DC
9V DC
12V DC
15V DC
18V DC
24V DC
75%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
161.3mA
133.3mA
89.1mA
66.6mA
53.4mA
44.4mA
33.3mA
Coil resistance
[±10%] (at 20°C
68°F)
31Ω
45Ω
101Ω
180Ω
281Ω
405Ω
720Ω
800mW
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
6 V
7.2V
10.8V
14.4V
18 V
21.6V
28.8V
2. Specifications
Characteristics
Contact
Item
Contact material
Arrangement
Contact resistance (Initial)
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
Max. switching current
Nominal operating power
Min. switching capacity (reference value)*
1
Insulation resistance (Initial)
Between open contacts
Between contact and coil
Surge breakdown voltage*
2
(Between contact and coil) (Initial)
Operate time (at nominal voltage) (at 20°C
68°F)
Release time (at nominal voltage) (at 20°C
68°F)
Breakdown voltage
(Initial)
Shock resistance
Mechanical
characteristics
Vibration resistance
Mechanical
Expected life
Electrical (at 20 times/min.)*
3
Functional
Destructive
Functional
Destructive
Specifications
AgSnO
2
type
1 Form A
1 Form C
Max. 50 mΩ (By voltage drop 6 V DC 1A)
20A 277V AC
N.C.: 10A 277V AC, N.O.: 20A 277V AC
8,310VA (30A 277V AC)
N.C.: 2,770VA, N.O.: 5,540VA
277V AC
30A
N.C.: 10A, N.O.: 20A
Approx. 800mW
100mA, 5V DC
Min. 100MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,200 Vrms for 1 min. (Detection current: 10 mA)
2,500 Vrms for 1 min. (Detection current: 10 mA)
—
Max. 20 ms (excluding contact bounce time.)
Max. 10 ms (excluding contact bounce time) (Without diode)
Min. 98 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
Min. 980 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 2 mm
Min. 1×10
7
N.O.: Min. 1×10
5
(20A 277V AC at resistive load)
Min. 1×10
5
(20A 277V AC at resistive load)
N.C.: Min. 1×10
5
(10A 277V AC at resistive load)
Ambient temperature: –55°C to +85°C
–67°F to +185°F,
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at nominal switching capacity)
PCB type: Approx. 25 g
.88 oz
TMP type: Approx. 30 g
1.06 oz
Rating
Electrical
characteristics
Conditions
Unit weight
Conditions for operation, transport and storage*
4
Max. operating speed
* Specifications will vary with foreign standards certification ratings.
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2×50µs
according to JEC-212-1981
*3. In order to obtain the full rated life cycles, the relay should be properly vented by removing the vent nib. More detail, please look at caution for NOTES.
*4. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
ASCTB187E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
JT-N
REFERENCE DATA
1. Change of rate of pick-up and drop-out
voltage (at 20°C
68°F)
Sample: JTN1S-TMP-F-DC24V (6 pcs.)
Rate of
change, %
40
30
20
Time, ms
20
Operate time
Drop-out voltage
2. Operate & release time (at 20°C
68°F)
Sample: JTN1S-TMP-F-DC24V (6 pcs.)
3. Operate & release time (at 20°C
68°F)
Sample: JTN1aS-PA-F-DC24V (6 pcs.)
Operate/release time, ms
20
10
Pick-up voltage
–55 –35 –15 5 25 45 65 85 105
–67 –31 +5 +41
+113+149+185+221
+77
Ambient
–10
temperature,
°C
°F
–20
–30
–40
Operate time
10
Max.
Min.
Release time
0
80
Max.
Min.
10
Release time
Max.
Min.
Max.
Min.
110
120
0
80
90
100
Coil applied voltage,%V
90
100 110 120
Coil applied voltage,%V
4. Distribution frequency of pick-up voltage
(at 20°C
68°F)
Sample: JTN1S-TMP-F-DC12V (30 pcs.)
15
Distribution frequency
5. Distribution frequency of drop-out voltage
(at 20°C
68°F)
Sample: JTN1S-TMP-F-DC12V (30 pcs.)
15
Distribution frequency
6.-(1) Coil temperature rise (TMP type)*
Ambient temperature: 20°C
68°F
Sample: JTN1aS-TMP-F-DC12V (6 pcs.)
80
Temperature rise,
°C
20 A
60
10 A
40
10
10
5
5
20
0
7.3 7.5 7.7 7.9 8.1 8.3 8.5
Pick-up voltage, V
0
3 3.2 3.4 3.6 3.8 4.0 4.2
Drop-out voltage, V
0
0
80
100
120
140
Coil applied voltage,%V
* Coil temperature rise of sealed types are same as
data of the dust cover type.
Ambient temperature: 55°C
131°F
Sample: JTN1aS-TMP-F-DC12V (6 pcs.)
Ambient temperature: 85°C
185°F
Sample: JTN1aS-TMP-F-DC12V (6 pcs.)
Ambient temperature: 105°C
221°F
Sample: JTN1aS-TMP-F-DC12V (6 pcs.)
80
Temperature rise,
°C
Temperature rise,
°C
20 A
60
10 A
40
80
20 A
60
10 A
40
Temperature rise,
°C
80
60
20 A
40
10 A
20
20
20
0
0
80
100
120
140
0
0
80
100
120
140
0
0
80
100
120
140
Coil applied voltage,%V
Coil applied voltage,%V
Coil applied voltage,%V
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB187E 201202-T
JT-N

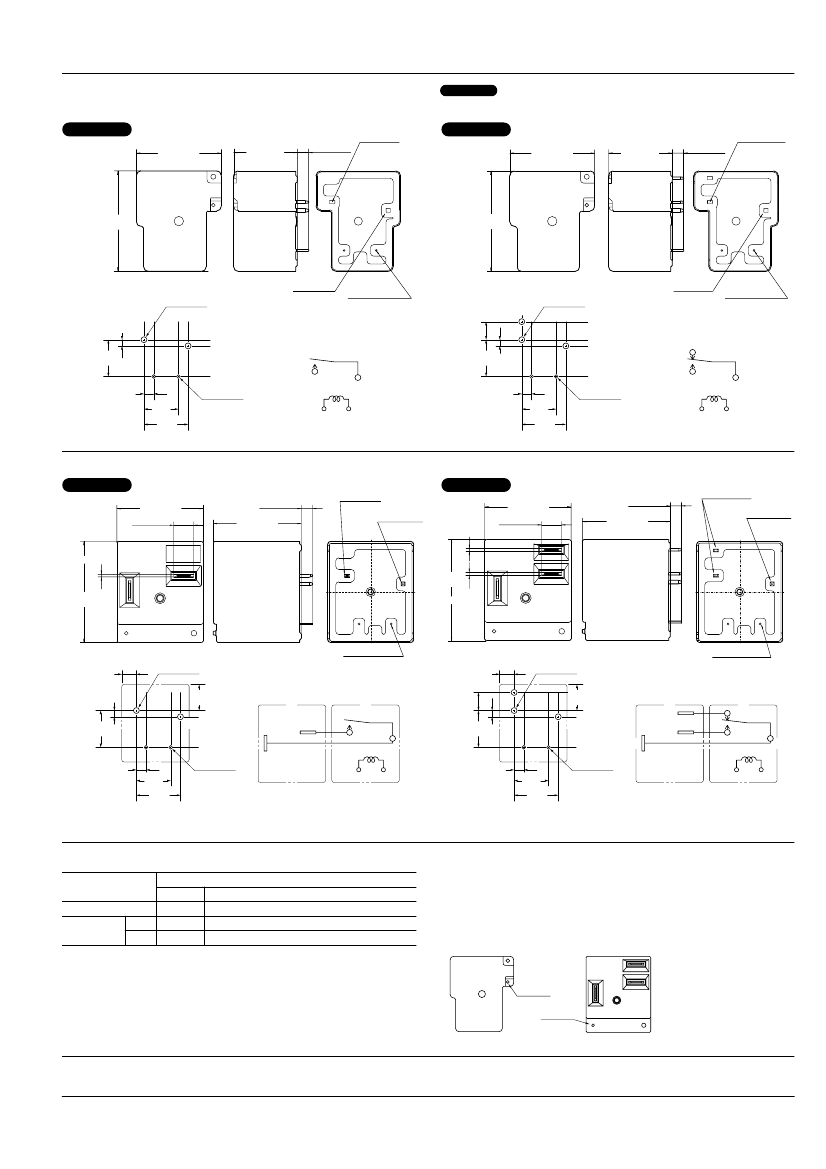

DIMENSIONS
(mm
inch)
1. PCB type
CAD Data
1 Form A
26.9±0.6
1.059±.024
20.2±0.6
.795±.024
3.6±0.5
.142±.020
Terminals
0.8×1.6
.031×.063
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
CAD Data
1 Form C
26.9±0.6
1.059±.024
20.2±0.6
.795±.024
3.6±0.5
.142±.020
Terminals
2-0.8×1.6
2-.031×.063
31.9±0.6
1.256±.024
31.9±0.6
1.256±.024
PC board pattern (Bottom view)
2-2.1 dia.
2-.083 dia.
2.54
.100
15.24
.600
Terminal
1.14×1.14
.045×.045
Coil Terminals
2-0.6 dia.
2-.024 dia.
PC board pattern (Bottom view)
3-2.1 dia.
3-.083 dia.
7.62
.300
15.24 2.54
.600 .100
Terminal
1.14×1.14
.045×.045
Coil Terminals
2-0.6 dia.
2-.024 dia.
Schematic (Bottom view)
Schematic (Bottom view)
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
Tolerance:
±0.1
±.004
2. TMP type
CAD Data
1 Form A
27.4±0.6
1.079±.024
6.35±0.1
.250±.004
NC
NO
CAD Data
3.6±0.5
.142±.020
27.9±0.6
1.096±.024
Terminals
0.8×1.6
.031×.063
Terminal
1.14×1.14
.045×.045
1 Form C
0.8±0.1
.031±.004
27.4±0.6
1.079±.024
6.35±0.1
.250±.004
NC
NO
3.6±0.5
.142±.020
27.9±0.6
1.096±.024
Terminals
2-0.8×1.6
2-.031×.063
Terminal
1.14×1.14
.045×.045
0.8±0.1
.031±.004
32.2±0.6
1.268±.024
COM
32.2±0.6
1.268±.024
0.8±0.1
.031±.004
COM
PC board pattern (Bottom view)
6.20±0.5
.244±.020
2.54
.100
15.24
.600
COM
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
2-2.1 dia.
2-.083 dia.
10.93±0.5
.430±.020
Coil Terminals
2-0.6 dia.
2-.024 dia.
PC board pattern (Bottom view)
6.20±0.5
.244±.020
7.62
.300
15.24 2.54
.600 .100
COM
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
3-2.1 dia.
3-.083 dia.
10.93±0.5
.430±.020
N.C.
Coil Terminals
2-0.6 dia.
2-.024 dia.
Schematic
N.O.
Schematic
N.O.
(Top view)
(Bottom view)
(Top view)
(Bottom view)
Tolerance:
±0.1
±.004
SAFETY STANDARDS
Item
1 Form A
1 Form C
N.O.
N.C.
File No.
E43028
E43028
E43028
UL/C-UL (Recognized)
Contact rating
30A 277V AC, 30A 28V DC, 2HP 250V AC
20A 277V AC, 20A 28V DC, 2HP 250V AC
10A 277V AC, 10A 28V DC,
1
/
2
HP 250V AC
NOTES
1. Electrical life
In order to obtain the full rated life cycles, the relay should be
properly vented by removing the vent nib after the soldering/
washing process.
• PCB type
• TMP type
NC
* CSA standard: Certified by C-UL
NO
Vent Nib
Vent Nib
For Cautions for Use.
ASCTB187E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
COM
