SX (ASX)
HIGH SENSIBILITY RELAY
WITH GUARANTEED
LOW LEVEL SWITCHING
CAPACITY
SX RELAYS (ASX)
3. Low thermal electromotive force
Reducing the heat from the coil
enables a thermal electromotive force
of 3
µV
or less.
FEATURES
1. High contact reliability over a long
life has been made possible for low
level loads.
Using a low level load (1 mV 10µA to
10 V 10 mA) 10
7
operations were
achieved with a static contact
resistance of Max. 100 mΩ (voltage
drop of 20 mV, 1 mA, 1 kHz) and a
dynamic contact resistance of Max.
1
Ω
(Measurement delay 10 ms,
voltage drop of 20 mV, 1 mA, 1 kHz).
2. High sensibility of 50 mW
By using the highly efficient polar
magnetic circuit “seesaw balance
armature mechanism”, a rated power
consumption of 50 mW (for single side
stable type) has been achieved.
TYPICAL APPLICATIONS
This relay will be used for the low level
load for measuring instruments or others
where a stable contact resistance is
required.
Compliance with RoHS Directive
ORDERING INFORMATION
ASX 2
Contact arrangement
2: 2 Form C
Operating function
0: Single side stable
1: 1 coil latching
2: 2 coil latching
Type of operation
0: Standard type (B.B.M.)
Terminal shape
Nil: Standard PC board terminal
A: Surface-mount terminal (A type)
Nominal coil voltage (DC)
1H: 1.5V 03: 3V 4H: 4.5V 06: 6V 09: 9V
12: 12V 24: 24V
Packing style
Nil: Tube packing
X: Tape and reel packing (picked from 1/3/4/5 pin side)
Z: Tape and reel packing (picked from 8/9/10/12 pin side)
0
TYPES
1. Standard PC board terminal
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
ASX2001H
ASX20003
ASX2004H
ASX20006
ASX20009
ASX20012
ASX20024
1 coil latching
Part No.
ASX2101H
ASX21003
ASX2104H
ASX21006
ASX21009
ASX21012
ASX21024
2 coil latching
Part No.
ASX2201H
ASX22003
ASX2204H
ASX22006
ASX22009
ASX22012
ASX22024
2 Form C
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
SX (ASX)
2. Surface-mount terminal
1) Tube packing
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
2 Form C
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
ASX200A1H
ASX200A03
ASX200A4H
ASX200A06
ASX200A09
ASX200A12
ASX200A24
1 coil latching
Part No.
ASX210A1H
ASX210A03
ASX210A4H
ASX210A06
ASX210A09
ASX210A12
ASX210A24
2 coil latching
Part No.
ASX220A1H
ASX220A03
ASX220A4H
ASX220A06
ASX220A09
ASX220A12
ASX220A24
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
2) Tape and reel packing
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
2 Form C
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
ASX200A1HZ
ASX200A03Z
ASX200A4HZ
ASX200A06Z
ASX200A09Z
ASX200A12Z
ASX200A24Z
1 coil latching
Part No.
ASX210A1HZ
ASX210A03Z
ASX210A4HZ
ASX210A06Z
ASX210A09Z
ASX210A12Z
ASX210A24Z
2 coil latching
Part No.
ASX220A1HZ
ASX220A03Z
ASX220A4HZ
ASX220A06Z
ASX220A09Z
ASX220A12Z
ASX220A24Z
Standard packing: Tape and reel: 500 pcs.; Case: 1,000 pcs.
Note: Tape and reel packing symbol “-Z” is not marked on the relay. “X” type tape and reel packing (picked from 1/3/4/5-pin side) is also available.
RATING
1. Coil data
1) Single side stable type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
80%V or less of
nominal voltage*
(Initial)
10%V or more of
nominal voltage*
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
33.3mA
16.7mA
11.1mA
8.3mA
5.6mA
4.2mA
2.9mA
Coil resistance
[±10%] (at 20°C
68°F)
45Ω
180Ω
405Ω
720Ω
1,620Ω
2,880Ω
8,229Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
50mW
150%V of
nominal voltage
70mW
2) 1 coil latching type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
80%V or less of
nominal voltage*
(Initial)
80%V or less of
nominal voltage*
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
23.3mA
11.7mA
7.8mA
5.8mA
3.9mA
2.9mA
2.1mA
Coil resistance
[±10%] (at 20°C
68°F)
64.3Ω
257Ω
579Ω
1,029Ω
2,314Ω
4,114Ω
11,520Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
35mW
150%V of
nominal voltage
50mW
3) 2 coil latching type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
80%V or less of
nominal voltage*
(Initial)
80%V or less of
nominal voltage*
(Initial)
Set voltage
(at 20°C
68°F)
Reset voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
Set coil
Reset coil
46.7mA
23.3mA
15.6mA
11.7mA
7.8mA
5.8mA
6.3mA
46.7mA
23.3mA
15.6mA
11.7mA
7.8mA
5.8mA
6.3mA
Coil resistance
[±10%] (at 20°C
68°F)
Set coil
32.1Ω
129Ω
289Ω
514Ω
1,157Ω
2,057Ω
3,840Ω
Reset coil
32.1Ω
129Ω
289Ω
514Ω
1,157Ω
2,057Ω
3,840Ω
Nominal operating
power
Set coil
Reset coil
Max. applied voltage
(at 20°C
68°F)
70mW
70mW
150%V of
nominal voltage
150mW
150mW
*Pulse drive (JIS C 5442-1996)
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
SX (ASX)
2. Specifications
Characteristics
Item
Arrangement
Static contact resistance
(During initial and electric life tests)
Dynamic contact resistance
(During initial and electric life tests)
Contact material
Nominal switching capacity
Max. switching power
Max. switching voltage
Rating
Max. switching current
Min. switching capacity (Reference value)*
1
Nominal operating
power
Single side stable
1 coil latching
2 coil latching
Insulation resistance (Initial)
Breakdown voltage
(Initial)
Surge breakdown
voltage (Initial)
Between open contacts
Between contact and coil
Between contact sets
Between open contacts
Between contacts and coil
Electrical
characteristics
Specifications
2 Form C
Max. 100 mΩ (By voltage drop of 20 mV 1 mA [1kHz])
(By nominal switching capacity: No. of operations: 10
7
)
Max. 1
Ω
(By voltage drop of 20 mV 1 mA [1 kHz], Measurement delay 10 ms after applying
nominal coil voltage) (By nominal switching capacity: No. of operations: 10
7
)
Stationary contact: AgPd+Au clad Movable contact: AgPd
10 mA 10 V DC (resistive load)
0.1 W (resistive load)
10 V DC
10 mA DC
10
µA
1 mV DC
50mW (1.5 to 12 V DC), 70mW (24 V DC)
35mW (1.5 to 12 V DC), 50mW (24 V DC)
70mW (1.5 to 12 V DC), 150mW (24 V DC)
Min. 10,000MΩ (at 500V DC)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,500 V (10×160µs) (FCC Part 68)
2,500 V (2×10µs) (Telcordia)
Max. 50°C
(By resistive method, nominal coil voltage applied to the coil; contact carrying current:
10mA.)
Max. 5 ms [Max. 5 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.)
Max. 5 ms [Max. 5 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.) (without diode)
Min. 750 m/s
2
(Half-wave pulse of sine wave: 6 ms; detection time: 10µs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 5 mm
Min. 5
×
10
7
(at 750 cpm)
Min. 10
7
(10 mA 10 V DC resistive load) (at 750 cpm)
Max. 3µV (at nominal voltage applied to the coil)
Conditions for operation, transport and storage*
2
Max. operating speed (at rated load)
Unit weight
Ambient temperature: –40°C to +70°C
–40°F to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
750 cpm
Approx. 2 g
.071 oz
Contact
Temperature rise (at 20°C
68°F)
Operate time [Set time] (at 20°C
68°F)
Release time [Reset time] (at 20°C
68°F)
Functional
Destructive
Functional
Vibration resistance
Destructive
Mechanical
Electrical
Shock resistance
Mechanical
characteristics
Expected life
Thermal
electromotive force
Conditions
Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2 Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT.
REFERENCE DATA
1. Switching capacity range
2-(1). Change in dynamic contact resistance
(10 mA 10 V DC resistive load)
Tested sample: ASX20012, 10 pcs.
Operating speed: 750 cpm
Measured condition: 10 ms after applying nominal coil
voltage, using voltage drop of 20 mV, 1 mA, 1 kHz.
1.0
Contact resistance,
Ω
Contact resistance,
Ω
Max.
Min.
1,000
No. of operations,
×
10
4
0.9
Contact current
0.8
0.7
0.6
0.5
0.4
0.3
0.2
10µA
1mV
10V
Contact voltage
0.1
0
0
2-(2). Change in dynamic contact resistance
(10
µA
1 mV DC resistive load)
Tested sample: ASX20012, 10 pcs.
Operating speed: 750 cpm
Measured condition: 10 ms after applying nominal coil
voltage, using voltage drop of 20 mV, 1 mA, 1 kHz.
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
Max.
Min.
2,000
10mA
1,000
No. of operations,
×
10
4
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
SX (ASX)

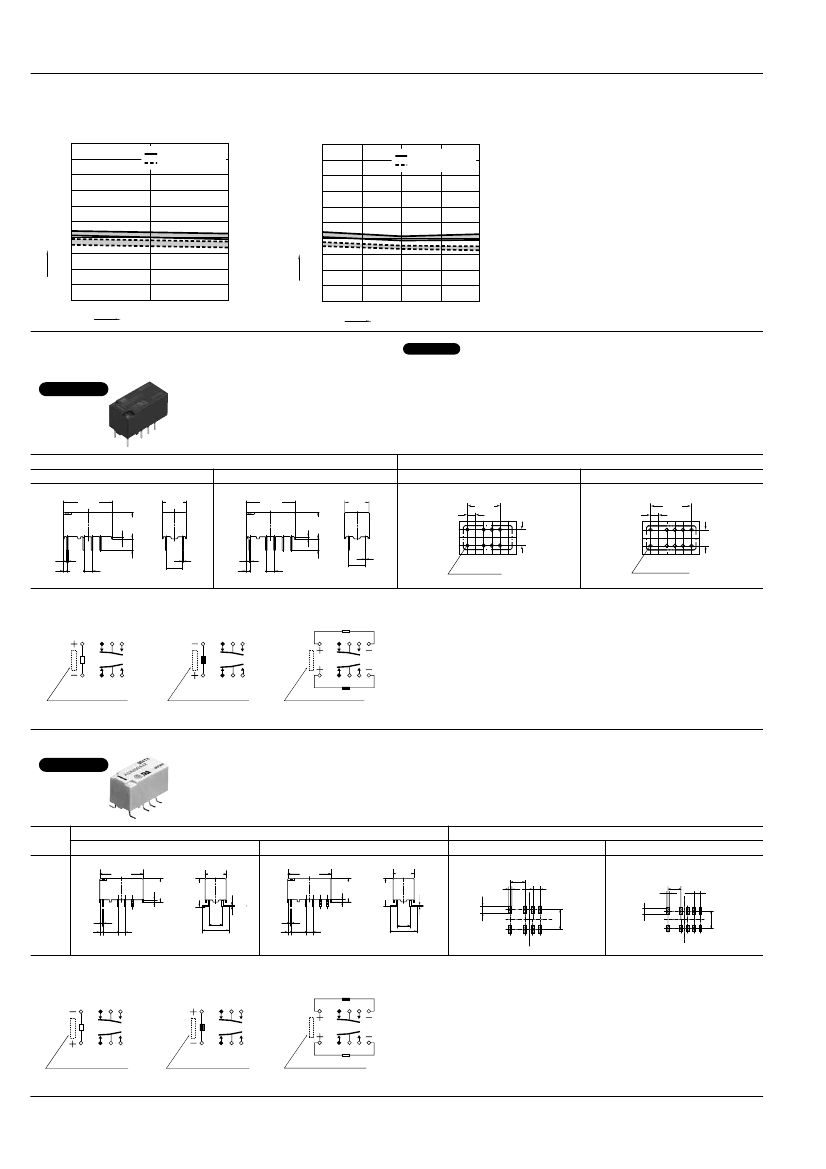

3-(1). Change in static contact resistance
(10 mA 10 V DC resistive load)
Tested sample: ASX20012, 10 pcs.
Operating speed: 750 cpm
100
Contact resistance, mΩ
90
80
70
60
50
40
30
20
10
0
0
No. of operations,
×
10
4
3-(2). Change in static contact resistance
(10
µA
1 mV DC resistive load)
Tested sample: ASX20012, 10 pcs.
Operating speed: 750 cpm
100
Contact resistance, mΩ
N.C. side contact
N.O. side contact
N.C. side contact
N.O. side contact
90
80
70
60
50
40
30
20
10
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
1,000
0
0
1,000
No. of operations,
×
10
4
2,000
DIMENSIONS
(mm
inch)
1. Standard PC board terminal
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac
External dimensions (General tolerance:
±0.3
±.012)
Single side stable/1 coil latching
2 coil latching
15.0
.591
0.65 8.2
.026 .323
0.5
.020
1.15
.045
0.25
.010
5.08
.200
0.5
.020
1.15
.045
7.4
.291
15.0
.591
0.65 8.2
.026 .323
0.25
.010
5.08
.200
7.4
.291
PC board pattern (Tolerance:
±0.1
±.004)
Single side stable/1 coil latching
2 coil latching
2.54
.100
10.16
.400
5.08
.200
8-1.0 dia.
8-.039 dia.
10-1.0 dia.
10-.039 dia.
12.7
.500
5.08
.200
2.54
.100
5.08
.200
2.54
.100
3.5
.138
5.08
.200
2.54
.100
3.5
.138
Schematic (Bottom view)
Single side stable
1
3 4 5
1 coil latching
1
3 4 5
2 coil latching
1
3 4 5 6
12
10 9 8
12
10 9 8
12
10 9 8 7
Direction indication
Direction indication
Direction indication
(Deenergized condition)
(Reset condition)
(Reset condition)
2. Surface-mount terminal
CAD Data
Type
External dimensions (General tolerance:
±0.3
±.012)
Single side stable/1 coil latching
2 coil latching
15.0
.591
8.2 Max.10.0
.323
.394
7.4
.291
15.0
.591
8.2 Max.10.0
.323
.394
5.08
.200
9.4±0.5
.370±.020
0.25
.010
0.5
.020
1.15
.045
0.65
.026
5.08
.200
2.54
.100
5.08
.200
9.4±0.5
.370±.020
0.25
.010
7.4
.291
Suggested mounting pad (Tolerance:
±0.1
±.004)
Single side stable/1 coil latching
2 coil latching
5.08
.200
1.0
.039
2.54
.100
7.24
.285
1.0
.039
5.08
.200
2.54
.100
7.24
.285
A type
0.5
.020
1.15
.045
5.08
.200
0.65
.026
2.54
.100
3.16
.124
3.16
.124
Schematic (Top view)
Single side stable
12
10 9 8
1 coil latching
12
10 9 8
2 coil latching
12
10 9 8 7
1
3 4 5
1
3 4 5
1
3 4 5 6
Direction indication
Direction indication
Direction indication
(Deenergized condition)
(Reset condition)
(Reset condition)
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
SX (ASX)
NOTES
1. Packing style
1) The relay is packed in a tube with the
relay orientation mark on the left side, as
shown in the figure below.
Orientation (indicates PIN No.1)stripe
Stopper (gray)
Stopper (green)
2. Automatic insertion
To maintain the internal function of the
relay, the chucking pressure should not
exceed the values below.
Chucking pressure in the direction A:
4.9 N {500gf} or less
Chucking pressure in the direction B:
9.8 N {1 kgf} or less
Chucking pressure in the direction C:
9.8 N {1 kgf} or less
A
C
B
2) Tape and reel packing
(A type)
(1) Tape dimensions
+0.1
0
Relay polarity bar 1.5
+.004
dia.
.059
0
dia.
2.0
(Z type)
.079
mm
inch
1.75
.069
11.5
.453
15.5
.610
4.0
.157
0.4
.016
SX relays
10.0
.394
Tape coming out direction
16.0
.630
24.0
±0.3
.945
±.012
±0.2
10.8
±.008
.425
(2) Dimensions of plastic reel
mm
inch
Please chuck the
portion.
Avoid chucking the center of the relay.
In addition, excessive chucking pressure
to the pinpoint of the relay should be
avoided.
For general cautions for use,
please refer to the “Cautions for
use of Signal Relays” or “General
Application Guidelines”.
2.0
.079
13 dia.
.512 dia.
21 dia.
.827 dia.
380 dia.
14.961 dia.
80 dia.
3.150 dia.
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
京公网安备 11010802033920号
EEWORLD
