48ASSP1S1V2QAT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 48ASSP1S1V2QAT

Preview

48ASSP1S1V2QAT: DescriptionSlide Switches Slide Switch, SPDT, ON-NONE-ON, right angle vertical mount, with tabs, RoHS Compliant; CategoryMechanical and electronic products switch; File Size342KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

48ASSP1S1V2QAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	48ASSP1S1V2QAT	-	-	View	Buy Now

48ASSP1S1V2QAT Overview

Slide Switches Slide Switch, SPDT, ON-NONE-ON, right angle vertical mount, with tabs, RoHS Compliant

48ASSP1S1V2QAT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
body width	8 mm
body height	8.9 mm
Body length or diameter	15.75 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Series 48A: Slide Switches

SerieS 48A

Slide Switches

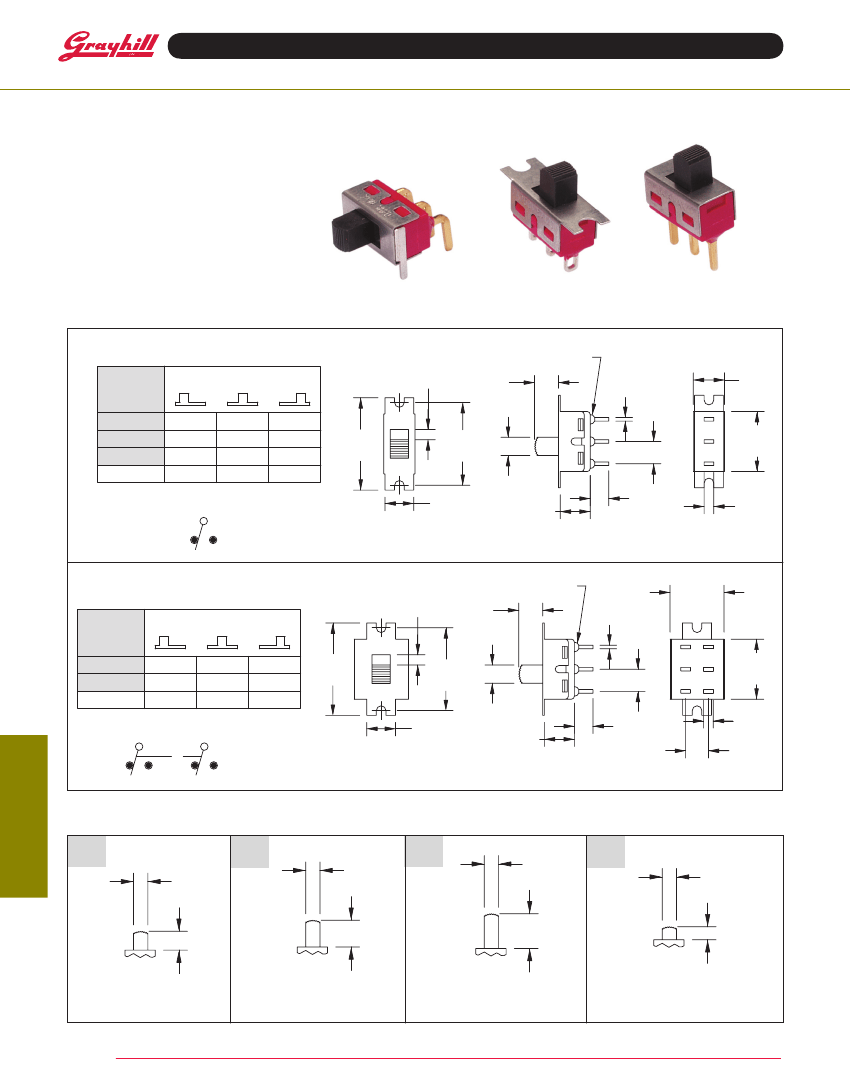

FeATUreS

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuations and

Terminations

ModelS

SPdT

in inches (and millimeters)

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.185

(4.70)

.260

(6.60)

3

2

1

MODEL

NO.

SSP1

SSP2

SSP3

TERM. COMM.

SWITCH POSITION

ON

2-1

02COMM.

NONE

OFF

OPEN

ON

(ON)

ON

2-3

.770

(19.56)

.690

(17.53)

.152

(3.86)

.500

(12.70)

()=MOMENTARY

.240

(6.10)

.250

(6.35)

.155

(3.94)

.080

(2.03)

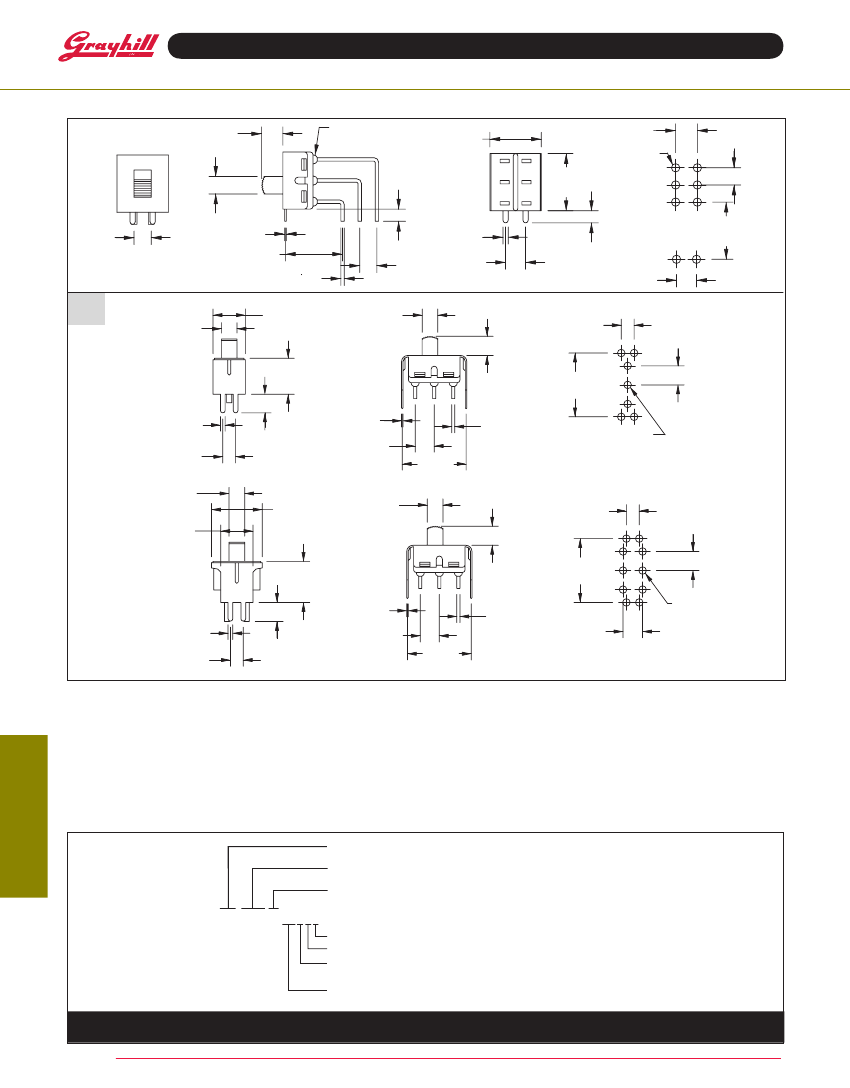

SCHEMATIC

dPdT

1

3

TRAVEL

.085

(2.16)

EPOXY SEAL

.200

(5.08)

.030

(0.76)

.450

(11.43)

.185

(4.70)

MODEL

NO.

SDP1

SDP3

TERM. COMM.

SWITCH POSITION

6

5

4

3

2

1

ON

2-1,5-4

ON

NONE

ON

OFF

OPEN 2-3,5-6

()=MOMENTARY

05COMM.

.770

(19.56)

.690

(17.53)

.152

(3.86)

.500

(12.70)

02COMM.

.240

(6.10)

.250

(6.35)

.155

(3.94)

.080

(2.03)

.190

(4.83)

1

Slide Switches

3

4

6

SCHEMATIC

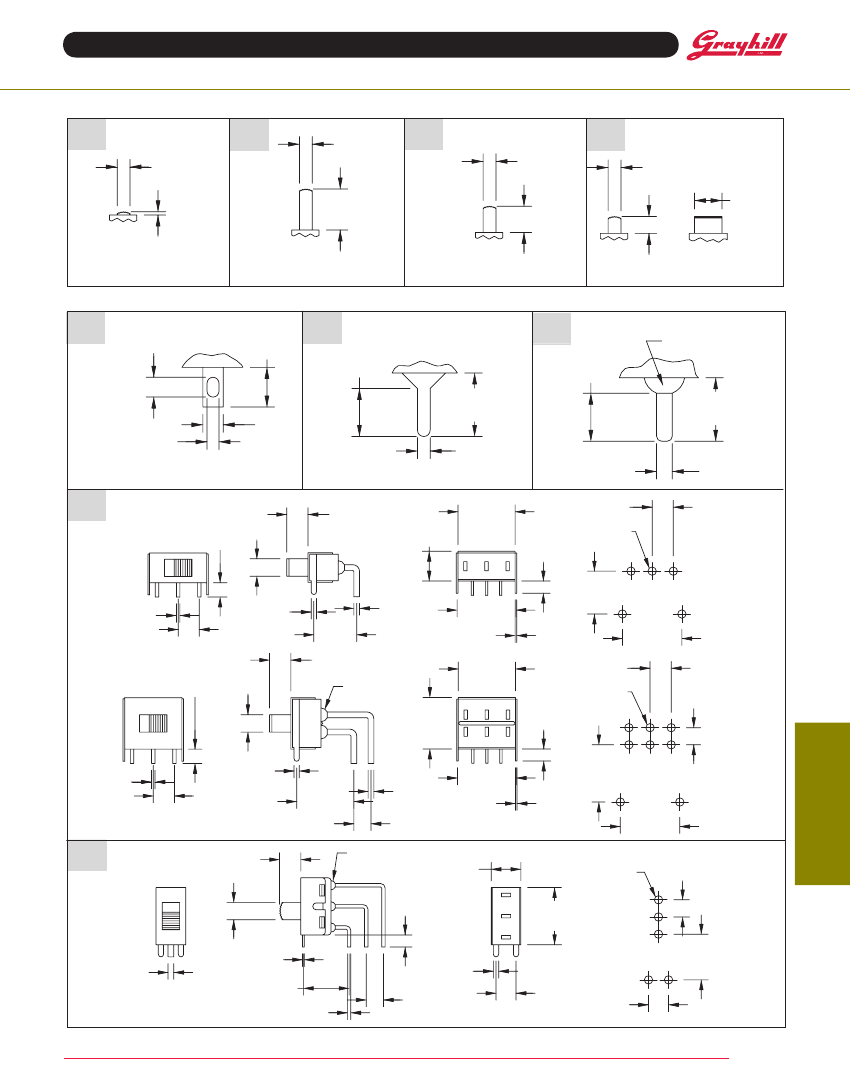

AcTUATor oPTioNS

S1

Std

in inches (and millimeters)

S2

S3

.152 SQ.

(3.86)

.152 SQ.

(3.86)

.152 SQ.

(3.86)

S4

.152 SQ.

(3.86)

.200

(5.08)

.285

(7.24)

.370

(9.40)

.140

(3.56)
